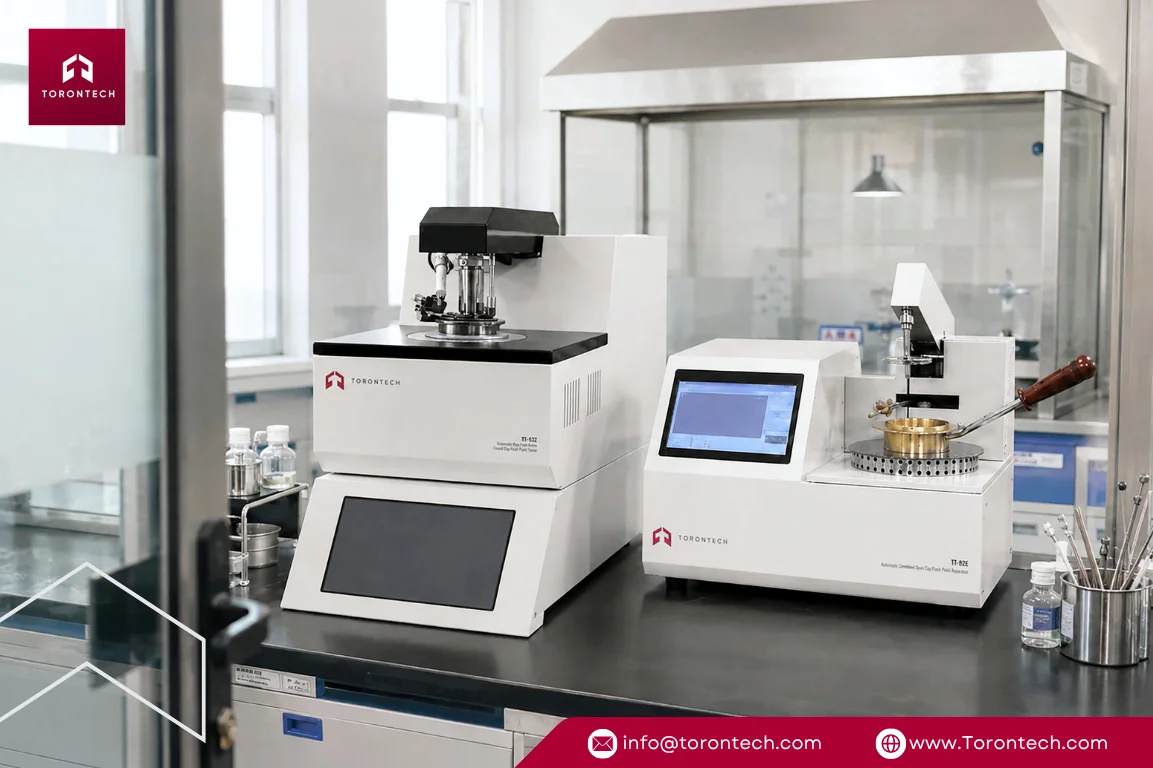

Closed Cup vs Open Cup Flash Point: Lab Selection Guide

Achieving flammability precision and regulatory compliance is straightforward when you pair fluid samples with the right testing equipment. Because flash points are apparatus-dependent variables, choosing between closed cup vs open cup flash point methods directly optimizes your accuracy, workplace safety, and testing productivity.

Review our comparison matrix below to instantly see whether flash point closed cup vs open cup hardware best serves your facility!

Direct Comparison: Flash Point Open Cup vs Closed Cup

When evaluating flash point open cup vs closed cup techniques for your laboratory bench, keep this high-level summary handy for instant decision-making:

Detailed Method Comparison: Closed Cup vs. Open Cup

Historically, testing instrumentation has converged from diverse open, semi-closed, and closed designs toward these two principal cup types, with closed-cup methods favored worldwide for safety-critical and transport applications.

The primary mechanical distinction between methods boils down to vapor containment during heating. In a closed-cup tester, the vessel is sealed between ignition attempts, trapping flammable vapors in the headspace. In an open-cup tester, the liquid surface remains exposed to ambient air, allowing volatile vapors to disperse continuously into the surrounding room.

Because trapped vapors accumulate and reach ignitable concentrations at lower liquid temperatures, closed-cup apparatuses yield systematically lower, more conservative flash point readings (typically 5°C to 10°C lower for most petroleum liquids, though multi-component or halogenated mixtures can show larger deviations up to 20°C) on the exact same liquid sample. We consider this variance a major factor when drafting material safety documentation and shipping hazard labels.

1. Closed Cup Flash Point Testing

In closed-cup hardware, the sample heats up inside a sealed cup while an internal paddle stirs the liquid (standard for Pensky-Martens models).

Closed-cup methods demonstrate significantly tighter precision and interlaboratory repeatability across peer-reviewed studies. Closed-cup testing is also specifically preferred for volatile liquids, such as alcohol solutions, because the confined headspace captures volatile escaping vapors that open-cup methods lose.

Key Advantages:

• Superior Statistical Precision: Closed-cup tests deliver tight repeatability metrics with minimal interference from ambient laboratory airflow.
• Mimics Sealed Storage: Accurately reflects real-world conditions inside cargo drums, storage tanks, pipelines, and shipping containers.
• Global Regulatory Standard: Serves as the primary worldwide benchmark for defining flammable and combustible materials in transport codes.


ASTM D93 / ISO 2719 (Pensky-Martens Closed Cup): Fuel & Winter Diesel Certification

ASTM D93 stands as the primary benchmark standard for diesel fuel, biodiesel, engine oil, and heavy fuel oil. At a 95% confidence level, ASTM D93 exhibits repeatability of 0.032X °C and reproducibility of 0.073X °C, where X is the flash point value. Across Canada and the northern United States, ASTM D93 is critical for verifying low-temperature winter-grade diesel and kerosene blends to ensure cold-weather fluid stability.

Equipment options for this methodology range from manual units like the Manual Pensky-Martens TT-93 to fully automated systems like the Automatic Pensky-Martens TT-93Z or advanced series like the ToronFPT™ CC featuring integrated Inert Gas Suppression.

ASTM D56 (Tag Closed Cup): Aviation Fuel & Volatile Solvents

Built specifically for thin, free-flowing fluids flashing under 93°C (200°F), ASTM D56 demonstrates repeatability of 1.1–1.4 °C and reproducibility of 4.1–5.8 °C. This standard is widely applied across North American aviation hubs for certifying Jet A and Jet A-1 turbine fuels, routinely evaluated using fully automated systems like the Automatic Tag Closed Cup TT-56Z.

ISO 13736 / IP 170 (Abel Closed Cup): International Solvents & Chemical Standards

ISO 13736 is applied across Europe, Asia, and global chemical supply chains for testing fuels and solvents sitting between -30°C and 70°C. For laboratories running these international trade specifications, testing is typically executed via dedicated instruments like the Automatic Abel Closed Cup TT-170Z.

2. Open Cup Flash Point Testing

With open-cup tests, your fluid heats up in a cup exposed to surrounding room air. Because volatile vapors float off freely, open-cup results deviate further from thermodynamic equilibrium conditions. In fact, thermodynamic prediction models show deviations of 1.11–12.55 °C for open-cup tests versus just 0.18–1.25 °C for closed-cup setups.

Additionally, open-cup flash points vary depending on ignition position across the liquid surface, as local vapor concentration gradients produce different readings depending on where the test flame passes. Furthermore, open-cup methods can underestimate fire hazards for halogenated mixtures, where unexpected flash point increases or anomalous ignitions outside the vessel go undetected.

Key Advantages:

• Measures Both Flash and Fire Points: Open-cup hardware allows operators to continue heating past the initial flash to identify the true fire point (the precise temperature where the sample sustains combustion for at least 5 seconds).
• Performs Exceptionally on Heavy Oils: Operates reliably on thick base oils, greases, road asphalt, and transformer fluids.
• Simulates Open Processing Operations: Replicates open industrial equipment, engine crankcases, and hot liquid reservoirs.


ASTM D92 / ISO 2592 (Cleveland Open Cup): High-Temp Lubricants & Heavy Distillates

ASTM D92 is the primary benchmark for evaluating flash and fire points on thick oils and industrial fluids flashing above 79°C (175°F). Interlaboratory data shows Cleveland open-cup tests exhibit wider scatter, with repeatability of 4 °C (manual) to 8 °C (automatic) and reproducibility of 13 °C (manual) to 18 °C (automatic).

Across the Alberta Oil Sands, Texas Permian Basin, and US Gulf Coast refining corridors, ASTM D92 is heavily utilized to evaluate thermal stability during heavy crude, bitumen, and synthetic crude extraction. To address these high-temperature requirements safely, laboratories select setups ranging from entry-level options like the Manual Cleveland Open Cup TT-92 to automated units like the Automatic Cleveland Open Cup TT-92Z or TT-92E.

For high-temp lubricant testing, safety-augmented systems like the ToronFPT™ OC-FS (Active Fire Suppression) and ToronFPT™ OC-DS (Dual Fire Suppression) provide extra protection against thermal accidents.

Method Selection by Industry & Sample Type

Standard operating protocols dictate most testing routines, but we regularly work with teams testing custom formulations, alcohol solutions, or recycled waste blends. In those scenarios, selecting your tool comes down to matching your fluid with the right industry requirement, North American regulatory framework, and equipment configuration:

Risk Mitigation and Laboratory Safety Considerations

Testing flammability inherently carries operational risks. Modern refinery safety regulations actively discourage open-flame testing near highly flammable petroleum samples, driving the adoption of continuously closed-cup instruments with electric arc ignition that reduce operational risk and sample volume.

Across North American industrial laboratories, compliance with OSHA 1910.106 and NFPA 30 (Flammable and Combustible Liquids Code) in the United States, as well as Health Canada's WHMIS guidelines and CCOHS workplace standards in Canada, requires strict controls over indoor vapor accumulation and fire hazards.

Maintaining a safe testing workspace requires identifying key safety risk points:

• Uncontrolled Overheating: Manual heating dependent on operator observation risks overshooting target temperatures, creating fire hazards.
• Hazardous Vapor Accumulation: Open-cup runs release volatile vapors directly into ambient room air, requiring active exhaust ventilation.
• Open Flame Risks: Traditional gas burners carry persistent fire hazards near flammable vapors. Modern automated systems utilize electric arc ignition or automated gas valves that activate only during brief test passes.
• Accidental Sample Ignition: High-volume laboratories evaluating unknown samples require automatic fire detection and built-in flame suppression to stop fires during unattended runs. This is precisely why specialized options like the ToronFPT™ CC-SC (Smart Cooling with Inert Gas Suppression) and ToronFPT™ OC-DS (Dual Fire Suppression) feature active flame-out protection, over-temperature shutoffs, and solvent-resistant seals.


Manual vs. Automated Testers: ROI & Total Cost of Ownership (TCO)

When evaluating fresh analytical hardware, balancing initial equipment cost against ongoing staff hours is vital. Entry-level manual testers (such as the Manual Cleveland TT-92 or Manual Pensky-Martens TT-93) offer lower initial capital spend for field operations or low-volume work.

However, in high-cost North American labor markets where technician wages average $35 to $50 per hour or more, we firmly believe that the modest initial savings of a manual unit are swiftly absorbed by high technician labor hours and costly re-testing.

Key TCO Comparison Factors:

• Staff Productivity ("Walk-Away" Testing): Manual testing forces a technician to monitor temperature rise and sweep the ignition source every 1°C to 2°C. Automated units (like the TT-93Z or TT-92Z) allow technicians to press "Start" and execute other laboratory tasks, reducing active labor costs per test by up to 75%.
• Faster Cooling & Higher Throughput: Manual cups require lengthy cooling periods between tests. Automated units equipped with active Smart Cooling modules (such as the ToronFPT™ CC-SC) chill sample cups quickly, allowing you to run up to 50% more samples per shift.
• Elimination of Calculation Errors: Automated pressure sensors calculate corrected flash values in real time, eliminating human calculation mistakes, re-testing costs, and compliance audit flags.


Upgrade Your Flash Point Testing with Torontech

Selecting the ideal flash point analyzer should never require balancing precision against your budget. Headquartered in North America, Torontech delivers testing instruments that combine cost-effective pricing with innovative technologies.

From fully automated closed-cup and open-cup systems to durable manual benchtop units, our portfolio supports all major ASTM, ISO, and IP standards while built-in safety features protect your facility.

Explore Torontech’s Flash Point Testing Lineup or Contact Our Engineering Team today to request a quote and see how our innovative testing solutions can optimize your laboratory workflow.
