Wind Turbine Blade Recycling System - ToronWTB™
Wind Turbine Blade Recycling System (ToronWTB™) supports wind turbine recycling and disposal by converting decommissioned, pre-cut blade sections into separated fiber, fine powder, and recovered material ready for reuse. Composite recyclers, wind farm decommissioning contractors, and downstream product manufacturers use it to process the glass fiber reinforced polymer (GFRP) structure that makes wind turbine blades difficult to handle by conventional shredding equipment. Torontech built the ToronWTB™ around a feeding, crushing, sorting, fine shredding, and grinding sequence that runs as one connected line.

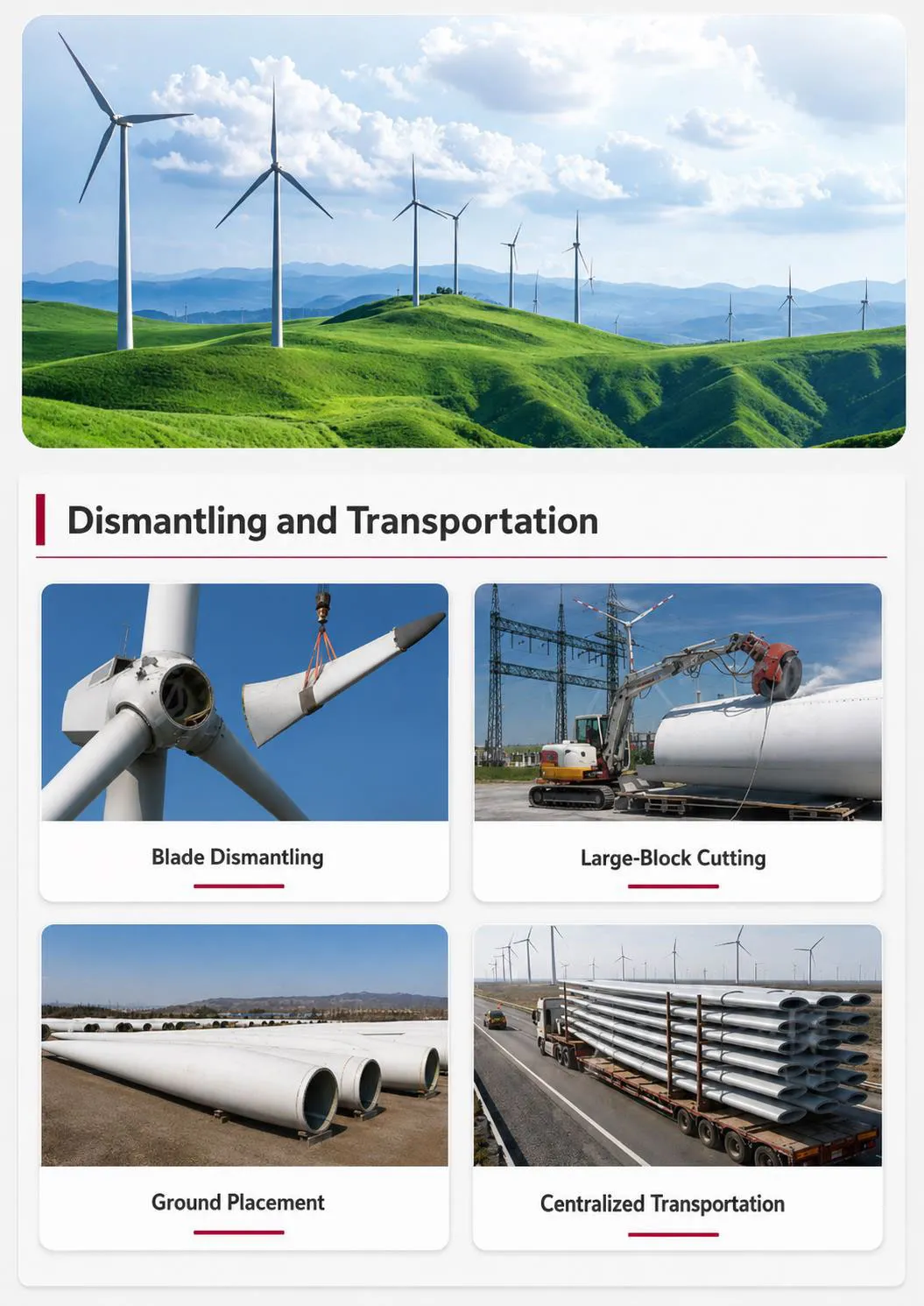

Blade sections arrive already cut into blocky pieces from an upstream dismantling and large-block cutting stage, then enter the ToronWTB™ through the feeding system and chain conveyor into the crushing system for primary size reduction. Magnetic separation and sorting remove metal and separate the material into fiber and small block fractions, which then pass through the fine shredding and grinding stages to produce fiber and powder output down to 40 or 80 mesh.
The line runs under negative pressure dust removal, with an intelligent fire protection system, noise reduction measures, and intelligent operation and maintenance monitoring built in. This combination addresses the particular hazards of processing glass fiber and resin composite material, which generates fine, potentially combustible dust during grinding.
Applications
The ToronWTB™ serves operations that need to convert decommissioned wind turbine blades into reusable fiber, powder, or feedstock rather than sending them to landfill.
- Wind Farm Decommissioning: processes blade sections removed during turbine repowering or end-of-life decommissioning projects
- GFRP and Composite Recycling Facilities: shreds and grinds fiberglass reinforced polymer waste from blades, panels, tanks, and pipes into a processable form
- Wood-Plastic Composite (WPC) Manufacturing: supplies ground fiber material as feedstock for WPC board production
- Construction Product Manufacturing: supplies recovered fiber and powder for products such as drainage channels, anti-glare boards, manhole covers, and pallets
- Balsa Core Material Recovery: separates and recovers balsa wood core material from the sandwich structure of blade sections
Theory and Method

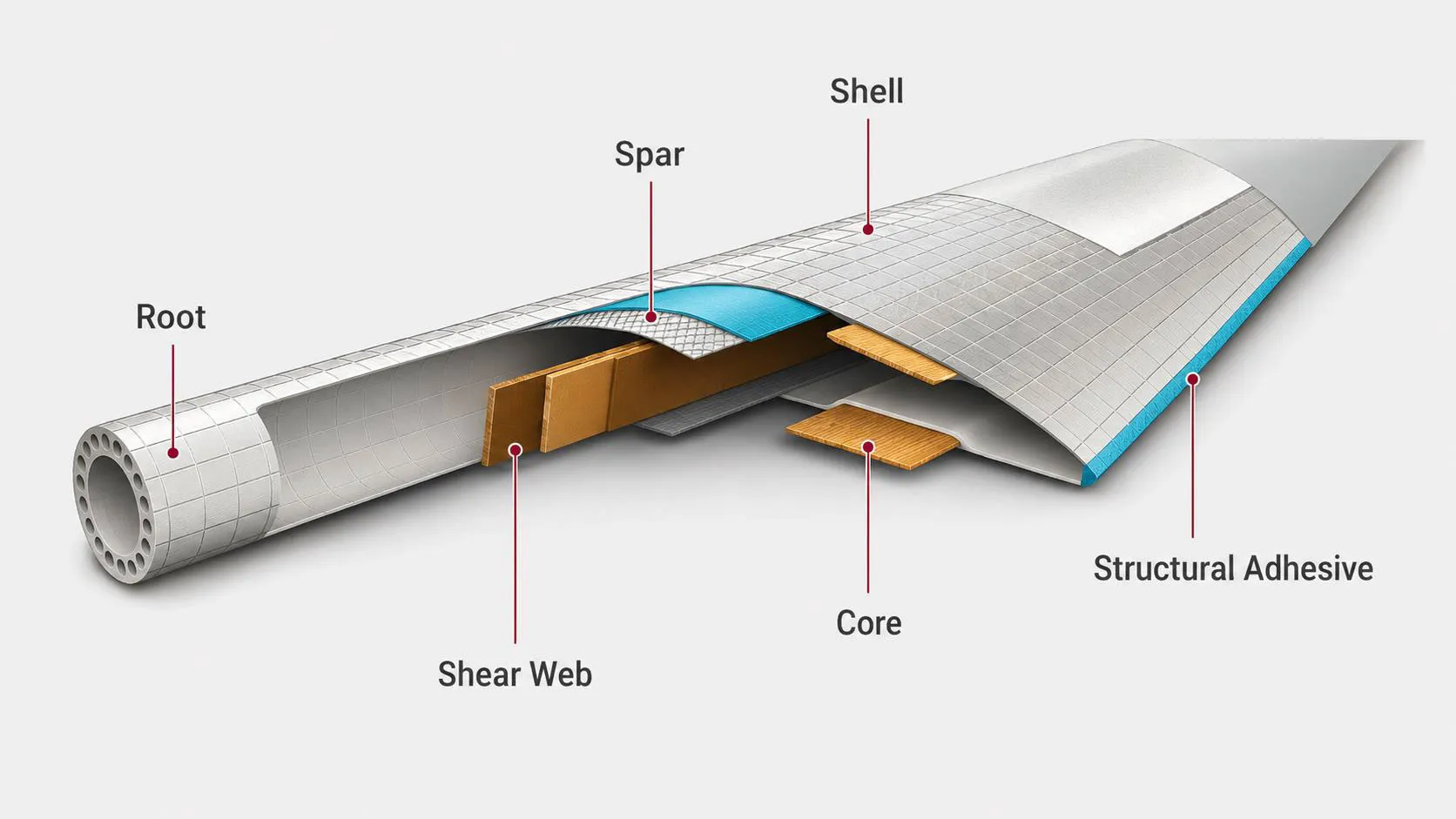

Wind turbine blades are difficult to shred because they are built as a composite sandwich structure rather than a uniform material. The outer shell and the spar, the main structural beam running the length of the blade, are thick glass fiber laminates bonded with structural adhesive, while the interior uses a lightweight core material, typically balsa wood, sandwiched between fiber skins to add stiffness without adding weight. The root section, where the blade bolts to the hub, is the thickest and most heavily reinforced laminate on the blade. This mix of tough fiber laminate, soft core material, and adhesive bond lines means a single cutting or grinding action cannot process the whole cross-section efficiently.
The ToronWTB™ addresses this through staged size reduction rather than a single pass. The crushing system performs the initial coarse reduction on pre-cut blade blocks, breaking the laminate and core structure apart into smaller, more uniform pieces. The sorting system then separates the resulting material by type and size, so the fiber-rich laminate fraction and the softer core fraction can each move into the fine shredding and grinding stages that suit their material properties, rather than processing dissimilar materials together.
The fine system and grinding system reduce the sorted material further, down to a target particle size measured in mesh (40 or 80 mesh in this configuration). Grinding fiber composite material to this size releases short glass fibers from the resin matrix, producing a fiber and powder output that downstream manufacturers can blend into products like WPC board or use as filler material, rather than a bulky fragment that would need further processing before reuse.
Key Features
The ToronWTB™ combines coarse crushing, sorting, fine shredding, and grinding into a single line built for the specific challenge of composite blade material.
- Efficient Shredding: the crushing system reduces bulky pre-cut blade sections into manageable pieces without stalling on the mixed laminate and core structure
- Fine Output Grinding: the fine and grinding systems reduce material down to 40 or 80 mesh powder for use as manufacturing feedstock
- Fiber Separation: sorting and magnetic separation stages separate fiber-rich laminate material from core material and metal contamination
- Negative Pressure Dust Removal: contains fine glass fiber and resin dust generated during grinding, supporting a cleaner work environment
- Intelligent Fire Protection System: addresses the combustible dust risk associated with grinding glass fiber and resin composite material
- Environmental Noise Reduction System: reduces operational noise from the crushing and grinding stages
- Intelligent Operation and Maintenance System: monitors line operation to support continuous, low-intervention running
Technical Specifications
| Component | Description |
|---|---|
| Feeding | Feeding system with chain conveyor |
| Primary Reduction | Crushing system |
| Sorting | Sorting system (magnetic separation, fiber/block separation) |
| Secondary Reduction | Fine system (fine shredding) |
| Fine Grinding | Grinding system |
| Material Staging | Aggregation system |
| Dust Control | Negative pressure dust removal system |
| Fire Safety | Intelligent fire protection system |
| Noise Control | Environmental noise reduction system |

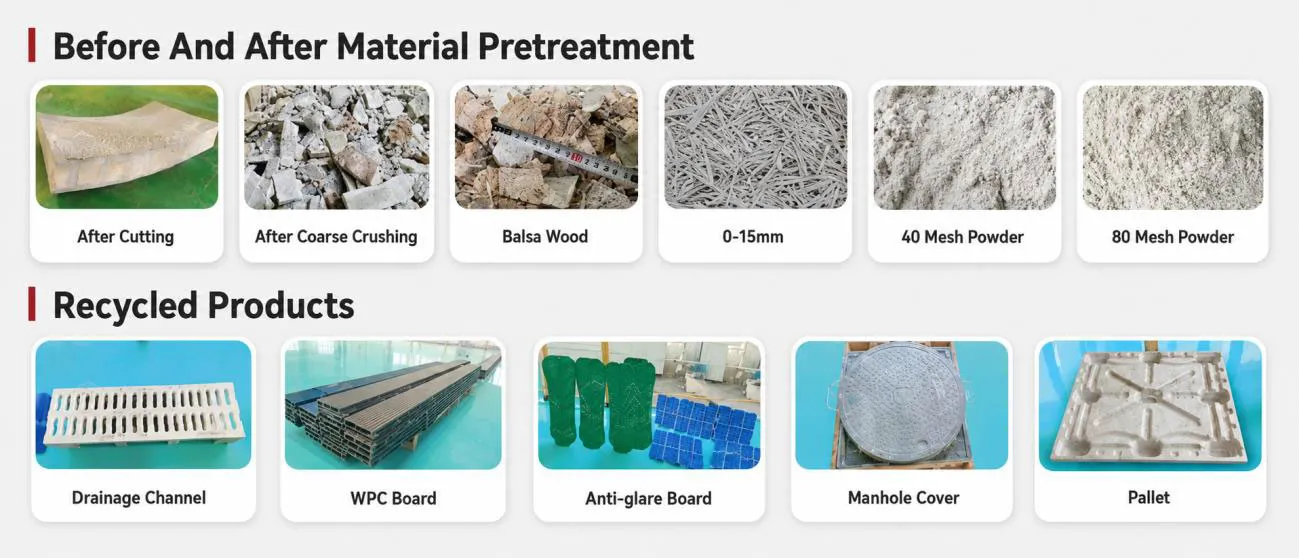

| Output Particle Sizes | 0-15 mm, 40 mesh powder, 80 mesh powder |
| Recovered Materials | Separated fiber, balsa wood core material, ground powder |
Tell us what you're processing, testing, or measuring, and our team will help you find the right configuration. Contact the Torontech team for pricing and lead times.
