Concrete Testing Equipment List: Complete Setup Guide
Building a dependable testing facility does not require buying the most complicated machinery on the market. Tying up capital in oversized frames that sit idle only strains your operational budget.
At Torontech, we supply cost-effective concrete testing equipment engineered to align with applicable ASTM, EN, ISO, BS, or AASHTO standards, delivering verified test data without excessive overhead.
This guide outlines how to configure a practical civil engineering concrete lab setup that matches hardware directly to your testing workload.
Key Takeaways
- Broad Standards Compliance: Instruments are engineered to meet applicable ASTM, EN, ISO, BS, or AASHTO test standards across fresh concrete, mechanical strength, and durability applications.
- Concrete and Multi-Material Strength: The TTC-Series determines compressive strength for concrete specimens, while the computer-controlled TT-CMT1000 Series Demo Unit tests cement, concrete, and rocks with a verified 1000 KN (225000 lb.f) capacity.
- Purpose-Built Precast Testing: The ToronCPTM 600 evaluates concrete pipe strength, and the ToronAAC 30 provides a structural performance test bench for autoclaved aerated concrete panels.
- Certified Durability Chambers: The ToronRFTC Series provides durability testing under ASTM C666, complemented by the ToronSFTC slow freeze-thaw chamber, core drills, length comparators, and permeability apparatus.
- Non-Destructive Structural Assessment: Rebound hammers and ultrasonic pulse velocity testers assess in-situ strength without causing physical damage to finished structures.
Equipment Requirements by Laboratory Application
Different testing facilities handle distinct operational demands. Rather than specifying identical hardware for every laboratory, instruments align directly with operational sectors explicitly documented across our catalog: ready-mix batch plants, cement testing operations, commercial construction laboratories, precast manufacturing, and university research facilities.
Ready-Mix Batch-Release Quality Control
For ready-mix producers running high-volume batch-release quality control, testing focuses on quantifying fresh concrete workability, verifying mix quality, and crushing specimens to determine ultimate strength. To fulfill standard ready mix lab equipment requirements, technicians use Slump Cones and Flow Tables to quantify the workability of fresh concrete.
In tandem, the Air Entrainment Meter measures the air content of fresh concrete and mortar to confirm mix quality, while the Density Apparatus provides density measurements to confirm overall mix quality.
To standardize specimen preparation before mechanical testing, wet concrete is cast into Concrete Molds to produce cubes, cylinders, and beams. These specimens transfer to Curing Tanks and Curing Chambers, which standardize specimen preparation under controlled conditions.

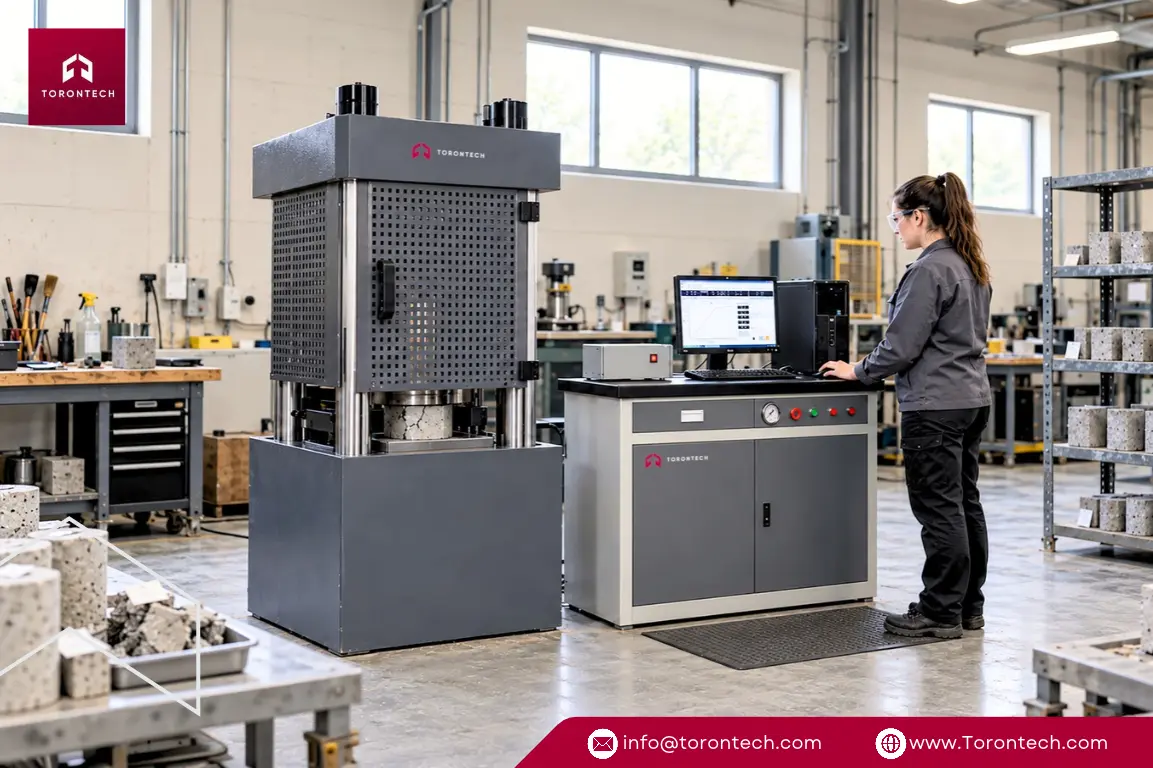

Following curing, the Concrete Compression Tester TTC-Series serves to accurately determine the compressive strength of concrete specimens, verifying ultimate strength for batch release.
Cement and Mortar Testing
Evaluating pure binder paste and mortar requires testing methods that isolate setting characteristics, fineness, and compressive strength without aggregate interference. When assembling a targeted cement lab equipment checklist, testing begins with fresh paste and mortar properties before evaluating compressive break limits.
Within our concrete portfolio, technicians verify mortar air voids using the Air Entrainment Meter and confirm paste consistency with the Density Apparatus. For mechanical crushing, our line features the Concrete Compression Tester - TT-CMT1000 Series Demo Unit, a computer-controlled hydraulic machine built to crush cement, concrete, and rock specimens with a verified testing capacity of 1000 KN (225000 lb.f).
For laboratories requiring a complete binder qualification workflow beyond compressive crushing, specialized instruments transition into our dedicated Cement Testing Equipment portfolio. That range supplies dedicated binder hardware, including the Vicat Apparatus for determining initial and final setting times, and the Automatic Blaine Apparatus (TT-Blaine) for measuring cement fineness.
Construction Laboratories, Precast Manufacturing, and University Research
For third-party testing houses certifying materials, precast manufacturing plants, and university research laboratories advancing concrete technology, testing scope includes component-level structural testing, durability evaluation, and in-situ field assessment.
Structural and Component Testing Machines
Specialized structural components require purpose-built test benches. Our Flexural Testing Frames measure the bending resistance of beam specimens. For precast infrastructure manufacturing, the Concrete Pipe Testing Machine – ToronCPTM™ 600 is a high-performance machine designed for reliable strength testing of concrete pipes.
For precast wall systems, the Autoclaved Aerated Concrete (AAC) Panel Structural Testing Machine - ToronAAC™ 30 operates as a purpose-built structural performance test bench for AAC panels.
Environmental and Durability Testing Apparatus
To validate long-term concrete durability, our portfolio provides dedicated test chambers and measurement apparatus. The Rapid Freeze-Thaw Test Chambers – ToronRFTC™ Series evaluates concrete durability in accordance with ASTM C666.
For extended thermal evaluation, the Slow Freeze-Thaw Test Chamber – ToronSFTC™ evaluates the long-term durability and freeze-thaw performance of concrete. To complete durability verification, our catalog supplies Core Drilling Machines, Length Comparators, and Permeability Apparatus, all designed to validate long-term durability.
Non-Destructive Testing Instruments
Assessing existing concrete structures requires instruments that evaluate in-place material without structural damage. Our Rebound Hammers assess in-situ strength without damaging the structure. Similarly, our Ultrasonic Pulse Velocity Testers assess in-situ strength non-destructively through acoustic measurement.
Testing Standards and Regulatory Compliance
Torontech concrete testing equipment is engineered to meet ASTM, EN, ISO, BS, or AASHTO standards across our entire portfolio.
Compressive and Flexural Strength
Compression testing machines in our portfolio crush cubes, cylinders, and beams to verify ultimate strength under applicable ASTM, EN, ISO, BS, or AASHTO standards. Specifically, all TTC-Series Concrete Compression Testers adhere to ASTM C39 for cylindrical concrete testing procedures and to EN 12390-4 for machine design, precision, and accuracy.
For multi-material facilities, the computer-controlled TT-CMT1000 Series Demo Unit tests the compressive strength of cement, concrete, and rocks. For bending resistance, our Flexural Testing Frames measure the bending resistance of beams in accordance with applicable ASTM, EN, ISO, BS, or AASHTO standards.
Fresh Mix Quality and Workability
Our Slump Cones and Flow Tables quantify the workability of fresh concrete in accordance with ASTM C143 and applicable EN, ISO, BS, or AASHTO methods. In tandem, our Air Entrainment Meters evaluate fresh concrete and mortar using the standardized pressure method outlined in ASTM C231, while our Density Apparatus confirms overall mix quality under applicable international test procedures.
Durability and In-Situ Evaluation
The ToronRFTC™ Series Rapid Freeze-Thaw Test Chambers are explicitly engineered for concrete durability testing in accordance with ASTM C666. The ToronSFTC™ Slow Freeze-Thaw Test Chamber, Core Drilling Machines, Length Comparators, and Permeability Apparatus validate long-term durability under applicable ASTM, EN, ISO, BS, and AASHTO frameworks.
For non-destructive structural assessment, Rebound Hammers and Ultrasonic Pulse Velocity Testers assess in-situ strength without damaging the structure under ASTM, EN, ISO, BS, and AASHTO standards.
Laboratory Accreditation and Operational Standards
Acquiring compliant testing machinery represents only one component of establishing an operational facility. In commercial construction and civil infrastructure projects, materials testing laboratories are evaluated against ASTM C1077 criteria and accredited through oversight programs such as AASHTO re:source or CCRL.
These frameworks mandate that testing personnel hold recognized qualifications, such as ACI technician certifications, and require that mechanical testing machines undergo periodic force verification in accordance with ASTM E4 practices. When planning your facility setup, account for ongoing verification protocols and technician certifications alongside your hardware procurement.
Equipment Selection and Technical Parameters
Selecting equipment requires matching laboratory testing requirements with machine capabilities explicitly stated in our catalog.
Compression Testing Systems
The TTC-Series Concrete Compression Tester is designed to determine the compressive strength of concrete specimens across three verified capacity configurations: the TTC-1000 at 1000 kN (225000 lb.f), the TTC-2000 at 2000 kN (450000 lb.f), and the TTC-3000 at 3000 kN (675000 lb.f).
All three models are rated Accuracy Class One with a test force indicating error within plus or minus 1 percent and a resolution of 0.01 kN. Selecting the appropriate frame requires matching expected breaking strength to specimen dimensions: standard commercial cylinder testing up to 5000 psi fits within the TTC-1000 rating, while high-strength concrete formulations and large cube specimens require the higher load thresholds of the TTC-2000 or TTC-3000.
For multi-material testing facilities, the TT-CMT1000 Series Demo Unit provides a computer-controlled hydraulic compression testing machine used to test the compressive strength of cement, concrete, and rocks, delivering a verified capacity of 1000 KN (225000 lb.f).
Freeze-Thaw Durability Chambers
The ToronRFTC™ Series Rapid Freeze-Thaw Test Chambers provide rapid freeze-thaw durability testing in accordance with ASTM C666. For non-accelerated thermal testing, the ToronSFTC™ Slow Freeze-Thaw Test Chamber evaluates long-term durability and freeze-thaw performance.
Precast Component Testing
For precast products, Torontech provides dedicated structural machines rather than standard compression frames. The ToronCPTM™ 600 provides dedicated strength testing for concrete pipes, while the ToronAAC™ 30 provides a purpose-built structural performance test bench for autoclaved aerated concrete panels.
Specimen Preparation
Standardizing specimen preparation requires reliable preparation tools across every stage of sample fabrication and finishing. Our Concrete Molds standardize specimen casting for cubes, cylinders, and beams, while our Curing Tanks and Curing Chambers provide controlled conditioning prior to mechanical evaluation.
Prior to compressive testing under ASTM C39, specimen ends must feature flat, parallel bearing surfaces to prevent uneven load distribution. To meet these preparation requirements, our portfolio features the Concrete Grinding Machine – Double Abrasive ToronConGrind™ 200, designed for grinding and polishing concrete specimens, natural stones, ceramics, and rock samples. The unit prepares cubes, cylinders, and core specimens, creating uniform bearing surfaces for accurate compressive and flexural strength evaluation.
Concrete Testing Equipment Specifications
The following table provides a complete concrete testing equipment list, documenting the models, mechanisms, metrics, materials, and standards explicitly cited in our portfolio:
| Equipment Name / Model | Primary Technology / Methodology | Materials & Environments | Cited Standards |
|---|---|---|---|
| Air Entrainment Meter (Concrete Air Meter) | Air content measurement in fresh mixes (Available upon request) | Fresh concrete, mortar; ready-mix, precast, QC labs | Standard methods |
| ToronAAC™ 30 Structural Testing Machine | Purpose-built structural performance test bench (Configured upon request) | Autoclaved aerated concrete (AAC) panels; industrial/civil labs | Standard methods |
| Concrete Compression Tester TTC-Series | Specimen crushing for compressive strength (1000 kN, 2000 kN, or 3000 kN / 225000, 450000, or 675000 lb.f) | Concrete specimens; ready-mix, precast, commercial labs | ASTM C39, EN 12390-4 |
| Concrete Pipe Testing Machine – ToronCPTM™ 600 | Dedicated strength assessment for pipes (Configured upon request) | Concrete pipes; precast manufacturing, testing labs | Standard methods |
| Concrete Compression Tester - TT-CMT1000 Series Demo Unit | Computer-controlled hydraulic compression testing (1000 KN / 225000 lb.f capacity) | Cement, concrete, rocks; testing & research laboratories | Standard methods |
| Rapid Freeze-Thaw Test Chambers – ToronRFTC™ Series | Rapid freeze-thaw durability testing (Available upon request) | Concrete specimens; durability testing laboratories | ASTM C666 |
| Slow Freeze-Thaw Test Chamber – ToronSFTC™ | Slow freeze-thaw durability cycling (Available upon request) | Concrete specimens; durability testing laboratories | Standard methods |
| Flexural Testing Frames | Bending resistance measurement (Available upon request) | Concrete beam specimens; materials testing laboratories | ASTM, EN, ISO, BS, AASHTO |
| Slump Cones and Flow Tables | Workability and consistency quantification (Standard dimensions per test method) | Fresh concrete; ready-mix plants, field sites, QA labs | ASTM C143, EN, ISO, BS, AASHTO |
| Density Apparatus | Mix quality and density confirmation (Standard volume per test method) | Fresh concrete mix; QC laboratories | Standard international procedures |
| Curing Tanks & Curing Chambers | Standardized specimen conditioning (Sized to facility capacity) | Concrete test specimens; ready-mix, precast, academic labs | Standard methods |
| Concrete Molds | Specimen casting (cubes, cylinders, beams) (Standard dimensions per test method) | Fresh concrete; field testing, batching plants, labs | Standard methods |
| Concrete Grinding Machine – Double Abrasive ToronConGrind™ 200 | Specimen end grinding and polishing for flat bearing surfaces (Available upon request) | Concrete specimens, natural stones, ceramics, rock samples; QC and research labs | Standard methods |
| Rebound Hammers | Non-destructive in-situ strength assessment (Available upon request) | In-situ concrete structures; field evaluation | ASTM, EN, ISO, BS, AASHTO |
| Ultrasonic Pulse Velocity Testers | Non-destructive acoustic pulse velocity testing (Available upon request) | In-situ concrete structures; materials labs, field testing | ASTM, EN, ISO, BS, AASHTO |
| Core Drilling Machines | Extraction of hardened concrete cores (Available upon request) | Cured concrete structures; field forensics, durability labs | Standard methods |
| Length Comparators | Dimensional length change comparison (Standard dimensions per test method) | Hardened concrete specimens; durability laboratories | Standard methods |
Equipping Your Concrete Lab with Torontech
Selecting testing instruments involves matching required test standards with daily operational scope. Whether conducting batch-release quality control at a ready-mix plant, certifying materials at a commercial testing house, or conducting concrete research in a university laboratory, we provide our cost-effective products engineered to satisfy ASTM, EN, ISO, BS, and AASHTO standards.
Contact our team today or request a quote to evaluate our equipment portfolio and configure the exact setup for your facility.
