Vibratory Disc Mill VM3
- Feed size : <15mm
- Final fineness: <75μm
- Speed : 700~1500rpm
The Vibratory Disc Mill is primarily employed for preparing samples for spectral analysis. This equipment is particularly well-suited for rapidly grinding medium-hard, brittle, and fibrous materials to achieve analytical fineness without any loss.
Ceramics and glass: Oxide ceramics, glass
Building materials: Cement, stone, concrete
Environmental sector: Soil, paving stone, slag
Minerals & Metallurgy: Coal, coke, corundum, ore, slag
Working Principle
The Vibratory Disc Mill crushes samples through pressure, impact, and friction. It firmly attaches the grinding set to the vibrating plate using a quick-action clamping device. The vibrating plate then generates intense three-dimensional vibrations, resulting in significant impact, friction, and grinding forces acting on the grinding set. These forces are concentrated on the samples, quickly turning them into powder.
- Very brief grinding duration.
- Excellent ultimate fineness (d95 < 75μm).
- Speed adjustable from 700 to 1500rpm.

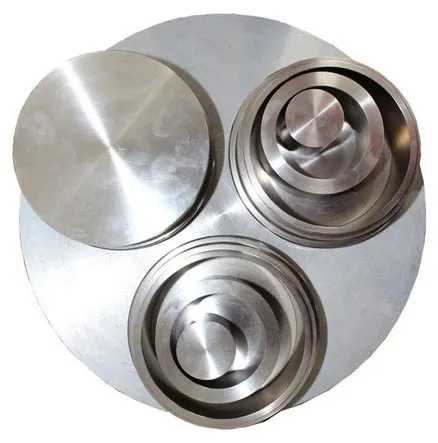

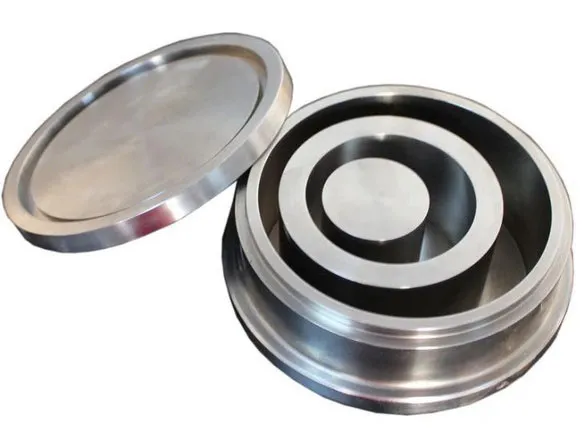

- Quick-action clamping mechanism for the grinding set.
- A variety of materials available for grinding sets.
- Automatic speed reduction to 700rpm with agate recognition.
Feed size | <15mm |
Final fineness | ＜75μm |
Speed | 700~1500rpm |
Time setting | 00：01-99:59 （min/s） |
Batch quantity | 20-250g |
The volume of the grinding set | 50ml、100ml、250ml |
Grinding set material | hardened steel, tungsten carbide, agate (speed 700rpm), zirconium oxide |
Rated power | 1.5KW |
Power supply | 220V, 50Hz/60Hz (110V Also available upon request) |
Instrument size (W*D*H) | 800*655*1255mm |
Package size (W*D*H) | 1130*1030*1470mm |
Weight | 277Kg |
