Coulometric Karl-Fischer Titration Tester
Coulometric Karl-Fischer Titration Tester TT-6304
Coulometric Karl-Fischer Titration Tester complies with ASTM D4377, ASTM D6304, and ASTM D4928 standards. It is used to test the water content in crude oil, which is crucial for refining, purchasing, selling, or transferring crude oils.
The Coulometric Karl-Fischer Titration Tester TT-6304 measures water content ranging from 0.02% to 2% in crude oils. While mercaptan and sulfide (S− or H2S) sulfur are known to interfere with this test method and affect the determination of water content in the 0.005% to 0.02% range, the extent of this interference at these levels has not been fully determined. Therefore, for the 0.005% to 0.02% range, no precision or bias statement is available.
The Coulometric Karl-Fischer Titration Tester is used for the precise determination of water content in various substances. Applications include:
- Petroleum Industry: Testing the water content in crude oil, which is critical for refining, purchasing, and selling.
- Pharmaceuticals: Ensuring quality control by accurately measuring water content.
- Chemicals: Used for a wide range of chemical products.
- Food and Cosmetics: For quality control and research and development.
The tester can be used for all sample types, including liquids, solids, slurries, and gases, and is particularly effective for samples with low moisture content.

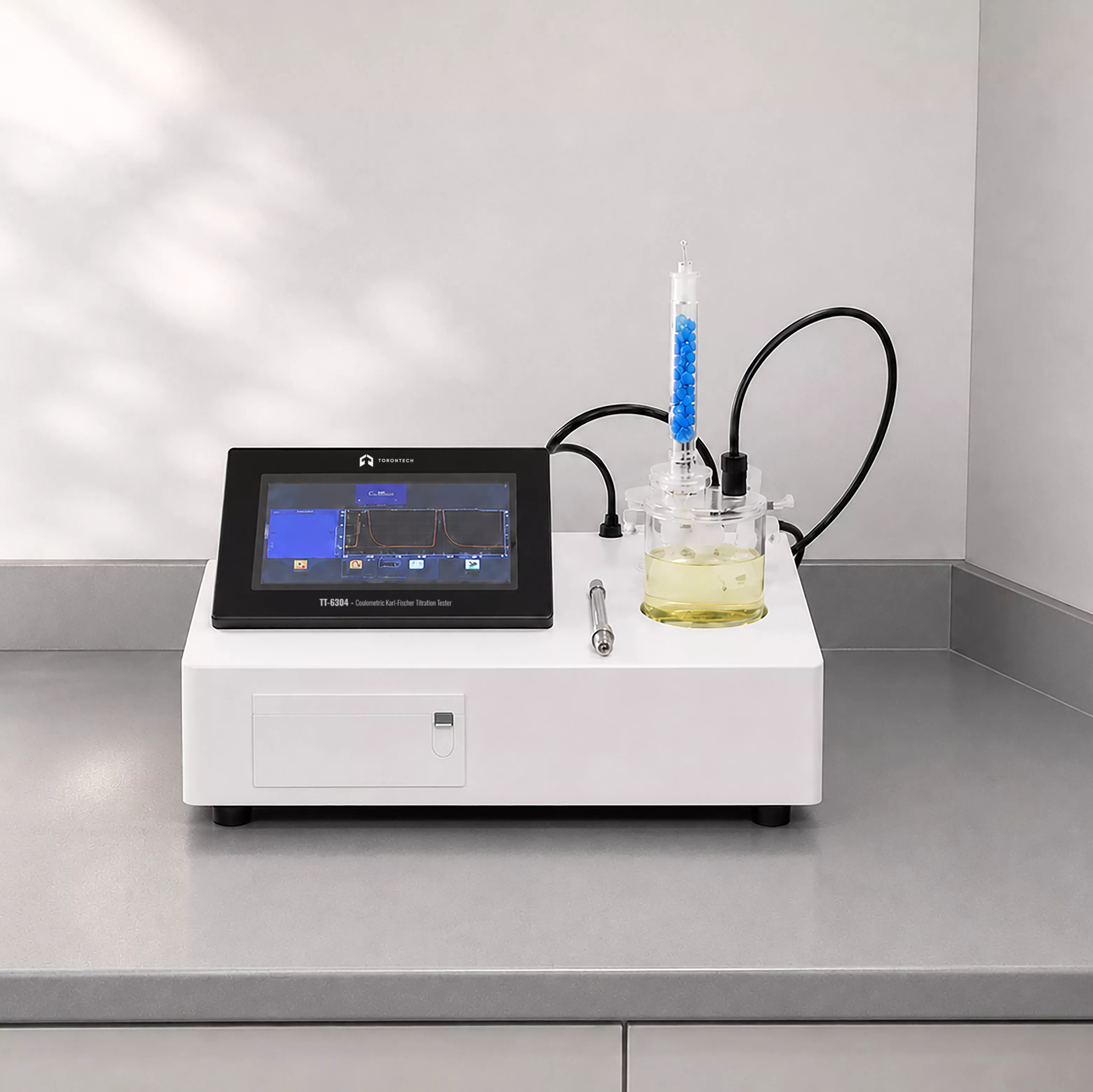

Coulometric Karl-Fischer Titration Tester TT-6304 is controlled by an SCM, featuring system fault self-diagnosis, a color LCD touch screen, and a user-friendly interface. The tester automatically deducts blank current, ensuring high accuracy in test results. It also includes a large current background compensation function, significantly reducing standby time. A unique reagent failure detection function alerts the user to replace expired reagent, maximizing reagent usage. The built-in multiple water content formulas cater to various user needs. The device is equipped with a high-efficiency mini printer and a large-capacity storage system that can hold up to 500 test records. The convenient retrieval mode allows users to easily read and print test reports.
Coulometric Karl Fischer Titrator - TT-6304
Technical Specifications
| Parameter | Specification |
|---|---|
| Measuring Range | 3 µg to 150 mg H₂O |
| Resolution | 0.1 µg |
| Accuracy (water content below 10 µg) | ±2 µg |
| Accuracy (water content 10 µg to 500 µg) | ±3 µg |
| Electrolysis Rate | 2.0 mg/min maximum |
| Electrolysis Current | Pulse current, 400 mA |
| Power Supply | AC 220 V ±10%, 50 Hz (110 V version available on request) |
| Ambient Temperature | 0°C to 40°C |
| Relative Humidity | 85% or below, non-condensing |
