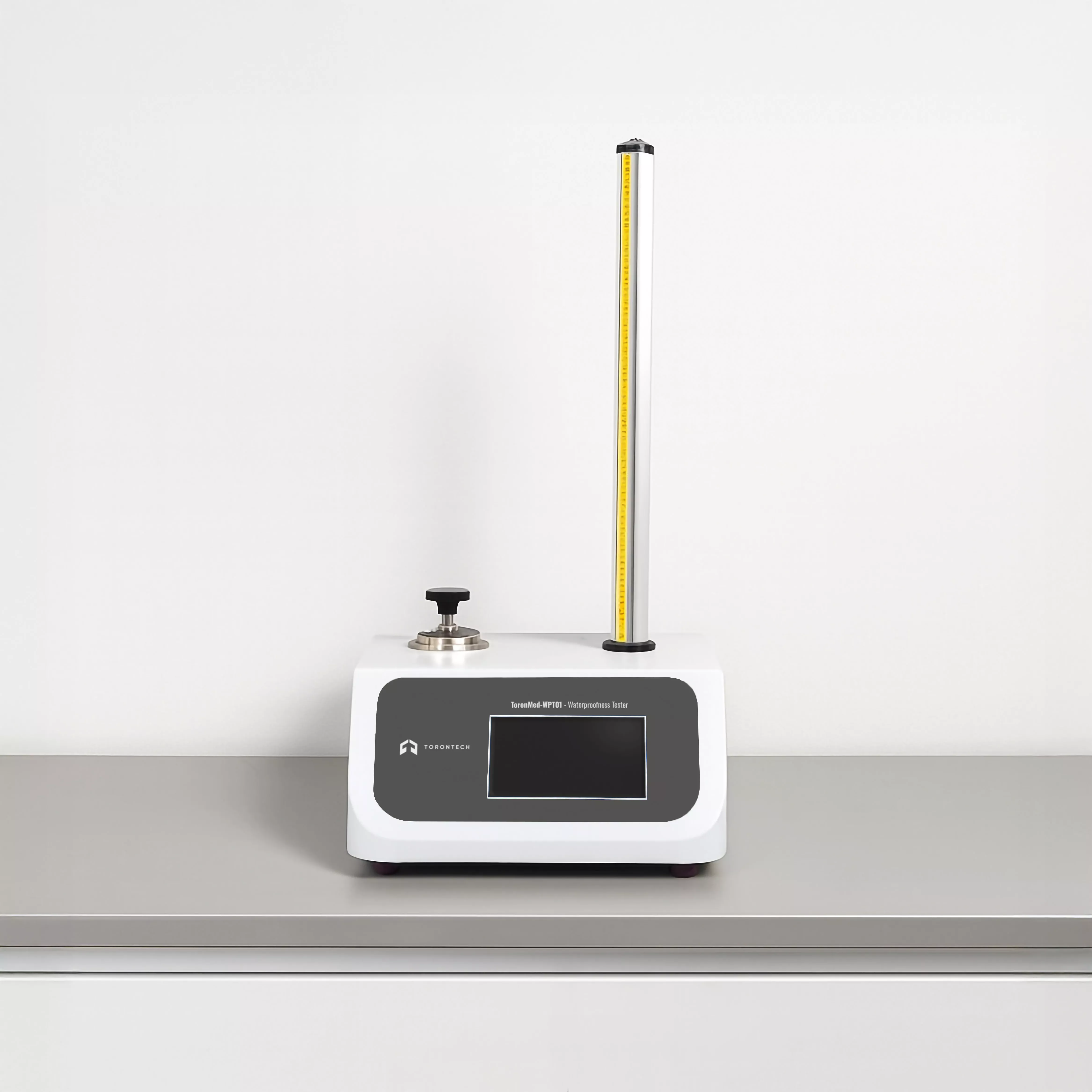

Waterproofness Tester – Model ToronMed™ WPT01 is a specialized instrument designed to evaluate the water resistance and waterproofness performance of primary wound dressings. Suitable for materials such as band-aids, bandages, medical adhesive tapes, coated papers, non-woven fabrics, and composite materials, it ensures that dressings meet international safety and performance standards.
By adopting automatic timing and automatic water filling/pressurization, the tester provides precise, repeatable results and is an essential tool for medical device manufacturers, research laboratories, and quality control facilities.
Standards
The Waterproofness Tester – Model ToronMed™ WPT01 is designed in compliance with international wound dressing and waterproofness standards, including:
- EN 13726-3 – Test methods for primary wound dressings – Part 3: Determination of water resistance.
- Relevant International Standards – Specify test procedures for medical adhesive and wound dressing waterproofness across multiple materials and configurations.
By adhering to these standards, the ToronMed™ WPT01 ensures reliable, reproducible results that align with global medical device testing requirements.
The Waterproofness Tester – Model ToronMed™ WPT01 provides a compact, accurate, and standards-compliant solution for evaluating waterproofness in medical dressings, helping manufacturers and laboratories ensure products meet the highest levels of safety, performance, and patient protection.
The Waterproofness Tester – Model ToronMed™ WPT01 is used for:
- Basic Applications: Non-woven materials, bandages, medical tapes, and coated dressings.
- Extended Applications: Any wound dressing material or composite dressing, regardless of shape, state, or specification.
This makes it particularly valuable for testing band-aids, advanced wound care dressings, and adhesive-backed medical protection materials.
- Indicator Light Alerts – Ensures clear test status monitoring.
- Automatic Water Filling & Pressurization – Controlled by electromagnetic valves for consistent test conditions.
- Automatic Timing Function – Provides accurate, user-friendly test cycles.
- Versatile Fixture Design – Compatible with wound dressings of varying shapes, sizes, and materials.
- Compact & Reliable – Lightweight instrument with efficient operation for laboratory and production environments.
Specification | Waterproofness Tester – Model ToronMed™ WPT01 |
|---|---|
| Hydrostatic Pressure | Up to 500 mm |
| Control Valve | Electronic valve |
| Pressure Withstanding Time | 0–99.99 (settable) |
| Temperature Range | 15 °C – 55 °C |
| Humidity | ≤ 90% (non-condensing) |
| Dimensions | 500 × 200 × 750 mm |
| Voltage | AC 220V 50Hz (110V is also available) |
| Net Weight | 9 kg |
