Waterproofness Tester – 5 Station
Waterproofness Tester – 5 Station | EN 13726-3

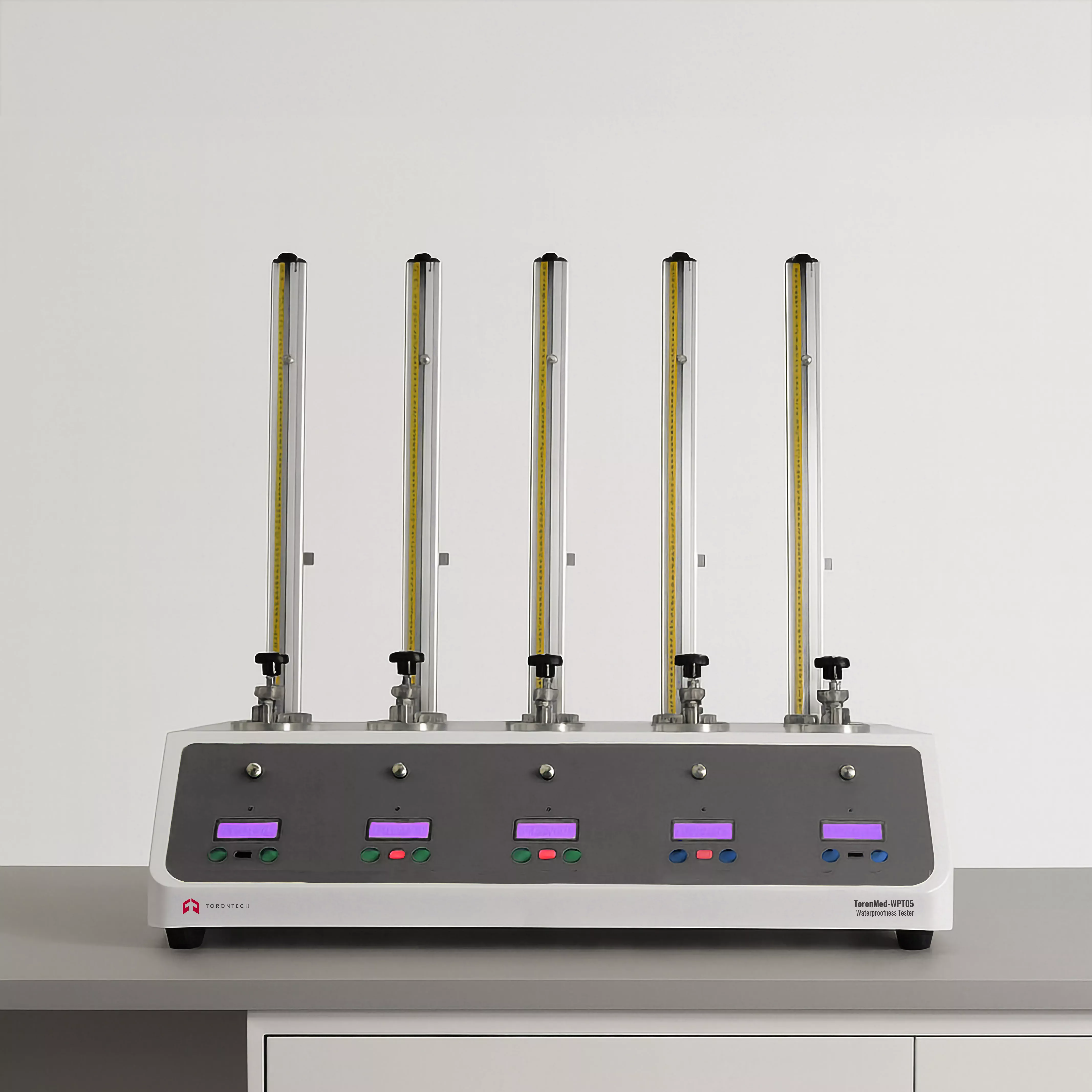

Waterproofness Tester – 5 Station Model ToronMed™ WPT05 is a high-efficiency instrument designed to evaluate the waterproofness performance of primary wound dressings, including band-aids, bandages, medical tapes, coated papers, non-woven fabrics, and composite materials of any shape or size.
With its five independent testing stations, the ToronMed™ WPT05 allows multiple samples to be tested simultaneously or separately, significantly improving laboratory throughput while maintaining precise, reliable results.
Standards
The Waterproofness Tester – 5 Station Model ToronMed™ WPT05 is designed in compliance with key international standards for wound dressing waterproofness testing, including:
- EN 13726-3 – Test methods for primary wound dressings – Part 3: Determination of water resistance.
- Other relevant international waterproofness standards – Define uniform methods for testing the barrier performance of wound dressings and medical adhesive products.
By meeting these standards, the ToronMed™ WPT05 ensures that wound dressings and medical adhesive materials are tested with globally recognized reliability and precision.
The Waterproofness Tester – 5 Station Model ToronMed™ WPT05 provides multi-sample, high-throughput testing with uncompromising accuracy, making it the perfect choice for laboratories and manufacturers who require fast, repeatable, and standards-compliant waterproofness evaluations.
The Waterproofness Tester – 5 Station Model ToronMed™ WPT05 is suitable for:
- Basic Applications: Non-woven wound dressings, bandages, medical adhesive tapes.
- Extended Applications: Any type of wound dressing or composite material, regardless of shape or structure.
This makes it ideal for manufacturers, research institutions, and compliance laboratories that require high-volume, repeatable testing.
Technical Features
- Five Independent Stations – Enables parallel testing of multiple samples or individual testing as required.
- Automatic Water Filling System – Supports independent or simultaneous watering.
- Overflow Control at 500 mm – Ensures accurate, consistent water levels.
- High-Precision Sampling Chip – Provides reliable measurement accuracy and real-time data processing.
- Safety Features – Over-voltage protection and power-down memory for safe and stable operation.
- Durable Fixtures – Stainless steel clip-on chucks with dual tightening for secure sample placement.
- Clear Observation – High-transparency borosilicate glass tubes prevent water droplet adhesion.
- Automated Evaluation – Determines pass/fail status at the end of each test cycle.
- Wide Compatibility – Suitable for samples of different thicknesses.
- Data Storage – Capacity to store up to 100,000 test records with query functionality.
- Quartz Crystal Oscillator Timing – Ensures stable and highly accurate timekeeping.
Specification | Waterproofness Tester – 5 Station Model ToronMed™ WPT05 |
|---|---|
| Hydrostatic Pressure | 0–600 mm |
| Control Valve | Electronic valve |
| Pressure Withstanding Time | 0–999 |
| Stations | 5 independent |
| Water Filling | Automatic |
| Drainage | Unified |
| Timer | 5 pcs (independent) |
| Overflow Switch | 5 pcs (independent) |
| Fixtures | 5 pcs |
| Operating Temperature | 15 °C – 50 °C |
| Humidity | ≤ 80% (non-condensing) |
| Dimensions | 500 × 200 × 750 mm |
| Net Weight | 27 kg |
| Voltage | AC 220V 50Hz (110V is also available) |
| Standard Configuration | Instrument, fuse, sealing gasket, filter paper, PE tube, water pump. |
