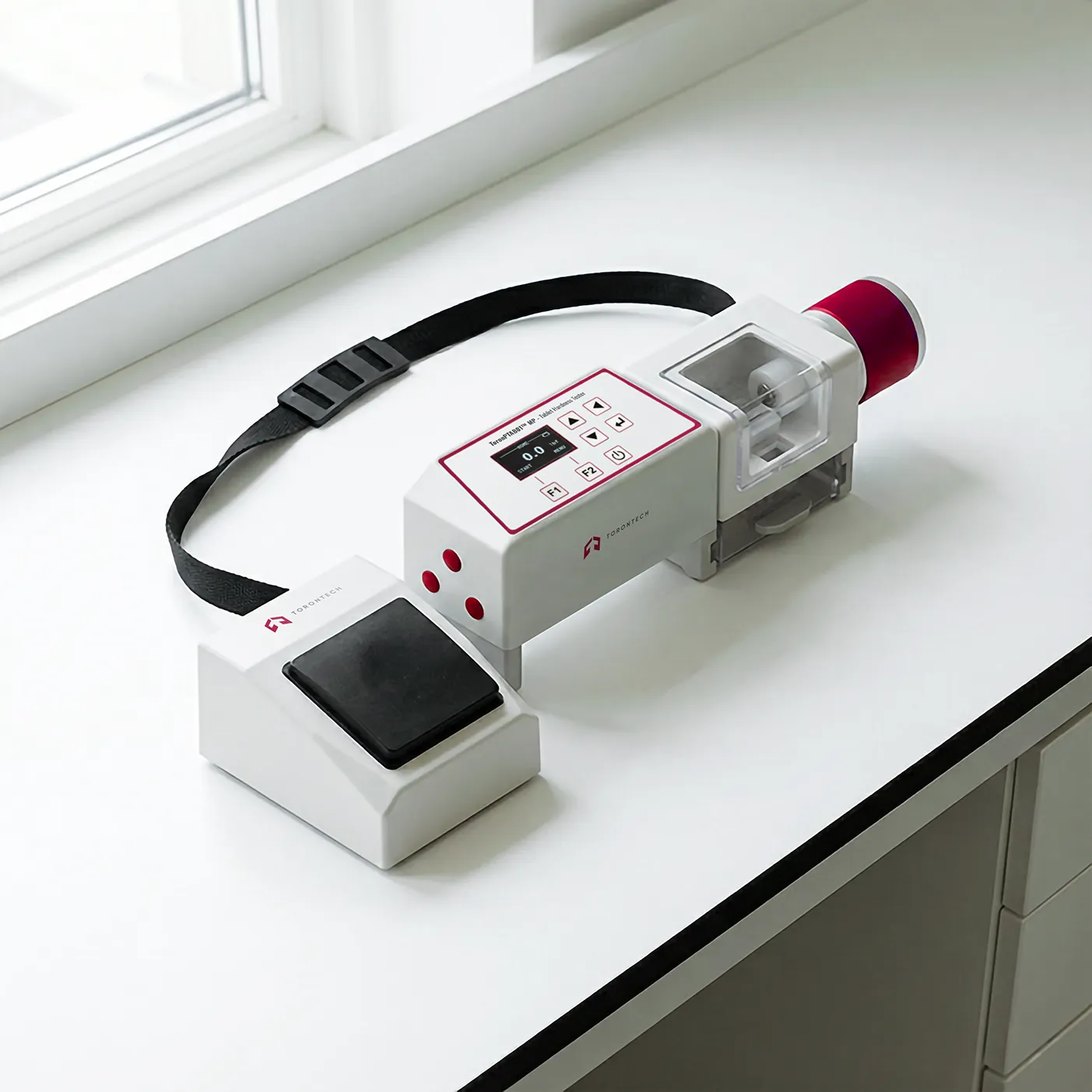

Tablet Hardness Tester ToronPTAB01™ MP
The ToronPTAB01™ MP Tablet Hardness Tester is designed to deliver consistent and accurate tablet strength measurements in both laboratory and production environments. Built to meet USP <1217> standards, it provides reliable performance, easy operation, and detailed reporting. With multiple measurement units, automatic unit conversion, and built-in calibration features, this compact tester ensures dependable quality control for tablet manufacturing.
Tablet Hardness Tester ToronPTAB01™ MP Features
- Complies with USP <1217> Pharmacopoeia
- High accuracy and high-resolution performance
- Date and time included on all reports
- Carrying strap for easy transport
- Front-panel instrument ID and calibration label for quick reference
- Supports three measurement units—N, Kgf, and lbf—with automatic unit conversion
- Prints reports with up to 50 readings, including instrument details, test information, and statistics (min, max, and average)
- Calibration and verification functions with printed reports
- Built-in thermal printer
Tablet Hardness Tester ToronPTAB01™ MP Technical Specifications
Model | ToronPTAB01-MP |
|---|---|
| Hardness Range | Up to 500 Newton |
| Measuring Units | N, Kgf, lbf |
| Display | OLED 1.3″ |
| Test Mode | Peak, Auto |
| Platform Length | 30 mm |
| Accuracy | ± 1 N |
| Calibration | Yes with Report |
| Validation | Yes with Report |
| Tablet Size | 2 mm to 28 mm |
| Number of Samples | 50 (Per test) |
| Voltage | 5VDC - C type USB adapter |
| Dimensions (L x W x H) | 295 mm x 90 mm x 100 mm |
| Weight (Approx) | 1.650 kg (Without Battery) |
Ordering Information
| Product | ||
| Product code | Description | Quantity |
| 0941600 | Tablet Hardness Tester ToronPTAB01™ MP | 1 |
| Standard Accessories | ||
| Product code | Description | Quantity |
| 0905A00023 | ToronPTAB01™ MP Calibration Platform | 1 |
| 0905A00028 | ToronPTAB01™ MP Knob | 1 |
| 0905A00027 | ToronPTAB01™ MP Sliding Cover | 1 |
| 0908B00016 | ToronPTAB01™ MP Charging Adapter with USB C Type cable, 5V/2.4A | 1 |
| 0905A00024 | ToronPTAB01™ MP Waste tray Acrylic | 1 |
| 0901A00002 | Brush | 1 |
| 0905A00025 | ToronPTAB01™ MP 40 Column Printer with Cable | 1 |
| Optional Accessories | ||
| Product code | Description | Quantity |
| 0901A00012 | S.S. Weight 5kg (Calibrated) With Certificate | 1 |
| IQOQ Document | ||
| Product code | Description | Quantity |
| 0916S15 | IQ/OQ Document For Tablet Hardness Tester ToronPTAB01™ MP | 1 |
