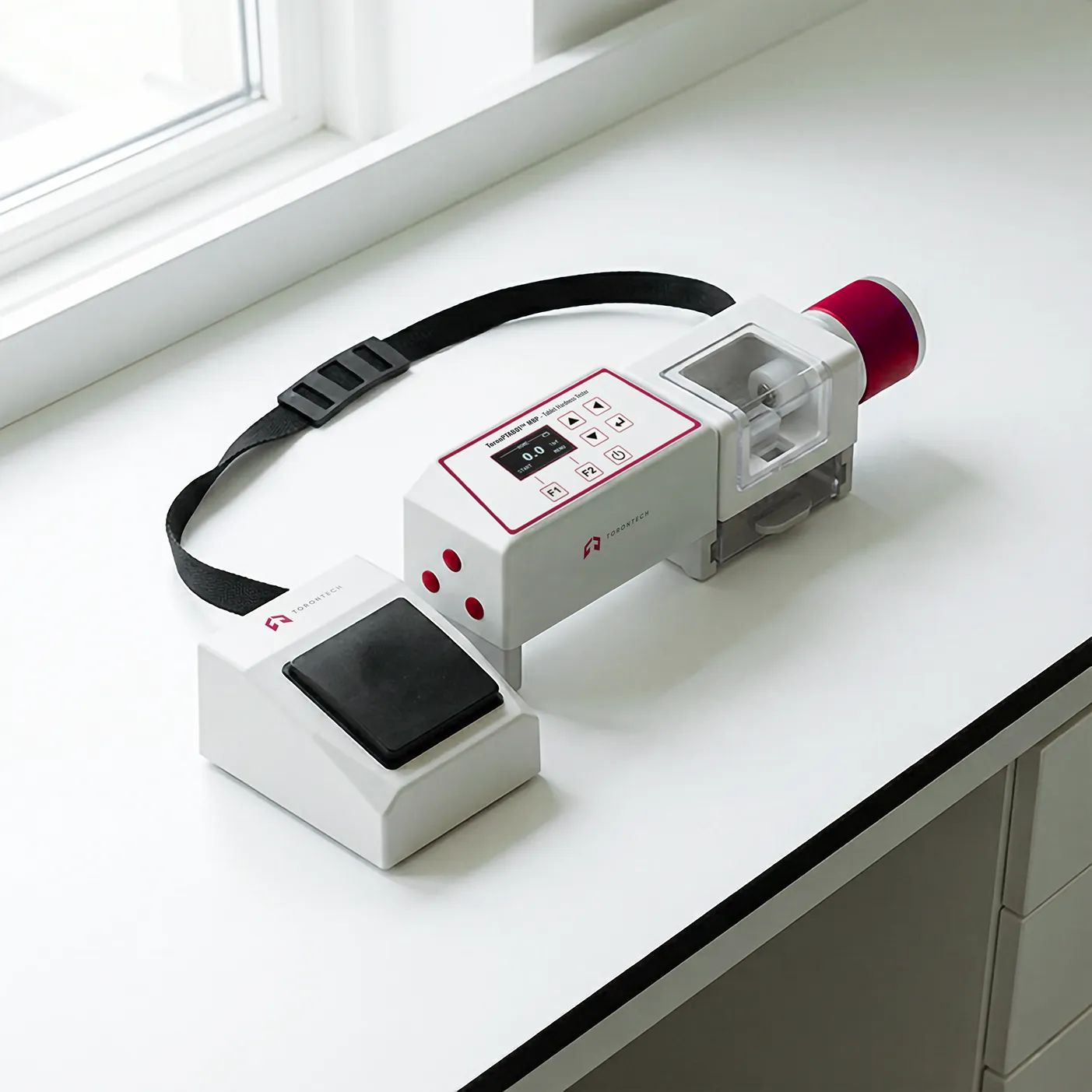

Tablet Hardness Tester ToronPTAB01™ MBP
The ToronPTAB01™ MBP Tablet Hardness Tester is designed to deliver accurate and consistent tablet strength measurements while meeting USP <1217> standards. Its compact layout, quick setup, and clear reporting features make it ideal for laboratory and production environments.
Tablet Hardness Tester ToronPTAB01™ MBP Features
- Designed in full compliance with the USP <1217> Pharmacopoeia
- High accuracy and high resolution
- Date and time included on every report
- Comes with a strap for easy transport
- Instrument ID and calibration label positioned on the front panel for quick reference
- Supports three measurement units: N, Kgf, and lbf, with automatic unit conversion
- Prints reports with up to 50 readings, including instrument details, test details, and statistics (min, max, and average)
- Calibration and verification functions available with printed reports
- Integrated thermal printer
Tablet Hardness Tester ToronPTAB01™ MBP Technical Specifications
Model | ToronPTAB01™ MBP |
|---|---|
| Hardness Range | Up to 500 Newton |
| Measuring Units | N, Kgf, lbf |
| Display | OLED 1.3” |
| Test Mode | Peak, Auto |
| Platform Length | 30 mm |
| Accuracy | ± 1 N |
| Calibration | Yes with Report |
| Validation | Yes with Report |
| Tablet Size | 2 mm to 28 mm |
| Number of Samples | 50 (Per test) |
| Battery | 3.7V Battery 5000mAH |
| Voltage | 5VDC - C type USB adapter |
| Dimensions (L x W x H) | 295 mm x 90 mm x 100 mm |
| Weight (Approx) | 1.7 Kg |
Ordering Information
| Product | ||
| Product code | Description | Quantity |
| 0943400 | Tablet Hardness Tester ToronPTAB01™ MBP | 1 |
| Standard Accessories | ||
| Product code | Description | Quantity |
| 0905A00023 | ToronPTAB01™ M Calibration Platform | 1 |
| 0905A00028 | ToronPTAB01™ M Knob | 1 |
| 0905A00027 | ToronPTAB01™ M Sliding Cover | 1 |
| 0908B00016 | ToronPTAB01™ M Charging Adapter with USB C Type cable, 5V/2.4A | 1 |
| 0905A00024 | ToronPTAB01v M Waste tray Acrylic | 1 |
| 0901A00002 | Brush | 1 |
| 0905A00026 | ToronPTAB01™ MB/MBS 3.7V 5200mAh Li-ion Battery Pack | 1 |
| 0905A00025 | ToronPTAB01™ MP 40 Column Printer with cable | 1 |
| Optional Accessories | ||
| Product code | Description | Quantity |
| 0901A00012 | S.S. Weight 5kg (Calibrated) With Certificate | 1 |
| IQOQ Document | ||
| Product code | Description | Quantity |
| 0934S15 | IQ/OQ Document For Tablet Hardness Tester ToronPTAB01™ MBP | 1 |
