Industrial Horizontal Autoclave - ToronClave™ HI Series
Autoclave performance matters when you need reliable steam sterilization for large daily loads in laboratories, hospitals, and institutional facilities. ToronClave™ HI Series is a Industrial Horizontal Autoclave Machine platform designed for pressure-saturated steam sterilization.
This series is built for users who need more chamber capacity, flexible steam-source options, and a robust horizontal structure for higher-throughput sterilization work. The ToronClave™ HI has a range extending from 0.25 m³ up to 5.0 m³, with optional own or external steam supply depending on model configuration.

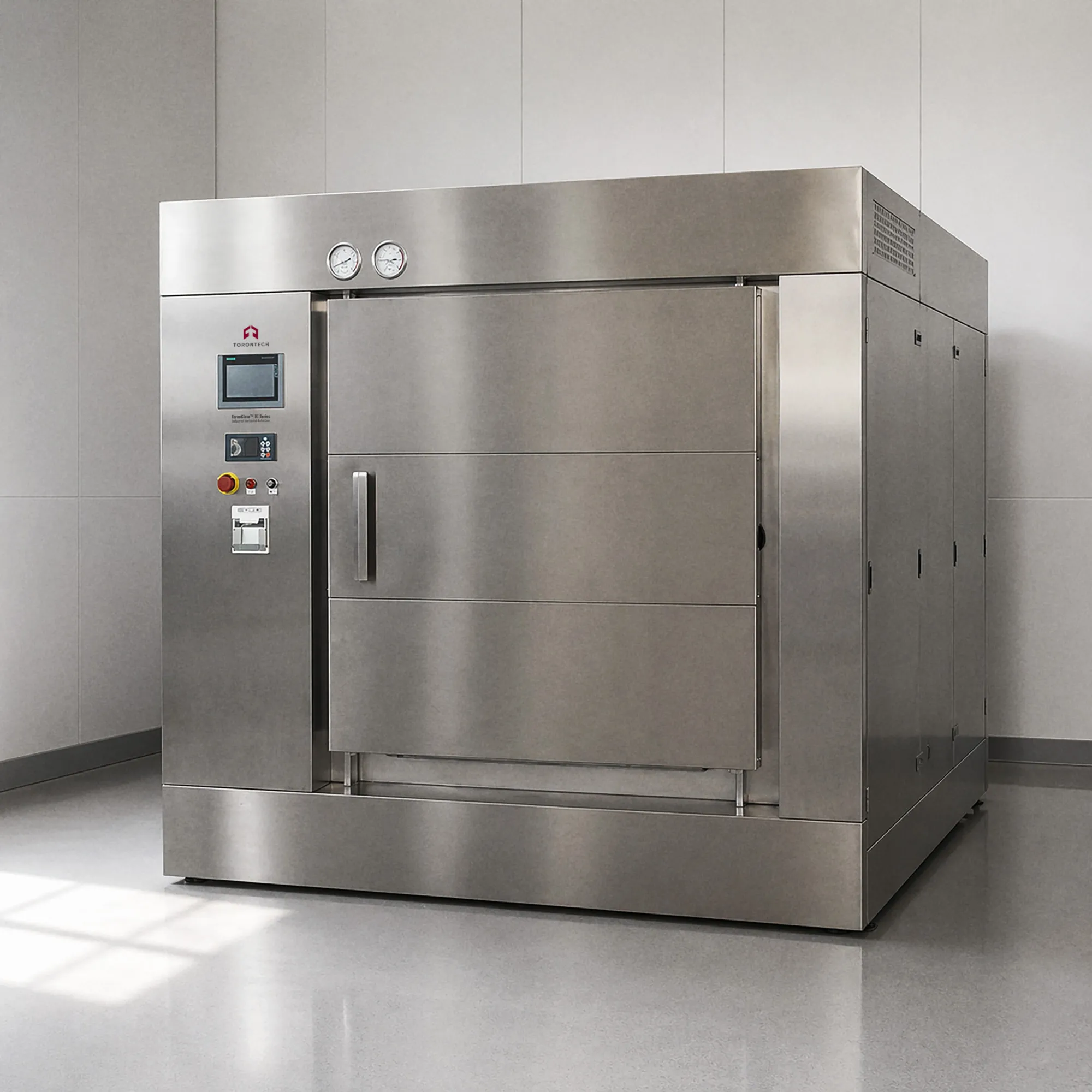

ToronClave™ HI Series is a floor-standing horizontal steam sterilizer designed for moist-heat sterilization of larger batches and bulkier loads. It uses saturated steam under pressure to sterilize reusable items quickly and reliably, while the horizontal chamber layout helps support larger-capacity processing than compact vertical units.
The ToronClave™ HI series uses microcomputer-based automatic control, a color touch screen, multi-channel steam intake, and a four-sided V-shaped cavity base for drainage.
Industrial Horizontal Autoclave - ToronClave™ HI Series Applications
- Medical and Clinical Instruments: this Autoclave Machine is suitable for sterilizing reusable medical instruments and healthcare items. This instrument is specifically used for medical equipment and dressings among the intended sterilization loads.
- Laboratory Glassware: ToronClave™ HI Series can be used for sterilizing glassware in research, laboratory, and educational environments. Its large horizontal chamber makes it suitable for repeated or high-volume sterilization cycles.
- Culture Media: this makes the series suitable for microbiology, biology, and general laboratory preparation workflows.
- High-Volume Institutional Sterilization: because the ToronClave™ HI series extends from 0.25 m³ to 5.0 m³, it fits larger institutional and industrial sterilization workflows where compact autoclaves do not provide enough throughput.
Industrial Horizontal Autoclave - ToronClave™ HI Series Key Features
 | Stainless steel inner chamber, jacket, and inner-door pipeline construction. |
| Advanced welding and testing process for the main body |  |
 | Electropolished chamber and piping surfaces |
- Industrial Horizontal Autoclave Machine design for high-capacity sterilization workflows.
- Microcomputer automatic control system.
- Color touch screen with dynamic display of pressure, time, temperature, and sterilization stage parameters.
- Multiple sterilization procedures for solid, liquid, metal, fabric, and B-D test workflows.
- Vacuum detection with a listed leakage rate below 0.13 kPa/min.
- Multi-channel steam intake for more uniform temperature distribution and lower steam consumption.
- Four-sided V-shaped cavity base for strong drainage performance.

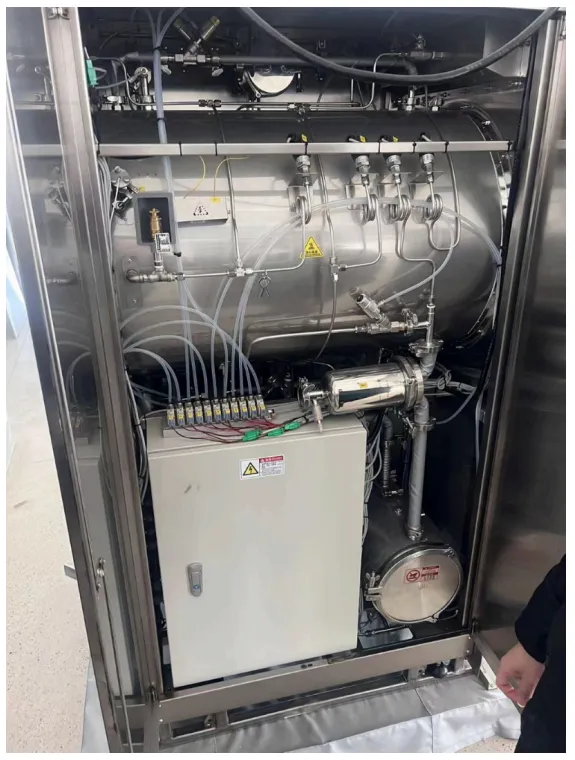

- Steam generators and water pumps support automatic water intake and replenishment on models with their own steam source.
- Pressure controller and safety valve support overpressure protection for the steam generator.

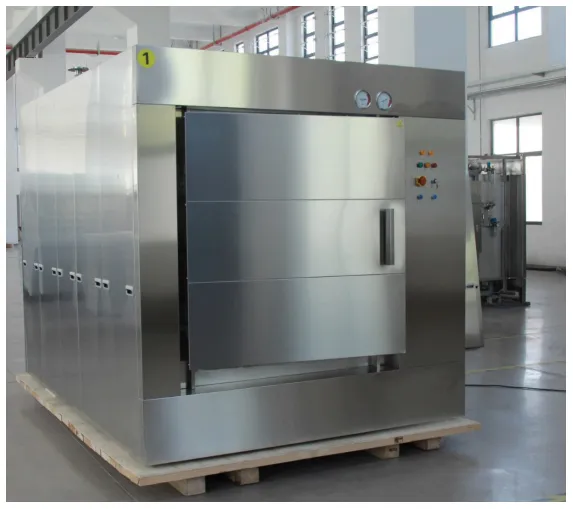

- Available in single-door or double-door versions according to user requirements.
- Available with own or external steam source depending on model.
Industrial Horizontal Autoclave - ToronClave™ HI Series Technical Specification
| Parameter | Value |
|---|---|
| Inner Cavity Design Pressure | -0.1 to 0.3 MPa |
| Inner Cavity Working Pressure | -0.1 / 0.25 MPa |
| Jacket Design Pressure | 0.3 MPa |
| Jacket Working Pressure | 0.25 MPa |
| Inner Cavity Water Pressure Test | 0.39 MPa |
| Jacket Water Pressure Test | 0.52 MPa |
| Temperature Uniformity | ±1°C |
| Design Temperature | 144°C |
| Sterilization Temperature | 105°C–139°C |
| Leakage Rate | ≤1.3 kPa / 10 min |
| Limiting Vacuum | -94.3 kPa |
| Temperature Difference | 15°C |
| Model | Sterilization Size (mm) | Volume (m³) | Voltage | Power (kW) | Weight (kg) | Housing Dimensions (mm) | Steam Source |
|---|---|---|---|---|---|---|---|
| ToronClave™ HI 750 | 1000 × 500 × 500 | 0.25 | 380V / 50Hz | 1.2 | 750 | 1260 × 1200 × 1740 | Own / External |
| ToronClave™ HI 800 | 1000 × 600 × 600 | 0.36 | 800 | 1260 × 1270 × 1740 | |||
| ToronClave™ HI 1200 | 1180 × 610 × 910 | 0.6 | 2.4 | 1200 | 1440 × 1280 × 1940 | ||
| ToronClave™ HI 1400 | 1490 × 610 × 910 | 0.8 | 1400 | 1740 × 1280 × 1940 | External | ||
| ToronClave™ HI 1600 | 1800 × 610 × 910 | 1.2 | 1600 | 2060 × 1280 × 1940 | |||
| ToronClave™ HI 1700 | 1500 × 690 × 1180 | 1.2 | 3.2 | 1700 | 1780 × 1460 × 2040 | ||
| ToronClave™ HI 1850 | 1900 × 690 × 1180 | 1.5 | 1850 | 2180 × 1460 × 2040 | |||
| ToronClave™ HI 2400 | 2600 × 690 × 1180 | 2.0 | 4.2 | 2400 | 2880 × 1460 × 2060 | ||
| ToronClave™ HI 2700 | 2100 × 1000 × 1200 | 2.5 | 2700 | 2400 × 2000 × 2100 | |||
| ToronClave™ HI 2700B | 4200 × 1000 × 1200 | 5.0 | 7.7 | 2700 | 4500 × 2000 × 2100 |
