Rain Test Chamber in Saudi Arabia: Catch IPX Failures Before Certification
A luminaire that passes on paper and floods on a Jeddah street costs more than a failed test report. It costs the contract. Too many suppliers discover ingress problems at the worst possible moment, after certification and after shipment.

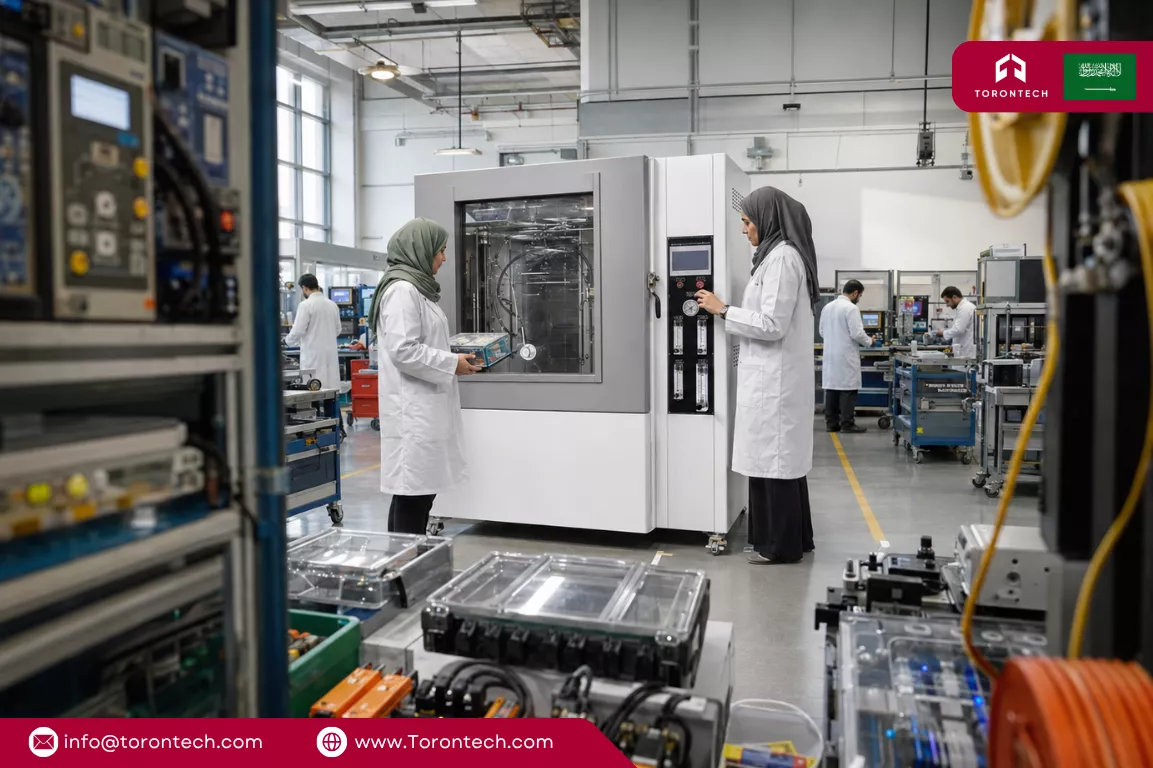

A rain test chamber in Saudi Arabia moves that discovery in-house, where a fix is still cheap. Torontech supplies IPX water spray test chambers that reproduce the exact water exposures each IPX code defines.
Why Water Ingress Testing Matters Across the Kingdom
Saudi Arabia reads as a desert market, so buyers often assume rain is not the real risk. The record says otherwise. Jeddah's flash floods repeatedly overwhelm street-level infrastructure, and the Asir highlands take genuine seasonal rainfall every year.
Coastal industrial zones add a second problem. Humidity and salt air around Jubail, Yanbu, and Jeddah attack gaskets and seals long before a product reaches its rated service life. Enclosures that pass a dry factory check still fail in the field.
Then there is water that never fell from the sky. Wash-down cleaning in food and pharmaceutical plants, irrigation spray across new urban landscaping, and vehicle underbody washing all drive IPX requirements for equipment that rarely sees rain.
Vision 2030 and the Saudi Green Initiative have pushed enormous volumes of outdoor electrical hardware into service: solar inverters, EV charging units, roadside telecom cabinets, and street lighting. Every one of those carries a published IP rating a buyer can challenge.
What Each IPX Code Actually Tests
IEC 60529 defines the IP code system and the water test methods behind the second digit. Each level maps to a specific exposure, not to a general claim of being waterproof.
| IPX Level | Water Exposure | Typical Product |
|---|---|---|
| IPX1 / IPX2 | Vertically falling drips, tilted up to 15 degrees | Indoor control panels, wall boxes |
| IPX3 | Spray up to 60 degrees from vertical | Outdoor luminaires, signage |
| IPX4 | Splashing from every direction | EV connectors, junction boxes |
| IPX5 / IPX6 | Low and high pressure water jets | Roadside cabinets, deck fittings |
| IPX9K | Close-range high pressure, high temperature jets | Vehicle underbody, wash-down plant |
One distinction saves buyers money. IPX addresses water only, so dust ingress sits in the first digit and needs a separate dust chamber. Given regional sand conditions, many Saudi labs plan for both from the start.
Specifying a Rain Test Chamber in Saudi Arabia
Test scope should drive the purchase. A full IPX1 to IPX6 platform wastes floor space if your product line only needs splash resistance, while an undersized unit forces you back to third-party labs. Match the chamber to the codes on your specification sheet.
Torontech builds the TORON IPX series around distinct test ranges:
- TORON IPX-12 for drip testing at IPX1 and IPX2
- TORON IPX-34 for oscillating tube spray and splash at IPX3 and IPX4
- TORON IPX-1234 covering drip through splash in one unit
- TORON IPX-123456 extending the same platform through jet testing
- TORON IPX-34/56/9K combining spray, jet, and high pressure work
- TORON IPX9K as a dedicated high pressure spray system
Specimen handling matters as much as the nozzle set. Large luminaires, charging pedestals, and vehicle components need turntable capacity and internal clearance that compact bench units cannot deliver.
Standards and Conformity Routes in the Saudi Market
SASO governs product conformity for the Kingdom, and most regulated electrical goods enter through the SABER platform. Importers register the product, secure a Product Certificate of Conformity, then obtain a Shipment Certificate for each consignment.
Those certificates rest on test evidence. Verifying IPX performance in-house before submission cuts the risk of a failed third-party test, along with the resubmission cost and the delay at the port that follows it.
Buyers in this market typically work against the following frameworks:
- IEC 60529 for IP code definitions and water test methods
- ISO 20653 for road vehicles, the origin of the IPX9K test
- GSO standards applied across GCC member states
- IECEE CB Scheme for mutual recognition of test reports
- ISO/IEC 17025 where the lab itself seeks accreditation
Confirm your target codes and the test parameters your certification body expects when you specify the chamber, since configuration follows the method you need to satisfy.
Build Your IPX Test Capability With Torontech
Saudi manufacturers and importers face rising scrutiny on published IP ratings, particularly across outdoor infrastructure tied to national development programs. In-house water ingress testing turns that scrutiny into a controlled engineering step rather than a commercial risk.
Torontech supports the Saudi market through its regional office, Torontech ME FZE, which handles specification, delivery, and after-sales service across the Gulf. Reach the team at +971 488 19252 or me@torontech.com, or write to Meydan Grandstand, 6th floor, Meydan Road, Nad Al Sheba, Dubai-261440, UAE.
Tell us the IPX codes you need to verify, your largest specimen size, and your throughput, and we will match a configuration to it. Reach out to the Torontech team to start the conversation.
