Cement Compression Tester

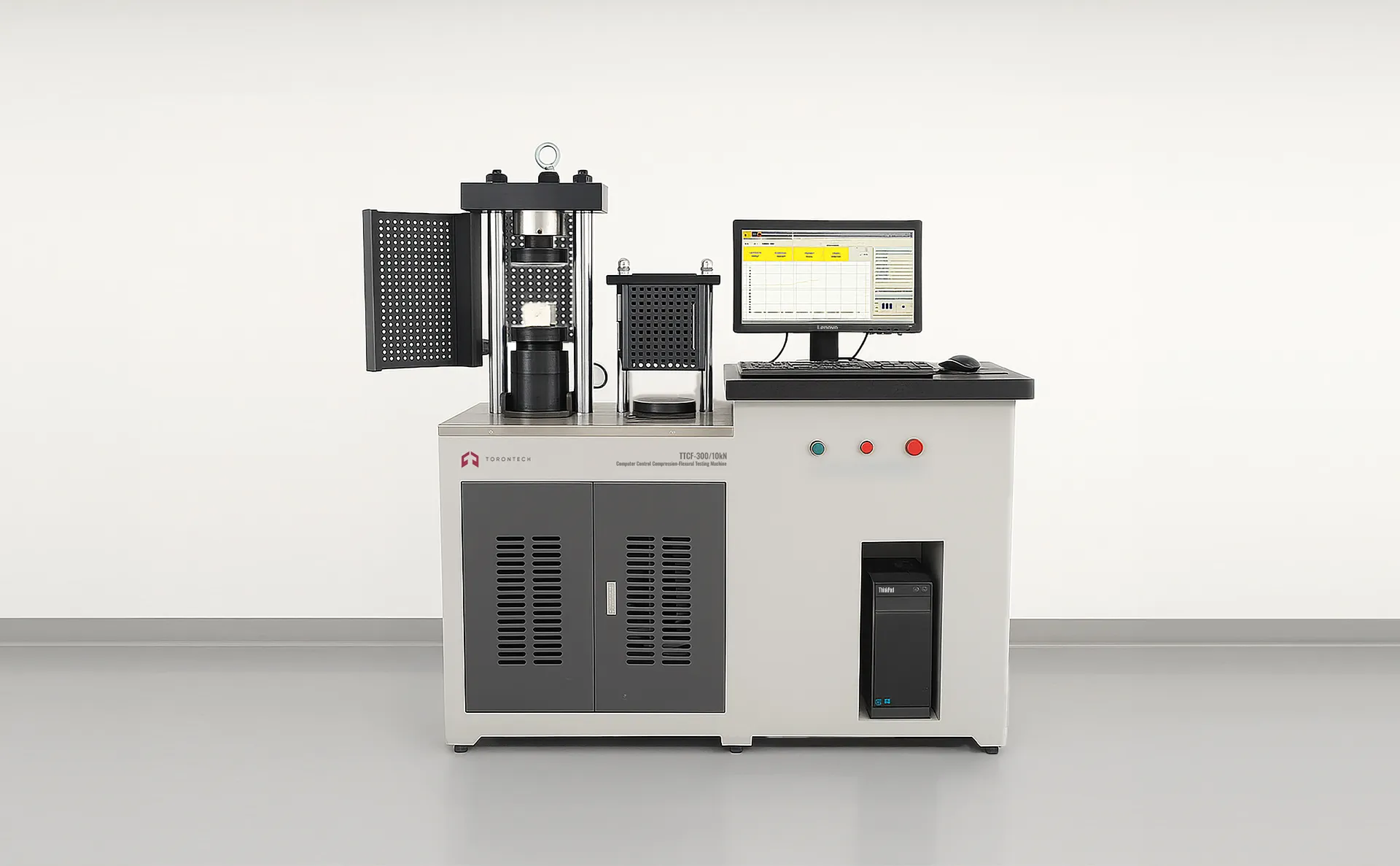

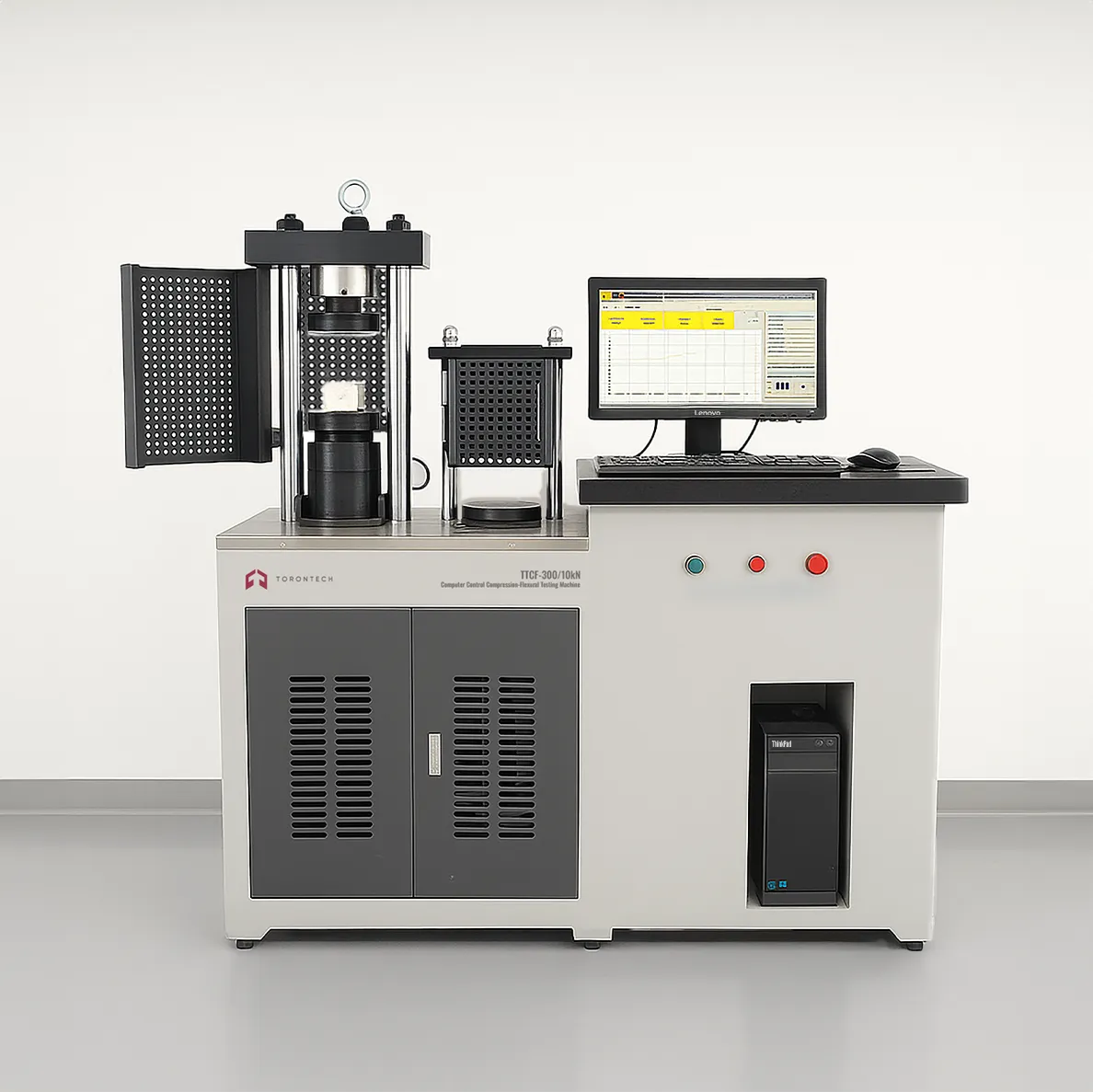

TTCF-300/10kN Computer Control Compression-Flexural Testing Machine
Cement Compression Tester: TTCF-300/10kN Computer Control Compression-Flexural Testing Machine is designed for precise measurement and control, utilizing a high-precision digital servo valve with force closed-loop control.
It supports both equal-loading rate loading and constant-rate loading, ensuring high control precision and reliability. This machine is fully compliant with ASTM C109, ASTM C349, and EN 196-1 standards.
The Torontech TTCF-300/10kN is a high-precision system for determining the compressive and flexural strength of cement, mortar, and concrete specimens in accordance with key international standards like ASTM C109 and EN 196-1. Its primary application is to provide the definitive data required for quality assurance, mix design validation, and material certification in any context where cementitious strength is a critical performance parameter.
This fundamental strength testing is essential for ensuring safety and quality in:
- Cement Manufacturing: For essential quality control to certify that every batch of cement meets its specified strength classification and regulatory requirements before it is sold.
- Ready-Mix Concrete Production: To validate new mix designs and perform routine quality assurance, ensuring that the concrete delivered to a job site will achieve the design strength required for the structure.
- Civil Engineering & Construction: Used in on-site or third-party testing laboratories to verify the strength of concrete and mortar being used in critical infrastructure like buildings, bridges, and dams, ensuring structural integrity and safety.
- Materials Research & Academia: As a primary research tool for developing and evaluating new cementitious materials, high-performance concretes, and innovative admixtures by providing precise, repeatable strength data.
Performance Characteristics of TTCF-300kN Cement Compression Tester – Flexural Testing Machine
(A) Hydraulic System
- The machine utilizes a double-cylinder system for high control and measurement precision.
- Hydraulic oil is driven through a high-pressure pump, passing through one-way valves, high-pressure oil filters, and pressure valves before entering the cylinder.
- A computer sends control signals to the servo valve to regulate flow, achieving constant velocity test force control.
(B) Force Measurement System
- Equipped with a high-precision amplifier and A/D converter for real-time load, peak, loading speed, and intensity display.
- Utilizes PID closed-loop control for constant speed loading with real-time loading curve display.
- Features an automatic interval timer and continuous testing capability.
- Allows for flexible and convenient test result querying and printing.
(C) Control and Measurement Systems
- Integrates advanced pressure testing machine control technology with a high-precision full-digital servo closed-loop control and measurement system.
- Capable of constant load rate loading, constant stress loading, and maintaining test force.
- Features high control precision and reliability, with multi-layer protection against overload, overcurrent, overvoltage, undervoltage, overspeed, and limit scenarios.
- Includes specialized monitoring and control software for statistical and processing of test data.
- Displays real-time force and time parameters dynamically, with test curve output and reporting capabilities.
ITEM | Compression | Flexural |
Max. Test Force | 300kN | 10kN |
Test Measurement Range | 20kN-300kN | 1-10kN |
Test Force and Relative Error Value | ≤±1% | ≤±1% |
Upper and Lower Compression Plate Space | 250mm | 190mm |
Max. Piston Stroke | 80mm | 60mm |
Double Column Space | 220mm | 180mm |
Compression Plate Size | φ160mm | φ160mm |
Motor Power | Three phase four wires 380V 50Hz, 0.75KW | |
Overall Dimension (mm) | 1420*475*1350 | |
Weight | 450kg | |
| Main Configuration | ||
|---|---|---|
Item | Qty | Remarks |
Main Unit | 1 set | Includes double cylinder, motor, pump, servo valve |
Computers | 1 set | Lenovo |
Printers | 1 set | Inkjet |
Control and Measurement Systems | 1 set | |
Force Sensor | 1 pc | |
Electric Control System | 1 set | |
Cement Bending Fixture | 1 set | For cement standard sample 40*40*160 |
Upper and Lower Compression Plate | 1 set | |
User Manual/Certificate/Packing List | 1 set | |
