Catheter Hydraulic Pressure Leak Tester
Catheter Hydraulic Pressure Leak Tester – ToronMed-CHPLT01 is engineered to evaluate the hydraulic pressure leak performance of non-intravascular catheters, infusion sets, and related medical tubing. By replicating real-world hydraulic pressure conditions, this instrument helps manufacturers ensure safety, compliance, and long-term reliability in critical healthcare applications.
Standards Compliance
Designed to comply with major international medical device testing standards, including:
- EN 1618 (Catheters – Leakage testing)
- Relevant ISO/EN standards for catheter and infusion set performance testing
Standard Configuration

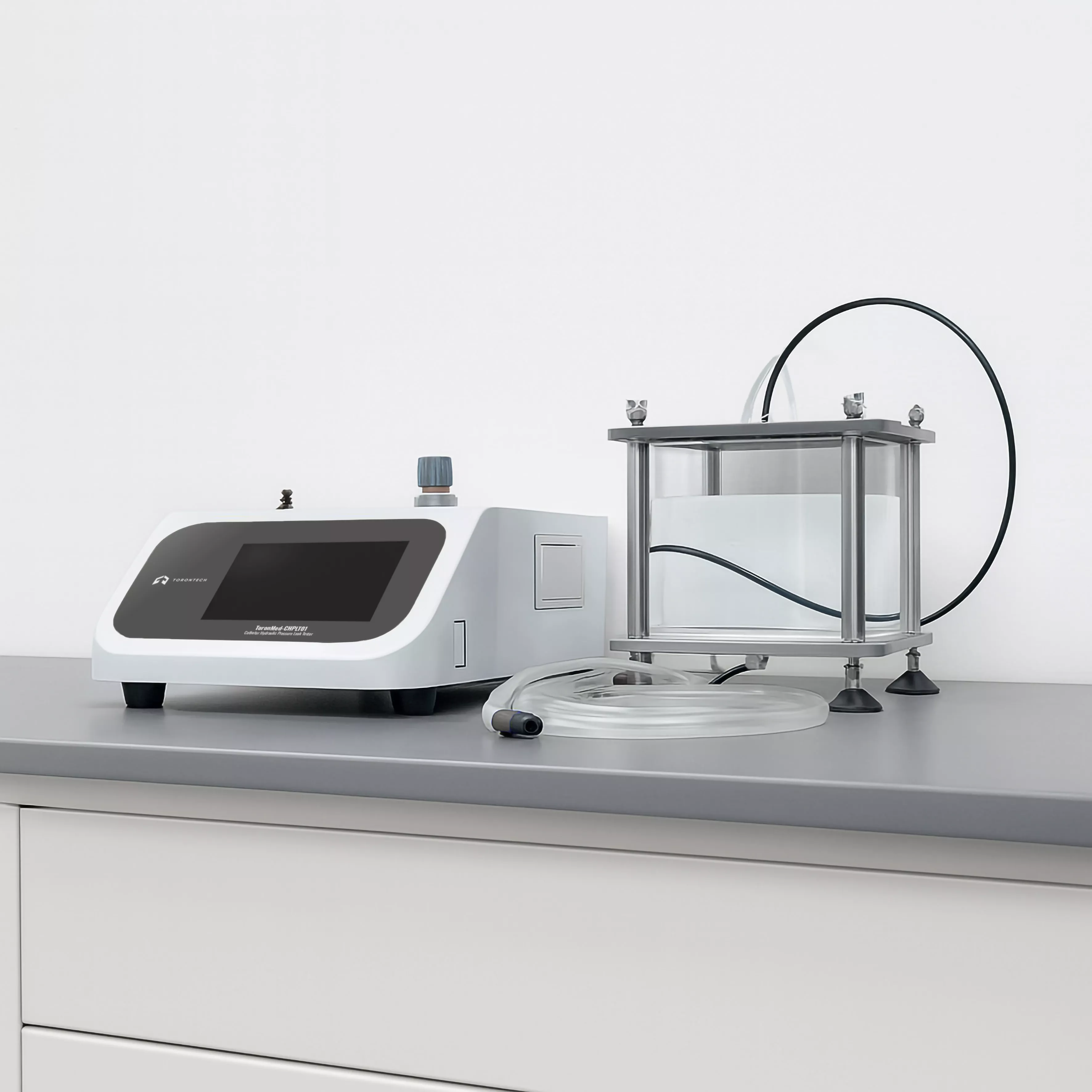

- Main instrument unit
- Hydraulic liquid reservoir
- Integrated micro printer
Why Choose Catheter Hydraulic Pressure Leak Tester – ToronMed-CHPLT01
The Catheter Hydraulic Pressure Leak Tester – ToronMed-CHPLT01 provides unmatched accuracy, automation, and reliability for medical device testing. Designed for manufacturers, R&D facilities, and quality control laboratories, this instrument delivers repeatable results while meeting international compliance requirements.
With robust data storage, user-friendly operation, and long-term performance, the Catheter Hydraulic Pressure Leak Tester is an essential solution for ensuring catheter safety and quality.
- Basic Applications
- Suction catheters
- Drainage catheters
- Infusion sets
- Extended Applications
- Trachea cannulas
- Peritoneal catheters
- Urinary catheters
- Advanced Microcomputer Control
Embedded high-speed processor with intuitive interface ensures efficient and precise operation. - 7-Inch HD Touchscreen
Real-time data and curve display provide clear visibility for accurate monitoring and analysis. - Built-In Safety Systems
Overvoltage protection and power-off memory safeguard operations and maintain data integrity. - Connectivity & Data Storage
RS232 interface for PC connectivity and large-capacity storage for up to 100,000 test records. - High-Precision Flow Control
Equipped with an electronic flow controller for stable and repeatable gas flow regulation. - Flexible Testing Modes
Presettable pressure and hold times can be quickly entered, with automated judgment and reporting. - Automated Reporting
Results are calculated and displayed automatically, with options for direct printing.
Test Principle
The Catheter Hydraulic Pressure Leak Tester applies the positive pressure test method. The catheter or infusion set is connected to a hydraulic tank, where the desired pressure and duration are entered. The system then pressurizes the tank, monitors for leaks across the test sample, and automatically determines pass/fail status while storing detailed results.
| Specification | Value |
|---|---|
| Test Range | 0–600 kPa (0–87 psi, standard) Optional: 0–1.6 MPa (0–232 psi) |
| Gas Supply Pressure | 0.4–0.7 MPa (customer-supplied) |
| Gas Supply Port | Φ8 mm PU Tubing |
| Instrument Dimensions | 310 × 370 × 150 mm |
| Reservoir Dimensions | 215 × 215 × 240 mm |
| Voltage | AC 220V 50Hz / AC 110V 60Hz |
| Net Weight | 25 kg |
