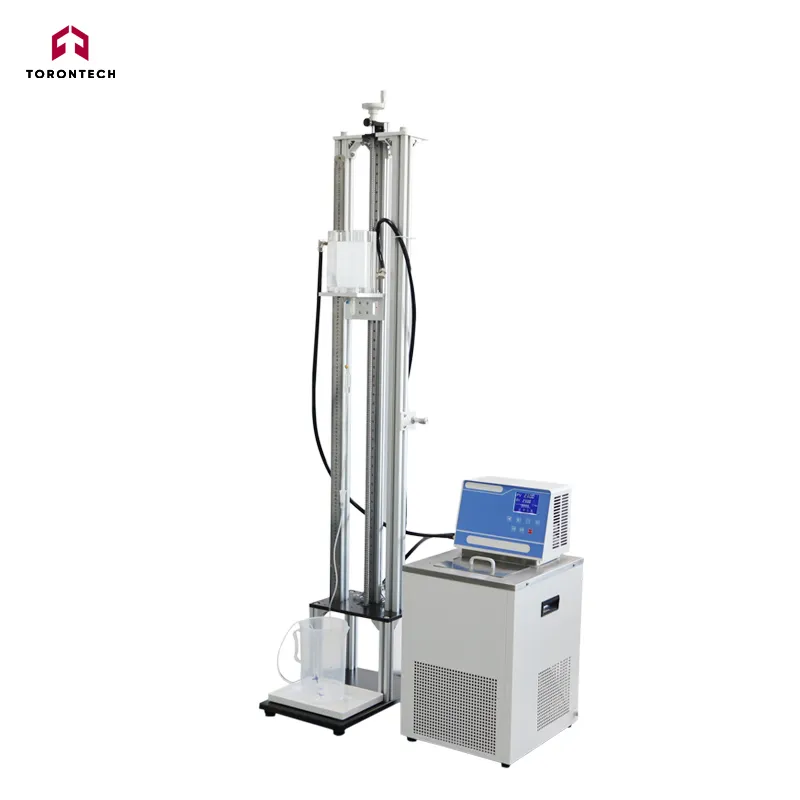

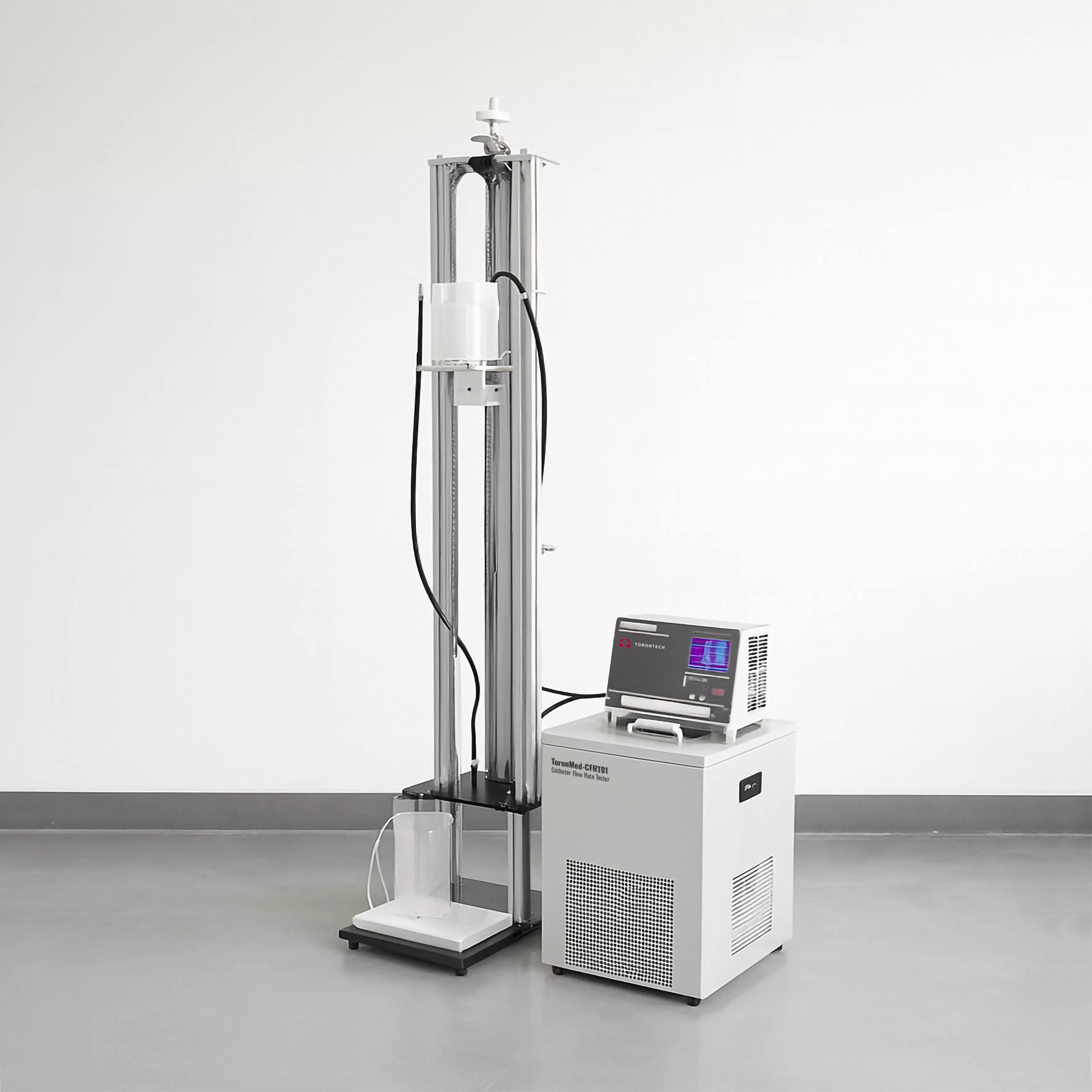

Catheter Flow Rate Tester
Precision System for Testing Flow Rate of Intravascular Catheters and Infusion Sets
ToronMed™ CFRT01 Catheter Flow Rate Tester is a precision instrument designed to evaluate the water flow rate through intravascular and non-intravascular catheters, as well as infusion sets, under controlled hydrostatic pressure. This system simulates clinical fluid flow conditions, ensuring catheter and infusion device performance meets regulatory flow rate and temperature criteria.
This device is ideal for medical device manufacturers, QA labs, and compliance testing facilities working with vascular access devices and fluid delivery systems.
Applications
Test Item | Description |
|---|---|
| Intravascular Catheters | Flow rate under hydrostatic pressure |
| Non-Intravascular Catheters | Flow rate and delivery validation |
| Infusion Sets | Flow control and delivery rate assessment |
Standards Compliance
The ToronMed™ CFRT01 supports testing in accordance with the following international standards:
- ISO 10555-1 – Intravascular catheters – General requirements
- ISO 8536-4 – Infusion equipment for medical use – Infusion sets
- EN 1618 – Catheters other than intravascular – Flow rate and performance requirements
These standards define requirements for fluid delivery rates, testing under gravity-fed hydrostatic pressure, and temperature-controlled environments — all critical to device safety and effectiveness.
Standard Configuration
- Base instrument with hydrostatic test head
- Constant temperature water tank
- Height adjustment mechanism
- PU tubing and flow control system
- Balance support station
- Built-in hydrostatic pressure testing system maintains a liquid column height of 1000 ± 10 mm
- Flow rate of 525 ml/min, compliant with standard test requirements
- Integrated constant-temperature water tank ensures testing at 23 °C

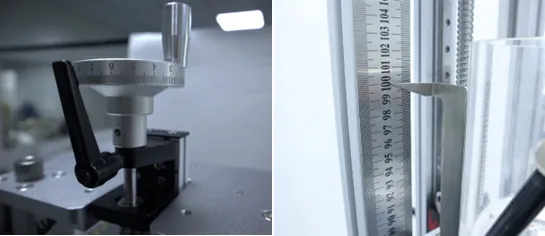

- Includes adjustable height mechanism for varying pressure conditions
- Timer function for controlled and repeatable timed testing
- Balance station platform for placing graduated cylinders or precision balances
- Flow-regulating valves for easy control and flow calibration during tests
Specification | Value |
|---|---|
| Model | ToronMed™ CFRT01 |
| Flow Rate | 525 ml/min |
| Liquid Level Control | 1000 ± 10 mm |
| Water Temperature Control | 23 °C via constant-temperature tank |
| Dimensions (Test Device) | 280 mm (L) × 420 mm (W) × 1660 mm (H) |
| Dimensions (Water Tank) | 420 mm (L) × 380 mm (W) × 755 mm (H) |
| Height Adjustment | Manual vertical lift mechanism |
| Accessories | PU pipe, balance station, flow regulation valves |
