Catheter Flow Rate and Pressure Tester for Power Injection
ISO 10555-1

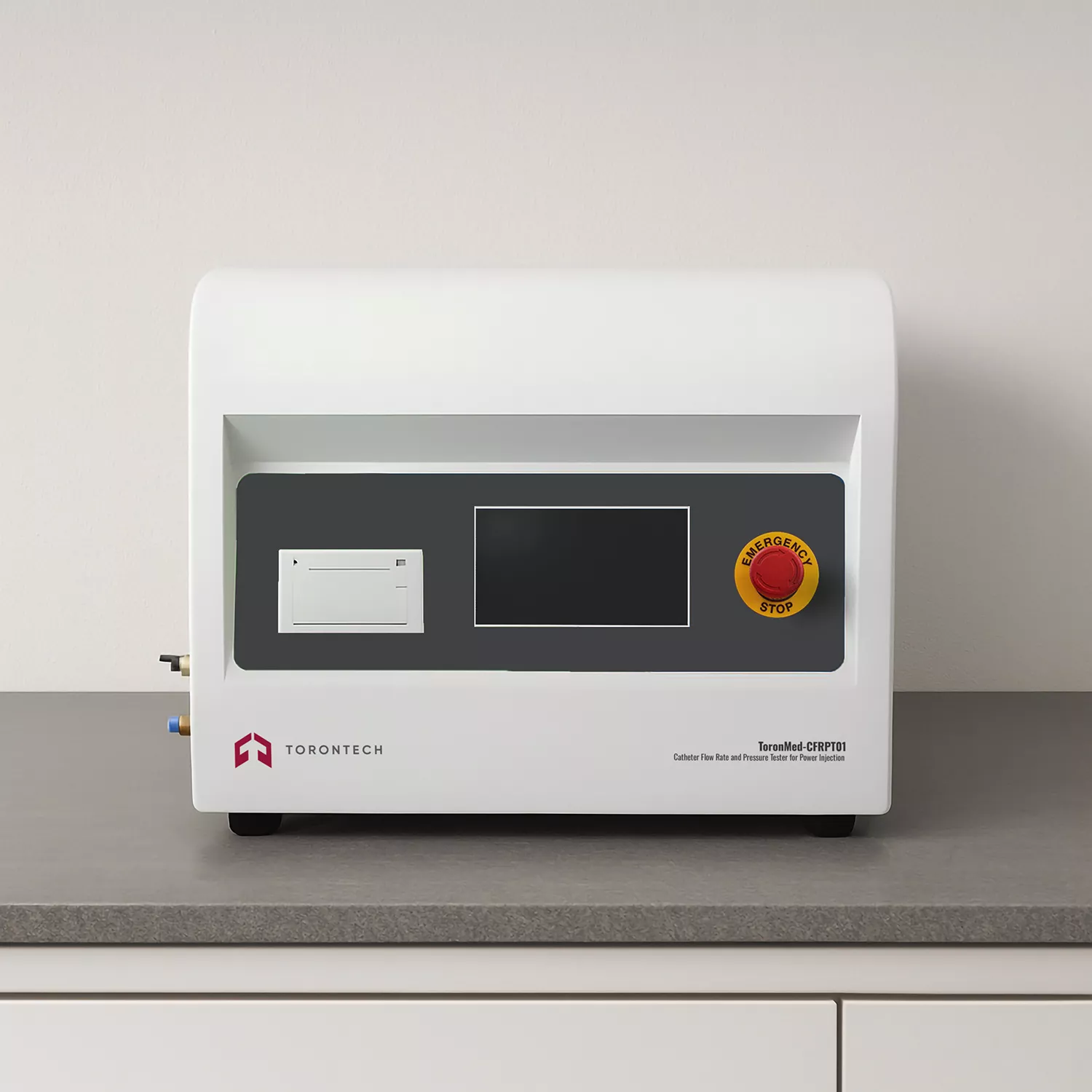

Catheter Flow Rate and Pressure Tester for Power Injection ToronMed-CFRPT01 is a high-performance testing instrument designed to measure the flow rate and pressure of medical sterile catheters during power injection. Using a high-pressure hydraulic testing method, it applies constant water pressure to the catheter sample and maintains it for a set period to ensure precise, repeatable results.
This tester is ideal for evaluating catheter performance under real-world simulated conditions and is suited for use in medical device manufacturing, quality control laboratories, and R&D environments.
Enhanced User Experience
- 7” Full-Color Touchscreen – Intuitive operation with intelligent data processing.
- Automatic Calibration – Streamlined test setup and increased accuracy.
- Custom Test Parameters – User-defined test functions, data analysis, and reporting.
- Large Data Storage – Stores up to 100,000 test records with power-down memory.
- GMP-Compliant Data Security – Four-level password protection, user management, and audit trail.
Applications
- Flow rate and pressure testing during power injection of central venous catheters
- Testing balloon dilatation catheters under power injection conditions
- Flow and pressure performance evaluation of peripherally inserted catheters (PICC lines)
Applicable Standards
- ISO 10555-1 – Intravascular catheters for single use – General requirements
Why Choose ToronMed-CFRPT01 Catheter Flow Rate and Pressure Tester for Power Injection?
With its dual testing capabilities, advanced safety systems, and precise control over temperature, pressure, and flow, the ToronMed-CFRPT01 provides unmatched reliability for catheter performance evaluation. It is the ideal solution for manufacturers and laboratories seeking accurate, compliant, and efficient catheter testing.
Key Features
- Dual Testing Modes – Supports both constant pressure and constant flow rate testing.
- Integrated Temperature Control – Maintains test liquids at required temperatures for accurate simulation.
- Self-Developed Liquid Booster Pump – Stable, air-source-free operation for consistent performance.
- Versatile Testing Compatibility – Replaceable connecting tubes and standard Luer interface accommodate various catheter types and sizes.
- High-Pressure Capability – Built-in stainless steel piping and high-pressure solenoid valve support tests up to 10 MPa (1400 psi).
- Safety-Oriented Design – Includes splash protection, over-pressure shutdown, and emergency stop features.
- Data Connectivity – RS232 interface for PC connection and data export.
| Parameter | Specification |
|---|---|
| Test Range | 0 ~ 10 MPa (1400 psi) |
| Pressure Sensor Accuracy | 0.5% FS |
| Flow Rate | 0 – 40 ml/s |
| Test Methods | Constant flow rate & constant pressure (supports 5 catheter parameter settings) |
| Constant Flow Rate | Max 40 ml/s |
| Constant Pressure | Max 1400 psi |
| Test Volume | 230 ml |
| Water Bath Temperature Control | RT+5°C ~ 100°C |
| Temperature Deviation | ±0.5°C |
| Dimensions | Main: 540×400×425 mm Booster: 280×265×750 mm Water Bath: 500×285×340 mm Protective Device: 650×140×245 mm |
| Voltage | AC 220V 50Hz / 120V 60Hz |
| Net Weight | 45 kg |
