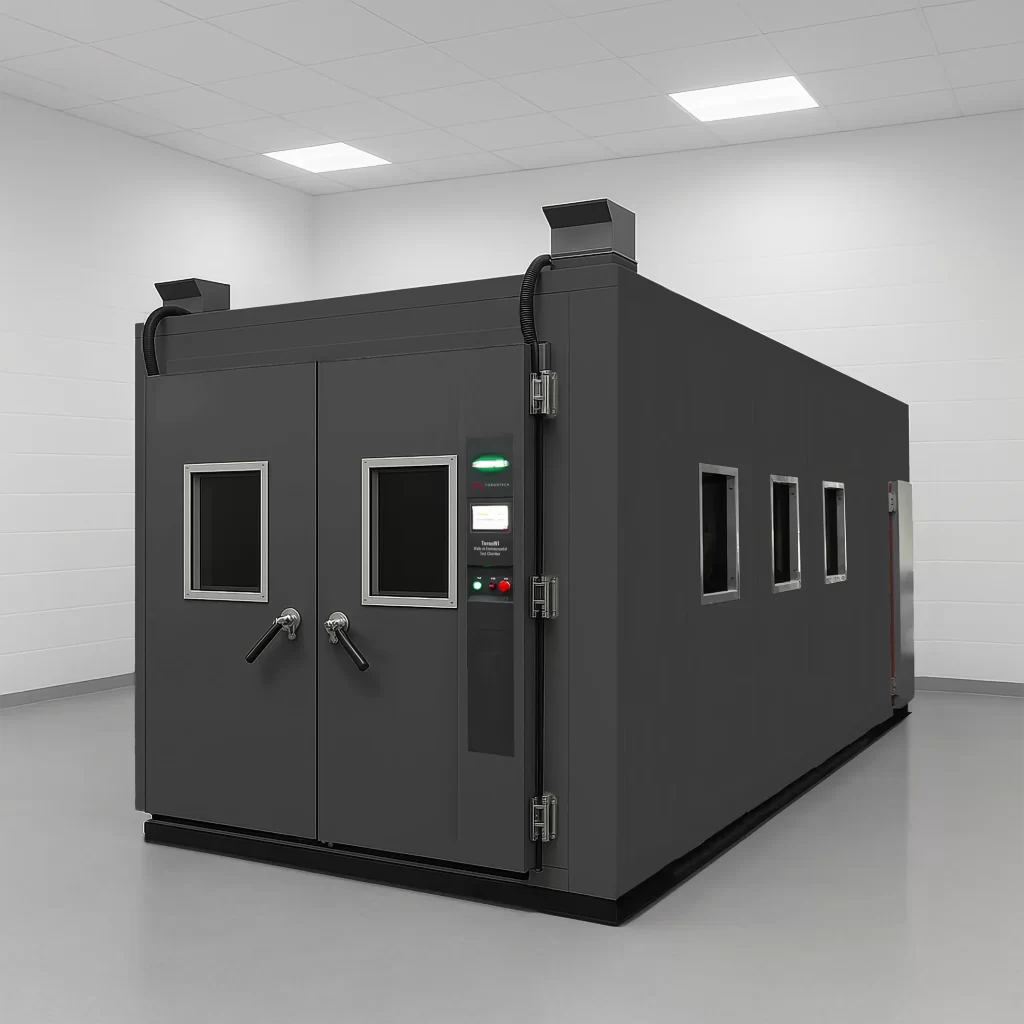

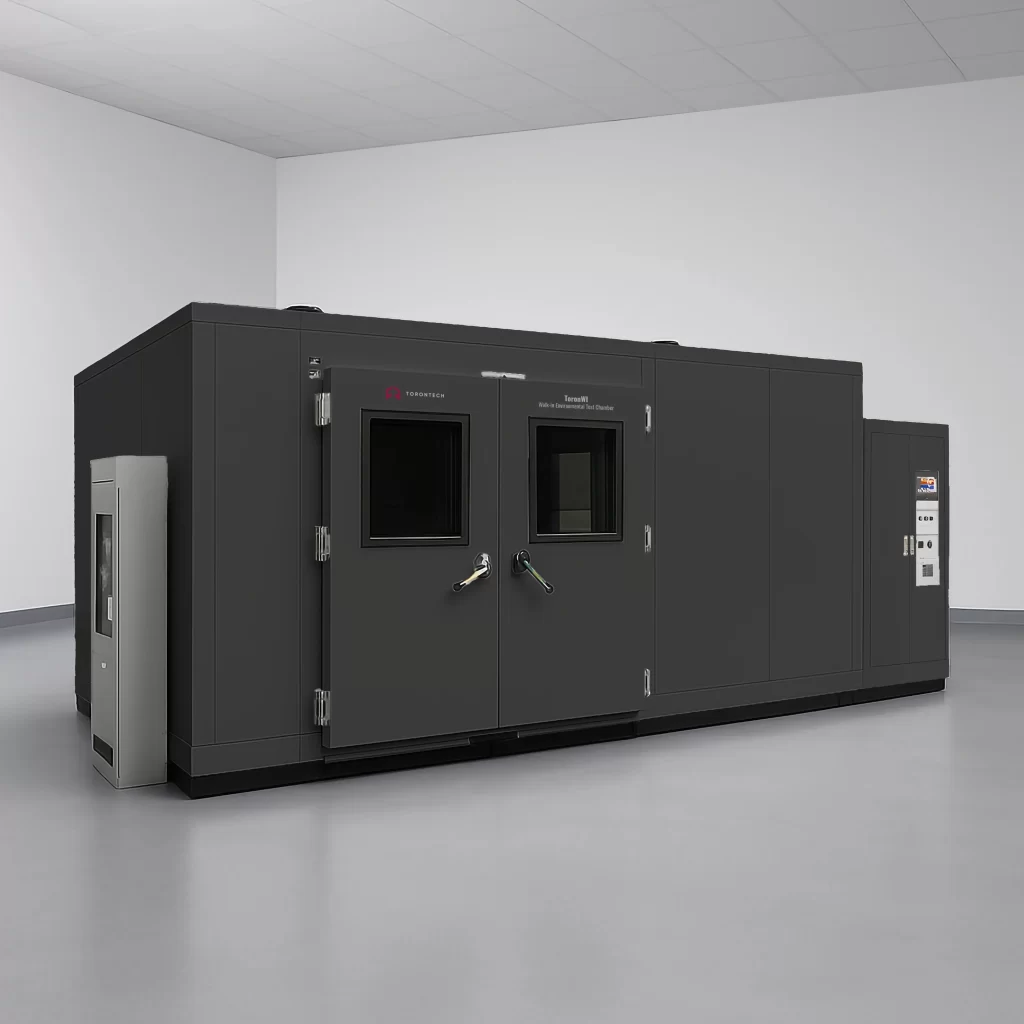

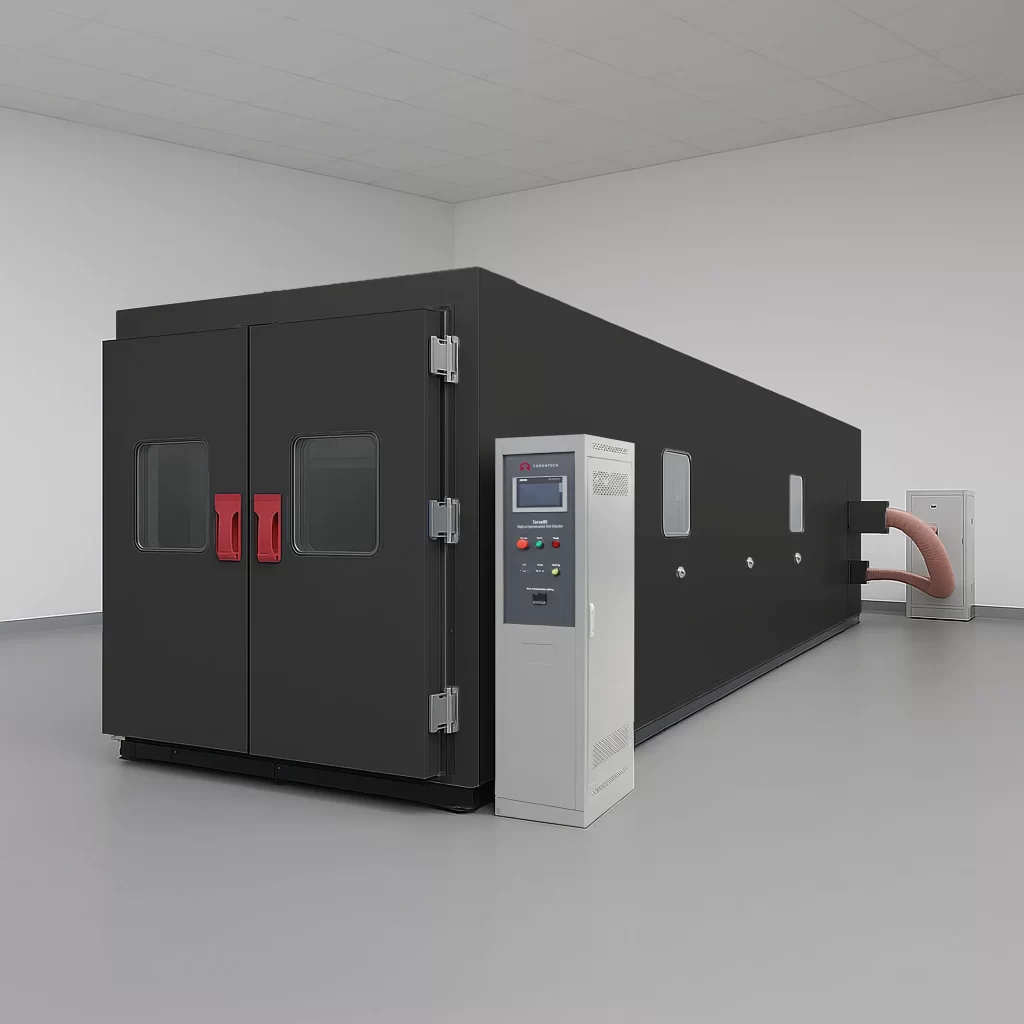

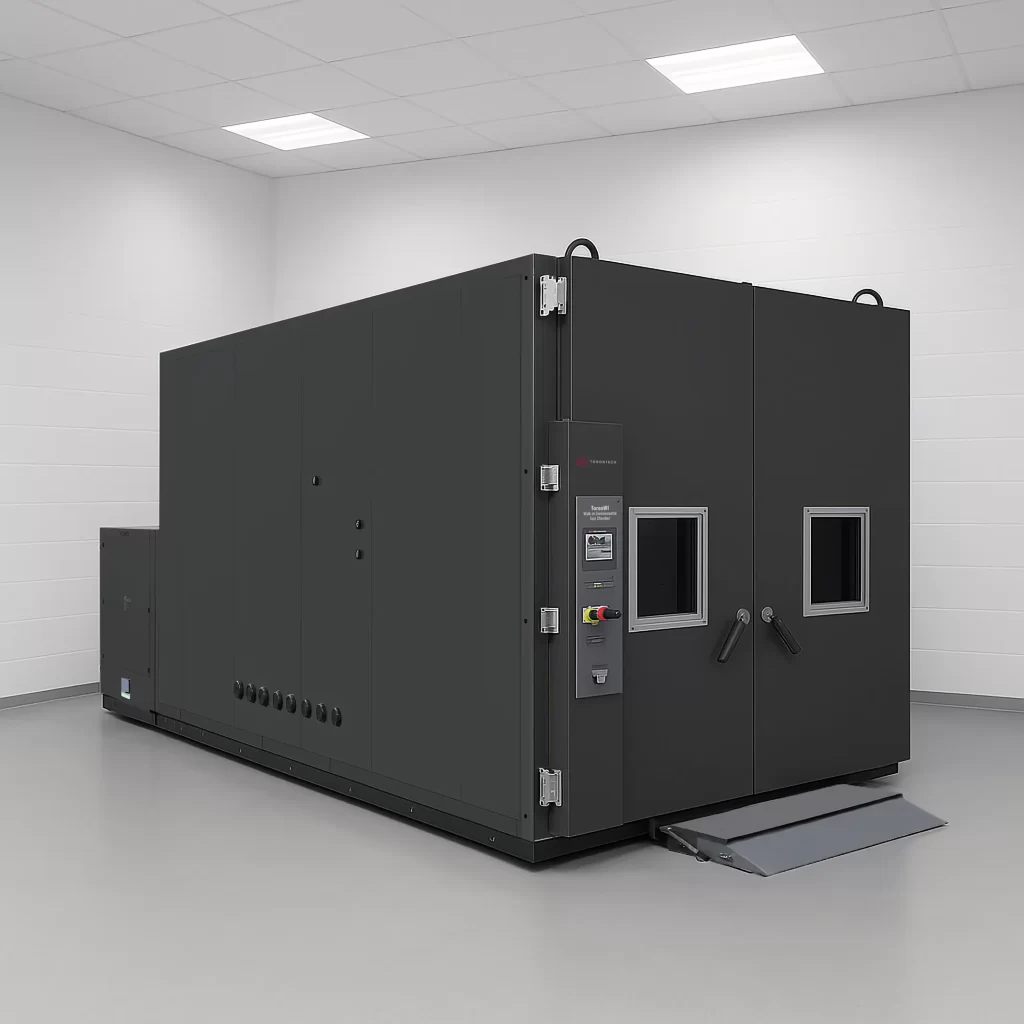

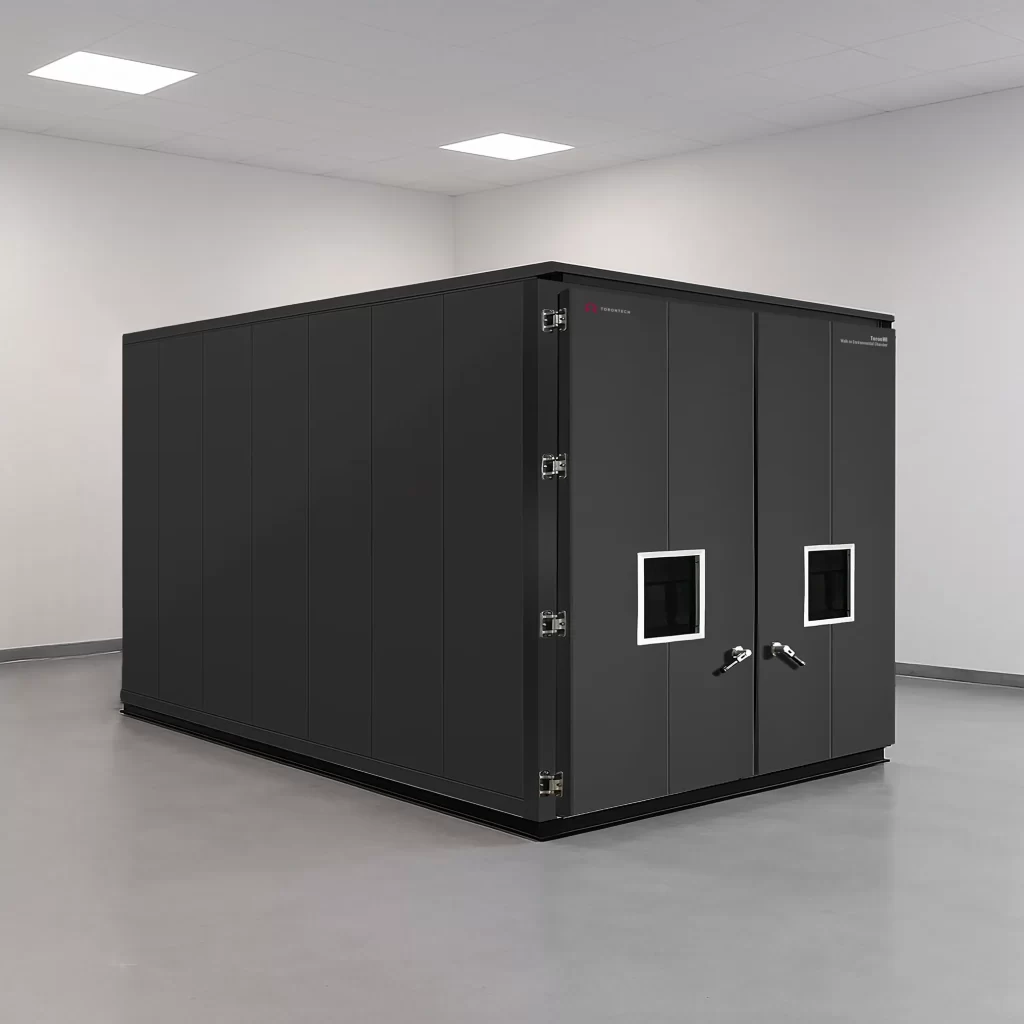

Walk-in Environmental Test Chamber
Walk-in Environmental Test Chamber ToronWI-Series are designed to evaluate and store large components, assemblies, and finished products under specific temperature and humidity conditions, ensuring they meet performance standards.
These Walk-in Environmental Test Chambers accommodate products requiring extensive testing or storage space. Applications include full vehicle evaluations, automotive components, solar panels, electronic parts, packaging, pharmaceutical stability studies, biological research, and various industrial uses.
Walk-in environmental chambers feature a thoughtfully engineered structure that prioritizes operational safety and long-term stability while enhancing energy efficiency.
A wide range of chamber options is available to suit diverse testing needs. Torontech also offers custom solutions tailored to the size and quantity of your samples.
| Model No. | ToronWI-4 | ToronWI-8 | ToronWI-10 | ToronWI-15 | ToronWI-45 | ToronWI-55 |
| Test Space Volume（m³） | 4 | 8 | 10 | 15 | 45 | 55 |
| Inner chamber size W×H×D(mm) | 2000×2000×1000 | 2000×2000×2000 | 2040×2100×2100 | 2500×3000×2000 | 5000×3000×3000 | 5000×2200×5000 |
| Temperature range | High Temp: 80ºC, +120ºC Low Temp: -60 ºC, -50 ºC, -40 ºC , -30 ºC, -20 ºC , -10 ºC, 0 ºC | |||||
| Humidity range | 20% to 98% RH | |||||
| Temp. & humidity fluctuation | ±0.5°C/±2.5% RH | |||||
| Temp. uniformity | ≤ 2.0°C | |||||
| Heating rate | +20ºC~ +80ºC within 60 min | |||||
| Cooling rate | +20ºC~ -55ºC, -40ºC, -20 ºC ,-10 ºC within 120 or 90 or 60 min | |||||
| Exterior chamber material | High-quality carbon steel with painting | |||||
| Interior chamber material | SUS304 matte stainless steel plate | |||||
| Insulation material | Rigid polyurethane foam insulation | |||||
| Cooling mode | Water cooled | |||||
| Controller | LCD Touch Screen Controller with PID control | |||||
| Safety protection device | NFB(No fuse breaker), over pressure, over heat and over current protectors for compressor, over temperature protectors, over load protector of fan, dry heat protector,short of water protector | |||||
| Standard accessory | Sight window*1, Cable port(portΦ100mm), LED Lighting device, Mobile Casters with foot cups | |||||
| Ambient temp. | +5 to +35°C | |||||
| Voltage | 380V AC 3Ø 50Hz | |||||
| Customization service | Non-standard or special requirements can be customized. | |||||
