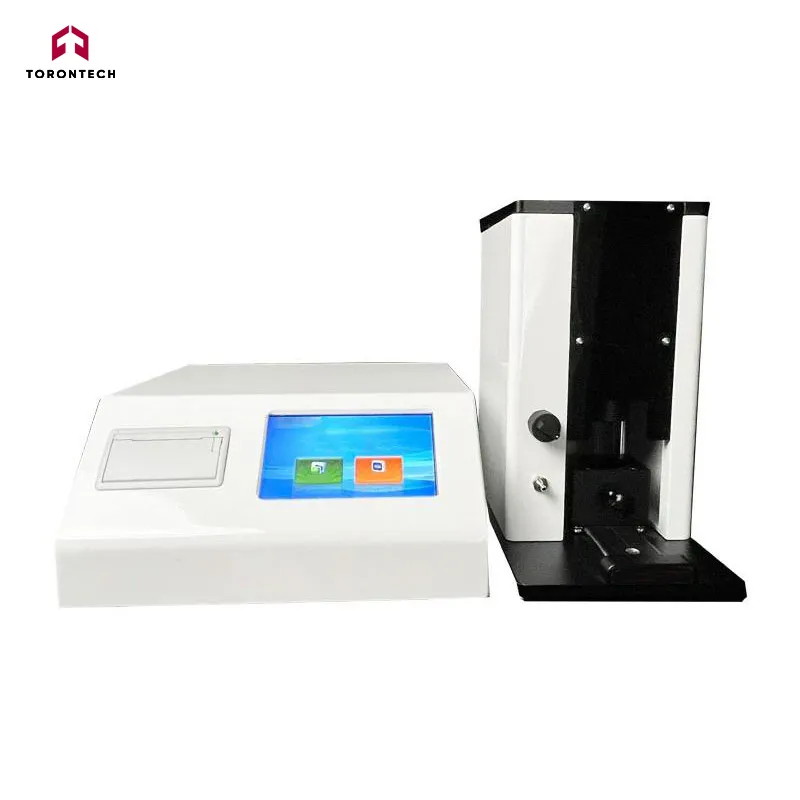

Vacuum Decay Leak Tester – ToronVDL™
Parent Product
Vacuum Decay Leak Tester – ToronVDL™ uses a high-precision pressure sensor to monitor the pressure environment and detect any changes. By observing the pressure drop during the stabilization period, the system can accurately determine if a sample has a leak. When used with the appropriate fixture, it provides a reliable method for identifying leaks in various samples.
Test Standards
ToronVDL™ complies with multiple international standards, including ASTM F2338-13.
Test Principle
ToronVDL™ Vacuum Decay Leak Tester detects package leaks by measuring the pressure increase (vacuum loss) within a sealed, evacuated test chamber that contains the test package.
Key Features of Vacuum Decay Leak Tester – ToronVDL™
- 7-inch TFT touchscreen with an intuitive interface for effortless operation
- Single-sample testing completes in under 25 seconds
- Non-destructive leak testing with a minimum detection limit of 5μm
- Independently designed test fixtures for quick and easy replacement
- Supports vacuum decay testing for both flexible and rigid packaging, including vials, infusion bags, contact lens packaging, milk powder cans, and electronic accessory packs
- Vacuum Decay Leak Tester – ToronVDL offers both zero-point and standard leak calibration methods for fast and accurate results
- Constructed with ABS engineering plastic for enhanced impact and corrosion resistance
- Modular design allows easy maintenance and future function upgrades
- Automatically evaluates test results and prints data using the built-in micro printer
Model | Vacuum Decay Leak Tester – ToronVDL™ |
|---|---|
| Test Method | Vacuum decay method |
| Test System | Single sensor |
| Vacuum Degree | 0~-90 kPa |
| Pressure Accuracy | 0.25% FS |
| Vacuum Resolution | 1 Pa |
| Operation Interface | Touch screen |
| Leak Detect Limit | 5-10 μm |
| Test Time | 60 s/Group |
| Test Results | Qualified/Unqualified |
