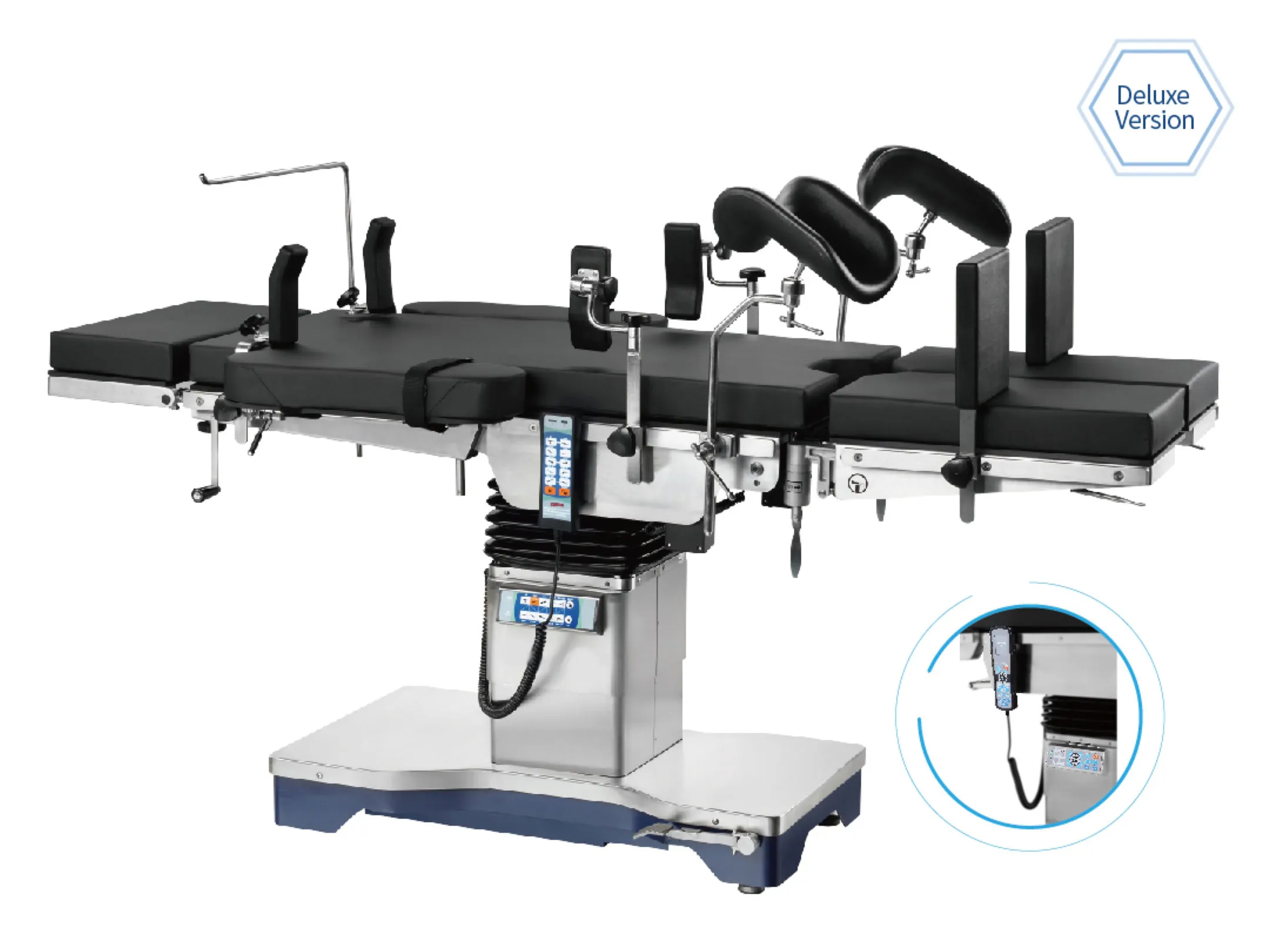

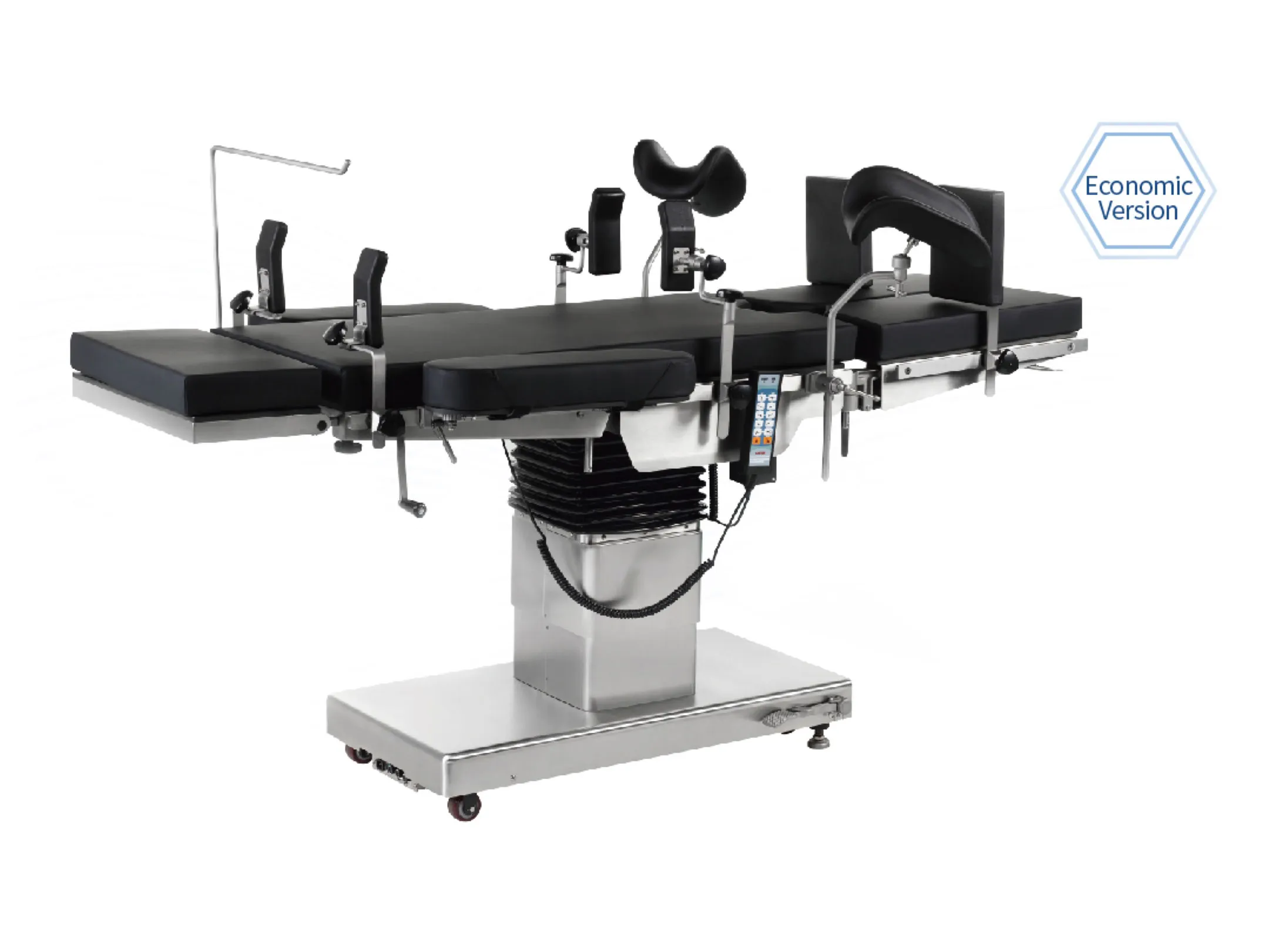

Surgical Table - Fully Electric ToronSurge™ -1000A Series
The ToronSurge™-1000A is a state-of-the-art fully electric surgical table, available in three variations to meet diverse surgical needs:

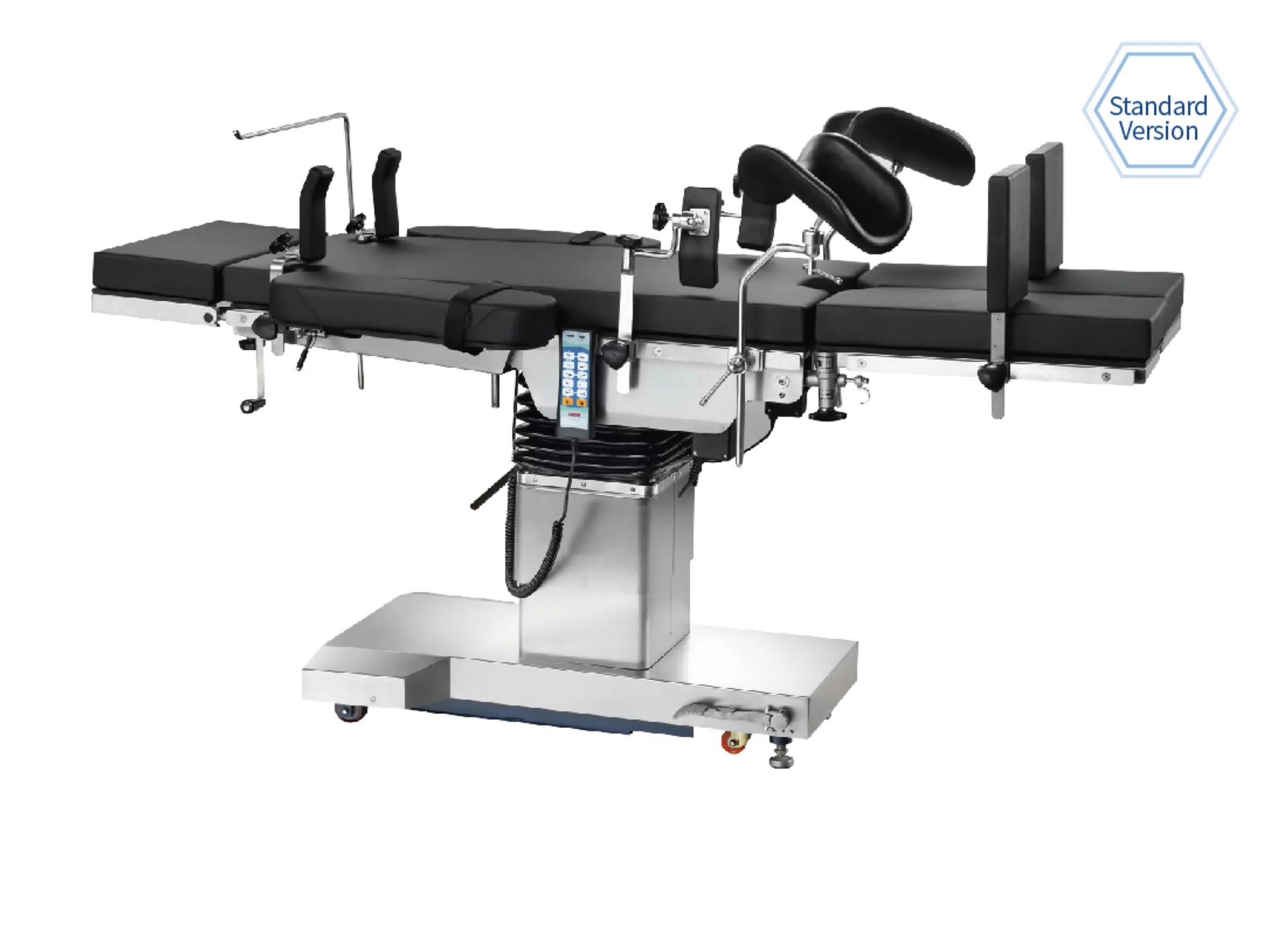

- S – Standard
- E – Economical
- D – Deluxe
Powered by an electric push rod motor operating system, the ToronSurge™-1000A allows seamless adjustments to accommodate various surgical positions, including:
- Table height adjustment
- Forward and backward tilt
- Left and right tilt
- Back plate folding
- Tabletop translation
This multifunctional electric operating table is ideal for a wide range of surgical procedures, including abdominal surgery, obstetrics, gynecology, ENT, urology, anorectal, orthopedics, and more.
Key Features of the ToronSurge™-1000A
1. X-ray Compatibility for Enhanced Imaging
Designed with a PFCC tabletop, the ToronSurge™-1000A Series allows for X-ray scanning during procedures. The ToronSurge™-1000A series offers a tabletop translation of over 300mm, providing excellent C-arm imaging access and compatibility with X-ray film boxes.
2. Dual Control System for Reliability
Equipped with a hand controller and an optional control panel, this system ensures enhanced surgical safety and flexibility, providing redundant control options for uninterrupted operation.
3. High-Performance Rechargeable Battery
The built-in rechargeable battery supports up to 50 operations on a single charge, ensuring reliable performance even in cases of power outages. Additionally, AC power supply compatibility ensures continuous electrical energy for maximum safety and efficiency.
4. Built-in Kidney Bridge for Specialized Procedures
Featuring an integrated lumbar bridge, the table provides optimal positioning for bile duct and kidney surgeries, improving surgical precision and ease of access.
| Specification | Standard Version | Economic Version | Deluxe Version |
|---|---|---|---|
| Length & Width | 2070mm × 550mm | ||
| Elevation (Up/Down) | 1000mm / 700mm | ||
| Head Plate (Up/Down) | 45° / 90° | ||
| Back Plate (Up/Down) | 75° / 20° | ||
| Leg Plate (Up/Down/Outward) | 15° / 90° / 90° | ||
| Trendelenburg/Reverse Trendelenburg | 25° / 25° | ||
| Lateral Tilt (Left/Right) | 15° / 15° | ||
| Kidney Bridge Elevation | ≥110mm | ||
| Horizontal Sliding | 300mm | ||
| Flex/Reflex | Combination Operation | ||
| X-ray Compatibility | Optional | ||
| Control Panel | Standard | ||
| Electro-motor System | Electric Motor | ||
| Voltage | 220V / 110V | ||
| Frequency | 50Hz / 60Hz | ||
| Power Capacity | 1.0 KW | ||
| Battery | Yes | ||
| Mattress | Memory Mattress | ||
| Main Material | 304 Stainless Steel | ||
| Maximum Load Capacity | 200 KG | ||
| Warranty | 1 Year | ||
| Double Control System | Optional | Optional | Yes |
| Leg Plate Adjustment | Manual | Manual | Pneumatic |

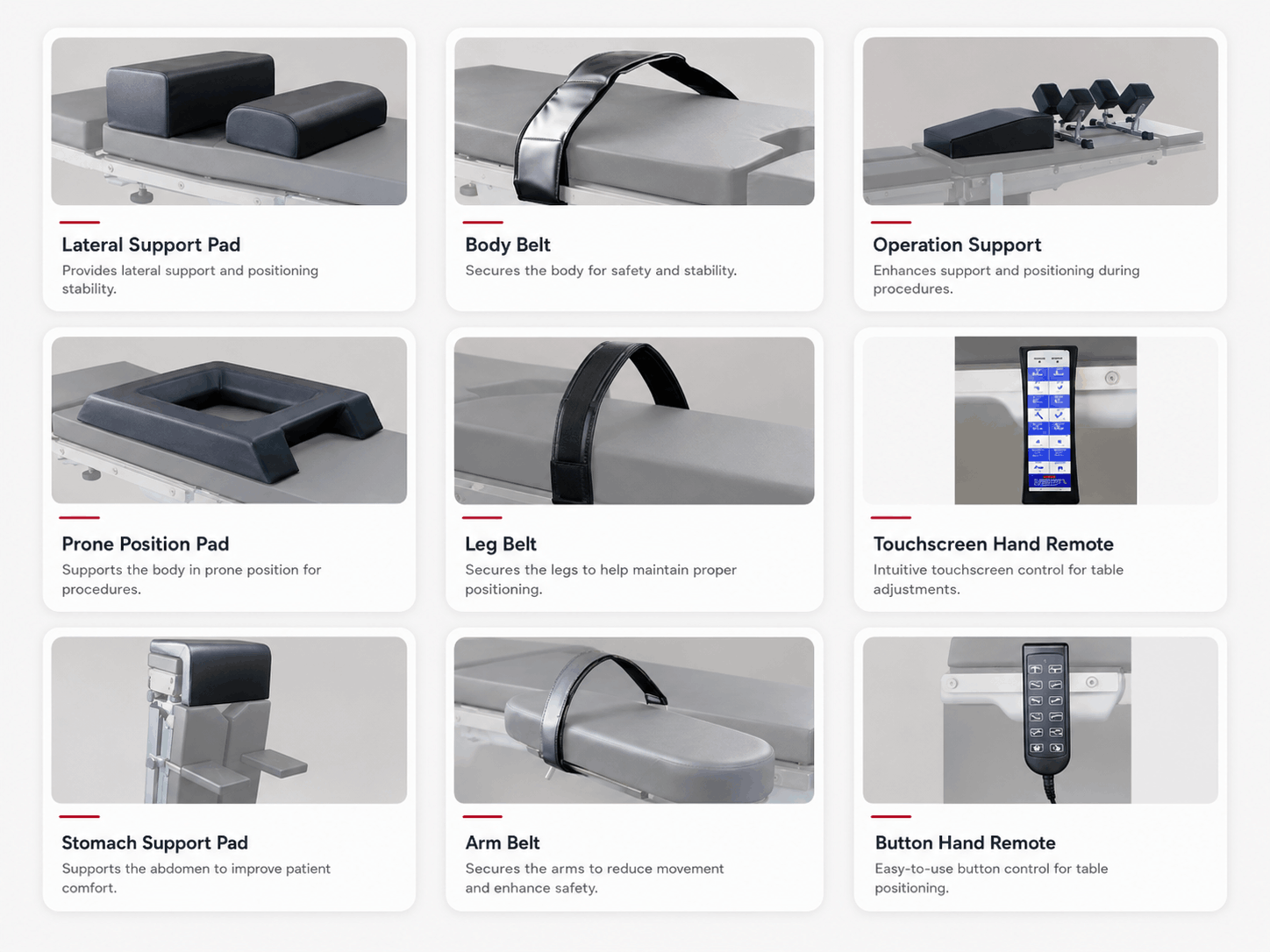

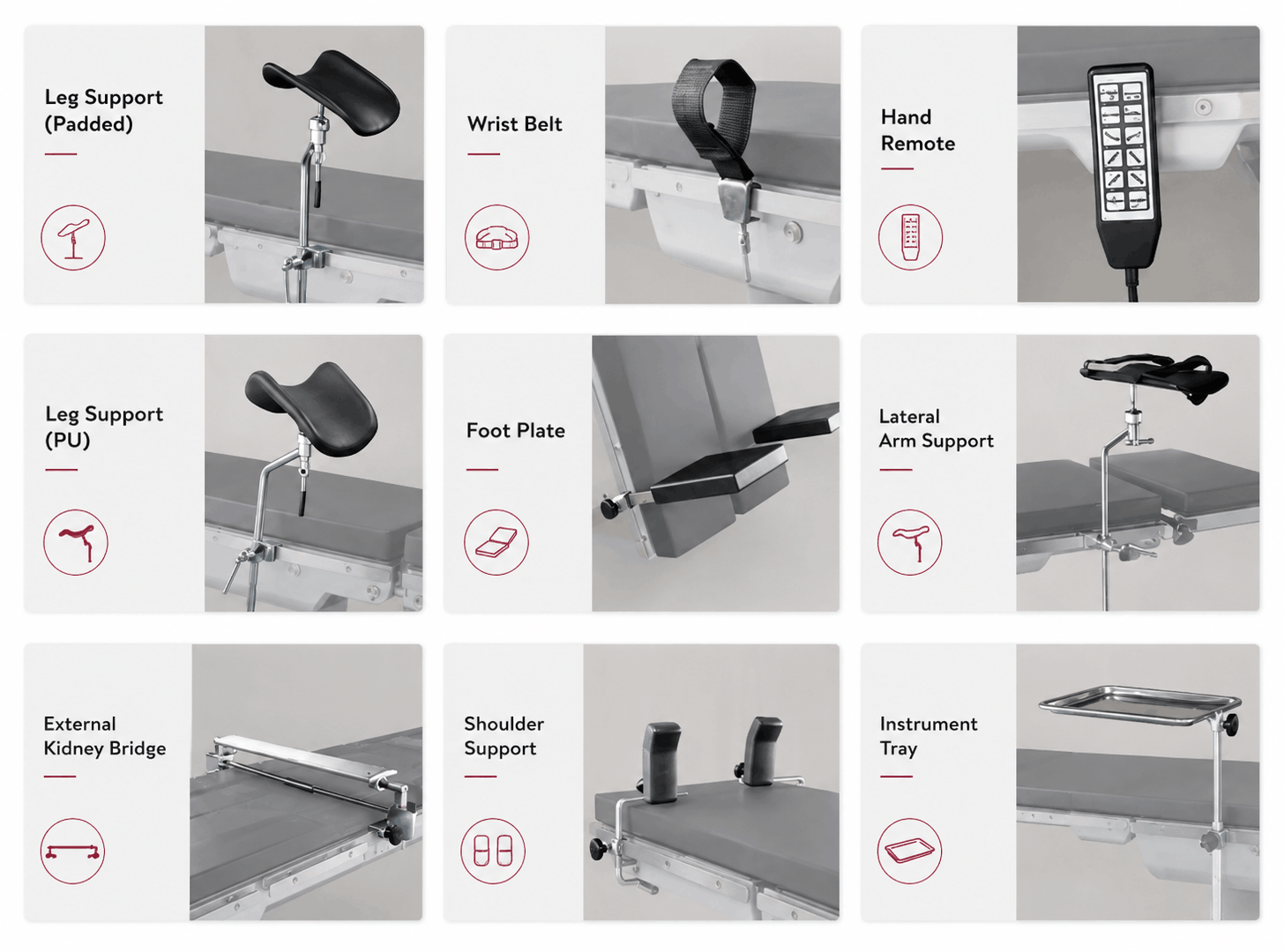

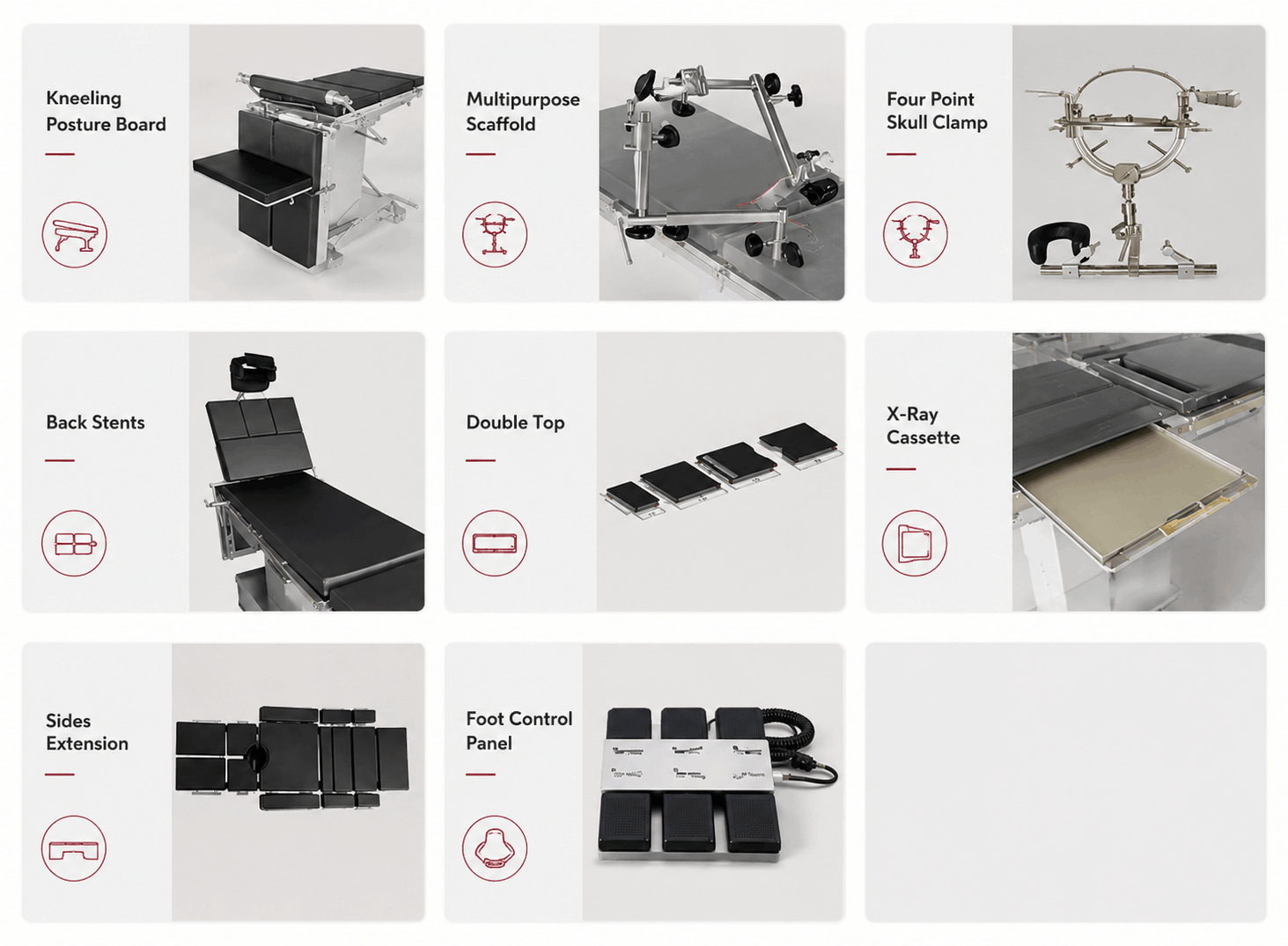

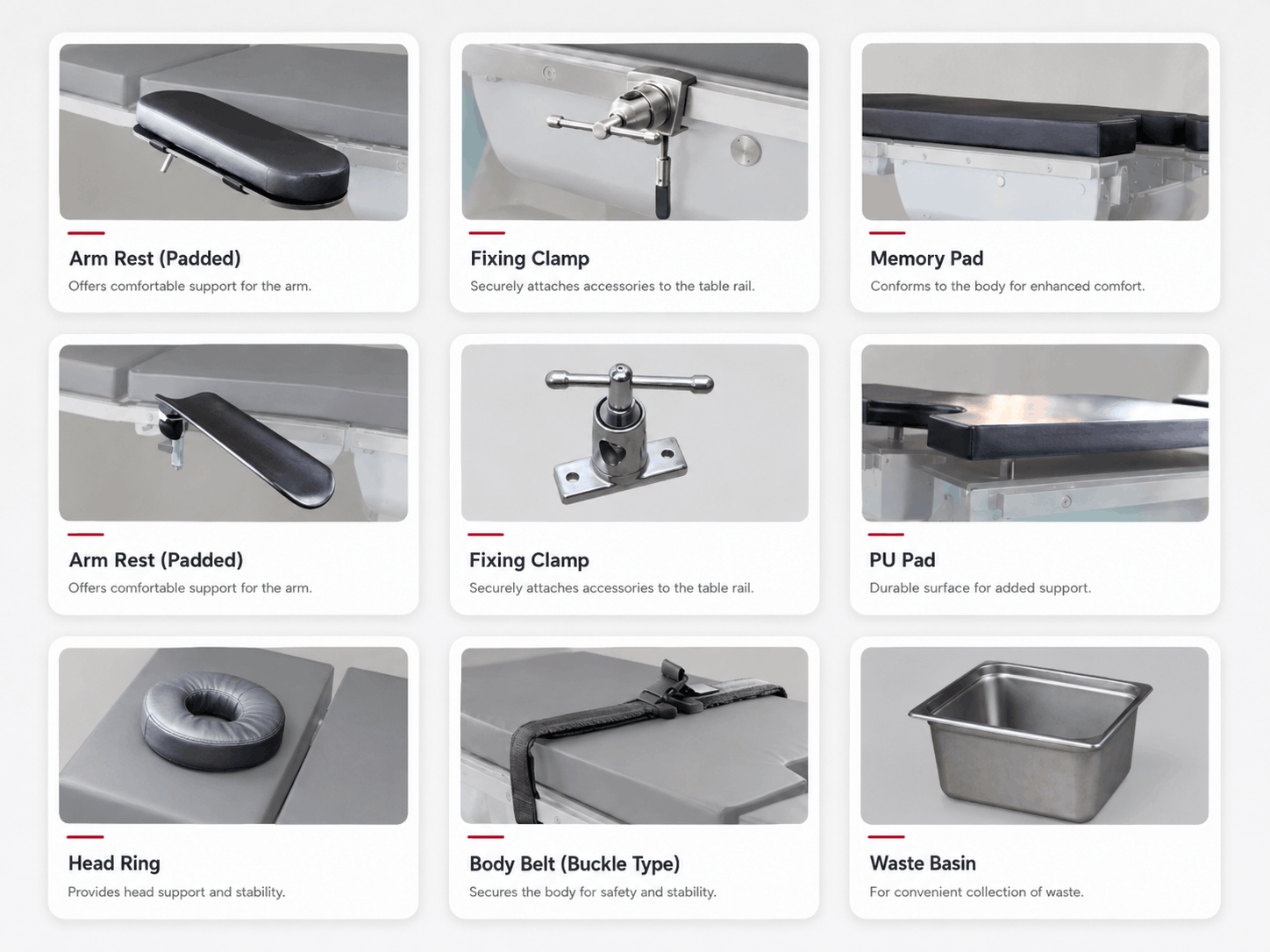

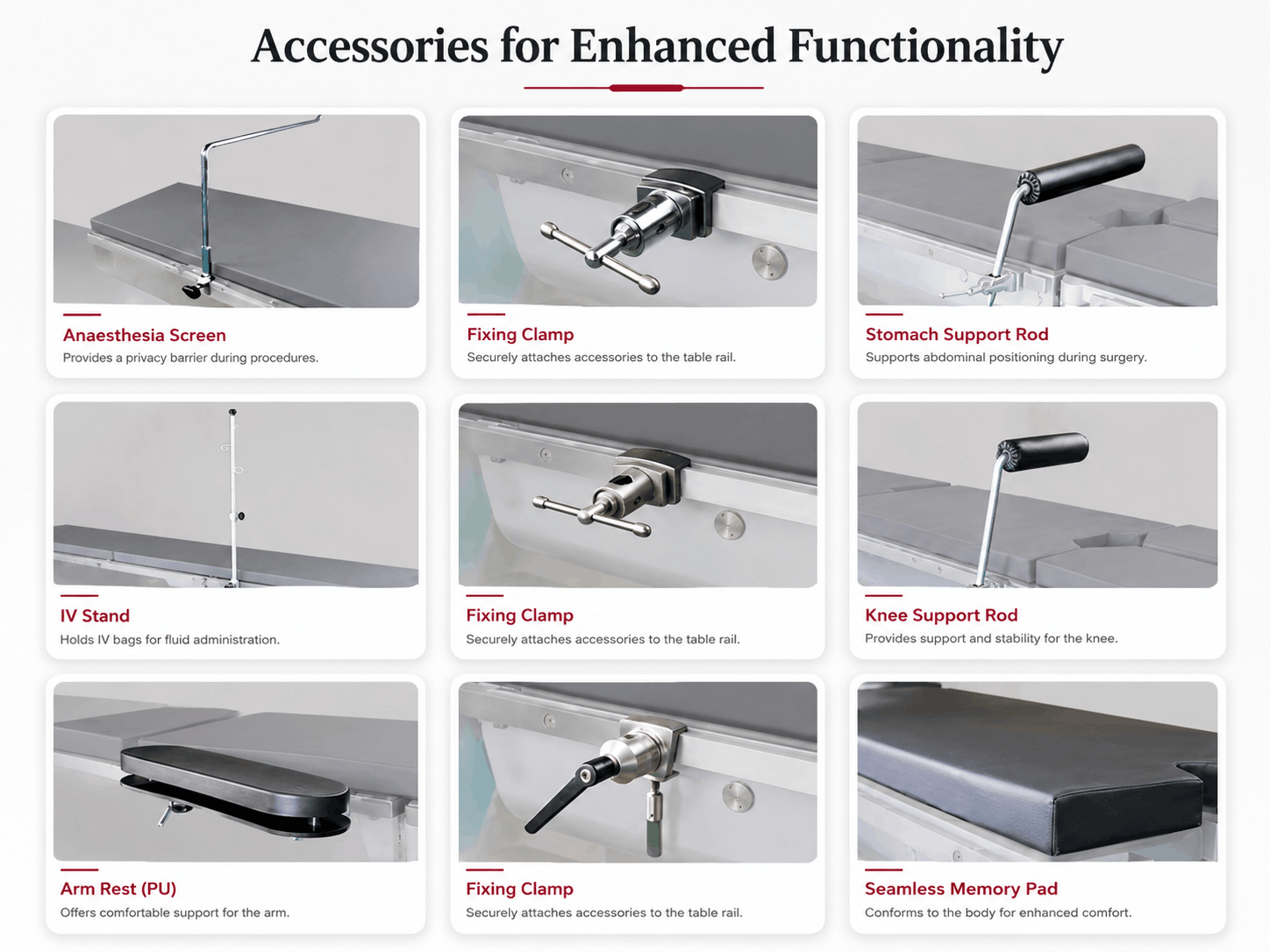

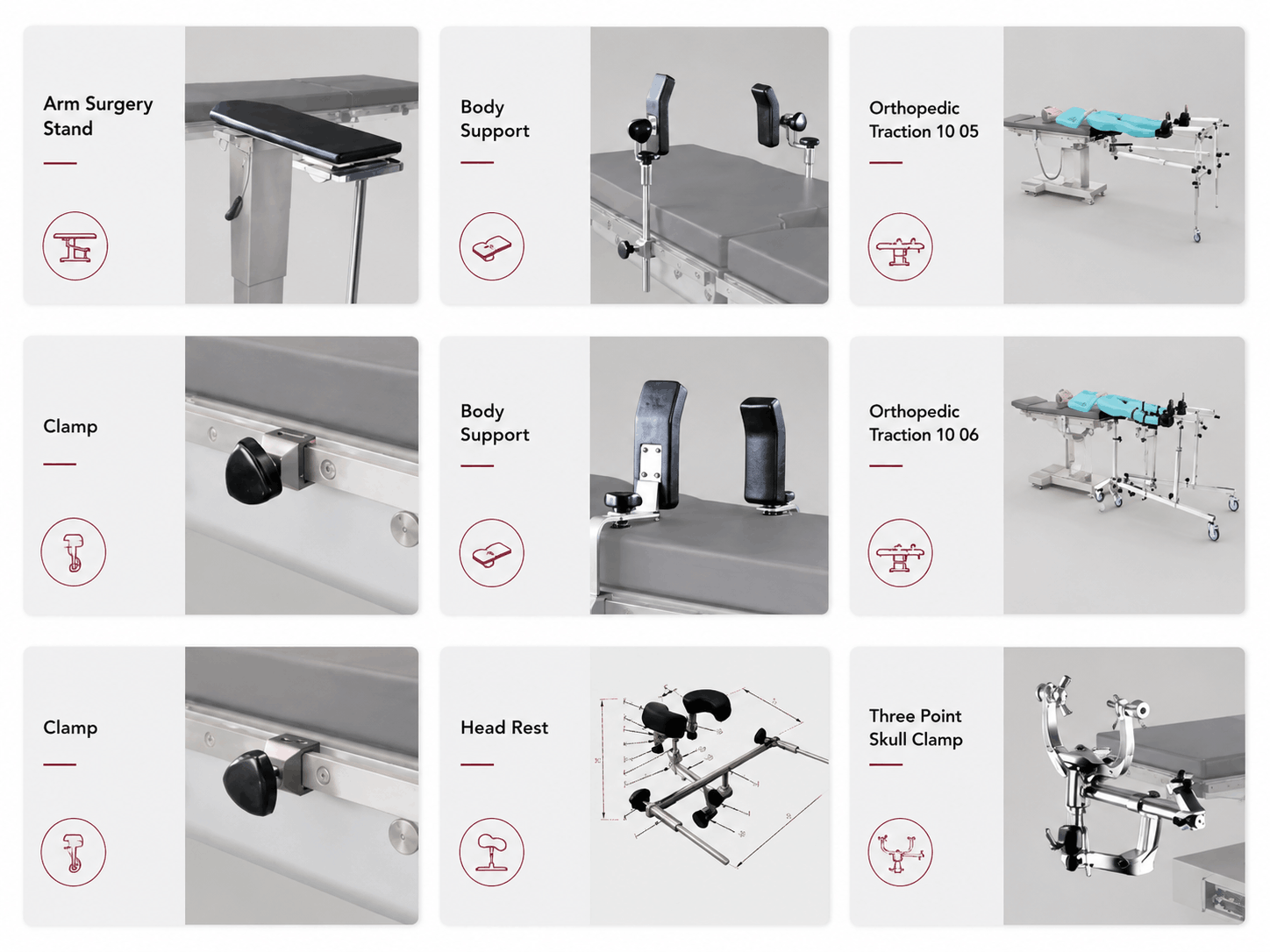

Standard Accessories
| Accessory Name | Quantity |
|---|---|
| Anesthesia Screen | 1 piece |
| Body Support | 1 pair |
| Arm Support | 1 pair |
| Shoulder Support | 1 pair |
| Leg Support | 1 pair |
| Foot Support | 1 pair |
| Kidney Bridge Handle | 1 piece |
| Mattress | 1 set |
| Fixing Clamps | 8 pieces |
| Long Fixing Clamps | 1 pair |
| Hand Remote | 1 piece |
| Power Line | 1 piece |
