Vertical Autoclave (with Vacuum Drying Function)- ToronClave™ V
Autoclave performance matters when you need dependable steam sterilization plus post-cycle drying for larger routine loads. ToronClave™ V is a performance-type vertical Autoclave Machine series designed for sterilizing instruments, dressings, glassware, and culture media with saturated steam under pressure, while adding vacuum drying to help reduce secondary contamination after sterilization. TheToronClave™ V model is a laboratory vertical steam pressure sterilizer with a 60 L chamber, 220 V power supply, 135°C maximum working temperature, Ø360 × 230 mm basket, and 126 kg net weight.
This series is intended for laboratories, clinics, and institutional environments that need programmable control, larger chamber capacity, and integrated drying capability. The ToronClave™ V series has three models under that, ToronClave™ V 60, ToronClave™ V 85, and ToronClave™ V 110, with chamber capacities of 60 L, 85 L, and 110 L.
ToronClave™ V is a floor-standing vertical steam sterilizer series developed for moist-heat sterilization of common medical and laboratory loads. It uses saturated steam under pressure to sterilize reusable items quickly, while the ToronClave™ V configuration adds a vacuum drying function to improve post-cycle handling and reduce residual moisture.
The ToronClave™ V series is an upgrade from the ToronClave™ VHT platform with similar core features and added functions. It uses a PMMA II microcomputer intelligent operating system, preset and custom programs, and multiple safety protections for routine sterilization work in higher-throughput environments.
Vertical Autoclave (with Vacuum Drying Function)- ToronClave™ V Applications
- Medical and Clinical Instruments: this Autoclave Machine is suitable for sterilizing reusable medical equipment and related clinical items. The product class is appropriate for medical equipment, dressings, glassware, and liquor culture mediums.
- Laboratory Glassware: ToronClave™ V can be used for sterilizing laboratory glassware in research, testing, and educational settings. Its larger vertical chamber sizes make it useful for facilities that process repeated loads and need more volume per cycle.
- Culture Media: this product class is also positioned for culture media sterilization, making the series suitable for microbiology, biology, and general laboratory preparation workflows.
- Research and Institutional Work: because the series offers 60 L, 85 L, and 110 L capacities, it fits scientific, educational, and institutional sterilization tasks where a smaller portable autoclave would not provide enough throughput.
Vertical Autoclave (with Vacuum Drying Function)- ToronClave™ V Key Features

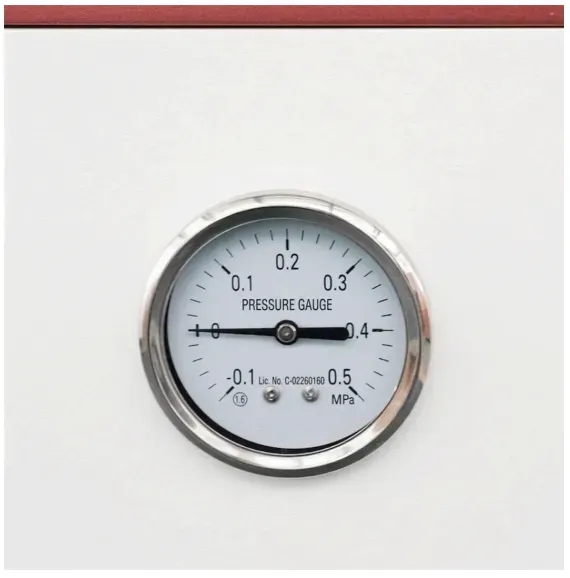

 | Pressure Gauge detection |
| PMMA II microcomputer intelligent operating system |  |

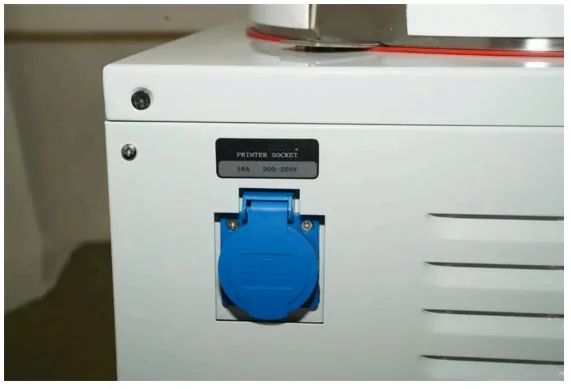

 | Waterproof socket |

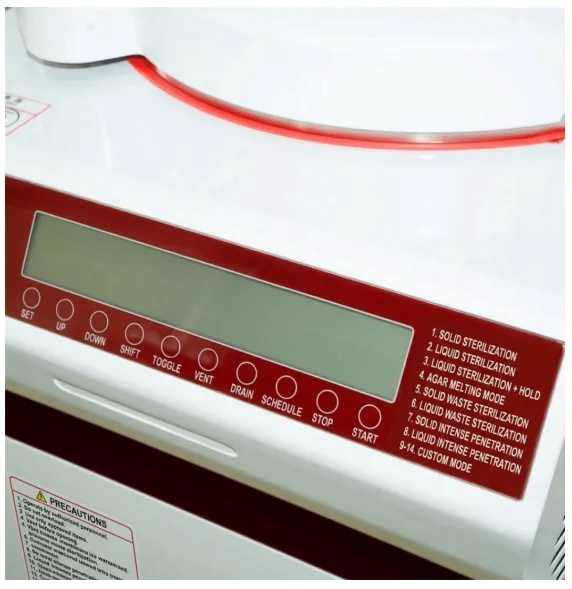

| Touch-screen style interface for real-time viewing of operating parameters and working status |  |

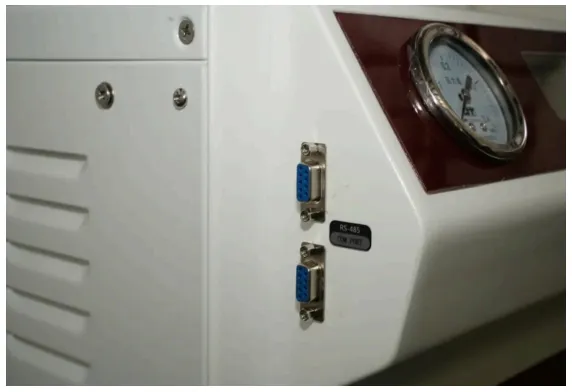

 | Two 485 communication ports and G1/2A standard test pipe thread holes |

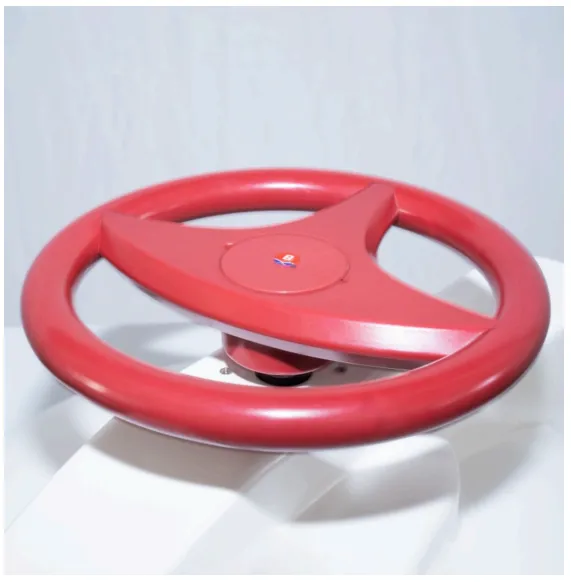

| Handwheel quick-open lid structure with dual protection against pressure and self-locking |  |
 | Rapid cooling system with condenser, air cooling, and secondary water cooling |
- PMMA II microcomputer intelligent operating system.
- Vacuum drying function to help reduce secondary contamination after sterilization.
- Optional 0.2 μm biosafety filter with temperature and pressure resistance.
- Optional special printer for date, time, temperature, sterilization process, and curve printing.
- Optional sample temperature probe for F0 value printing.
- Optional verification lead.
Vertical Autoclave (with Vacuum Drying Function)- ToronClave™ V Technical Specification
| Parameter | ToronClave™ V 60 | ToronClave™ V 85 | ToronClave™ V 110 |
|---|---|---|---|
| Volume | 60 L | 85 L | 110 L |
| Internal Dimensions | 400 × 635 mm | 400 × 725 mm | 400 × 835 mm |
| Voltage | 220 ±10%, 50 ±2% (110V is also available) | ||
| Environment Temperature | 5–40°C | ||
| Environment Humidity | 20–80% RH | ||
| Power | 4.8 kW | 5.2 kW | 5.4 kW |
| Sterilization Temperature | 105–135°C | ||
| Temperature Fluctuation | < ±1°C | ||
| Temperature Uniformity | ≤ ±1°C | ||
| Melting Temperature | 50–100°C | ||
| Drying Temperature | 80–130°C | ||
| Heat Preservation Temperature | 40–60°C | ||
| Sterilization Timer Range | 0–120 min | ||
| Drying Time | 10–6000 min | ||
| Melting Timer Range | 0–6000 min | ||
| Heat Preservation Timer Range | 0–6000 min | ||
| Reservation Range | 0–6000 min | ||
| Design Pressure | 0.38 MPa | ||
| Working Pressure | 0.22 MPa | ||
| Pressure Gauge Indicating Range | -0.1 to 0.5 MPa | ||
| Housing Dimensions (W × D × H) | 585 × 750 × 1075 mm | 585 × 750 × 1165 mm | 585 × 750 × 1275 mm |

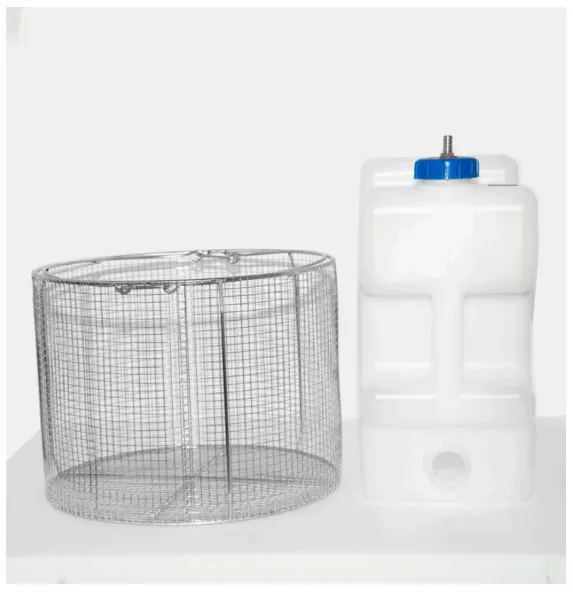

| Basket Dimensions | Ø360 × 230 mm | Ø360 × 270 mm | Ø360 × 230 mm |
| Number of Baskets | 2 | 2 | 3 |
| Net Weight / Gross Weight | 126 / 152 kg | 131 / 160 kg | 136 / 168 kg |
| Package Size | 730 × 900 × 1240 mm | 730 × 900 × 1330 mm | 730 × 900 × 1440 mm |
