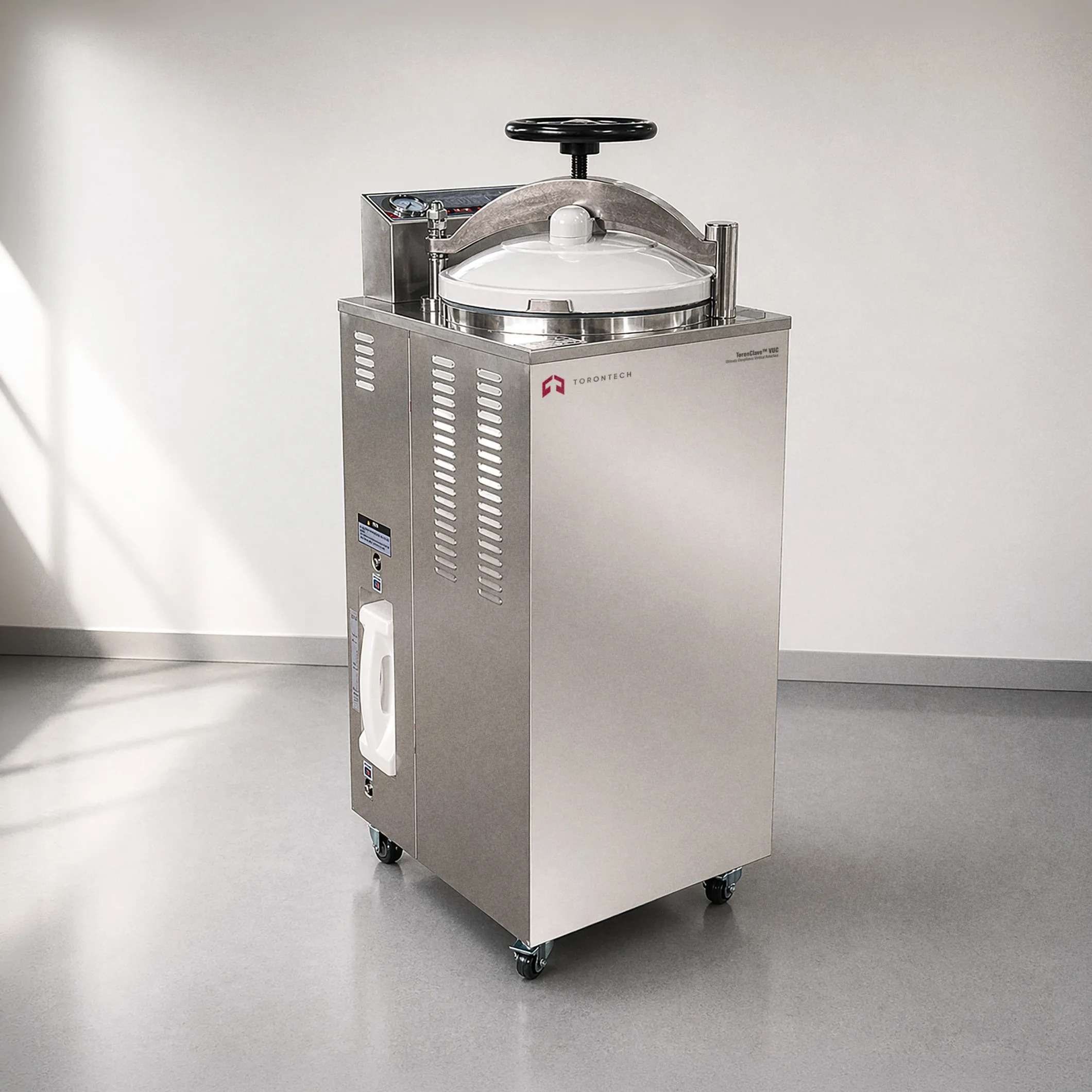

Ultimate Compliance Vertical Autoclave - ToronClave™ VUC
Autoclave performance matters when you need dependable steam sterilization for medium to high daily loads in laboratories, clinics, and institutional facilities. ToronClave™ VUC is a Ultimate Compliance Vertical Autoclave Machine series designed for sterilizing instruments, dressings, glassware, and culture media with saturated steam under pressure, and the ToronClave™ VUC-A and ToronClave™ VUC-B series as practical-capacity vertical units available in 50 L, 75 L, and 100 L chamber sizes.
This series combines SUS304 stainless steel construction, microcomputer intelligent control, a handwheel quick-open lid, and a self-expanding seal ring to support stable daily sterilization work.
ToronClave™ VUC is a floor-standing vertical steam sterilizer series built for moist-heat sterilization of common medical and laboratory loads. It uses pressurized saturated steam to process reusable items quickly and is intended for users who need more chamber capacity than compact portable models while keeping operation straightforward.
The ToronClave™ VUC-A series focuses on practical steam sterilization with microcomputer control, automatic cold-air exhaust, low-water protection, and pressure safety functions. The ToronClave™ VUC-B series adds a drying function and sterilization-plus-drying workflow, making it a stronger fit for users who want the convenience of post-cycle drying in the same unit.
Ultimate Compliance Vertical Autoclave - ToronClave™ VUC Applications
- Medical and Clinical Instruments: this Autoclave Machine is suitable for sterilizing reusable medical instruments and related clinical items. This product class is appropriate for medical equipment, dressings, glassware, and culture media.
- Laboratory Glassware: ToronClave™ VUC can be used for routine sterilization of laboratory glassware in research, testing, and educational settings. Its larger vertical chamber sizes make it suitable for facilities handling repeated sterilization cycles with more volume per run.
- Culture Media: this series suitable for microbiology, biology, and general laboratory preparation workflows.
- Institutional and Research Work: because the series offers 50 L, 75 L, and 100 L capacities, it fits scientific, educational, and institutional sterilization tasks where more chamber space and higher throughput are needed.
Ultimate Compliance Vertical Autoclave - ToronClave™ VUC Key Features
 | SUS304 stainless steel chamber construction. |

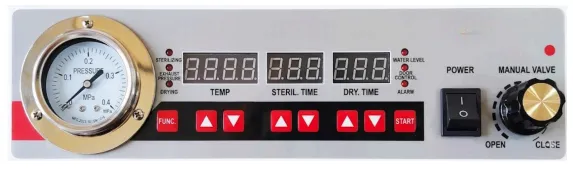

| Microcomputer intelligent control. |  |

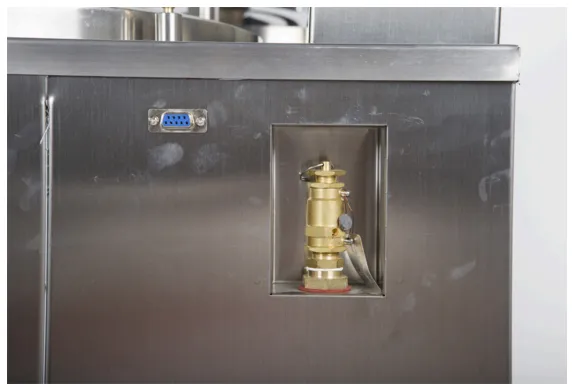

 | Equipped with a G1/2A internal thread sample test hole. |
| Automatic self-exhaust when over pressure occurs. |  |
- Handwheel quick-open lid design.
- Self-expanding sealing ring.
- Automatic cold-air exhaust.
- Low-water protection with self-control when water is insufficient.
- Pressure safety interlock.
- Over-temperature protection.
- End-of-cycle buzzer reminder.
- ToronClave™ VUC-B series includes a drying function.
- ToronClave™ VUC-B series includes inner circulation exhaust.
- ToronClave™ VUC-A series supports three process modes: heating-sterilization-quick exhaust, heating-sterilization-slow exhaust, and heating-sterilization-no exhaust.
- ToronClave™ VUC-B series supports three process modes: sterilization-natural cooling, sterilization-automatic exhaust, and sterilization-exhaust-drain-drying.
Ultimate Compliance Vertical Autoclave - ToronClave™ VUC Technical Specification
| Parameter | ToronClave™ VUC-A50 | ToronClave™ VUC-A75 | ToronClave™ VUC-A100 | ToronClave™ VUC-B50 | ToronClave™ VUC-B75 | ToronClave™ VUC-B100 |
|---|---|---|---|---|---|---|
| Volume | 50 L | 75 L | 100 L | 50 L | 75 L | 100 L |
| Power | 2.7 kW | 3.5 kW | 3.5 kW | 3.2 kW | 3.5 kW | 3.5 kW |
| Drying Power | — | — | — | 0.8 kW | 1 kW | 1 kW |
| Voltage | 220 ±10%, 50 ±2% (110V is also available) | |||||
| Max. Working / Design Temperature | 135 / 139°C | |||||
| Max. Working / Design Pressure | 0.22 / 0.25 MPa | |||||
| Timer Range | 4–120 min | |||||

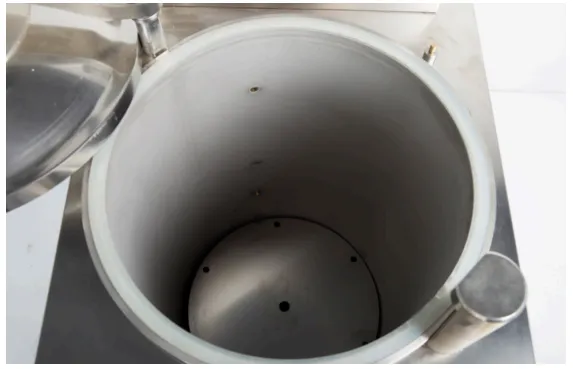

| Internal Dimensions | Ø300 × 755 mm | Ø400 × 700 mm | Ø400 × 830 mm | Ø400 × 640 mm | Ø400 × 720 mm | Ø400 × 850 mm |
| Housing Dimensions (W × D × H) | 445 × 525 × 1120 mm | 485 × 505 × 1175 mm | 485 × 505 × 1290 mm | 485 × 505 × 1125 mm | 485 × 505 × 1195 mm | 485 × 505 × 1290 mm |

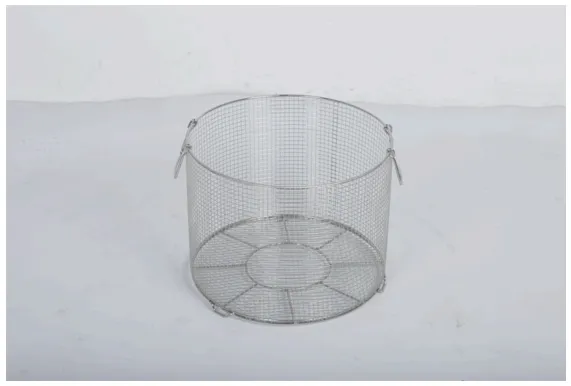

| Basket Dimensions | Ø280 × 210 mm | Ø360 × 270 mm | Ø360 × 230 mm | Ø360 × 230 mm | Ø360 × 270 mm | Ø360 × 230 mm |
| Number of Baskets | 3 | 2 | 3 | 2 | 2 | 3 |
| Net Weight / Gross Weight | 68 / 80 kg | 77 / 91 kg | 83 / 98 kg | 85 / 97 kg | 90 / 106 kg | 95 / 114 kg |
| Package Size | 570 × 650 × 1240 mm | 610 × 730 × 1340 mm | 610 × 730 × 1490 mm | 610 × 730 × 1290 mm | 610 × 730 × 1360 mm | 610 × 730 × 1490 mm |
