Single Wire Cable Vertical Burning Tester

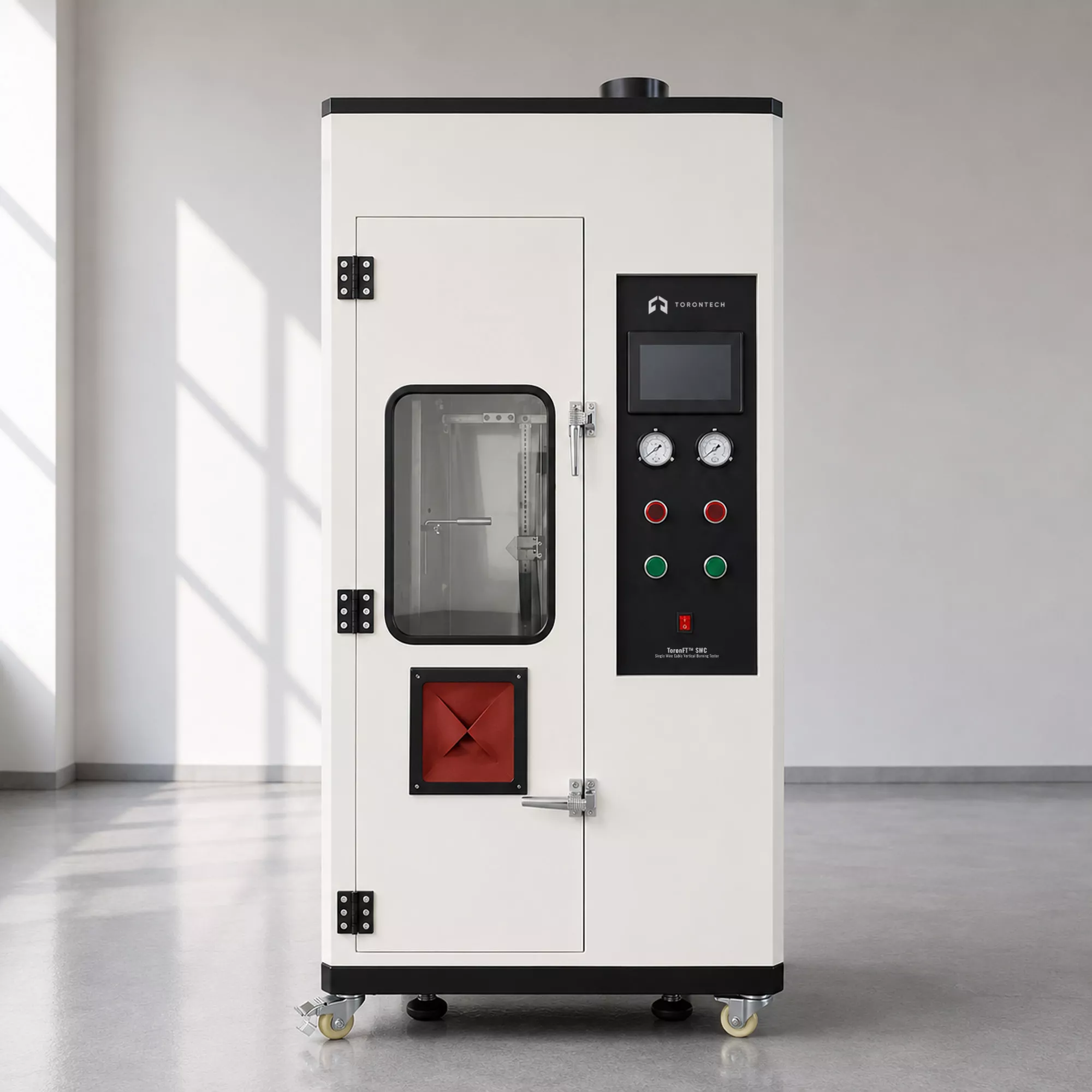

Single Wire Cable Vertical Burning Tester – ToronFT™ SWC
ToronFT™ SWC Single Wire Cable Vertical Burning Tester is a precision laboratory instrument designed to evaluate the non-flammability properties of single plastic wires and cables across a wide range of wire and cable types including control, cross-linking, elevator, marine, and mining cables. This Single Wire Cable Vertical Burning Tester provides a standardized, IEC-compliant platform for evaluating the vertical flame propagation resistance of individual wire and cable specimens under defined ignition conditions.
The ToronFT™ SWC complies with IEC 60332-1-1, IEC 60332-1-2, and IEC 60332-1-3 — the primary international standards for single wire and cable vertical burning performance testing — and features a precision 1 kW premixed combustion blowtorch, a rotor flowmeter system, and a calibrated compressed air supply, delivering accurate and reproducible single wire vertical burning test results for product certification in North American and international markets.
Single Wire Cable Vertical Burning Tester – ToronFT™ SWC Applications
The ToronFT™ SWC is applicable for single wire and cable vertical burning testing of:
- Single plastic wires and insulated conductors for vertical burning tester non-flammability compliance per IEC 60332-1
- Control cables, cross-linked (XLPE) cables, and elevator cables requiring IEC 60332-1 single wire and cable vertical burning certification
- Marine cables and shipboard wiring requiring IEC 60332-1 single wire vertical burning flame propagation qualification
- Mining cables and underground infrastructure cables requiring single wire and cable non-flammability verification per IEC 60332-1
- Building wire, power cables, and flexible cords for single wire vertical burning tester compliance with IEC 60332-1-1, -1-2, and -1-3
- Production quality assurance sampling of wire and cable for single wire vertical burning compliance with IEC 60332-1 non-flammability requirements
Standards
The ToronFT™ SWC is designed to comply with the following international standards for single wire and cable vertical burning testing:
- IEC 60332-1-1 — Tests on electric and optical fibre cables under fire conditions: Test for vertical flame propagation for a single insulated wire or cable — Apparatus
- IEC 60332-1-2 — Tests on electric and optical fibre cables under fire conditions: Test for vertical flame propagation for a single insulated wire or cable — Procedure for 1 kW pre-mixed flame
- IEC 60332-1-3 — Tests on electric and optical fibre cables under fire conditions: Test for vertical flame propagation for a single insulated wire or cable — Procedure for determination of flaming droplets/particles
Single Wire Cable Vertical Burning Tester – ToronFT™ SWC Key Features

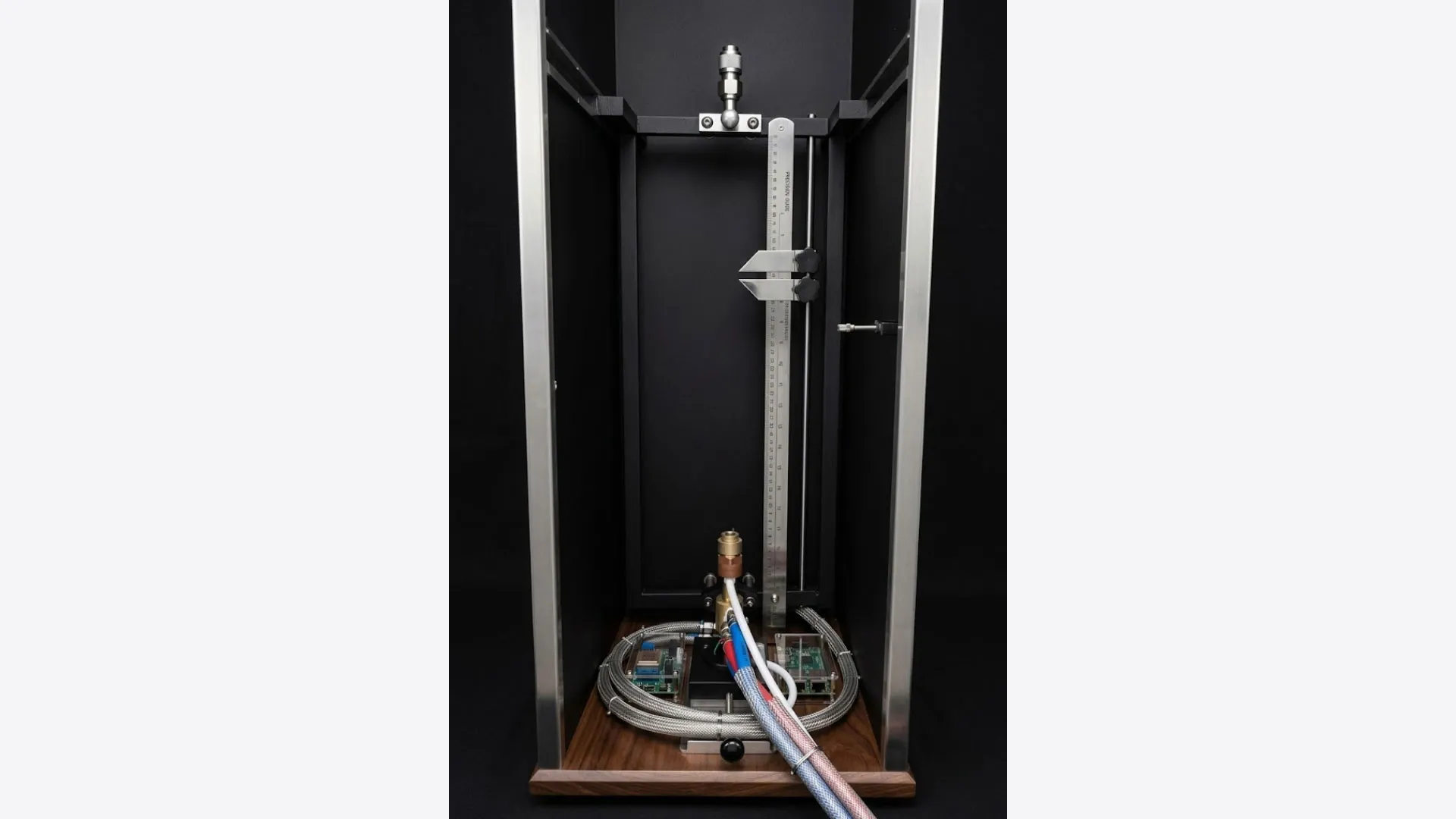

Combustion torch, sample holder

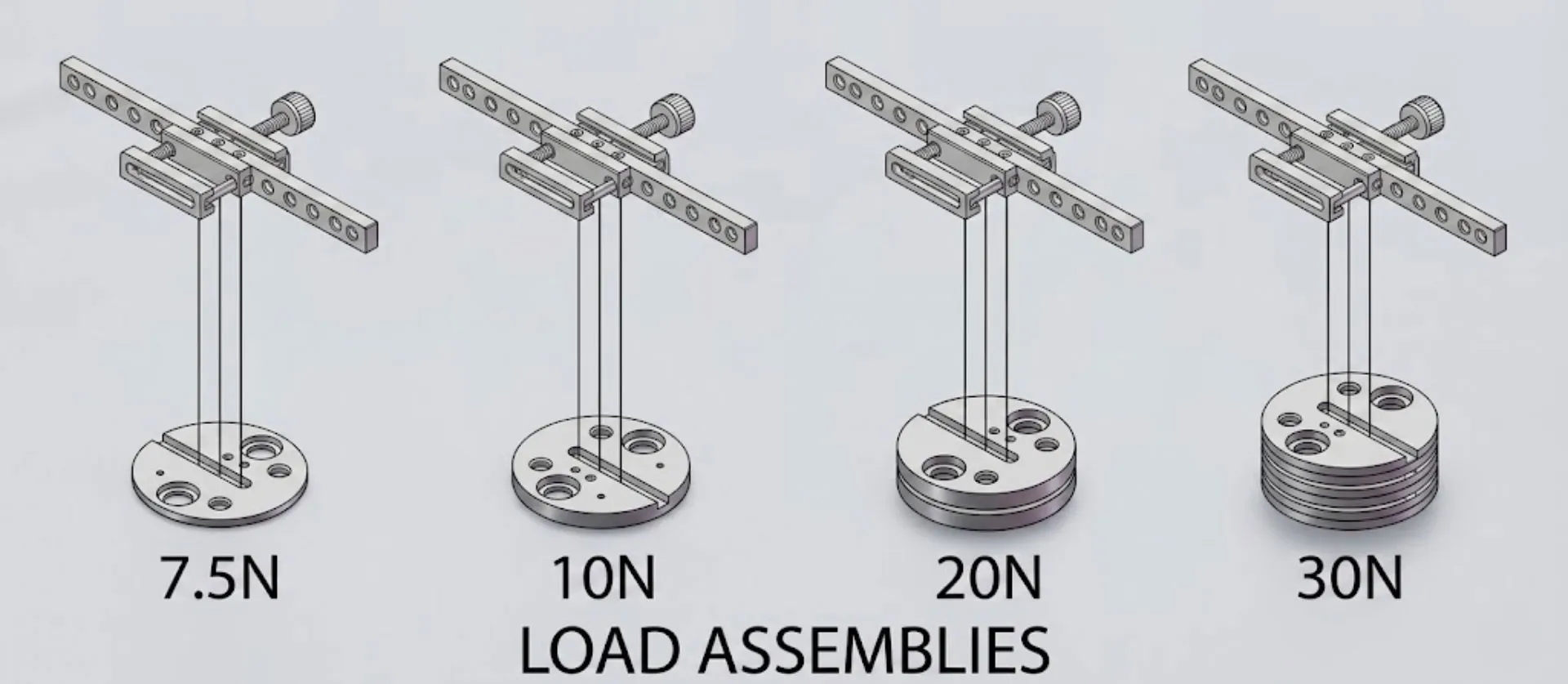

Loading weight device
- Purpose-built Single Wire Cable Vertical Burning Tester compliant with IEC 60332-1-1, -1-2, and -1-3 — providing the standardized test platform required for international wire cable non-flammability certification
- Precision 1 kW premixed combustion blowtorch made of pure copper — manufactured to IEC 60695-11-2 standard — with blue flame core height 46–78 mm and total flame height 148–208 mm for accurate, reproducible single wire vertical burning ignition conditions
- Enclosed test box/fume hood with a volume of 1.0 m³ provides the standardized vertical burning test environment and exhaust containment required by IEC 60332-1
- Dual rotor flowmeters — each with adjustable range from 1.5 to 15 L/min — independently meter compressed air and propane gas for precise 1 kW pre-mixed flame calibration in the single wire and cable burning tester
- Compressed air supply at 0.7 MPa using a 500W air compressor (customer-supplied) provides clean, consistent combustion air for reproducible single wire vertical burning test conditions
- Propane gas (purity ≥95%, customer-supplied) delivers a stable, high-purity fuel for consistent 1 kW pre-mixed flame performance in the wire cable burning tester
- 0–0.15 MPa pressure gauge provides direct pressure monitoring of the gas supply to the Single Wire Cable Vertical Burning Tester blowtorch
- Precision regulating valve independently controls both gas pressure and flow rate for fine adjustment of the 1 kW pre-mixed flame to IEC 60332-1-2 specifications
- Complies with IEC 60332-1-1, -1-2, and -1-3, providing single wire and cable vertical burning test results recognized by international certification bodies and wire cable manufacturers globally
Theory and Method
Single wire and cable vertical burning testing evaluates the ability of an insulated wire or cable specimen to resist vertical flame propagation when exposed to a standardized 1 kW pre-mixed gas/air flame applied at the base of a vertically mounted specimen for a defined duration. After the ignition source is removed, the specimen is observed for continued flame propagation — the test result is expressed as the distance of char above the lower edge of the burner, which must not exceed the limit specified by the applicable IEC 60332-1 standard.
In the ToronFT™ SWC, the 1 kW premixed combustion blowtorch is manufactured to the standard of IEC 60695-11-2, with the height of the blue flame core at 46–78 mm and total flame height of 148–208 mm, made of pure copper for durability and thermal stability. The test box/fume hood (volume 1.0 m³) provides the enclosed vertical burning test environment. Compressed air (0.7 MPa, 500W customer-supplied compressor) and propane gas (purity ≥95%, customer-supplied) are independently metered by separate rotor flowmeters (range adjustable from 1.5 to 15 L/min for each gas), with a precision regulating valve controlling the gas/air mixture and a 0–0.15 MPa pressure gauge for display. This precise gas/air metering ensures the correct 1 kW pre-mixed flame required by IEC 60332-1-2 for standardized single wire and cable vertical burning test results.
Single Wire Cable Vertical Burning Tester – ToronFT™ SWC Technical Specifications
| Component / Parameter | Specification Details |
|---|---|
| General Information | |
| Product Name | Single Wire Cable Vertical Burning Tester — ToronFT™ SWC |
| Model | ToronFT™ SWC |
| Compliance Standards | IEC 60332-1-1; IEC 60332-1-2; IEC 60332-1-3 |
| Test Chamber & Structure | |
| Chamber / Fume Hood Volume | 1.0 m³ |
| External Dimensions | 1080 × 650 × 1750 mm |
| Combustion Chamber Dimensions | 1050 × 650 × 1600 mm |
| Metal Cover | SUS304 Stainless Steel (1200 × 300 × 450 mm) |
| Enclosure Features | Equipped with an exhaust fan, observation window, and sealed operating gloves |
| Combustion System | |
| Blowtorch Type | 1 kW premixed combustion nozzle (compliant with IEC 60695-11-2) |
| Blowtorch Material | Pure copper |
| Flame Parameters | • Blue Flame Core Height: 46–78 mm • Total Flame Height: 148–208 mm |
| Gas & Air Supply System | |
| Fuel Gas | Propane (purity ≥95%, customer-supplied) |
| Air Supply Requirements | Air Compressor: 0.7 MPa / 500 W (customer-supplied) |
| Pressure Range | 0–0.15 MPa (for both air and fuel gas, with 0–0.15 MPa pressure gauge display) |
| Flow Control & Measurement | • Flowmeters: Independent rotor flowmeters / mass flow meters for air and gas • Flow Range: 1.5–15 L/min (adjustable) per channel |
| Regulating Valves | Built-in pressure and flow regulation |
| Sample Requirements | |
| Sample Length | 600 ± 25 mm |
| Sample Outer Diameter | 1–30 mm |
| Control & Timing System | |
| Control System | PLC Control |
| Ignition Method | High-pressure automatic ignition |
| Ignition Time | 0.1–99.99 s (settable) |
| Flame Delay Time | Automatic recording (resolution: 0.01 s) |
| Temperature Measurement | |
| Thermocouple | Type K (0.5 mm) |
| Temperature Range | Up to 1300°C |
| Calibration Copper Block | Ø9 mm / 10 g |
| Display Configuration | Digital thermometer + stopwatch |
| Loading Device | |
| Standard Weights | 5N / 7.5N / 10N / 20N / 30N |
| Extensions | Supports custom extensions |
For more information, pricing, or to request a quotation, please contact ToronFT. Specifications are subject to change without prior notice.
