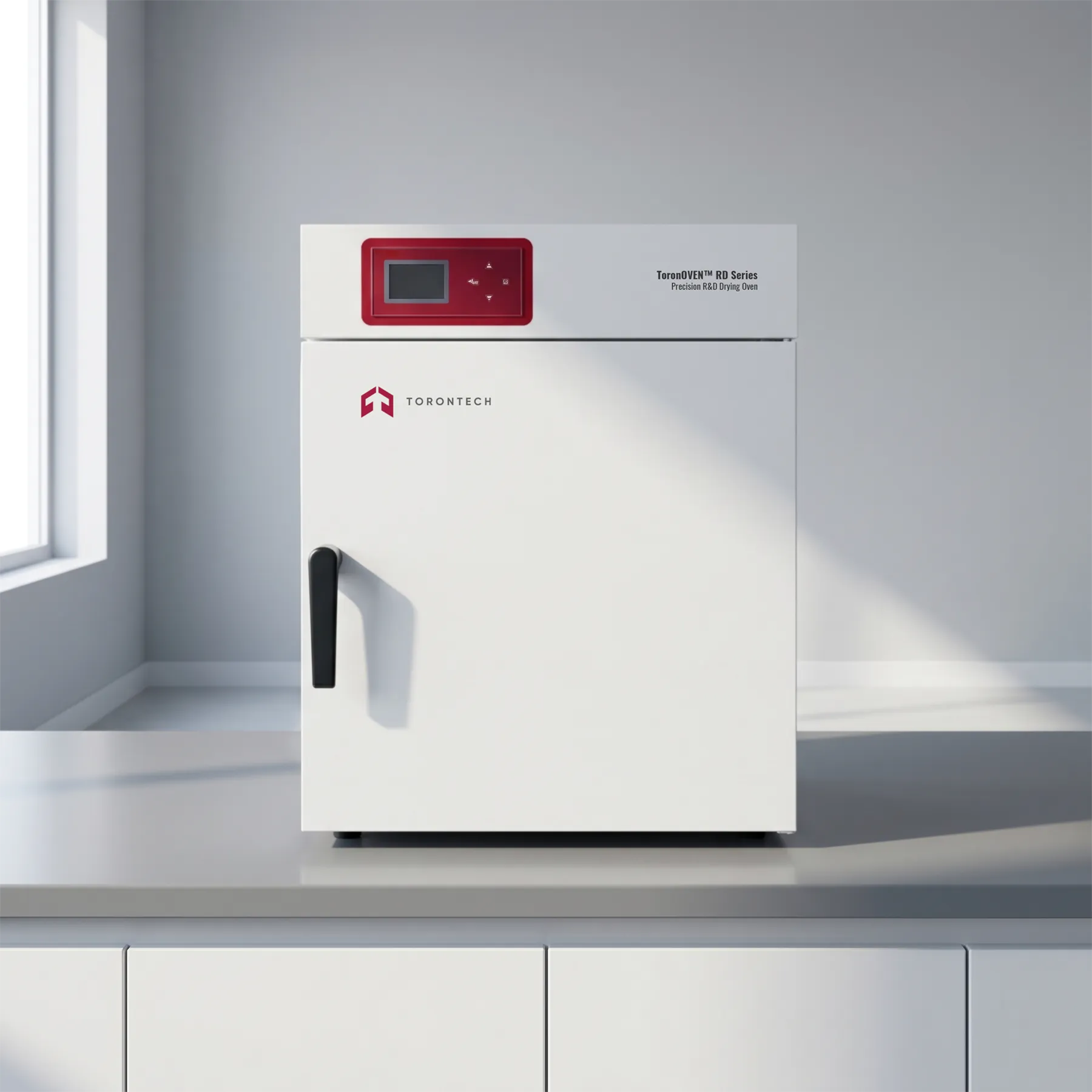

Precision R&D Drying Oven – ToronOVEN™ RD
ToronOVEN™ RD is a high-performance laboratory blast drying oven built for demanding research, industrial, and quality-control environments that require tight temperature precision, advanced programmable control, and seamless connectivity. Operating up to 300°C across five capacity options ( 64 L to 452 L). The ToronOVEN™ RD combines the BRIGHT I control system, dual over-temperature protection, 6-stage fan speed regulation, and an RS-485 interface into a single, fully featured drying oven platform.
The ToronOVEN™ RD Precision R&D Drying Oven is engineered for researchers, engineers, and quality-control professionals who need more than a basic blast drying oven can offer. At its core is the BRIGHT I control system, which delivers real-time LCD readout of setpoint temperature, actual temperature, operational status, fan segment number, and working state — giving operators complete process visibility at a glance. A 10-segment, 100-cycle programmable engine supports complex ramp-and-soak thermal profiles for accelerated aging, multi-step drying sequences, and precision heat-treatment protocols that are difficult or impossible to execute on simpler drying ovens.
What sets the ToronOVEN™ RD apart from comparable Precision R&D Drying Ovens is its dual over-temperature alarm system. Rather than relying on a single safety circuit, it combines an RTD-based temperature sensor alarm with an entirely independent hardware temperature-control switch — two independent protection layers that guard both samples and equipment even in the event of a primary controller fault.
The fan features six discrete speed levels and a preheating chamber design to ensure uniform air distribution and fast thermal recovery, while the standard RS-485 communication interface enables direct integration with laboratory information management systems (LIMS), data loggers, or Ethernet gateways. Optional accessories — including a built-in printer, online monitoring platform, inlet and outlet air filters, and GPRS SMS alarm — allow the ToronOVEN™ RD to be configured as a fully connected, auditable Precision R&D Drying Oven for regulated environments.
Precision R&D Drying Oven – ToronOVEN™ RD Applications
The ToronOVEN™ RD laboratory blast drying oven is suited to a wide range of precision thermal processing applications, including:
- High-temperature sample drying & dehydration
- Dry heat sterilization of lab ware & instruments
- Accelerated aging & stability testing with custom ramp-soak profiles
- Annealing & stress relief of metals & alloys
- Curing of high-temperature coatings & adhesives
- Electronics baking & component outgassing
- Pharmaceutical & medical device processing
- Ceramic & composite pre-sintering
- Material research & quality-control validation in regulated labs
- Remote-monitored or networked drying oven workflows
Precision R&D Drying Oven – ToronOVEN™ RD Key Features
- BRIGHT I control system with LCD simultaneously displays setpoint temperature, actual temperature, operational status, active fan segment number, and working state — providing complete at-a-glance process visibility for Precision R&D Drying Oven operations
- Countdown reservation function with a timing range of 0 to 9,999 minutes, allowing users to pre-schedule delayed-start drying oven cycles for off-hours or overnight operation without manual intervention
- Advanced programmable engine supports 10 ramp-and-soak segments per cycle with up to 100 consecutive execution cycles, enabling multi-step thermal protocols for accelerated aging, stepwise drying, and precision heat-treatment in a single automated run
- Dual over-temperature alarm system provides two independent layers of protection: (A) an RTD-sensor-based software alarm integrated into the BRIGHT I controller, and (B) a completely independent hardware temperature-control switch that remains active even if the primary control circuit fails
- Heavy-duty door with rotary two-stage locking structure maintains a consistent, high-integrity chamber seal at sustained operating temperatures up to 300°C, minimizing heat loss and preventing temperature deviation during long-duration runs

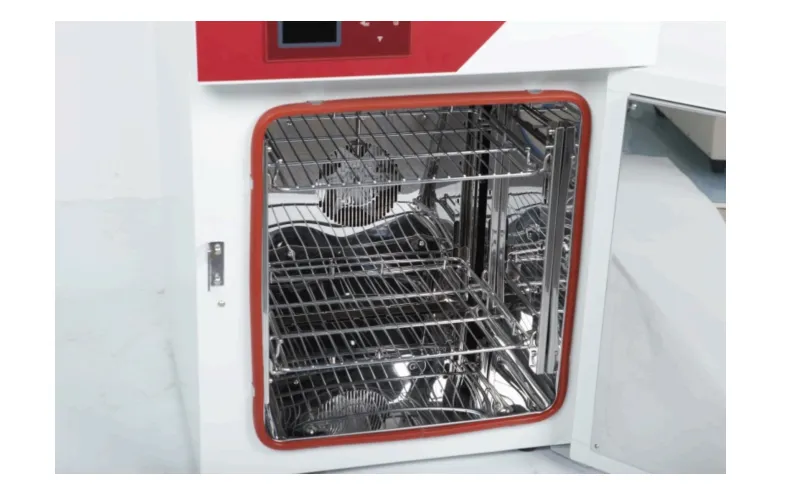

- 6-stage adjustable fan speed paired with a preheating chamber design conditions and circulates heated air uniformly across the entire working space — the defining advantage of a forced-air blast drying oven over passive gravity-convection alternatives
- Standard RS-485 communication interface enables direct integration with laboratory information management systems (LIMS), data loggers, computers, and Ethernet gateways for real-time data acquisition and remote process monitoring
- Configurable with optional accessories including a built-in printer for on-demand record output, an online monitoring platform for remote oversight, inlet and outlet air filters for clean-room or particulate-sensitive environments, and a GPRS SMS alarm for remote fault notification
Theory and Method
The ToronOVEN™ RD operates on the principle of forced-air convection. An electrically powered heating element raises the internal chamber temperature, while a variable-speed centrifugal fan — adjustable across six discrete speed levels — continuously circulates heated air throughout the working space. This blast drying approach eliminates thermal stratification and delivers significantly faster, more uniform heat transfer than passive gravity-convection drying ovens. The preheating chamber design further conditions incoming air before it reaches the main workspace, improving cross-section temperature uniformity and shortening stabilization time after door openings or sample loading.
Temperature is monitored by a precision RTD sensor that feeds continuous live data to the BRIGHT I microprocessor controller. The controller applies closed-loop PID (Proportional-Integral-Derivative) algorithms to modulate heater output and maintain the setpoint within a fluctuation of ±0.3°C at 150°C for the two smallest models, and ±0.5°C for the larger configurations — performance that is substantially tighter than standard Precision R&D Drying Ovens. Temperature uniformity across the chamber is maintained within ±1% of the setpoint in the RT+5°C to 105°C range and within ±2% from 105°C to 300°C.
The ToronOVEN™ RD employs a dual over-temperature alarm architecture that is unique among laboratory blast drying ovens at this price point. The primary protection layer is an RTD-sensor-based software alarm embedded in the BRIGHT I control system. The secondary layer is a completely independent hardware temperature-control switch that operates outside the main controller — meaning it remains active and effective even if the primary control circuit fails. The BRIGHT I programmable engine supports 10-segment ramp-and-soak profiles with up to 100 consecutive execution cycles, enabling complex multi-step thermal protocols for accelerated aging, staged drying, or precise heat-treatment sequences. Countdown timing and reservation scheduling allow unattended, delayed-start operation, while the built-in RS-485 interface enables real-time data output to computers, LIMS, and remote monitoring platforms.
Precision R&D Drying Oven – ToronOVEN™ RD Technical Specifications
| Parameter | ToronOVEN™ RD 64 | ToronOVEN™ RD 129 | ToronOVEN™ RD 210 | ToronOVEN™ RD 284 | ToronOVEN™ RD 452 |
|---|---|---|---|---|---|
| Volume (L) | 64 | 129 | 210 | 284 | 452 |
| Temperature Range (°C) | RT+5 ~ 300 | ||||
| Temp. Resolution (°C) | 0.1 | ||||
| Temp. Fluctuation at 150°C (°C) | ±0.3 | ±0.5 | |||
| Temp. Uniformity | ±1% (RT+5°C ~ 105°C) | ±2% (105°C ~ 300°C) | ||||
| Heating Rate to 150°C (min) | 17 | 20 | 20 | 20 | 22 |
| Rated Power (W) | 1,550 | 2,150 | 2,750 | 2,750 | 3,500 |
| Voltage (V, Hz) | 220 ±10, 50/60 (110V is also available) | ||||
| Timer Range (min or h) | 0 – 9,999 | ||||
| Reservation Range (min) | 0 – 9,999 | ||||
| Interior Dimensions W×D×H (mm) | 410×350×450 | 570×400×570 | 630×530×630 | 720×530×745 | 600×580×1,300 |
| Exterior Dimensions W×D×H (mm) | 555×566×722 | 715×616×842 | 775×746×902 | 865×746×1,017 | 774×845×1,704 |
| Shelves — Standard / Max (pcs) | 2 / 5 | 2 / 7 | 3 / 7 | 3 / 9 | 4 / 13 |
| Max Load per Shelf (kg) | 25 | ||||
| Net Weight / Gross Weight (kg) | 42 / 60 | 57 / 75 | 77 / 96 | 97 / 118 | 145 / 174 |
| Package Size (mm) | 675×726×872 | 835×776×992 | 895×906×1,052 | 985×906×1,167 | 894×1,005×1,854 |
RT = ambient room temperature. Temperature fluctuation measured at 150°C. Heating rate expressed in minutes to reach 150°C. All dimensions in millimeters (mm). Specifications subject to change without notice.
