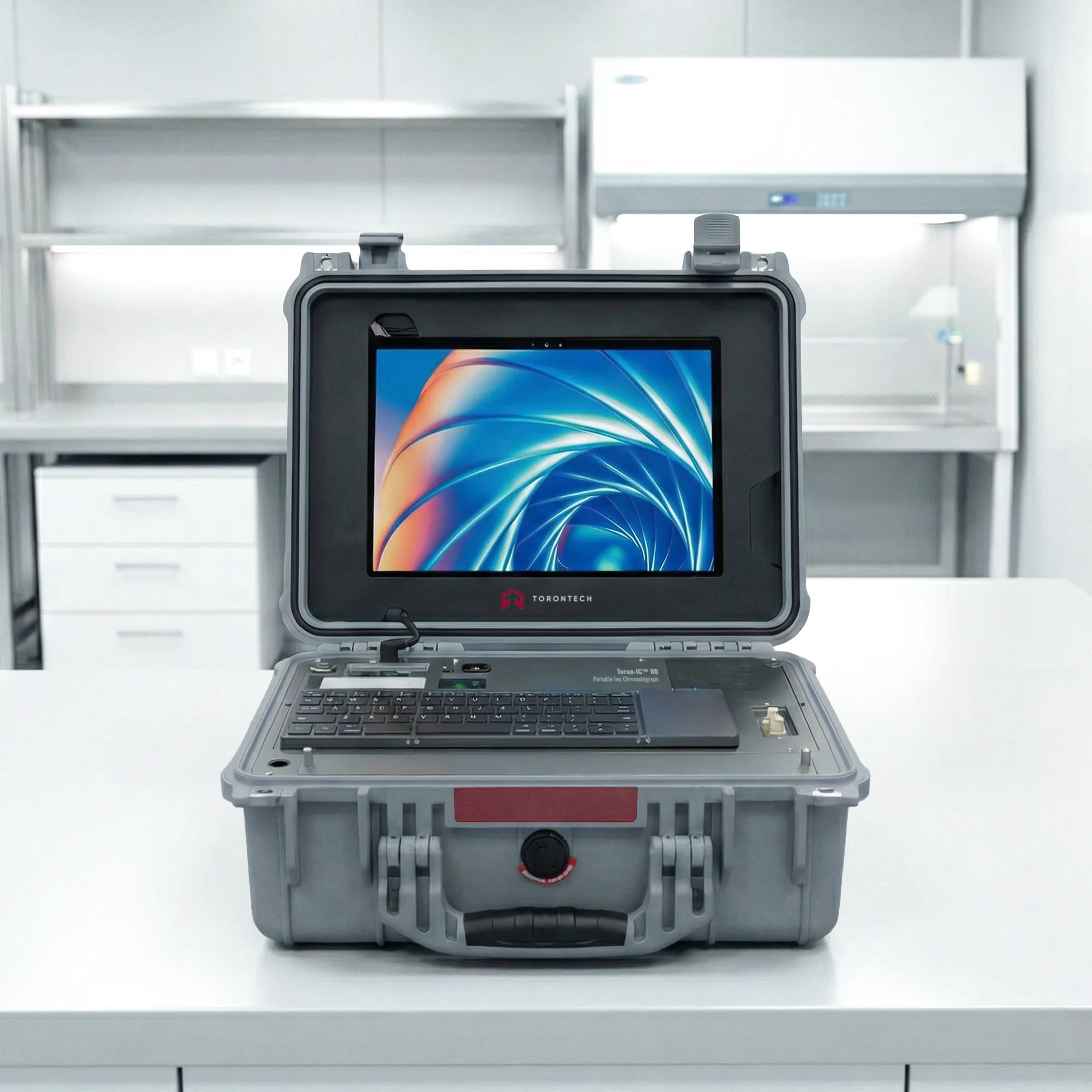

Portable Ion Chromatograph – Toron-IC™ 80
Portable Ion Chromatograph – Toron-IC™ 80
Toron-IC™ 80 is a compact, field-deployable portable ion chromatograph engineered to deliver laboratory-grade analysis directly at the sampling site. Designed for environments where traditional systems are impractical, this fully integrated unit combines rugged durability with battery-powered operation, making it the ideal solution for immediate on-site and outdoor testing.
Despite its portability, the Toron-IC™ 80 utilizes advanced conductivity detection to precisely quantify anions and cations from trace (ppb) to ppm levels. Featuring metal-free PEEK flow paths, stable pumping technology, and automatic signal ranging, the system ensures reliable, high-performance ion chromatography results in the field without compromising on accuracy.
Portable Ion Chromatograph – Toron-IC™ 80 Applications
The Toron-IC™ 80 Portable Ion Chromatograph offers robust capabilities across several key sectors:
- Environmental Monitoring: Facilitates on-site analysis of anions and cations in surface water, groundwater, and wastewater, eliminating delays associated with sample transport.
- Water Utilities & Drinking Water: Enables rapid field verification of compliance parameters and ionic contaminants within potable water systems.
- Industrial Process Monitoring: Provides real-time ion analysis for monitoring process fluids, chemical solutions, and cooling water.
- Emergency & Mobile Laboratories: Ideal for use in field investigations, spill response, and mobile testing units due to its portable nature.
- Research & Education: Suitable for applied ion chromatography and demonstration purposes where ease of use and portability are essential.
Portable Ion Chromatograph – Toron-IC™ 80 Key Features
Optimized for Field Use:
- True Portable Design: Lightweight and compact, specifically engineered for on-site and outdoor ion chromatography analysis.
- Dual Power Capability: Operates via both 220V AC power and a built-in lithium battery, ensuring continuous field analysis.
- Uninterruptible Power Supply (UPS): Allows for battery hot-swapping without interrupting operation, thereby protecting data integrity.
- Water–Electricity Separation Design: Enhanced safety feature to prevent circuit damage from potential eluent leakage during field operations.
Advanced Performance:
- Metal-Free Flow Path: Utilizes a chemically inert PEEK flow system, compatible with aqueous eluents (pH 0–14) and reversed-phase solvents.
- Auto-Range Conductivity Detection: Automatically adjusts the detection range for highly accurate ion concentration measurements, spanning from ppb to ppm levels.
Simplified Operation:
- User-Friendly Control: Supplied with a Bluetooth keyboard and mouse for easy and intuitive instrument management.
Portable Ion Chromatograph – Toron-IC™ 80 Technical Specifications
| Parameter | Specification |
|---|---|
| Instrument Type | Portable Ion Chromatograph |
| Pump Type | Dual-piston serial pump |
| Maximum Pump Pressure | 42 MPa |
| Flow Rate Range | 0.001 – 12 mL/min |
| Flow Stability | ≤ 0.67% |
| Flow Path Material | Metal-free PEEK |
| Supported Column Sizes | 2, 3, 4, and 5 mm I.D. |
| Maximum Column Length | 250 mm analytical + 50 mm guard |
| Suppressor Type | Self-regenerating electrolytic micro-membrane |
| Detection Method | Auto-range conductivity detector |
| Detector Cell Volume | ≤ 0.8 µL |
| Detection Range | 0 – 45,000 µS/cm |
| Resolution | ≤ 0.0020 nS/cm |
| Linearity | ≥ 0.999 |
| Quantitative Repeatability | ≤ 0.71% |
| Qualitative Repeatability | ≤ 0.07% |
| Minimum Detectable Concentration | Cl⁻ ≤ 0.0012 µg/mL; Li⁺ ≤ 0.0012 µg/mL |
| Column Heater Range | Ambient +5 °C to 60 °C |
| Temperature Accuracy | ±0.2 °C |
| Voltage | 220V AC or built-in lithium battery |
| External Dimensions (L × W × H) | 420 × 320 × 190 mm |
| Net Weight | ≤ 9 kg |
