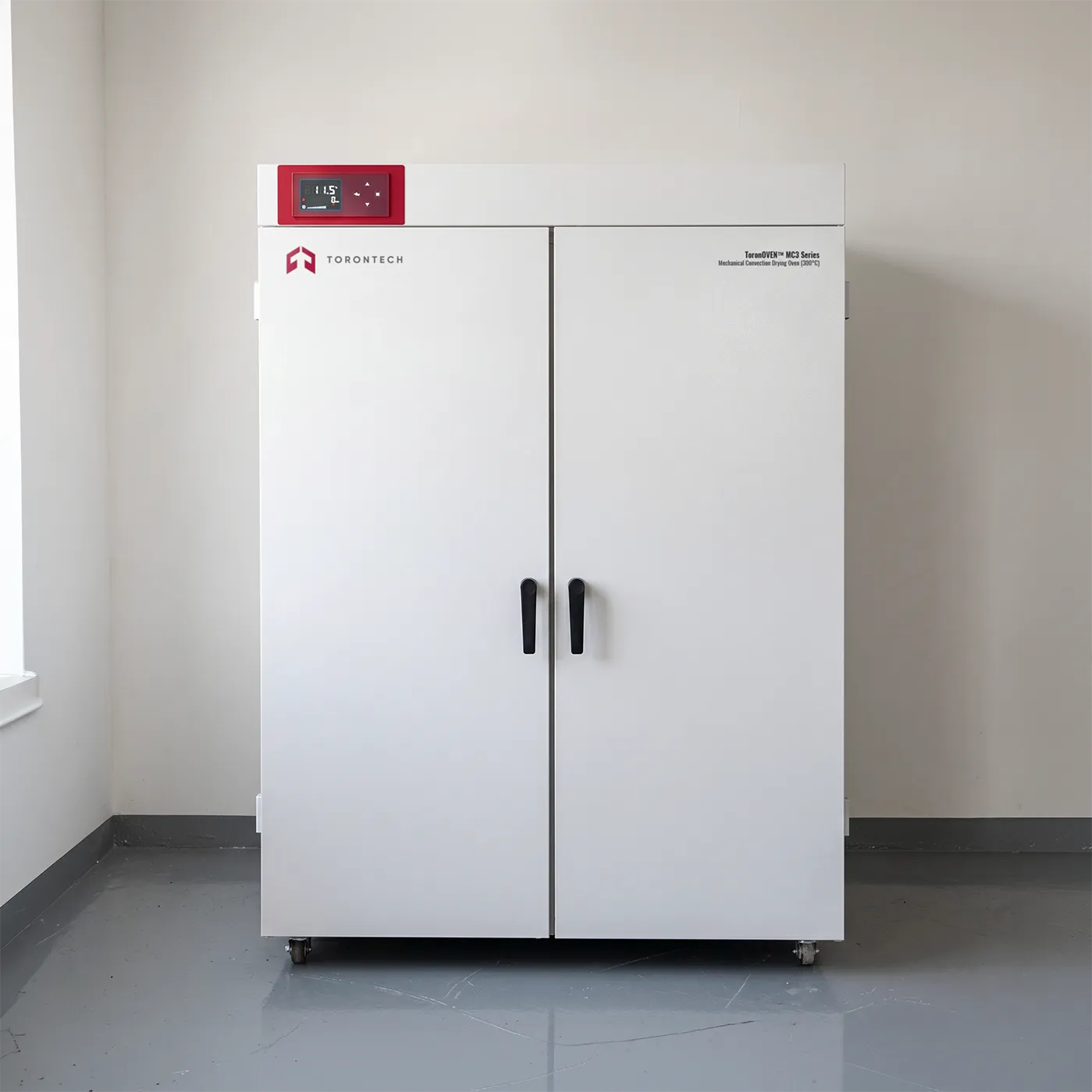

Mechanical Convection Drying Oven (300°C) – ToronOVEN™ MC3
ToronOVEN™ MC3 (300°C) is an advanced forced-air blast drying oven engineered for precision high-temperature thermal processing in demanding laboratory, research, and industrial environments. Combining a maximum operating temperature of 300°C with a comprehensive PMMA II programmable control system, the ToronOVEN™ MC3 delivers tighter temperature uniformity, multi-segment programming, and adjustable fan speed — making it the ideal choice for applications where the basic drying oven falls short. Seven capacity options span 64 L to 1,000 L to meet a wide range of throughput requirements.
The ToronOVEN™ MC3 (300°C) Mechanical Convection Drying Oven is purpose-built for laboratories and production environments that require advanced thermal control at elevated temperatures. At its core is the PMMA II operating system — a full-featured programmable controller with an LCD that simultaneously displays all key operating parameters: temperature setpoint, actual temperature, timer, fan speed, and program status. Beyond basic setpoint-and-hold capability, the PMMA II supports 10-segment ramp-and-soak programming with up to 100 consecutive execution cycles, enabling complex, multi-step thermal protocols for accelerated aging, stepwise drying sequences, curing procedures, and other demanding applications.
The working chamber is constructed from mirror-finish stainless steel with freely adjustable shelving, enclosed in a cold-rolled steel exterior with an electrostatic powder-coat finish. A reinforced door seal strip and rotating two-stage locking mechanism maintain chamber integrity at sustained high temperatures, while a high-performance sensor provides live temperature feedback to the controller. The preheating chamber design conditions incoming air before it reaches the main workspace, and both power-supply recovery and appointment scheduling functions ensure seamless workflow integration — whether running short drying cycles or extended overnight programs. As a high-temperature blast drying oven with genuine programmable precision, the ToronOVEN™ MC3 (300°C) is the trusted platform for research, quality control, and process validation at up to 300°C.
Mechanical Convection Drying Oven (300°C) – ToronOVEN™ MC3 Applications
The ToronOVEN™ MC3 (300°C) blast drying oven is well suited to demanding thermal processing applications, including:
- High-temperature sample drying & dehydration
- Dry heat sterilization of lab ware & instruments
- Annealing & stress relief of metals & alloys
- High-temperature curing of coatings & adhesives
- Ashing & loss-on-ignition preparation
- Ceramic & composite pre-sintering
- Accelerated aging & stability testing with custom ramp-soak profilesElectronics component baking & outgassing
- Pharmaceutical & medical device processing
- Material research & quality-control validation
Mechanical Convection Drying Oven (300°C) – ToronOVEN™ MC3 Key Features
- Cold-rolled steel exterior with electrostatic powder-coat finish; mirror-finish stainless steel inner chamber with reinforced seal strip and freely adjustable shelving — built to sustain continuous operation at up to 300°C
- PMMA II operating system with LCD simultaneously displays all active parameters — temperature setpoint, actual temperature, timer, fan speed, and program status — for complete at-a-glance process visibility
- Comprehensive control suite: closed-loop temperature regulation, extended countdown/count-up timing (0–9,999 min or hours), full programmable ramp-and-soak profiles, 6-level adjustable fan speed, and independent over-temperature alarm protection
- Heavy-duty door with rotating two-stage locking structure and high-temperature seal strip maintains a consistent, high-integrity chamber seal at sustained 300°C operating conditions, minimizing heat loss and temperature deviation
- Preheating chamber design thermally conditions incoming air before it enters the main workspace, improving cross-section temperature uniformity and shortening stabilization time after door openings or sample loading
- Power-supply recovery function automatically restores the last active setpoint and program state after an unexpected power interruption — protecting long-duration unattended thermal processes from costly disruption
- Appointment scheduling function allows users to pre-program a delayed start time so the drying oven begins heating automatically at the designated hour — enabling overnight or off-hours operation without manual intervention
- Advanced programmable engine supports 10 ramp-and-soak segments per cycle with up to 100 consecutive execution cycles, enabling complex multi-step thermal protocols for accelerated aging, stepwise drying, and precision heat-treatment applications
Theory and Method
The ToronOVEN™ MC3 (300°C) operates on the principle of forced-air convection. An electrically powered heating element raises the internal chamber temperature, while a variable-speed centrifugal fan — adjustable across six discrete speed levels — continuously circulates heated air throughout the working space. This blast drying mechanism eliminates temperature stratification and delivers significantly faster, more uniform heat transfer than passive gravity-convection ovens. The ability to fine-tune fan speed allows users to balance heat transfer rate against sample sensitivity, making the ToronOVEN™ MC3 suitable for both robust industrial loads and delicate laboratory specimens.
A high-precision sensor continuously monitors the chamber temperature and feeds live data to the PMMA II microprocessor controller. The controller uses closed-loop PID (Proportional-Integral-Derivative) algorithms to regulate heater output, maintaining temperature fluctuation within ±0.8°C at 150°C — a tighter tolerance than the basic GZX drying oven series. Temperature uniformity across the working chamber is maintained within ±2% at 150°C. An independent over-temperature alarm circuit provides a hardware-level safety layer, triggering an alert and cutting heater power if the chamber temperature exceeds the configured safety threshold.
The PMMA II programmable engine supports 10-segment ramp-and-soak profiles with up to 100 consecutive execution cycles, enabling complex multi-step thermal protocols for accelerated aging, staged drying, or precise heat-treatment sequences. The preheating chamber design conditions incoming air before it enters the main workspace, further improving temperature uniformity and reducing recovery time. Power-supply recovery automatically restores the last active setpoint after a power interruption, and the appointment scheduling function allows users to pre-configure a delayed start time — the drying oven begins heating automatically at the designated time without manual intervention.
Mechanical Convection Drying Oven (300°C) – ToronOVEN™ MC3 Technical Specifications
| Parameter | ToronOVEN™ MC364 | ToronOVEN™ MC3129 | ToronOVEN™ MC3210 | ToronOVEN™ MC3280 | ToronOVEN™ MC3452 | ToronOVEN™ MC3650 | ToronOVEN™ MC31000 |
|---|---|---|---|---|---|---|---|
| Volume (L) | 64 | 129 | 210 | 280 | 452 | 650 | 1,000 |
| Temperature Range (°C) | RT+5 ~ 300 | ||||||
| Temp. Resolution (°C) | 0.1 | ||||||
| Temp. Fluctuation at 150°C (°C) | ±0.8 | ||||||
| Temp. Uniformity at 150°C (%) | ±2 | ||||||
| Heating Rate to 150°C (°C/min) | >5 | ||||||
| Rated Power (W) | 1,550 | 2,150 | 2,750 | 2,750 | 3,500 | 4,500 | 6,600 |
| Voltage (V, Hz) | 220 ±10%, 50 ±2% (110V is also available) | 380 ±10%, 50 ±2% | |||||
| Timer Range (min or h) | 0 – 9,999 | ||||||
| Reservation Range (min) | 0 – 9,999 | ||||||
| Interior Dimensions W×D×H (mm) | 410×350×450 | 570×400×570 | 630×530×630 | 720×530×745 | 600×580×1,300 | 720×650×1,400 | 1,100×650×1,400 |
| Exterior Dimensions W×D×H (mm) | 555×566×722 | 715×616×842 | 775×746×902 | 865×746×1,017 | 774×845×1,704 | 865×866×1,730 | 1,220×850×1,730 |
| Shelves — Standard / Max (pcs) | 2 / 5 | 2 / 7 | 3 / 8 | 3 / 10 | 4 / 18 | 4 / 18 | 4 / 18 |
| Max Load per Shelf (kg) | 15 | ||||||
| Net Weight (kg) | 42 | 57 | 77 | 97 | 145 | — | — |
| Gross Weight (kg) | 60 | 75 | 96 | 118 | 174 | — | — |
| Package Size (mm) | 675×726×872 | 835×776×992 | 895×906×1,052 | 985×906×1,167 | 894×1,005×1,854 | — | — |
RT = ambient room temperature. Temperature fluctuation and uniformity measured at 150°C. BGZ-1006 requires three-phase 380V power supply. "—" indicates data not provided by manufacturer. All dimensions in millimeters (mm). Specifications subject to change without notice.
