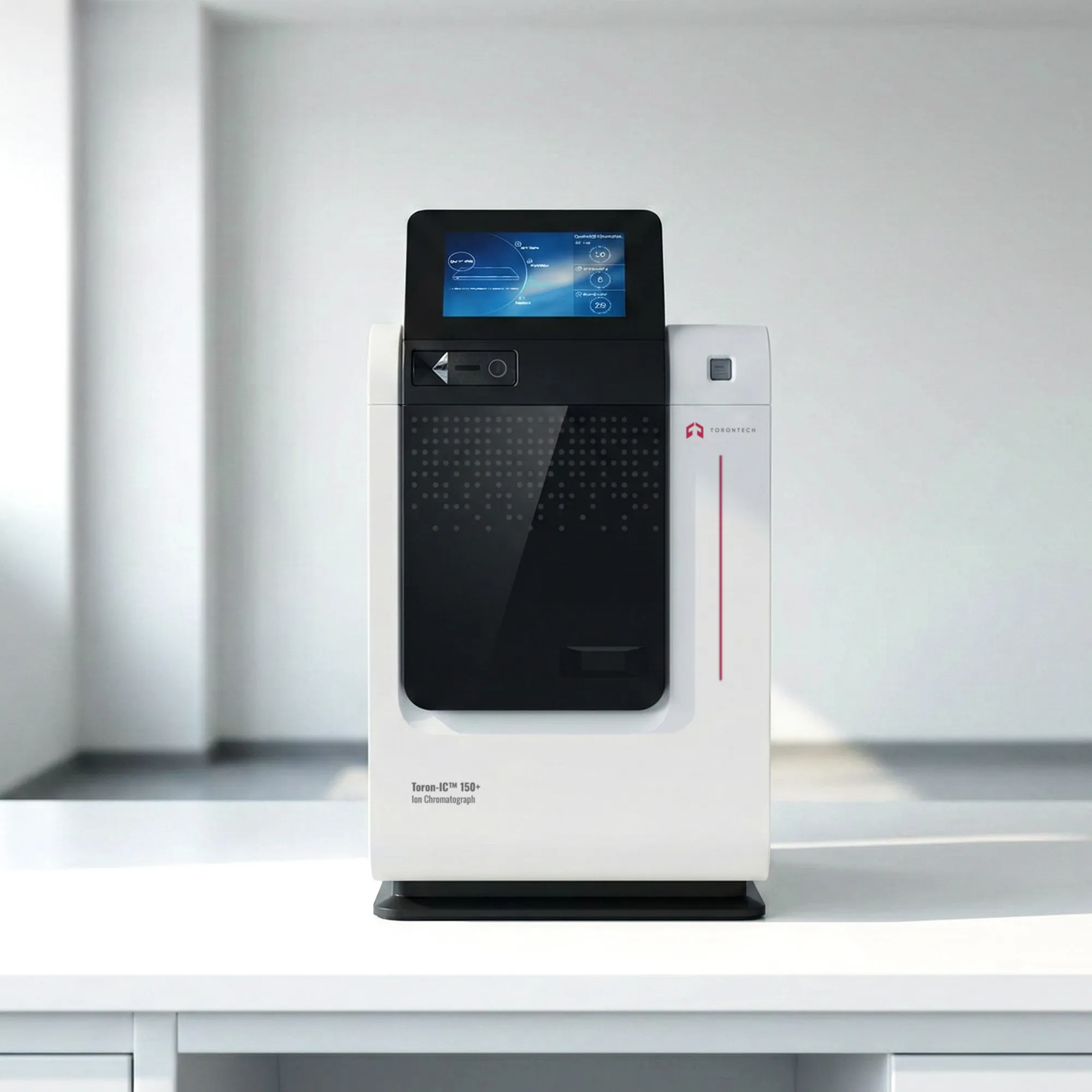

Ion Chromatograph – Toron-IC™ 150+
Ion Chromatograph – Toron-IC™ 150+
Ion Chromatograph – Toron-IC™ 150+ is a high-performance analytical system designed for precise, stable, and automated ionic analysis in demanding laboratory environments. Engineered around advanced ion chromatography technology, the Toron-IC 150+ delivers reliable separation and quantification of anions and cations across a wide concentration range, from trace-level ppb to high-level ppm samples.
Built with chemically inert, metal-free flow paths and intelligent system protection, this Ion Chromatograph ensures low background noise, excellent reproducibility, and long-term operational stability. Integrated automation features, smart diagnostics, and a compact footprint make the Toron-IC™ 150+ well suited for both routine testing and advanced analytical workflows.
Ion Chromatograph – Toron-IC™ 150+ Applications
The Ion Chromatograph – Toron-IC™ 150+ is a versatile instrument with wide-ranging applications for ionic analysis across several key sectors:
- Environmental Monitoring: Essential for determining anions and cations in various water sources, including drinking water, wastewater, surface water, and general environmental samples.
- Food and Beverage Quality: Used to measure inorganic ions, organic acids, preservatives, and additives, ensuring product safety and compliance.
- Industrial Purity Control (Pharmaceutical & Chemical): Vital for analyzing finished products, intermediates, and raw materials to maintain ionic purity standards.
- Power and Electronics: Critical for detecting trace ionic contaminants, which is necessary to ensure system reliability and optimal component performance.
- Research and Development: Supports scientific research and method development through high-precision quantification and ion separation.
Ion Chromatograph – Toron-IC™ 150+ Key Features
- Intelligent Leakage Alarm System: Automatically detects liquid leaks, activates an audible alert, and safely shuts down the pump to safeguard the instrument and lab environment.
- Automatic Signal Range Selection: Enables accurate analysis across a wide range, from ppb to ppm concentrations, without requiring manual adjustment.
- Integrated Gas–Liquid Separator: Minimizes baseline noise and improves detection sensitivity by efficiently removing bubbles from the eluent flow path.
- Timed Startup Preheating: Allows users to pre-schedule system startup and equilibration, leading to faster readiness and increased workflow efficiency.
- Intelligent Maintenance Mode: Automates the cleaning of the flow path with pure water, reducing the need for manual intervention and prolonging component life.
- Mobile App Control Capability: Offers remote monitoring and basic operational control via a mobile interface for greater flexibility.
- Large Intelligent Touchscreen Interface: Provides a centralized control point for real-time system status, parameter management, and maintenance access.
Durable and Contamination-Free Construction
- Chemically Inert PEEK Flow Path: The metal-free construction guarantees full compatibility with aggressive eluents and eliminates the risk of sample contamination.
Ion Chromatograph – Toron-IC™ 150+ Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Toron-IC™ 150+ |
| Instrument Type | Ion Chromatograph |
| Flow Path Material | Chemically inert, metal-free PEEK |
| pH Compatibility | pH 0–14 |
| Pump Type | High-pressure, low-pulse dual-piston pump |
| Maximum Pump Pressure | 42 MPa |
| Flow Rate Range | 0.001 – 12 mL/min |
| Flow Accuracy | ≤ ±0.1% |
| Flow Precision | ≤ ±0.1% |
| Pressure Ripple | ≤ 0.5% |
| Column Heater Temperature Range | Ambient +5 °C to 60 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Suppressor Type | Self-regenerating electrolytic micro-membrane |
| Conductivity Detector | Auto-range conductivity detector |
| Detection Range | 0 – 45,000 µS/cm |
| Baseline Noise | ≤ 0.001 µS/cm |
| Baseline Drift | ≤ 0.005 µS |
| Minimum Detectable Concentration | Cl⁻ ≤ 0.0003 µg/mL; Li⁺ ≤ 0.0001 µg/mL |
| Linearity | ≥ 0.999 |
| Repeatability (Qualitative) | ≤ 0.5% |
| Power Consumption | 150 W |
| Dimensions (W × D × H) | 336 × 458 × 650 mm |
| Weight | 25.5 kg |
