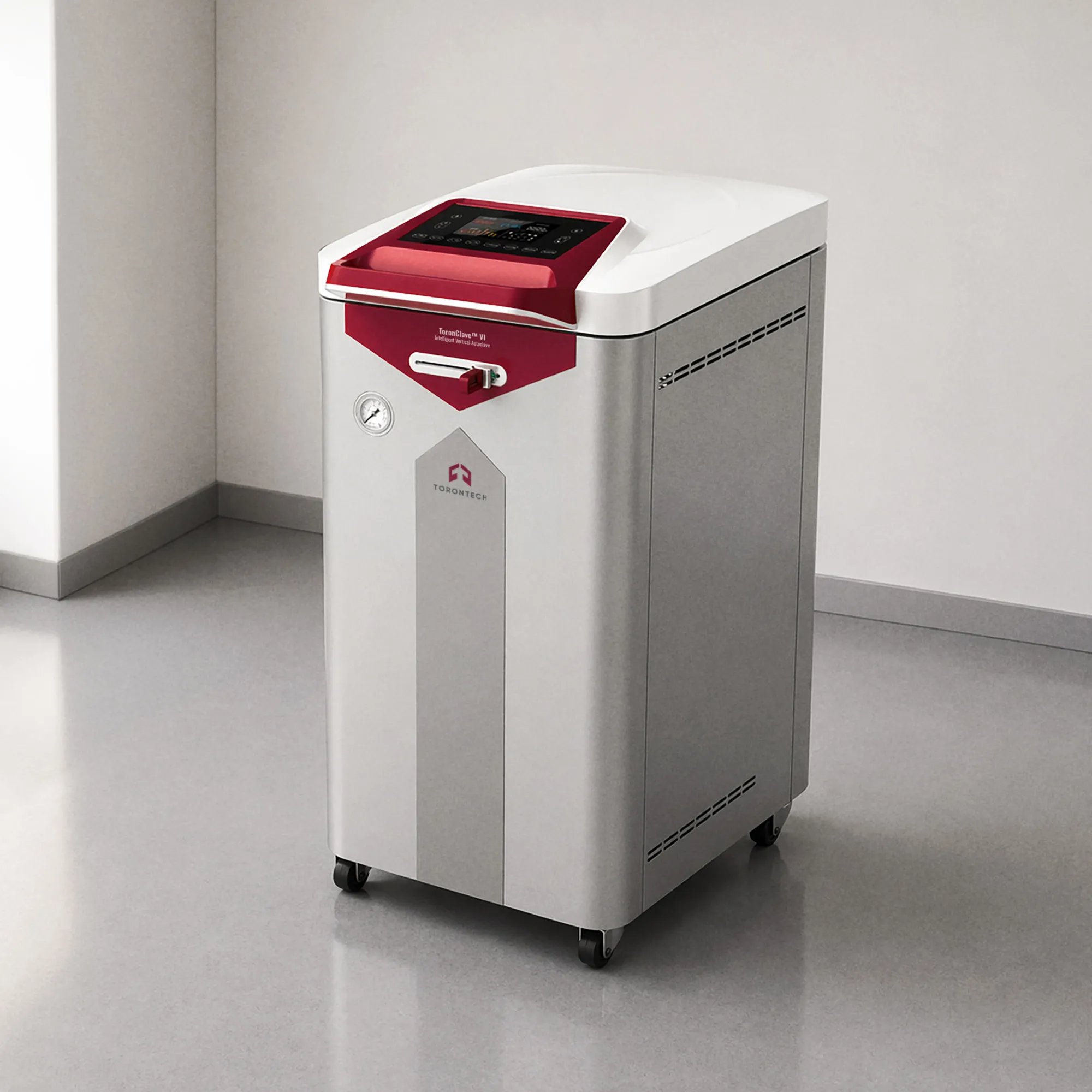

Intelligent Vertical Autoclave - ToronClave™ VI
Autoclave performance matters when you need dependable steam sterilization with stronger automation, safer operation, and larger chamber capacity. ToronClave™ VI is a performance-type Intelligent Vertical Autoclave Machine series designed for sterilizing instruments, dressings, glassware, and culture media with saturated steam under pressure. The ToronClave™ VI 60 model presents this class as a laboratory vertical flip-top autoclave with a 60 L chamber, 220 V power supply, and a maximum sterilization temperature of 135°C.
This series is built for laboratories, clinics, and institutional users that need programmable control, wide process flexibility, and layered safety functions in a vertical format. The ToronClave™ VI series has two models which is ToronClave™ VI 60 and ToronClave™ VI 85, with chamber volumes of 60 L and 85 L.
ToronClave™ VI is a floor-standing vertical steam sterilizer series developed for moist-heat sterilization of common medical and laboratory loads. It uses saturated steam under pressure to sterilize reusable items quickly, while the ToronClave™ VI configuration adds broader control logic, parameter compensation, customizable cycle settings, and enhanced safety monitoring.
The BRIGHT I operating system can automatically compensate parameter values according to environmental changes. This models configured with a flip-top door opening structure, a stainless steel inner container and process, melting and heat-preservation programs, historical curve display, and multi-level password management for process control.
Intelligent Vertical Autoclave - ToronClave™ VI Applications
- Medical and Clinical Instruments: this Autoclave Machine is suitable for sterilizing reusable medical equipment and related clinical items. This product class is appropriate for medical equipment, dressings, glassware, and liquor culture media.
- Laboratory Glassware: ToronClave™ VI can be used for sterilizing laboratory glassware in research, testing, and educational settings. Its vertical chamber and multi-basket configuration make it practical for facilities handling repeated sterilization cycles.
- Culture Media: this model is also positioned for culture media sterilization, which makes the series suitable for microbiology, biology, and general laboratory preparation workflows.
- Research and Institutional Work: because the series offers 60 L and 85 L chamber capacities with programmable control and multiple reserved programs, it fits research facilities, institutional sterilization rooms, and laboratories that need repeatable cycle management and more advanced operation than basic vertical units.
Intelligent Vertical Autoclave - ToronClave™ VI Key Features
- BRIGHT I operating system with automatic parameter compensation based on environmental changes.
- HD color LCD touch screen showing time, sterilization procedure, working status, diagrams, alarm information, and other key parameters on one screen.
- Flip-top door opening structure with mechanical self-locking and electronic interlocking double protection.
- Upper cover with integrated high-polymer anti-ironing cover.
- Stainless steel inner vessel and process construction.
- Built-in sterilization programs plus melting and heat preservation programs.
- Sterilization procedure can be set to start with the sample temperature.
- Multi-level password management.
- Three-point temperature calibration support for both sterilization temperature and sample temperature, with manual correction when deviation occurs.
- Boiling points can be set for high-altitude use.
- Adjustable door opening temperature to improve operational safety.
- One-key steam drainage when sterilization is complete.
- With Gregorian calendar reservation operation function.
- Six-level pressure relief setting for quicker post-cycle cooling.
- Historical temperature curves for cavities and sample temperature can be viewed.
- Six-level cold-air discharge procedure to help ensure complete air removal.
- Water-level detection probe and anti-dry burning probe double protection.
- Fault detection, over-temperature protection, over-pressure self-leakage protection, anti-hot protection, overload protection, short-circuit protection, leakage protection, and independent electronic overvoltage protection.
Intelligent Vertical Autoclave - ToronClave™ VI Technical Specification
| Parameter | ToronClave™ VI 60 | ToronClave™ VI 85 |
|---|---|---|
| Volume | 60 L | 85 L |
| Drum Diameter | 400 mm | |
| Voltage | 220 ±10%, 50 ±2% (110V is also available) | |
| Environment Temperature | 5–40°C | |
| Environment Humidity | 20–80% RH | |
| Power | 3.2 kW | 3.6 kW |
| Sterilization Temperature | 105–135°C | |
| Temperature Fluctuation | < ±1°C | |
| Temperature Uniformity | ≤ ±1°C | |
| Melting Temperature | 50–100°C | 60–100°C |
| Heat Preservation Temperature | 40–60°C | |
| Sterilization Timer Range | 0–240 min | |
| Melting Timer Range | 0–600 min | 0–6000 min |
| Heat Preservation Timer Range | 0–600 min | 0–6000 min |
| Reservation Range | 99 h 59 min | |
| Design Pressure | 0.28 MPa | |
| Working Pressure | 0.212 MPa | |
| Housing Dimensions (W × D × H) | 550 × 588 × 830 mm | 550 × 588 × 1040 mm |
| Cavity Size | Ø380 × 555 mm | Ø380 × 765 mm |
| Basket Dimensions | Ø350 × 225 mm | Ø350 × 200 mm |
| Number of Baskets | 2 | 3 |
