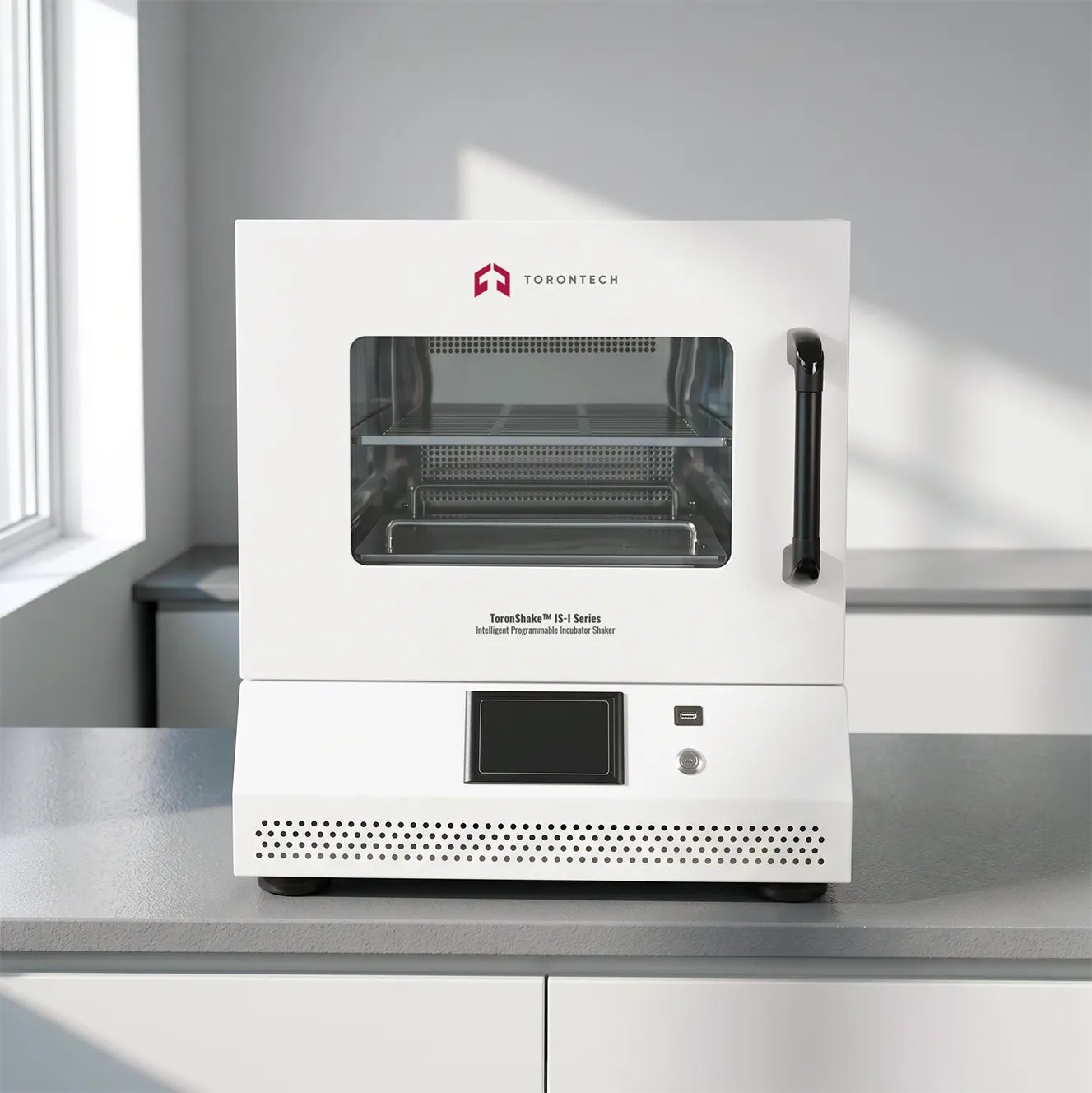

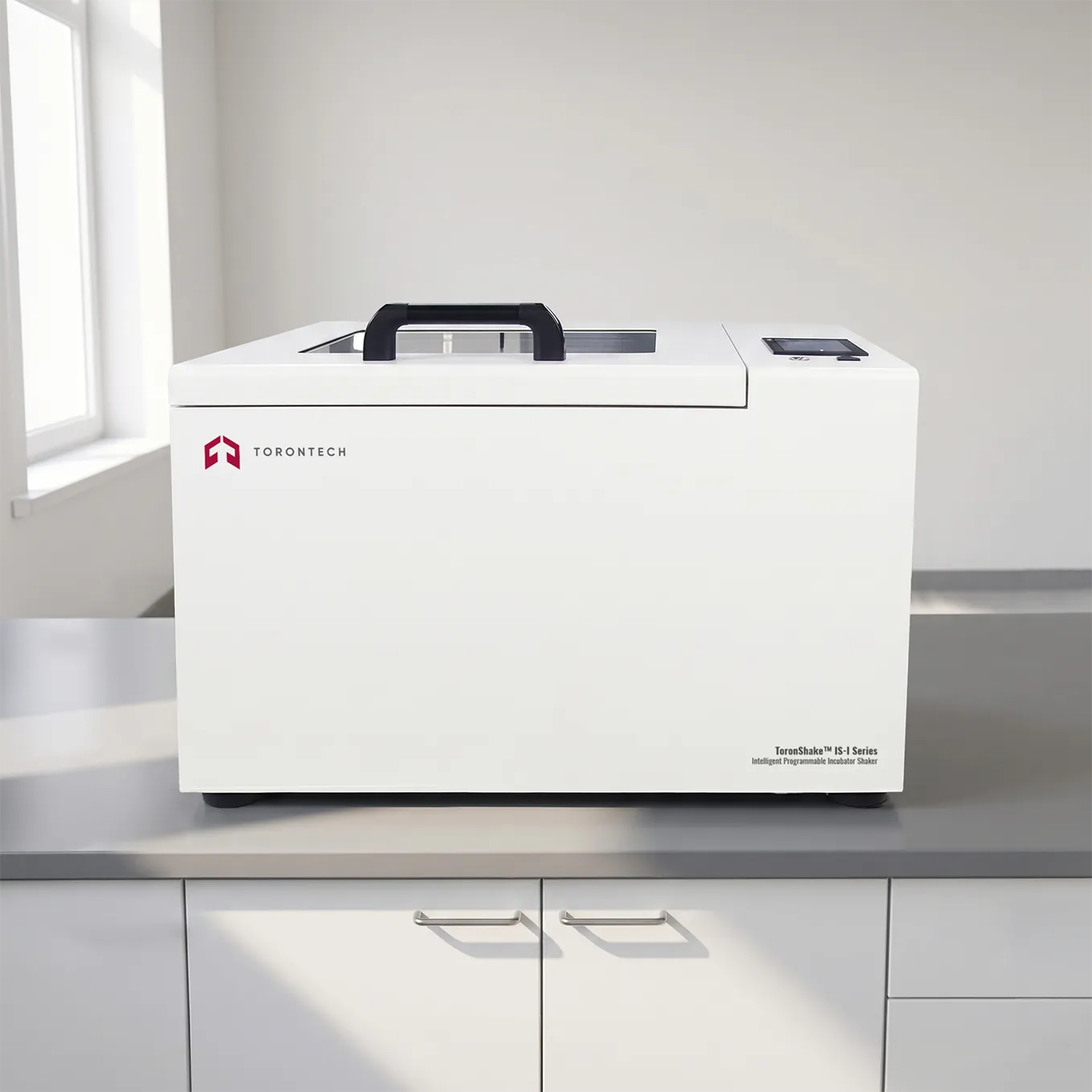

Intelligent Programmable Incubator Shaker

Theory and Method

BRIGHT I Intelligent Environmental Compensation

The BRIGHT I control platform monitors real-time ambient conditions and automatically adjusts control parameters temperature, speed, and timing to compensate for environmental fluctuations without operator intervention. This adaptive approach maintains set-point accuracy when laboratory HVAC cycling, seasonal temperature shifts, or compressor load changes would otherwise introduce drift into long-duration shaker incubator runs. All compensation events and operational parameters are timestamped and stored within the 150,000-record data system, providing a complete, searchable run history accessible via USB export.

30-Segment / 99-Cycle Programmable Profiles

The IPX supports up to 5 independent programs, each with up to 30 configurable segments and 99 repeatable cycles. Each segment can define a target temperature, agitation speed, duration, and transition behavior enabling complex multi-phase thermal and agitation profiles to run automatically from start to finish. Two timing options are available: running timing (elapsed time from start) and constant temperature timing (time counted only after the set temperature is reached), giving researchers flexibility in how incubation duration is measured for their specific protocols. This level of programmability is not available on the ToronShake™ IS platform.

Intelligent Frost-Free Operation

The refrigeration system operates with intelligent frost-free control the compressor delayed start, adjustable defrost temperature, defrost interval, and defrost duration are all configurable by the user. This prevents ice buildup on refrigeration components during sustained low-temperature operation, extending compressor service life and maintaining consistent cooling performance over long-duration refrigerated shaker incubation runs. The imported compressor unit reduces noise levels by more than 50% compared to conventional compressor designs, making the IPX suitable for open-plan laboratory environments where acoustic output from shared instruments affects working conditions.

Brushless DC Motor with Slow-Start Protection

The high-quality brushless DC motor uses a motor slow-start function that gradually ramps oscillation speed from zero to the set-point rather than engaging at full speed immediately. This protects the motor from start-up torque stress while simultaneously preventing the sudden acceleration spatter that can cause liquid in shake flasks to contact the cap or stopper a meaningful contamination risk in microbial and cell culture shaker incubation. The slow-stop function applies the same gradual deceleration on shutdown, further protecting fragile biological samples from mechanical shock during the end of each run cycle.

UV Sterilization and Standard Lighting

The inner chamber is fitted with both standard interior lighting for sample observation and a UV germicidal lamp for timed sterilization between runs. The UV sterilization function supports programmable timing, allowing decontamination cycles to run automatically before or after incubation protocols without manual intervention. This is particularly relevant for laboratory shaker incubator applications involving pathogens, fungal cultures, or any biological work where cross-contamination between sequential runs is a concern. The double-layer tempered glass door provides clear visibility into the illuminated chamber without requiring the door to be opened.

R-Angle Waterproof Stainless Steel Interior

The inner cavity uses an all-stainless steel large R-angle design all internal corners are curved rather than square, eliminating the recessed dead corners where biological material accumulates and resists cleaning. An internal flow guide through channels spilled liquid toward a drainage path, supporting internal water cleaning and flushing without disassembly. This design prevents bacteria-contaminated liquid from spreading across the chamber base during oscillation events, reducing the risk of cross-contamination between sequential culture runs. The standard integrated plastic flask fixture is high-strength and consistent across all vessel configurations.
