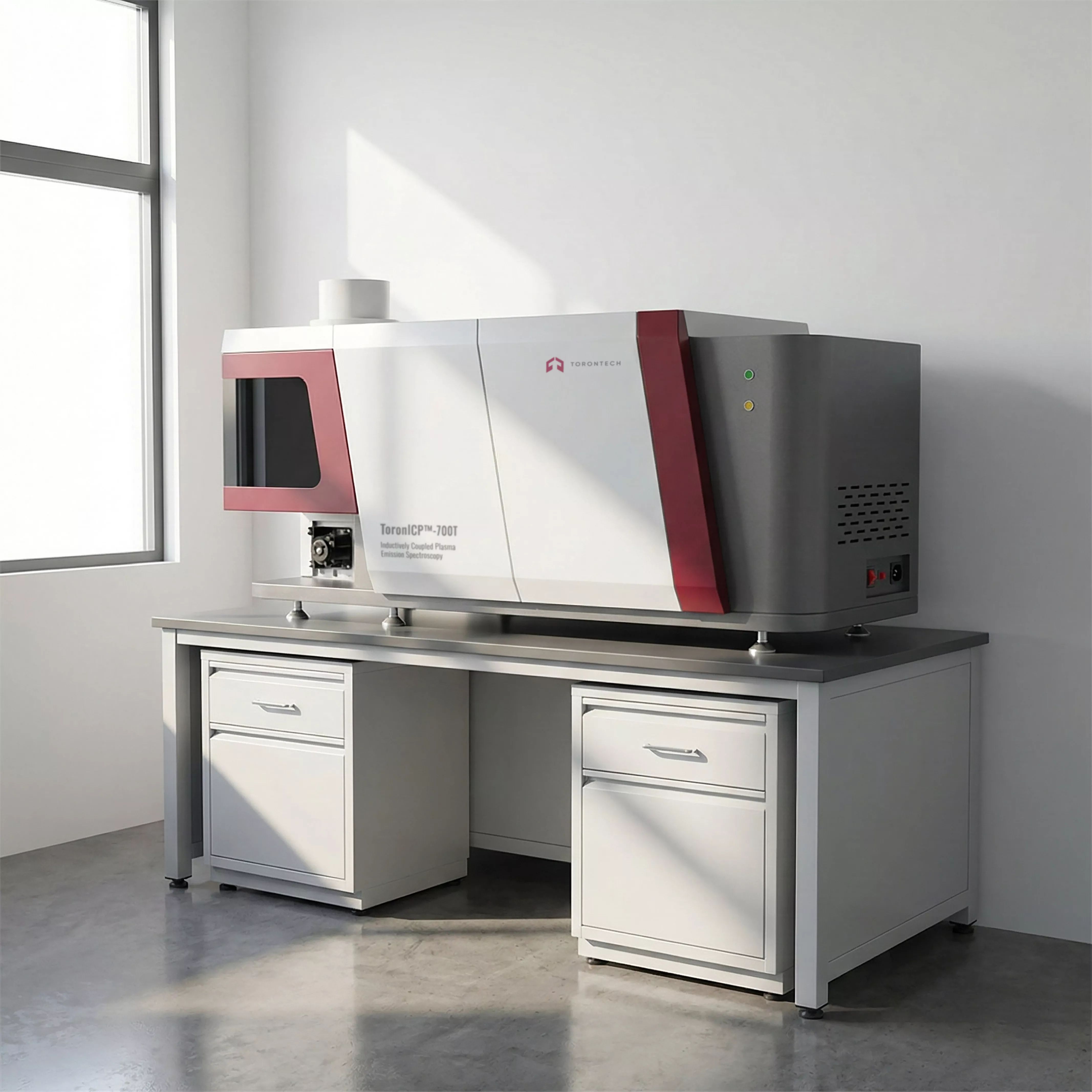

Inductively Coupled Plasma Emission Spectroscopy (ICP-OES) - ToronICP™ 700T
Inductively Coupled Plasma Emission Spectroscopy (ICP-OES) is a high-performance analytical technique used for fast, accurate multi-element analysis across industrial, environmental, and research laboratories. In inductively coupled plasma emission spectroscopy, samples are introduced into a high-temperature inductively coupled plasma, where atoms and ions are excited and emit element-specific light that is measured to determine precise elemental composition.
This advanced inductively coupled plasma spectrophotometer combines a stable solid-state RF power supply, automatic impedance matching, and an achromatic optical system to ensure consistent plasma conditions and low spectral interference. Designed to support both routine testing and advanced analytical work, the ToronICP™ 700T delivers dependable, laboratory-grade results while remaining intuitive and approachable for users new to inductively coupled plasma analysis.
Applications
The Inductively Coupled Plasma Emission Spectroscopy - ToronICP™ 700T is suitable for elemental analysis in:
- Rare earth and non-ferrous metal industries
- Petrochemical and silicon manufacturing
- Metallurgical processing and metal smelting
- Geological exploration and mineral analysis
- Environmental testing of water, soil, and related samples
- Industrial quality control and material verification
- Research laboratories requiring trace element analysis
Inductively Coupled Plasma Emission Spectroscopy - ToronICP™ 700T Key Features
- Broad Multi-Element Capability
- Measures more than 70 elements, including most metallic and non-metallic elements, in a single analysis.
- Simultaneous Element Detection
- Supports concurrent measurement of multiple elements, improving efficiency and throughput.
- Fast Analytical Performance
- Typical analysis speed of approximately five elements per minute, expandable up to ten elements per minute.
- Low Detection Limits
- Achieves parts-per-billion (ppb) detection limits for most elements in solution samples.
- Wide Linear Dynamic Range
- Provides up to six orders of magnitude, allowing accurate measurement of trace and high-concentration elements.
- Advanced Solid-State RF Power Supply
- Compact, energy-efficient RF generator offering high output stability and enhanced operational safety.
- Automatic Matching Technology
- Fully automatic impedance matching ensures rapid plasma ignition, stable operation, and efficient power transfer.
- Fully Automated Operation
- Computer-controlled functions enable safe, reliable, and unattended analysis with optional autosampler support.
- Achromatic Optical System
- Total-reflection optical design with concave mirrors improves spectral efficiency and reduces wavelength distortion.
- Reduced Chemical Interference
- Real-time background correction minimizes matrix effects and improves analytical accuracy.
Theory
Inductively Coupled Plasma (ICP) is a high-temperature ionized gas used as an energy source for elemental analysis. In inductively coupled plasma emission spectroscopy (ICP-OES), argon gas is energized by a radio-frequency electromagnetic field to generate a stable plasma without electrodes.
Liquid samples are converted into a fine aerosol and introduced into the plasma, where temperatures can exceed 10,000 K. At this temperature, elements in the sample become excited and emit light at element-specific wavelengths. An inductively coupled plasma spectrophotometer detects this emitted light to identify and quantify multiple elements simultaneously.
ICP-OES provides fast, accurate multi-element analysis with high sensitivity, low chemical interference, and a wide linear measurement range. This makes it a reliable technique for environmental testing, metals analysis, industrial quality control, and scientific research.
Inductively Coupled Plasma Emission Spectroscopy - ToronICP™ 700T Technical Specifications
| Model | ToronICP™ 700T |
|---|---|
| Instrument Type | Inductively Coupled Plasma Emission Spectroscopy (ICP-OES) |
| Elements Measured | More than 70 elements |
| Detection Limit | Up to ppb level |
| Analysis Speed | ~5 elements/min (expandable to 10 elements/min) |
| Linear Dynamic Range | Up to 6 orders of magnitude |
| RF Power Supply | All solid-state RF generator |
| Matching System | Fully automatic impedance matching |
| Optical System | Total-reflection achromatic optical system |
| Background Correction | Real-time background correction |
| Automation Level | Fully computer-controlled |
| Sampling System | High-efficiency nebulizer with dual-barrel atomization chamber |
| Cooling System | Dedicated cooling water system |
| Gas System | Argon gas supply with optimized flow control |
