Hydraulic Strength Comprehensive Tester
Hydraulic Strength Comprehensive Tester — ToronFT™ HSC

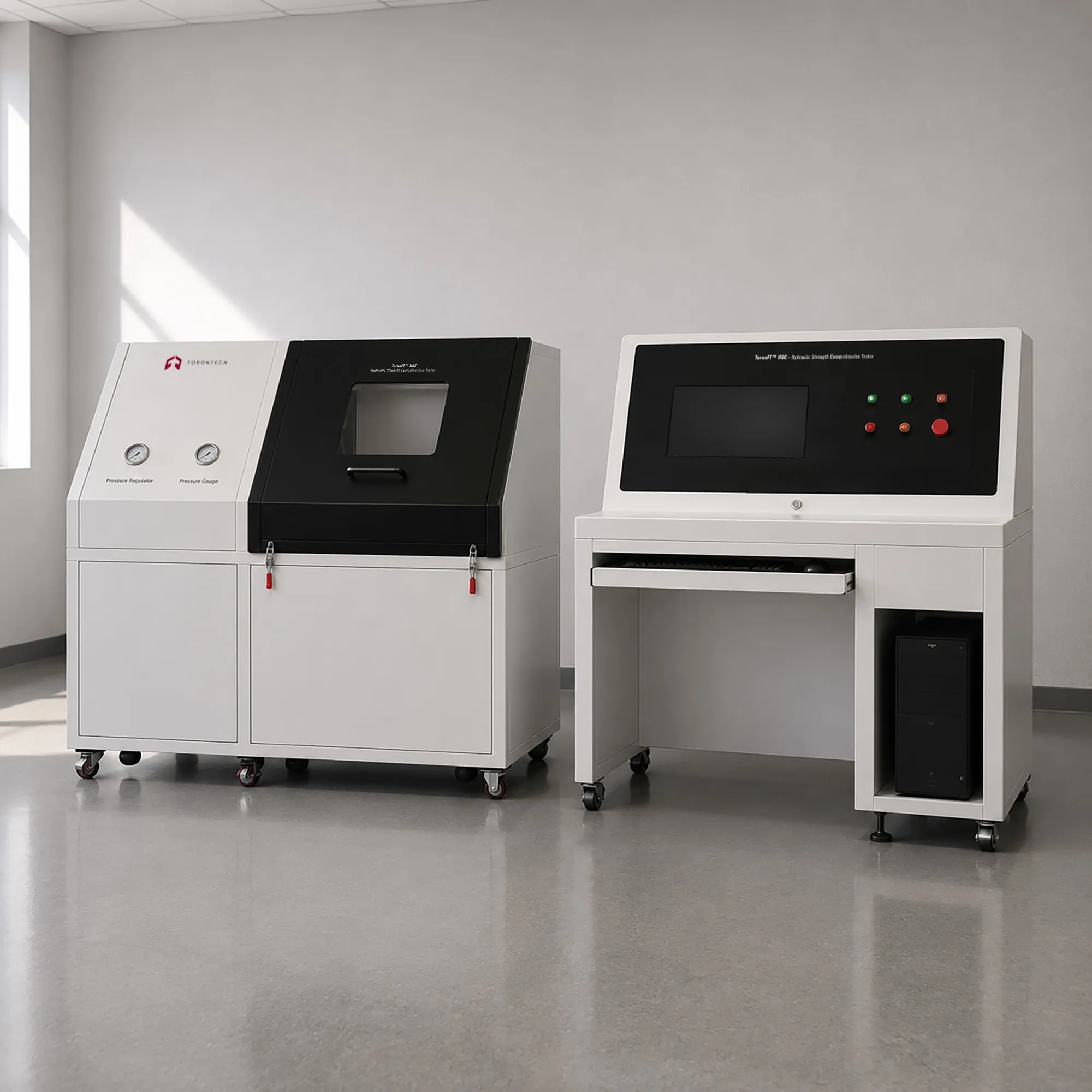

ToronFT™ HSC Hydraulic Strength Comprehensive Tester is a high-pressure hydraulic testing platform engineered for the hydraulic strength qualification of a broad spectrum of gas fire extinguishing systems, components, and related fire suppression equipment. With a maximum working pressure of 23.2 MPa and a high-pressure pump range extending to 100 MPa, the ToronFT™ HSC delivers the pressure capacity and precision control required to test the most demanding gas fire extinguishing system components to their rated burst and strength limits.
The hydraulic strength comprehensive tester is also capable of functioning as a hydraulic pressure source for a wide range of ancillary performance tests, providing a versatile, centralized hydraulic infrastructure for laboratories evaluating carbon dioxide, heptafluoropropane (HFC-227ea), trifluoromethane (HFC-23), inert gas (IG01, IG100, IG55, IG541), and cabinet gas fire extinguishing systems — as well as fixed fire extinguishing system drives and internal storage pressure systems.
Hydraulic Strength Comprehensive Tester — ToronFT™ HSC Applications
- Gas fire extinguishing system manufacturers: hydraulic strength qualification of CO₂, HFC-227ea, HFC-23, IG01, IG100, IG55, IG541, and cabinet gas system components
- Third-party certification and listing laboratories: hydrostatic strength testing per ISO 14520, UL 2166, and related international standards
- Fixed fire extinguishing system drive manufacturers: hydraulic strength testing of drive cylinders, valves, and actuators
- Internal storage pressure system manufacturers: hydraulic strength qualification of pressure vessels and fittings
- Multi-test laboratories: centralized hydraulic pressure source for downstream performance tester
Standards
The ToronFT™ HSC supports hydraulic strength testing in compliance with internationally recognized fire protection and gas suppression standards, including:
- ISO 14520-1: Gaseous fire-extinguishing systems — Physical properties and system design — General requirements
- ISO 14520-9:Gaseous fire-extinguishing systems — HFC 227ea systems
- NFPA 12: Standard on carbon dioxide extinguishing systems
- NFPA 2001: Standard on clean agent fire extinguishing systems
- UL 2166: Standard for halocarbon clean agent extinguishing system units
- EN 15004-1: Fixed firefighting systems — Gas extinguishing systems — Design, installation, and maintenance
Hydraulic Strength Comprehensive Tester — ToronFT™ HSC Key Features
- Broad system coverage: CO₂, HFC-227ea (heptafluoropropane), HFC-23 (trifluoromethane), IG01, IG100, IG55, IG541, cabinet gas, fixed system drives, and internal storage pressure systems — all testable on one platform
- Maximum working pressure: 23.2 MPa — covering the highest rated working pressures in commercial gas fire suppression systems
- High-pressure pump range: 0–100 MPa — providing substantial strength test margin above maximum working pressure
- Controlled pressure increase rate: 10–50 MPa/min — protecting components from shock loading during pressurization
- Pressure hold time: 0–99.99 min (settable) — accommodating standard-specified hold durations for any component type
- Test medium: water — safe, high-incompressibility hydraulic medium eliminating stored energy hazards of gas testing
- Equipped with different product interfaces — enabling testing of diverse component types without instrument modification
- Control mode: automatic control plus manual button control — precise, safe operation across the full pressure range
- Also functions as a hydraulic pressure source for other ancillary performance tester
Theory and Method
Hydraulic strength testing subjects gas fire extinguishing system components — cylinders, valves, fittings, and pipelines — to pressurized water at levels significantly exceeding the maximum working pressure, verifying that the component has adequate structural strength and will not fail or deform under over-pressure conditions. Water is used as the test medium instead of compressed gas to eliminate the stored energy hazard associated with high-pressure gas testing.
The ToronFT™ HSC applies pressure from the high-pressure pump (0–100 MPa) at a controlled increase rate of 10–50 MPa/min to avoid shock loading. The pressure is raised to the specified test pressure and held for the required duration while the component is inspected for leakage, deformation, or structural failure. The automatic control plus manual button control mode ensures precise, safe operation across the full pressure range. Interchangeable product-specific interfaces allow the same instrument to be used across multiple component types without modification.
Hydraulic Strength Comprehensive Tester — ToronFT™ HSC Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ToronFT™ HSC |
| Maximum Working Pressure | 23.2 MPa |
| High-Pressure Pump Range | 0 – 100 MPa |
| Pressure Increasing Rate | 10 – 50 MPa/min |
| Pressure Hold Time | 0 – 99.99 min (settable) |
| Test Medium | Water |
| Product Interfaces | Multiple (interchangeable for different component types) |
| Control Mode | Automatic control + manual button control |
