High Throughput Vertical Autoclave - ToronClave™ VHT
Autoclave capacity and control matter when you need repeatable steam sterilization for larger daily workloads. ToronClave™ VHT is a performance-type High-Throughput Vertical Autoclave Machine series designed for sterilizing instruments, dressings, glassware, and culture media with saturated steam under pressure, and the ToronClave™ VHT has range that larger-capacity laboratory vertical sterilizers.
This series is built for laboratories, clinics, and institutional environments that need more chamber volume, programmable operation, and stronger control functions than basic vertical units. This series has three models in the series, ToronClave™ VHT 60, ToronClave™ VHT 85, and ToronClave™ VHT 110, with chamber capacities of 60 L, 85 L, and 110 L.

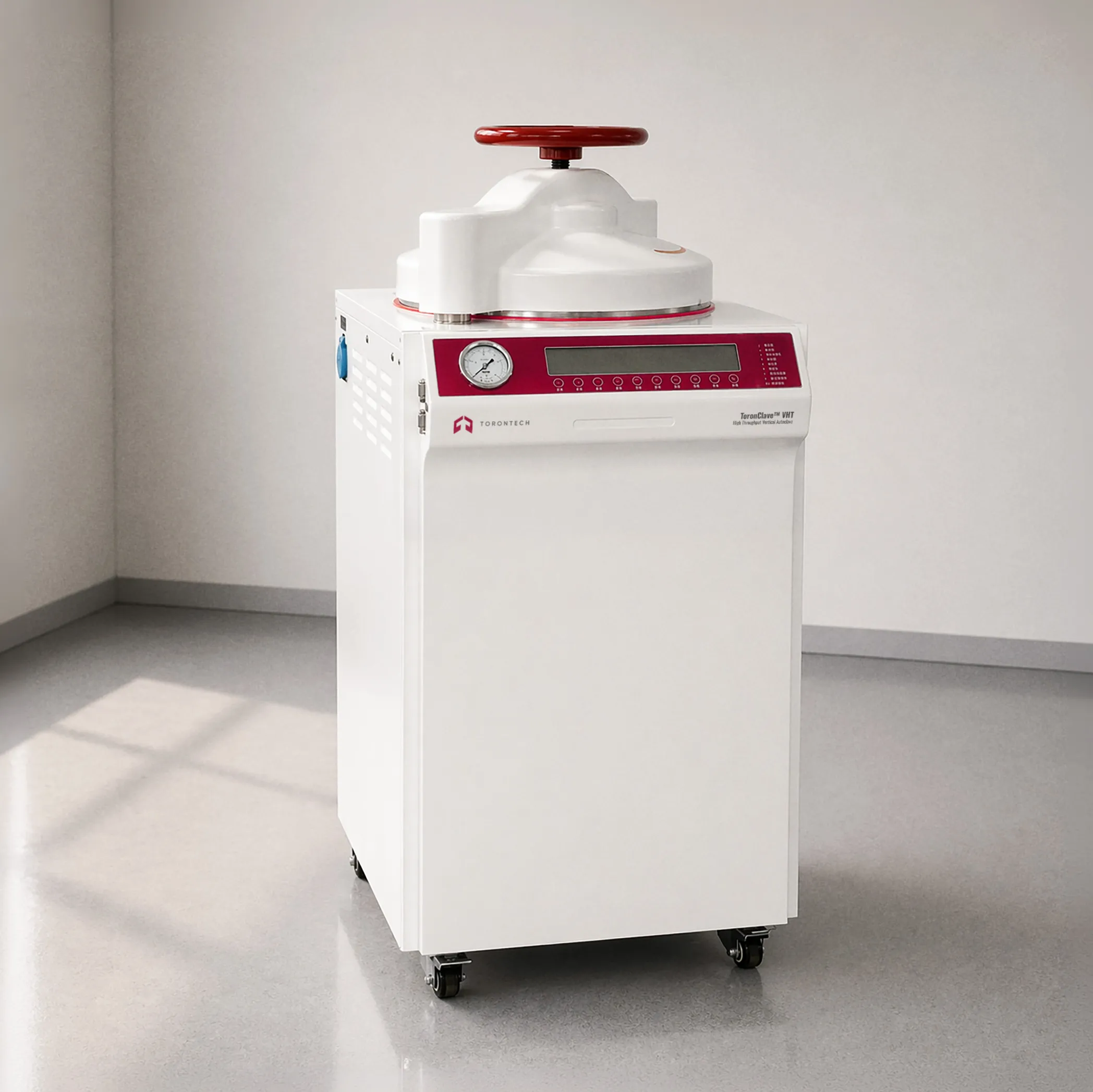

ToronClave™ VHT is a floor-standing vertical steam sterilizer series developed for moist-heat sterilization of common laboratory and medical loads. It uses saturated steam under pressure to sterilize reusable items quickly while giving users a larger chamber, touch-button operation, and programmable process control for routine sterilization work.
This model has a PMMA II microcomputer intelligent operating system, a touch-screen style control panel for viewing operating parameters and status, and preset plus custom programs for process management. It also shows pressure display, one-key electric drainage, independent overvoltage protection, and a built-in rapid cooling arrangement that combines a condenser, air cooling, and secondary water cooling.
High Throughput Vertical Autoclave - ToronClave™ VHT Applications
- Medical and Clinical Instruments: this Autoclave Machine is suitable for sterilizing reusable medical equipment and related clinical items. The product class is appropriate for medical equipment, dressings, glassware, and liquor culture mediums.
- Laboratory Glassware: ToronClave™ VHT can be used for sterilizing laboratory glassware in research, testing, and educational settings. Its larger vertical chamber sizes make it useful for facilities that process repeated loads and need more volume per cycle.
- Culture Media: this makes the series suitable for microbiology, biology, and general laboratory preparation workflows.
- Research and Institutional Work: because the series offers 60 L, 85 L, and 110 L capacities, it fits scientific, educational, and institutional sterilization tasks where a smaller portable autoclave would not provide enough throughput.
High Throughput Vertical Autoclave - ToronClave™ VHT Key Features
 | Anti-hot protection |
| PMMA II microcomputer intelligent operating system |  |

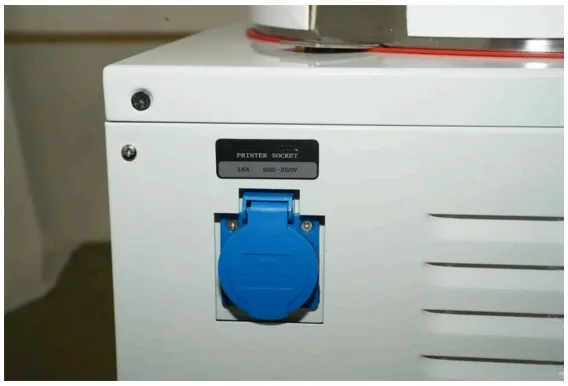

 | Waterproof socket |

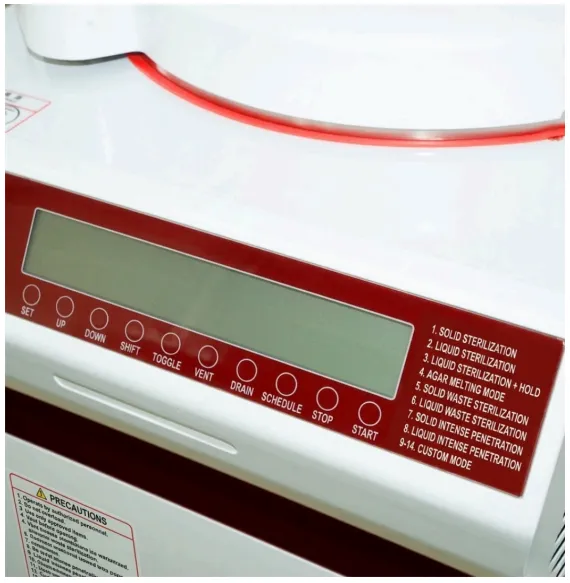

| Touch-screen style interface for real-time viewing of operating parameters and working status |  |

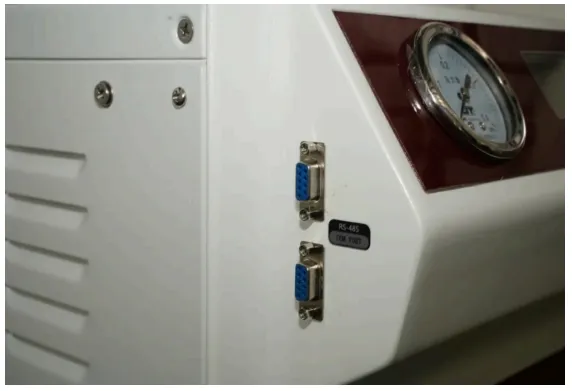

 | Two 485 communication ports and G1/2A standard test pipe thread holes |

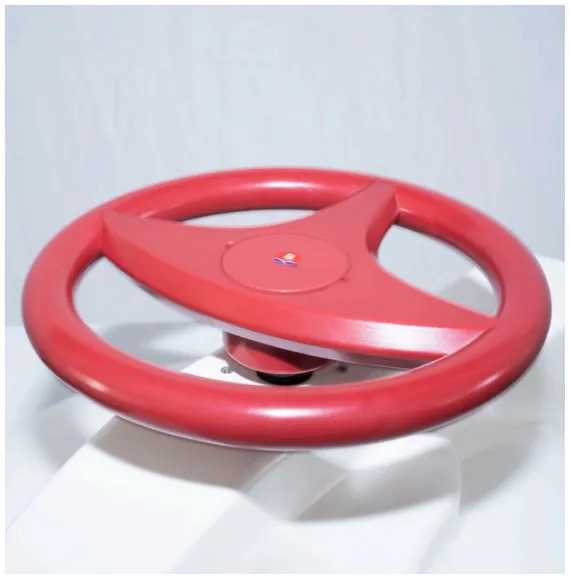

| Handwheel quick-open lid structure with dual protection against pressure and self-locking |  |
 | Rapid cooling system with condenser, air cooling, and secondary water cooling |
- Positive pressure pulse and fixed cold-air discharge procedure
- 8 preset programs plus 6 custom programs
- Optional post-sterilization pressure relief stage
- Three-level authority management
- Hot design with insulation styling
- Drying / melting / hold-temperature reservation function
- One-key electric drainage
- Boiling-point setting function
- Fault detection function
- Over-temperature shutdown protection
- Water cut-off protection

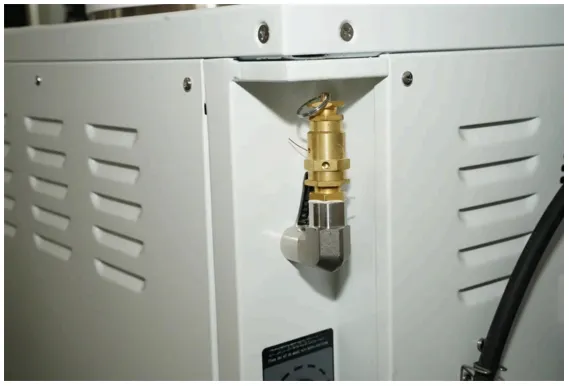

- Overpressure self-relief protection
- Overload protection
- Short-circuit protection
- Leakage protection
- Independent electronic overvoltage protection
- Multiple built-in safety protections throughout the system
High Throughput Vertical Autoclave - ToronClave™ VHT Technical Specification
| Parameter | ToronClave™ VHT 60 | ToronClave™ VHT 85 | ToronClave™ VHT 110 |
|---|---|---|---|
| Volume | 60 L | 85 L | 110 L |
| Internal Dimensions | 400 × 635 mm | 400 × 725 mm | 400 × 835 mm |
| Voltage | 220 ±10%, 50 ±2% (110V is also available) | ||
| Environment Temperature | 5–40°C | ||
| Environment Humidity | 20–80% RH | ||
| Power | 3.2 kW | 3.5 kW | 3.5 kW |
| Sterilization Temperature | 105–135°C | ||
| Temperature Fluctuation | ≤±1°C | ||
| Temperature Uniformity | ≤±1°C | ||
| Melting Temperature | 50–100°C | ||
| Heat Preservation Temperature | 40–60°C | ||
| Sterilization Timer Range | 0–120 min | ||
| Melting Timer Range | 0–6000 min | ||
| Heat Preservation Timer Range | 0–6000 min | ||
| Reservation Timer Range | 0–6000 min | ||
| Design Pressure | 0.38 MPa | ||
| Working Pressure | 0.22 MPa | ||
| Pressure Gauge Indicating Range | 0–0.4 MPa | ||
| Housing Dimensions (W × D × H) | 535 × 640 × 1075 mm | 535 × 640 × 1165 mm | 535 × 640 × 1275 mm |

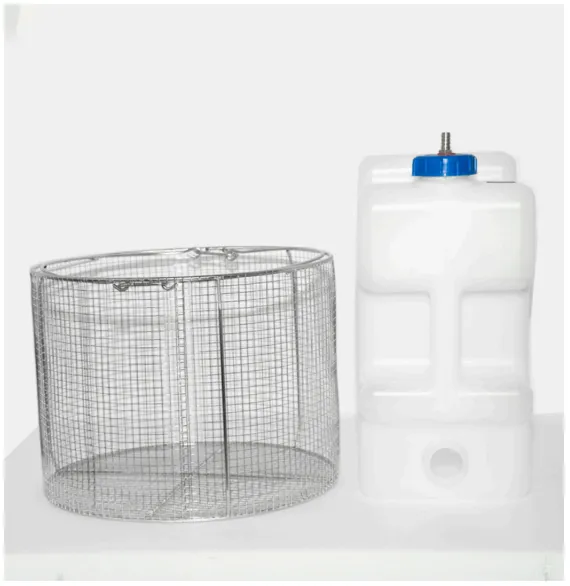

| Basket Dimensions | Ø360 × 230 mm | Ø360 × 270 mm | Ø360 × 230 mm |
| Number of Baskets | 2 | 2 | 3 |
| Net Weight / Gross Weight | 100 / 118 kg | 105 / 124 kg | 111 / 130 kg |
| Package Size | 670 × 780 × 1240 mm | 670 × 780 × 1330 mm | 670 × 780 × 1440 mm |
