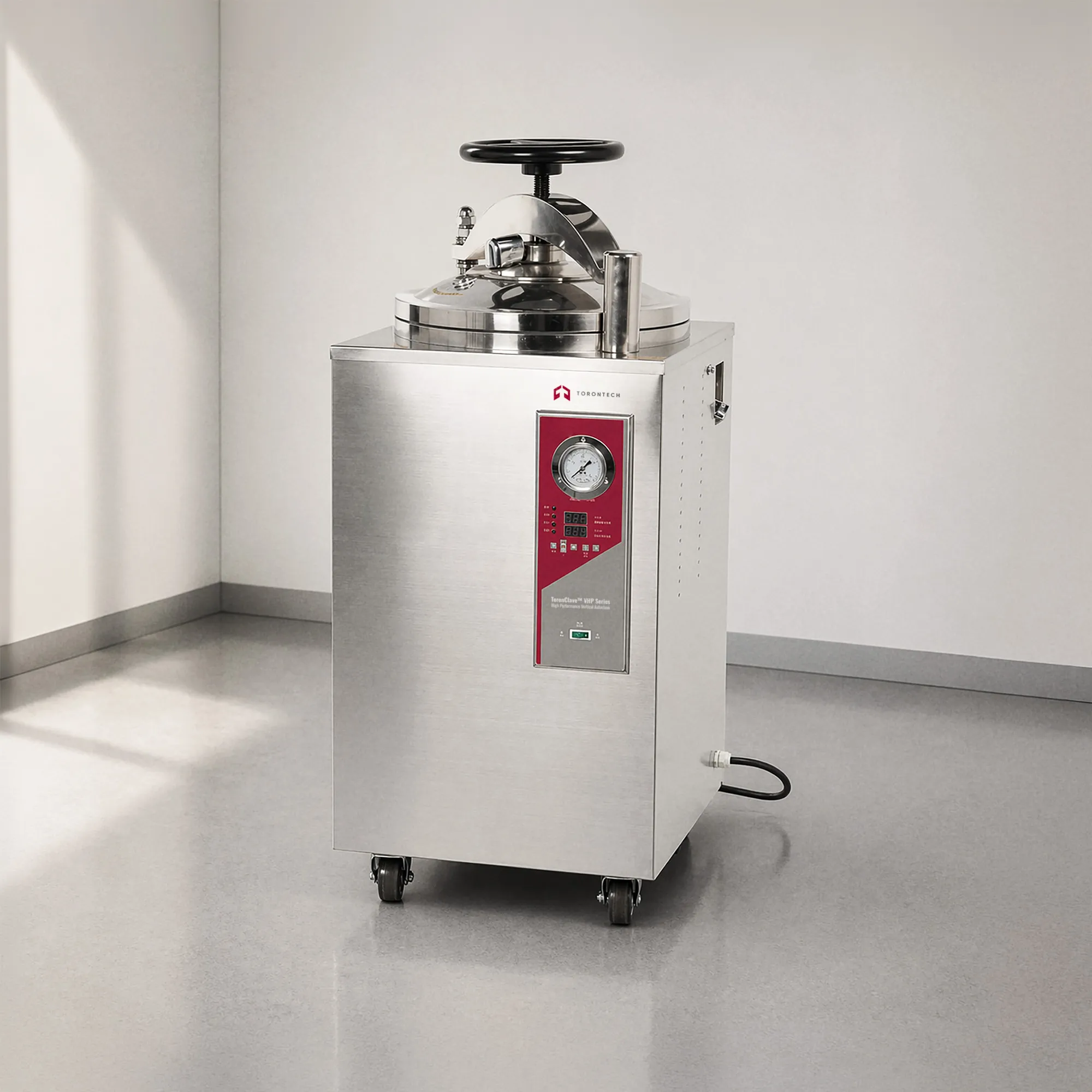

High Performance Vertical Autoclave - ToronClave™ VHP Series
Autoclave performance matters when you need dependable steam sterilization for larger routine loads in laboratories, clinics, and institutional environments. The ToronClave™ VHP Series is a High Performance Vertical Autoclave Machine series designed for sterilizing instruments, dressings, glassware, and culture media with saturated steam under pressure, and theToronClave™ VHP Series range has an economical vertical sterilizer line with 29 L, 50 L, 75 L, and 100 L chamber options.
This series combines SUS304 stainless steel construction, microcomputer intelligent control, a handwheel quick-open lid, and a self-expanding seal ring to support stable daily sterilization work. A maximum working temperature of 135°C, maximum working pressure of 0.22 MPa, and vertical chamber designs suited to users who need more capacity than compact portable units.
ToronClave™ VHP Series is a floor-standing vertical steam sterilizer series built for moist-heat sterilization of common medical and laboratory items. It uses pressurized saturated steam to process reusable loads quickly and is intended for users who need more chamber space, stronger capacity, and straightforward sterilization control in one system.
The High Performance Vertical Autoclave series highlights SUS304 chamber construction, a handwheel quick-open cover, automatic cold-air exhaust, low-water protection, over-temperature protection, and pressure safety interlock features. This instrument is a High Performance Vertical Autoclave with a 50 L chamber, 3.2 kW power, and 220 V / 50 Hz supply.
High Performance Vertical Autoclave - ToronClave™ VHP Series Applications
- Medical and Clinical Instruments: this Autoclave Machine is suitable for sterilizing reusable medical tools and related clinical items. Appropriate for sterilizing medical equipment, dressings, glassware, and culture media.
- Laboratory Glassware: ToronClave™ VHP Series can be used for routine sterilization of laboratory glassware in research, testing, and educational settings. Its larger vertical chamber makes it more suitable for facilities handling repeated sterilization cycles with more volume per run.
- Culture Media: this makes the series suitable for microbiology, biology, and general laboratory preparation workflows.
- Institutional and Research Work: Because the series offers multiple chamber sizes from 29 L to 100 L, it fits a broader range of scientific, educational, and institutional sterilization tasks where a compact portable unit may not provide enough capacity.
High Performance Vertical Autoclave - ToronClave™ VHP Series Key Features

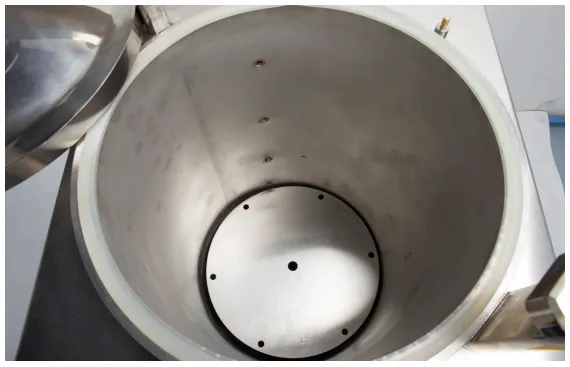

 | SUS304 stainless steel chamber construction. |
| Handwheel quick-open lid design. |  |
 | Vertical floor-standing format with caster-supported movement. |
| Equipped with a G1/2A internal thread sample test hole. |  |
 | Automatic cold-air exhaust. |
- Microcomputer intelligent control.
- Self-expanding sealing ring.
- Low-water protection with self-control when water is insufficient.
- Automatic self-exhaust when over pressure occurs.
- Pressure safety interlock.
- Over-temperature protection.
- End-of-cycle buzzer reminder.
- Available in multiple chamber capacities from 29 L to 100 L.
High Performance Vertical Autoclave - ToronClave™ VHP Series Technical Specification
| Parameter | ToronClave™ VHP 29 | ToronClave™ VHP 50 | ToronClave™ VHP 75 | ToronClave™ VHP 100 |
|---|---|---|---|---|
| Volume | 29 L | 50 L | 75 L | 100 L |
| Power | 2.3 kW | 3.2 kW | 3.5 kW | 3.5 kW |
| Voltage | 220 ±10%, 50 ±2% (110V is also available) | |||
| Max. Working / Design Temperature | 135 / 139°C | |||
| Max. Working / Design Pressure | 0.22 / 0.25 MPa | |||
| Timer Range | 4–120 min | |||
| Internal Dimensions | Ø300 × 485 mm | Ø400 × 630 mm | Ø400 × 720 mm | Ø400 × 830 mm |
| Housing Dimensions (W × D × H) | 445 × 445 × 900 mm | 485 × 485 × 1120 mm | 485 × 485 × 1190 mm | 485 × 485 × 1290 mm |

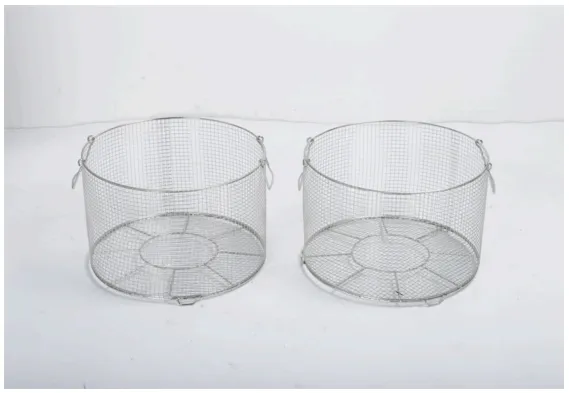

| Basket Dimensions | Ø280 × 340 mm | Ø360 × 230 mm | Ø360 × 270 mm | Ø360 × 230 mm |
| Number of Baskets | 1 | 2 | 2 | 3 |
| Net Weight | 54 kg | 68 kg | 71 kg | 75 kg |
| Gross Weight | 64 kg | 82 kg | 85 kg | 89 kg |
| Package Size | 570 × 570 × 1060 mm | 610 × 610 × 1290 mm | 610 × 610 × 1360 mm | 610 × 610 × 1490 mm |
