Guarded Hot Plate Apparatus
Parent Product
Product Categories

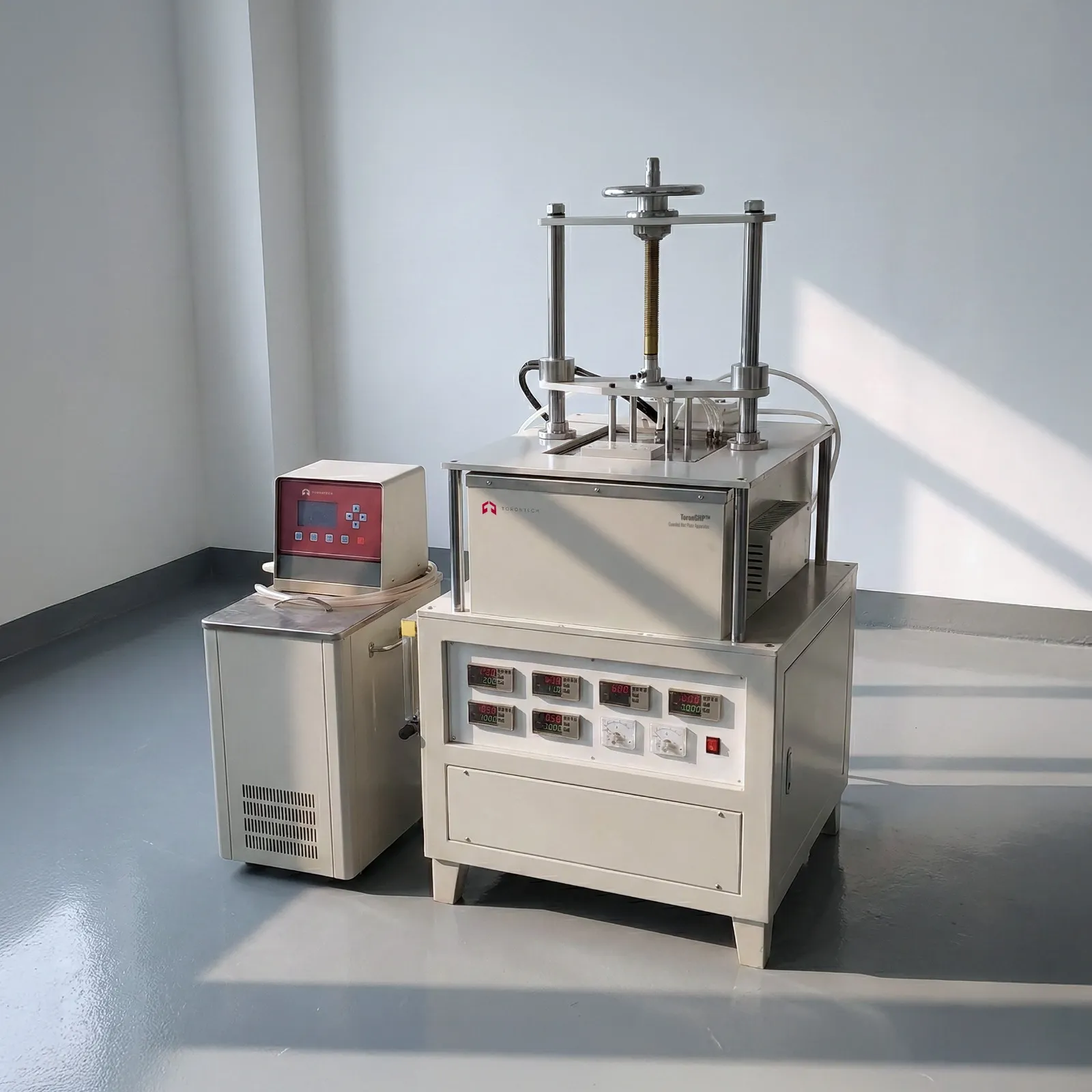

Guarded Hot Plate Apparatus ToronGHP™
ToronGHP™ Guarded Hot Plate Apparatus is a high-temperature Guarded Hot Plate / Heat Flow Meter thermal conductivity tester designed for steady-state testing of insulation materials up to 1000°C. It supports automated operation, faster test cycles, and reliable results for research, QC, and production labs.
It is suitable for measuring thermal conductivity of refractory insulation, ceramic fibers, felts, textiles, boards, and bricks at different temperatures. With an additional frame, it can also test powdered materials.
Guarded Hot Plate Apparatus ToronGHP™ Applications
- Refractory and insulation testing for bricks, boards, and high-temperature insulating materials.
- Ceramic fiber and textile insulation evaluation to compare formulations and verify performance at set temperatures.
- University and research labs conducting material thermal characterization and development studies.
- Quality inspection and manufacturing plants for incoming QC and production verification testing.
- Powdered material testing (with optional/additional frame) for expanded sample coverage.
Reference Standards
ToronGHP™ references multiple thermal conductivity standards used for insulation and refractory materials testing.
- ASTM C518 – Steady-state thermal transmission properties measured using a heat flow meter apparatus (commonly used for insulation materials).
- ASTM C182 – Thermal conductivity test method specific to insulating firebrick materials.
- ASTM C202 – Thermal conductivity test method for refractory brick products.
- ASTM C417 – Thermal conductivity test method for unfired monolithic refractories (castables/ramming mixes, etc.).
- ASTM C201 – Thermal conductivity test method for refractories (general refractory class coverage).
Guarded Hot Plate Apparatus ToronGHP™ Key Features
- Guarded hot plate / heat flow meter method for steady-state thermal conductivity measurement.
- High-temperature capability up to 1000°C for demanding insulation and refractory applications.
- Fully automatic computer control with data processing and printable reports.
- Multi-layer testing support (additional layers supported with extra thermocouples).
- Flexible cooling control using semiconductor cooling, with optional constant-temperature water bath cooling available.
- Broad material compatibility including refractory insulation, ceramic fibers, felts, textiles, boards, and bricks.
Guarded Hot Plate Apparatus ToronGHP™ Technical Specifications
| Specification | Details |
|---|---|
| Model | ToronGHP™ Guarded Hot Plate Apparatus |
| Test Method | Guarded Hot Plate / Heat Flow Meter Method |
| Thermal Conductivity Range | 0.0010 – 3 W/(m·K) |
| Measurement Accuracy | ±5% |
| Hot Surface Temperature Range | 100 – 1000°C |
| Sample Atmosphere | Air |
| Calorimeter Plate Size | 100 × 100 mm |
| Heat Flow Meter Size | 100 × 100 mm |
| Sample Temperature Points | 4 |
| Sample Dimensions | 230×230 to 250×250 mm; thickness 10 – 100 mm |
| Measurement & Control | Fully automatic computer-controlled testing and data processing; report generation and printing |
| Cooling / Temperature Control | Semiconductor cooling; constant-temperature water bath cooling optional |
| Voltage | 220V, 50Hz (110V is also available) |
| Total Power | ≤ 5 kW |
| Multi-Layer Testing | Supported; each additional layer requires one extra thermocouple |
| Standard Configuration | Main unit, software, communication interface and data cable, test thermocouples (for three-layer testing), rubber water hose; user provides computer |
