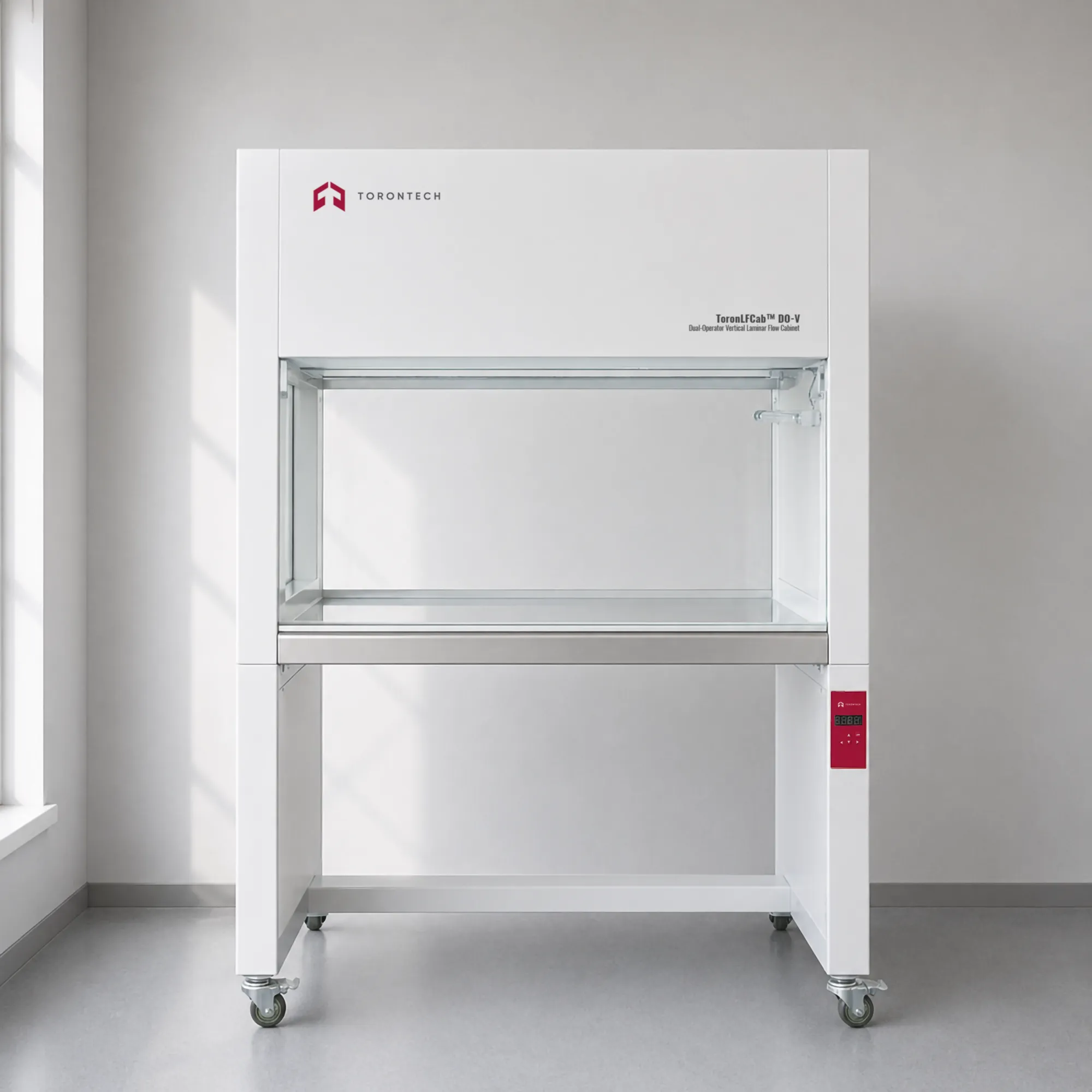

Dual-Operator Vertical Laminar Flow Cabinet
Dual-Operator Vertical Laminar Flow Cabinet – ToronLFCab™ DO-V
ToronLFCab™ DO-V is a professional-grade vertical laminar flow cabinet engineered to deliver ISO Class 5 (Class 100) cleanliness in shared, dual-operator laboratory settings. Designed for environments where two technicians must work simultaneously on sensitive samples, this laminar air flow cabinet combines robust construction with precision airflow management to create a consistently particle-free workspace.
Built on a cold-rolled steel chassis with an electrostatic powder-coat finish and a durable SUS304 stainless steel work surface, the ToronLFCab™ DO-V clean bench is well-suited for pharmaceutical research, microbiological culture work, electronics assembly, and any application where contamination control is critical. Its HEPA filtration system paired with a medium-efficiency pre-filter stage ensures optimal filter longevity and uninterrupted protection for your samples and processes.
Dual-Operator Vertical Laminar Flow Cabinet – ToronLFCab™ DO-V Applications
The ToronLFCab™ DO-V laminar flow cabinet and clean bench is suited to dual-operator contamination-sensitive workflows, including:
- Microbiological and cell culture preparation
- Pharmaceutical compounding and aseptic handling
- Electronics and semiconductor component assembly
- Media preparation and sterility testing
- Tissue culture and in vitro diagnostic work
- Environmental and food safety sample analysis
Dual-Operator Vertical Laminar Flow Cabinet – ToronLFCab™ DO-V Key Features
- Cold-rolled steel housing finished with electrostatic powder-coat spray plastics for corrosion resistance and easy cleaning; SUS304 stainless steel work surface for chemical durability
- Low-noise centrifugal fan with stable rotational speed ensures consistent, uniform laminar airflow throughout the working zone
- LCD digital control system with touch-type switches and six-step variable fan speed adjustment for precise airflow management
- Independent UV lamp and fluorescent lamp controls with programmable sterilization timer (0–999 minutes) for flexible decontamination scheduling
- Vertical quasi-closed table configuration creates a downward laminar airflow curtain at the work opening, preventing external air infiltration and maintaining Class 100 cleanliness without a mechanical sash
- Two-sided, dual-operator design with two persons per working side accommodates collaborative workflows without compromising cleanroom conditions
- HEPA filter with integrated medium-efficiency pre-filtration stage significantly extends primary filter service life and reduces maintenance costs
- Waterproof power outlet and water vapor interface for in-cabinet equipment and liquid handling without compromising safety
Theory and Method of Operation
ToronLFCab™ DO-V operates on the principle of vertical unidirectional (laminar) airflow. Room air is first drawn through a medium-efficiency pre-filter that captures large particles and extends the service life of the primary HEPA filter. The centrifugal blower then forces the conditioned air downward through a High-Efficiency Particulate Air (HEPA) filter rated to capture ≥99.99% of particles ≥0.3 µm.
The resulting laminar air flow moves vertically from ceiling to work surface across the entire working zone, sweeping contaminants away from the work area and preventing turbulence-induced cross-contamination. The vertical quasi-closed table design creates a positive-pressure protective curtain at the front opening that resists ingress of ambient particles, keeping the interior consistently at Class 100 (ISO 5) cleanliness without the need for a physical barrier.
An integrated UV germicidal lamp provides additional surface decontamination capability during non-operational periods. The digital LCD control panel with touch-type switches allows operators to independently manage fan speed (six selectable steps), illumination, and UV sterilization — with a programmable sterilization timer ranging from 0 to 999 minutes.
Dual-Operator Vertical Laminar Flow Cabinet – ToronLFCab™ DO-V Technical Specifications
| Parameter | ToronLFCab™ DO-V |
|---|---|
| Airflow Direction | Vertical (Downflow) |
| Working Sides | 2 sides (double-sided) |
| Applicable Persons per Side | 2 persons per side |
| Cleanliness Class | ISO Class 5 / Class 100 |
| Wind Speed | 0.3 – 0.6 m/s (6-step adjustable) |
| Noise Level | ≤ 67 dB(A) |
| Vibration Half Peak Value (X, Y, Z) | ≤ 5 µm |
| Illuminance | ≥ 300 Lux |
| Internal Dimensions (W × D × H) | 1,300 × 650 × 520 mm |
| Housing Dimensions (W × D × H) | 1,460 × 700 × 1,650 mm |
| HEPA Filter Dimensions | 1,250 × 560 × 50 mm |
| Number of HEPA Filters | 1 |
| Lamp (Power × Quantity) | 40 W × 1 |
| UV Light (Power × Quantity) | 20 W × 1 |
| UV Sterilization Timer Range | 0 – 999 minutes |
| Total Power Consumption | 0.3 kW |
| Voltage | 220 V ± 10%, 50/60 Hz (110V is also available) |
| Net Weight / Gross Weight | 181 kg / 227 kg (171 kg / 217 kg) |
| Package Size | 1,580 × 820 × 1,820 mm |
| Control Interface | LCD digital display, touch-type switches |
