Drop Tower – Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel ToronNDT™ 3000

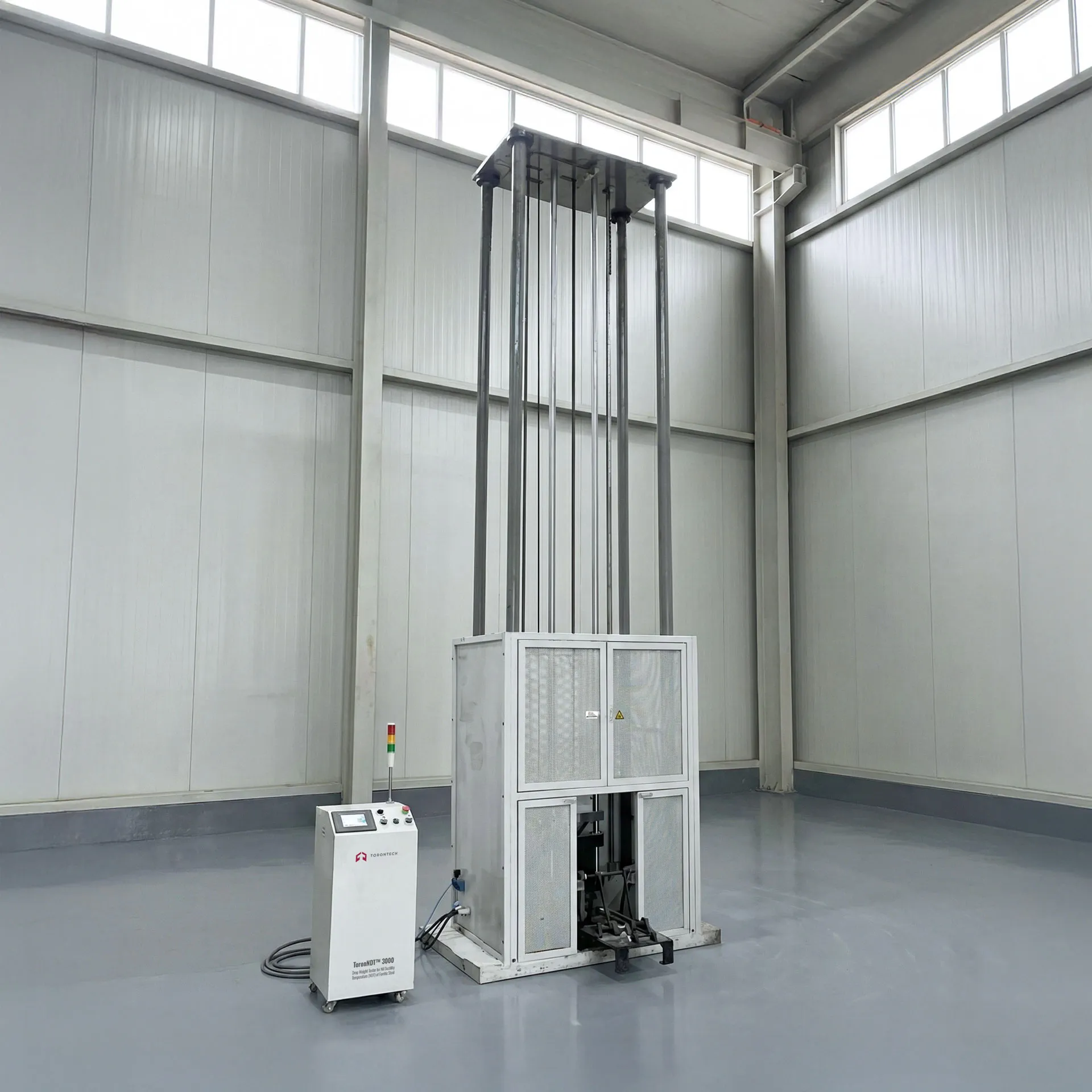

ToronNDT™-3000 Drop Weight Tester is a high-energy Drop Weight Tester designed to determine the Nil-Ductility Temperature (NDT) of ferritic steels in accordance with recognized international test methods.
Nil-Ductility Temperature represents the highest temperature at which a ferritic steel specimen fails by brittle fracture under dynamic impact loading. This parameter is critical for evaluating fracture resistance and low-temperature performance of structural steels.
The ToronNDT™-3000 operates by raising a hammer of specified mass to a controlled height and releasing it from a static condition, allowing free-fall impact onto a standardized specimen. The system automatically determines whether fracture occurs and supports repeat testing to identify the transition temperature accurately.
With fully automated hammer lifting, specimen feeding, impact execution, and sample recovery, the ToronNDT™-3000 delivers consistent, repeatable NDT results while improving operator safety and testing efficiency.
Drop Tower – Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel ToronNDT™ 3000 Applications
The ToronNDT™-3000 Drop Weight Tester is widely used in industries and research environments where brittle fracture behavior of ferritic steels must be evaluated:

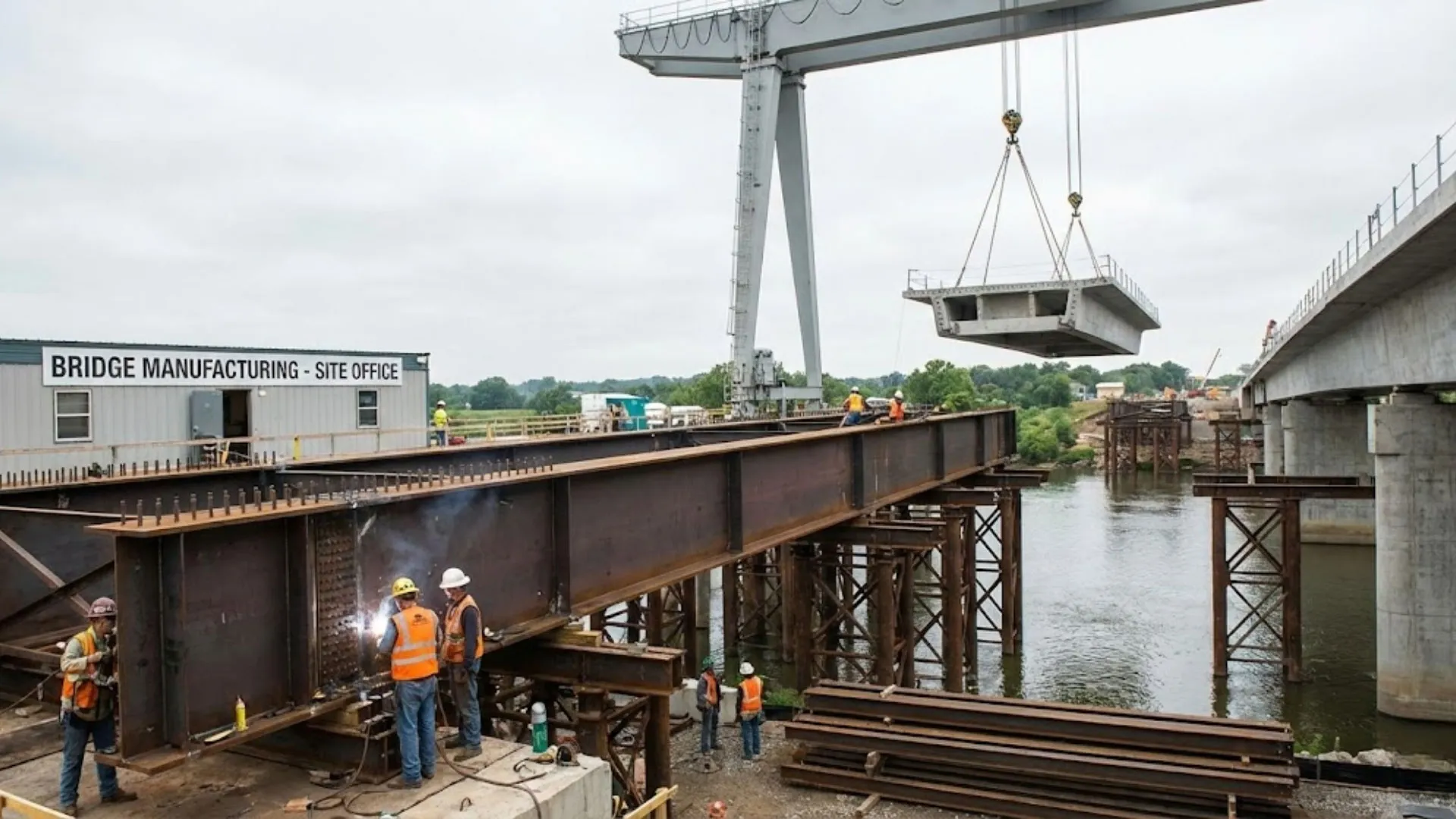

- Bridge and Structural Engineering
- Assesses low-temperature brittle fracture risk in load-bearing steel components.

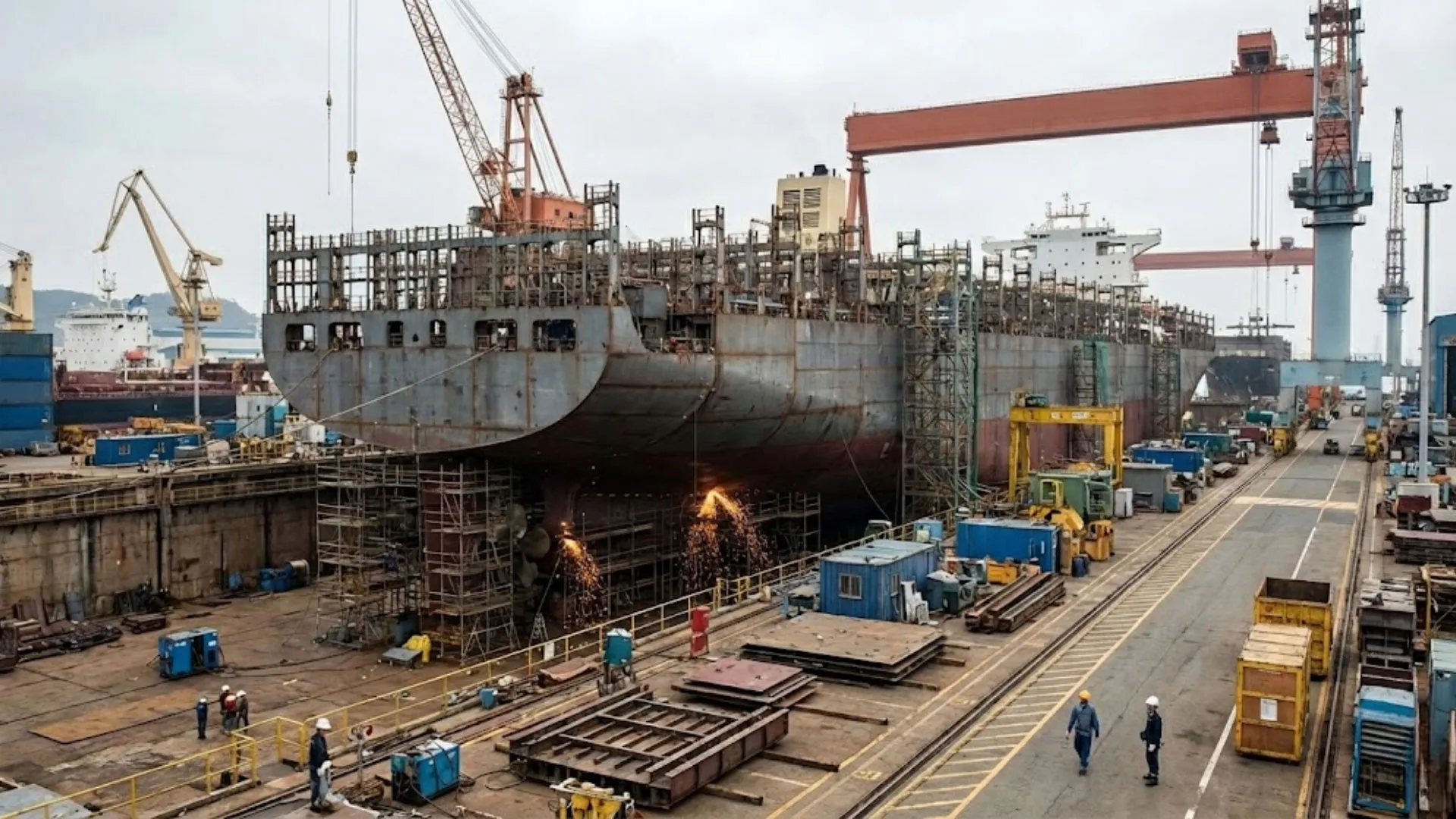

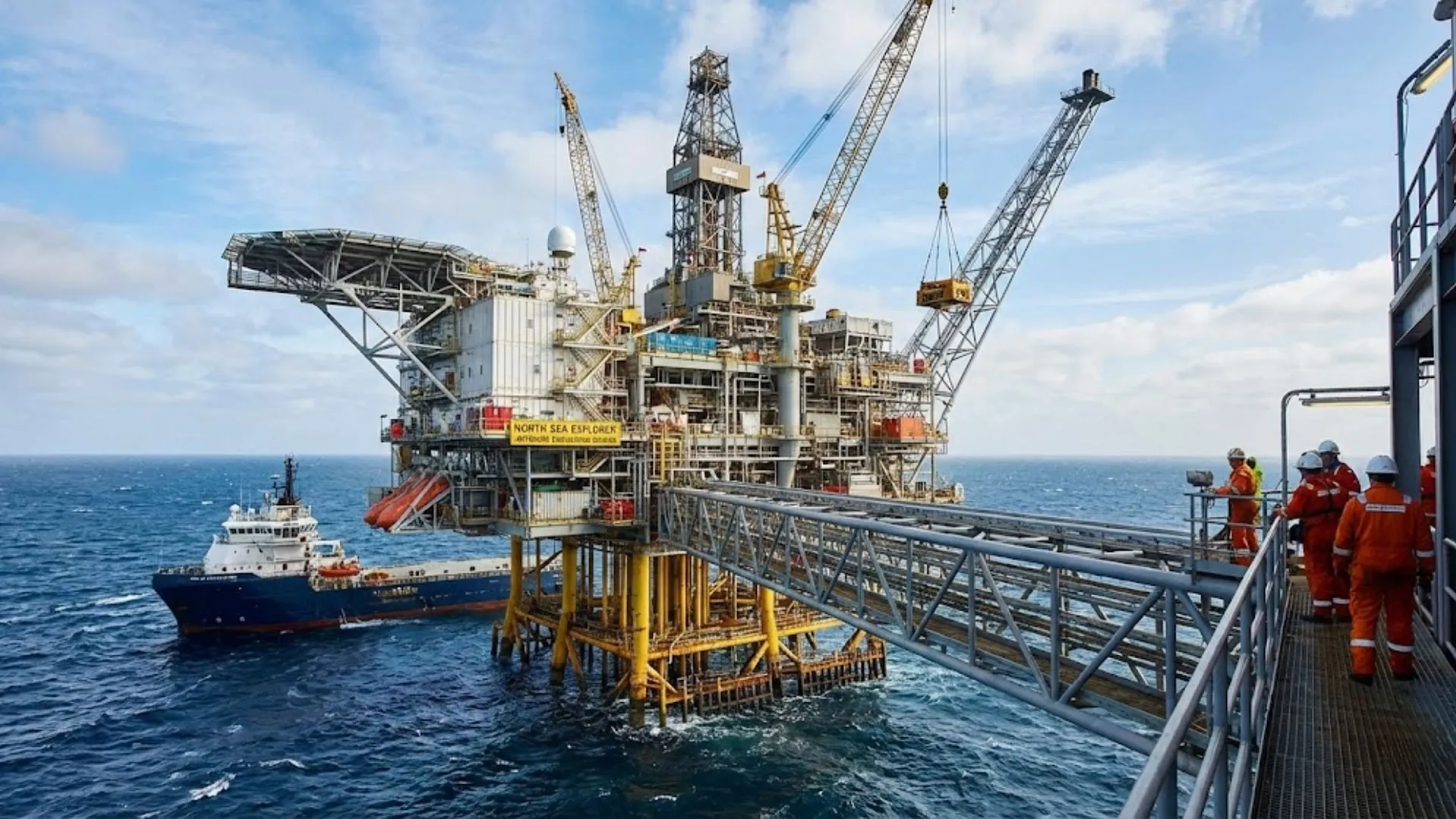

- Shipbuilding and Offshore Engineering
- Determines NDT values of hull plates and structural steels exposed to low-temperature marine environments.
- Pressure Vessel Manufacturing
- Evaluates fracture resistance of pressure vessel steels to ensure safe operation under dynamic loading conditions.
- Steel Mills and Metallurgical Laboratories
- Supports material qualification, R&D, and quality control of plates, cast steels, and forged steels.
- Research Institutes and Certification Laboratories
- Provides standardized NDT testing for compliance, failure analysis, and material development programs.
Standards:
- ASTM E208: This standardized drop weight impact test determines the Nil-Ductility Transition (NDT) temperature of ferritic steels. It evaluates the steel's brittle fracture behavior under specific, controlled conditions.
Drop Tower – Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel ToronNDT™ 3000 Key Features
- High-Energy Drop Weight Capability Maximum impact energy up to 3000 J, suitable for full-scale NDT testing of ferritic steel specimens.
- Fully Automated Test Operation Automatic hammer lifting, specimen positioning, impact execution, and post-impact sample recovery reduce operator intervention and improve repeatability.

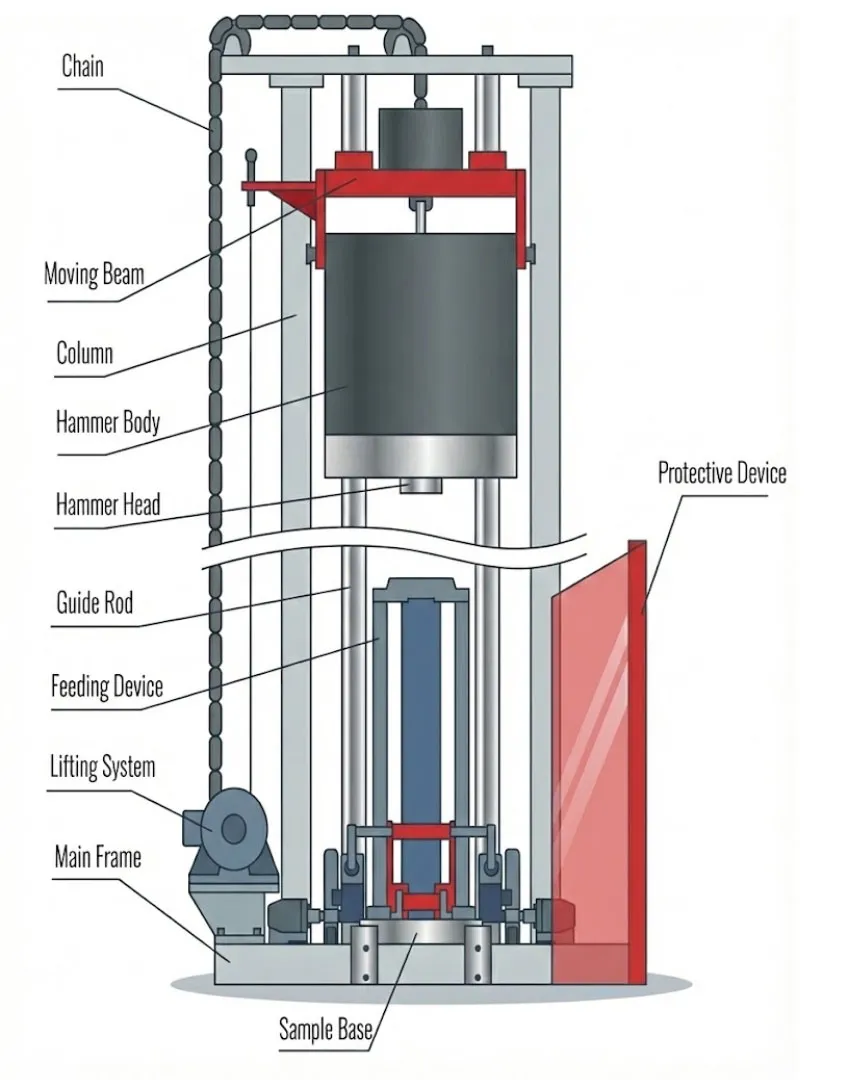

- Precision Hammer Lifting System Motor-driven lifting with brake and chain transmission provides stable motion, low wear, and high positioning accuracy.
- High-Safety Impact Release Mechanism Self-locking hook and electromagnetic release ensure controlled hammer drop and reliable impact positioning.
- PLC-Based Intelligent Control System Panasonic PLC with full-touch HMI supports manual and automatic modes, real-time height display, energy calculation, and preset drop height control.
- Real-Time Energy Display Impact energy is calculated and displayed based on hammer mass and lifting height for accurate test verification.
- Robust Structural Design Heavy-duty frame, polished guide rods, and wear-resistant anvil ensure long-term mechanical stability.
- Comprehensive Safety Protection Integrated safety fence and electrical interlock functions protect operators during high-energy testing.
Drop Tower – Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel ToronNDT™ 3000 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ToronNDT™-3000 |
| Test Type | Drop Weight Tester for Nil-Ductility Temperature |
| Maximum Impact Energy | 3000 J |
| Minimum Impact Energy | 280 J |
| Maximum Drop Height | 2000 mm |
| Hammer Weight | 55 kg (standard); up to 136 kg (optional) |
| Hammer Mass Accuracy | ±0.3% |
| Hammer Lifting Speed | 3 m/min |
| Lifting Height Accuracy | ≤±1% |
| Height Resolution | 0.1 mm |
| Impact Alignment Accuracy | ±1 mm (hammer, specimen, support center) |
| Specimen sizes (L × W × T), mm | P1: (360±1) × (90±2) × (25±2.5) P2: (130±1) × (50±2) × (20±1) P3: (130±1) × (50±2) × (16±0.5) P4: (130±1) × (50±2) × (12±0.5) P5: (360±1) × (90±2) × (38±4) P6: (360±1) × (90±2) × (50±4) |
| Control System | PLC-based automatic control with full touch screen |
| Display | 7-inch color touch HMI |
| Safety Features | Safety fence, electrical interlock |
| Overall Dimensions (L × W × H) | 1300 × 900 × 4300 mm |
