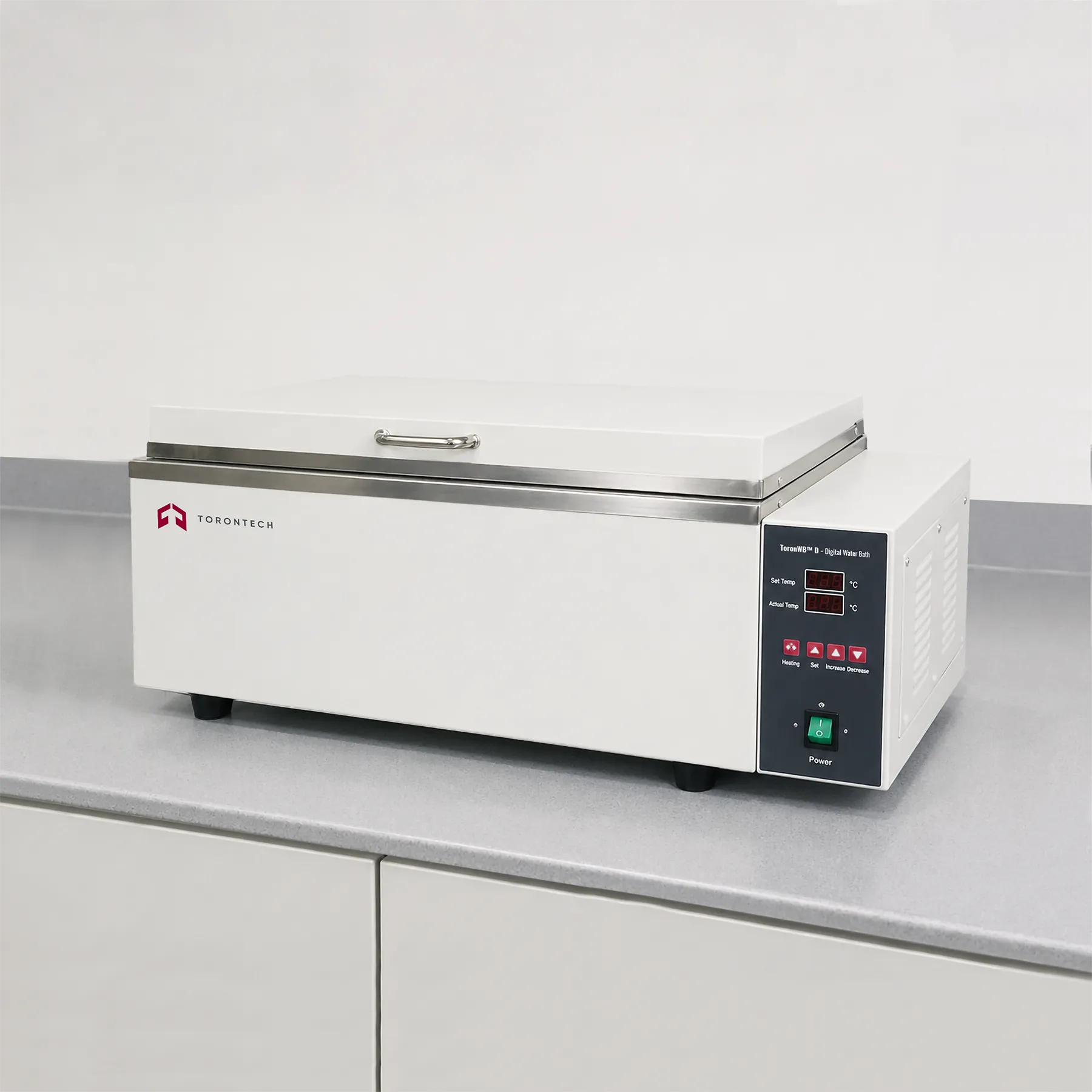

Digital Water Bath – ToronWB™ D
High-Precision Digital Water Bath for Demanding Laboratory Temperature Control
ToronWB™ D is a high-precision electric heating water bath instrument engineered for laboratory applications where tighter temperature control is required than standard water bath equipment can provide. With a temperature fluctuation of just ±0.2 °C across its full RT+5 °C to 100 °C working range, the ToronWB™ D delivers the stability and reproducibility demanded by sensitive analytical, biological, and pharmaceutical procedures.
Constructed with a powder-coated steel housing and a corrosion-resistant stainless steel inner chamber, this water bath instrument combines robust build quality with the precise temperature regulation needed for exacting scientific work. Available in two sizes — the ToronWB™ D 500 and ToronWB™ D 700 — both models offer an open-top rectangular bath configuration that accommodates a wide variety of laboratory vessels, making this water bath an exceptionally versatile piece of equipment for any general-purpose or specialized laboratory.
Digital Water Bath – ToronWB™ D Applications
- Precision enzyme kinetics and biochemical reaction incubation requiring tight temperature control
- Microbiological culture and pathogen growth studies at specific set-point temperatures
- Pharmaceutical dissolution testing and stability studies requiring ±0.2 °C accuracy
- Molecular biology applications including hybridization, restriction digestion, and primer annealing
- Clinical laboratory serology and immunoassay plate incubation
- Chemical synthesis and reflux reactions requiring stable bath temperature
- Calibration support for thermometers and temperature-sensitive instruments
- Histology and cytology slide preparation and staining procedures
Digital Water Bath – ToronWB™ D Key Features
- Powder-coated quality steel housing provides corrosion resistance and durability in wet laboratory environments; stainless steel inner chamber ensures chemical resistance and ease of decontamination
- High-precision temperature sensor and integrated circuit control system deliver ±0.2 °C temperature fluctuation — five times tighter than standard water bath equipment — for demanding analytical and biological applications
- Full operating range of RT+5 °C to 100 °C with 1 °C digital display resolution covers the complete spectrum of common laboratory heating requirements
- Open-top rectangular bath design accommodates a wide variety of laboratory vessels including test tubes, Erlenmeyer flasks, beakers, culture bottles, and multi-well plates
- Two model sizes (ToronWB™ D 500 and ToronWB™ D 700) provide flexibility to match bench space and sample throughput requirements
- Compact, easy-to-clean design with minimal internal cavities reduces contamination risk and simplifies routine maintenance
Theory and Method
ToronWB™ D uses indirect liquid-medium heating to deliver highly uniform, stable temperatures to submerged laboratory vessels. Distilled or deionized water fills the stainless steel inner chamber, which is heated by an immersion-type electric element. A high-precision RTD (Resistance Temperature Detector) or thermistor sensor monitors bath temperature continuously and relays real-time data to the integrated circuit control system.
Unlike standard water bath equipment with ±1 °C tolerance, the ToronWB™ D series employs an enhanced control algorithm that modulates heater output with greater sensitivity, achieving temperature fluctuation of ±0.2 °C — five times tighter than the base ToronWB™ EH series. This precision makes the ToronWB™ D water bath instrument the preferred choice for temperature-sensitive assays where small deviations can significantly affect experimental outcomes.
Temperature is set and displayed digitally with 1 °C resolution on the front-panel interface. The rectangular open-top bath design allows flexible positioning of tubes, flasks, beakers, and multi-well plates within the water bath, while the stainless steel chamber walls ensure even heat distribution throughout the bath volume. The quality steel housing with electrostatic powder-coat finish protects internal components from the humidity and chemical splashes inherent to typical water bath laboratory environments.
Digital Water Bath – ToronWB™ D Technical Specifications
| Parameter | ToronWB™ D 500 | ToronWB™ D 700 |
|---|---|---|
| Temp. Range | RT+5 – 100 °C | |
| Temp. Resolution | 1 °C | |
| Temp. Fluctuation | ±0.2 °C | |
| Power | 500 W | 700 W |
| Voltage | 220 V, 50 Hz (110V is also available) | |
| Internal Dimensions (W×D×H) | 420×190×150 mm | 600×300×180 mm |
| Housing Dimensions (W×D×H) | 565×220×260 mm | 745×340×295 mm |
| Net Weight | 8 kg | 15 kg |
| Gross Weight | 9 kg | 16 kg |
| Package Size | 670×330×340 mm | 860×450×390 mm |
