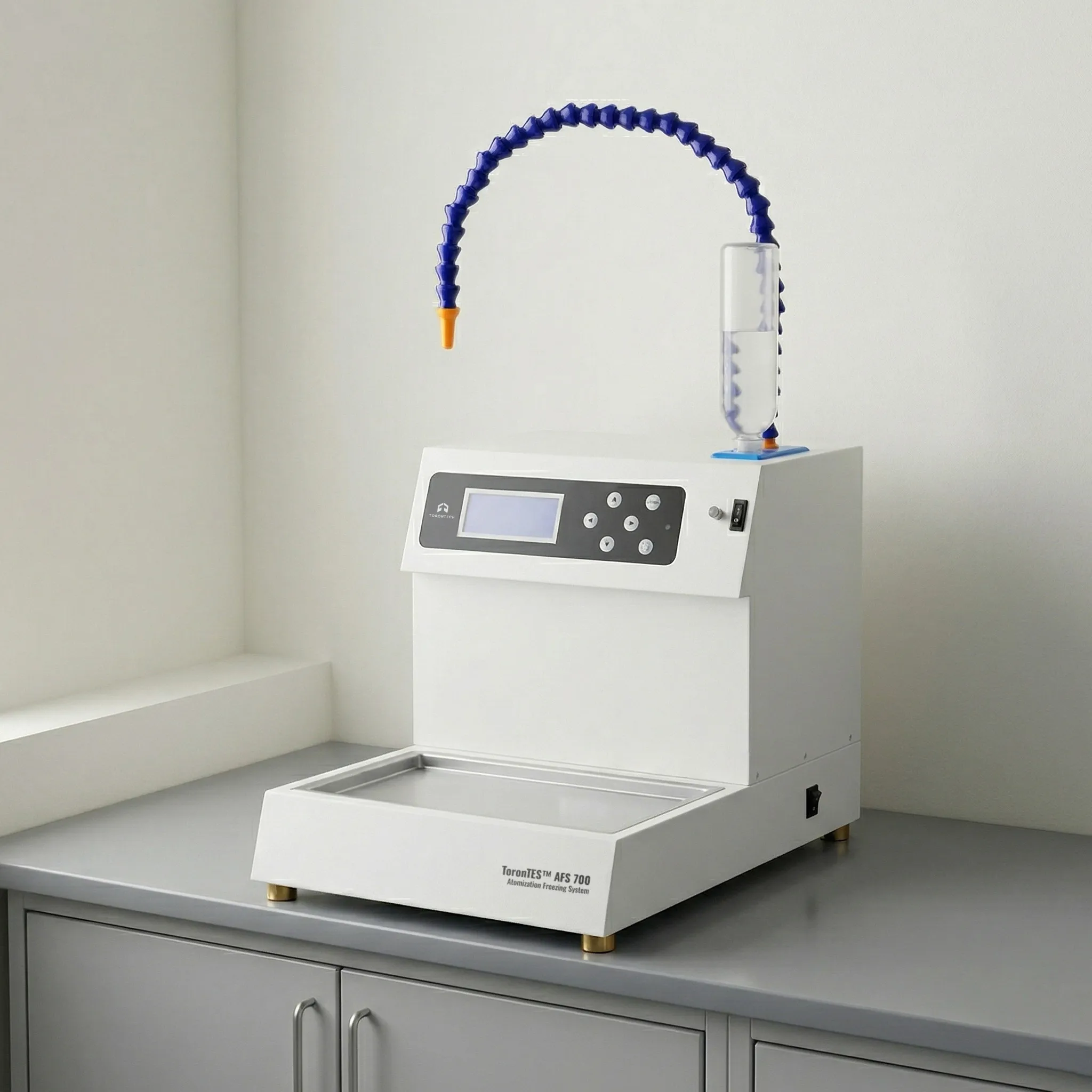

Atomization Freezing System - ToronTES™ AFS 700
Atomization Freezing System ToronTES™ AFS 700 is a compact bench-top freezing unit designed to improve paraffin block handling and section preparation at the cold plate stage. The Atomization Freezing System is a cold plate with added atomization capability, giving users two working modes: atomization and cold atomization. Both modes are intended to help prevent sections from rolling and support flatter sections during slicing.
This system is designed for laboratories that want faster cooling, better section handling, and a larger cold work surface than a standard compact plate. The worktable can hold about 70 embedded cassettes, and the system reaches operating temperature in about 5 to 10 minutes.
ToronTES™ AFS 700 is a practical fit for histology and pathology workflows where block cooling and section flattening can affect cutting consistency and operator efficiency. Its memory function and delay-protection function also support more stable day-to-day operation.
Atomization Freezing System - ToronTES™ AFS 700 Applications
- Histology and pathology laboratories: the Atomization Freezing System is suitable for tissue-preparation workflows where embedded blocks need fast cooling before sectioning. The added atomization function is designed to help reduce section rolling and improve section flatness during slicing.
- Paraffin block preparation before microtomy: ToronTES™ AFS 700 works well in workflows where cassettes are cooled after embedding and before microtome sectioning. Its larger work surface supports batch handling for routine daily lab use.
- Higher-throughput laboratory work: because the system can accommodate around 70 embedded cassettes, it is also a good option for laboratories that process multiple blocks in one session and want a dedicated freezing station beside the embedding or cutting area.
Atomization Freezing System - ToronTES™ AFS 700 Key Features
- Added atomization function: ToronTES™ AFS 700 is built on a cold-plate design with an added atomization function. This expands the role of the system beyond simple block cooling.
- Two operating modes: the system offers two working modes: atomization and cold atomization. Both help prevent the section from rolling and support flatter sections during slicing.
- Delay protection function: a delay-protection function is included to support safer and more stable operation during routine use.
- Memory function: the built-in memory function helps preserve working settings and supports more convenient daily operation.
- Large worktable capacity: the large worktable can accommodate about 70 embedded cassettes, making the unit suitable for routine batch handling in active laboratories.
- Fast cooling response: the system reaches temperature in about 5 to 10 minutes, which helps shorten waiting time between embedding and sectioning steps.
- Bench-friendly footprint: its compact bench-top format makes it easier to position beside an embedding center or microtome station without requiring a large floor-standing footprint.
Theory and Method
An Atomization Freezing System works by cooling the work surface so embedded blocks can be stabilized before sectioning. In this type of setup, the cold plate helps harden the paraffin block, while the added atomization function is intended to improve section behavior during slicing by reducing rolling and helping the section lie flatter.
ToronTES™ AFS 700 adds atomization capability to a cold-plate-based workflow. The Atomization Freezing System - ToronTES™ AFS 700 have two working modes, atomization and cold atomization, both intended to improve section flatness during cutting. This makes the unit useful for laboratories that want better control over block cooling and section handling in one station.
The system also includes delay protection and memory functions. These features help the unit return to stored operating behavior and support more predictable use during routine bench work.
Atomization Freezing System - ToronTES™ AFS 700 Technical Specification
| Parameter | ToronTES™ AFS 700 |
|---|---|
| Product Type | Atomization Freezing System |
| Working Modes | Atomization, Cold Atomization |
| Freezing System Size | 610 × 400 × 380 mm |
| Cooling Area | 340 × 250 mm |
| Capacity | About 70 embedded cassettes |
| Temperature Pull-Down Time | 5 to 10 minutes |
| Voltage / Frequency | 220 V / 50 Hz or 110 V / 60 Hz |
| Net Weight | 30 kg |
