Nasal Oxygen Cannula Tester
Nasal Oxygen Cannula Tester | ISO 23368:2022

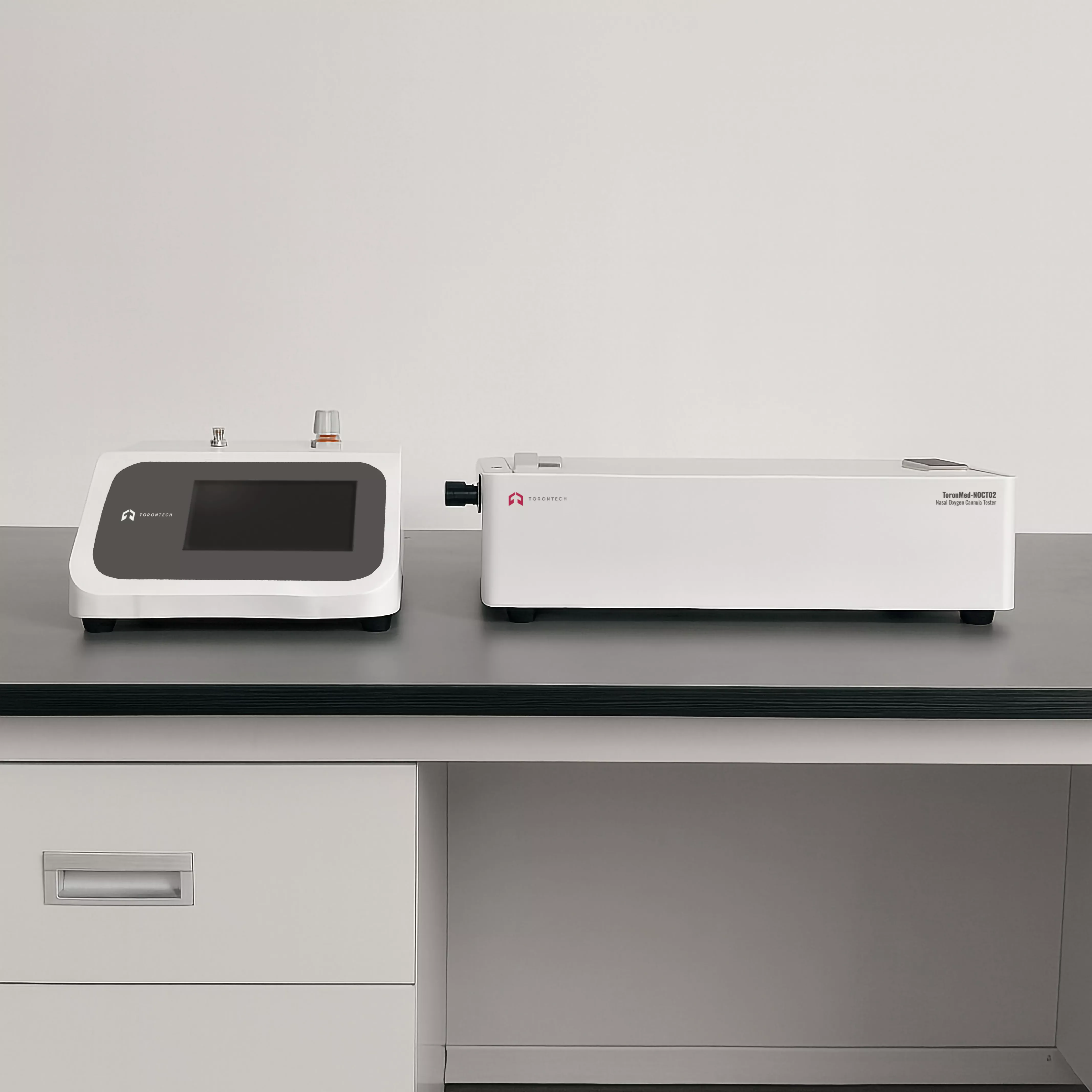

Nasal Oxygen Cannula Tester – Model ToronMed™ NOCT02 is a state-of-the-art instrument designed to evaluate the safety, performance, and reliability of nasal oxygen cannulas in compliance with the latest ISO 23368:2022 international standard for respiratory therapy devices and other applicable international standards.
Engineered for medical device manufacturers, research laboratories, and quality assurance facilities, the Nasal Oxygen Cannula Tester – Model ToronMed™ NOCT02 provides comprehensive testing capabilities to ensure that nasal oxygen cannulas—whether disposable, reusable, or connected to humidification systems—meet the highest performance standards required in healthcare environments.
Torontech is a trusted global provider of advanced medical device testing solutions. With the Nasal Oxygen Cannula Tester – Model ToronMed™ NOCT02, laboratories and manufacturers gain an accurate, reliable, and regulatory-compliant solution that ensures the highest level of patient safety and product performance.
Applications
The Nasal Oxygen Cannula Tester – Model ToronMed™ NOCT02 is ideal for:
- Medical device manufacturers performing R&D, production line QC, and batch validation.
- Independent laboratories conducting third-party verification of oxygen cannulas.
- Hospitals and healthcare institutions seeking in-house equipment for patient safety assurance.
- Regulatory compliance testing in line with ISO 23368 and other international standards.
- 7-inch color touch screen for intuitive operation and real-time data monitoring.
- High-precision pressure sensors and flow meters for accurate, repeatable measurements.
- Rotating wheel design accommodates nasal oxygen cannulas of various diameters.
- Universal cone interface, compatible with most cannula designs worldwide.
- Onboard micro printer & USB interface for real-time reporting and data transfer.
- Large data storage capacity (up to 50,000 test records).
- Overload protection & power-down memory for safe and reliable operation.
- Optional GMP-compliant software with user authority management and audit trail, supporting 21 CFR Part 11 requirements.
Key Testing Functions
The Nasal Oxygen Cannula Tester – Model ToronMed™ NOCT02 supports five essential test functions, allowing for full performance evaluation:
- Airflow Resistance – Measures pressure drop across the cannula at controlled flow rates to ensure unobstructed oxygen delivery.
- Flatness Resistance – Assesses performance when the cannula tubing is bent or compressed, simulating real-world usage.
- Leakage Test – Detects possible leaks at joints, connectors, or tubing sections to verify patient safety.
- Pressure Resistance – Evaluates the cannula’s ability to withstand internal pressures without rupture or deformation.
- Patency Test – Confirms that sufficient oxygen flow is maintained (≥15 L/min) under normal operating conditions.
Specification | Nasal Oxygen Cannula Tester – Model ToronMed™ NOCT02 |
|---|---|
| Test Range | 0–600 kPa; 0–87 psi |
| Inflatable Head Diameter | Ø 5.5–8.5 mm (standard, customizable) |
| Gas Supply Pressure | 0.25–0.7 MPa (external source required) |
| Port Size | Ø 8 mm PU tubing |
| Mainframe Dimensions | 325 × 430 × 205 mm |
| Test Chamber Dimensions | 550 × 200 × 168 mm |
| Voltage | AC 220V, 50Hz (110V is also available) |
| Net Weight | 15.2 kg total (Mainframe: 8.8 kg, Chamber: 6.4 kg) |
