Multifunctional Luer Conical Fittings Tester
Multifunctional Luer Conical Fittings Tester | ISO 80369-7:2016, ISO 80369-20:2015

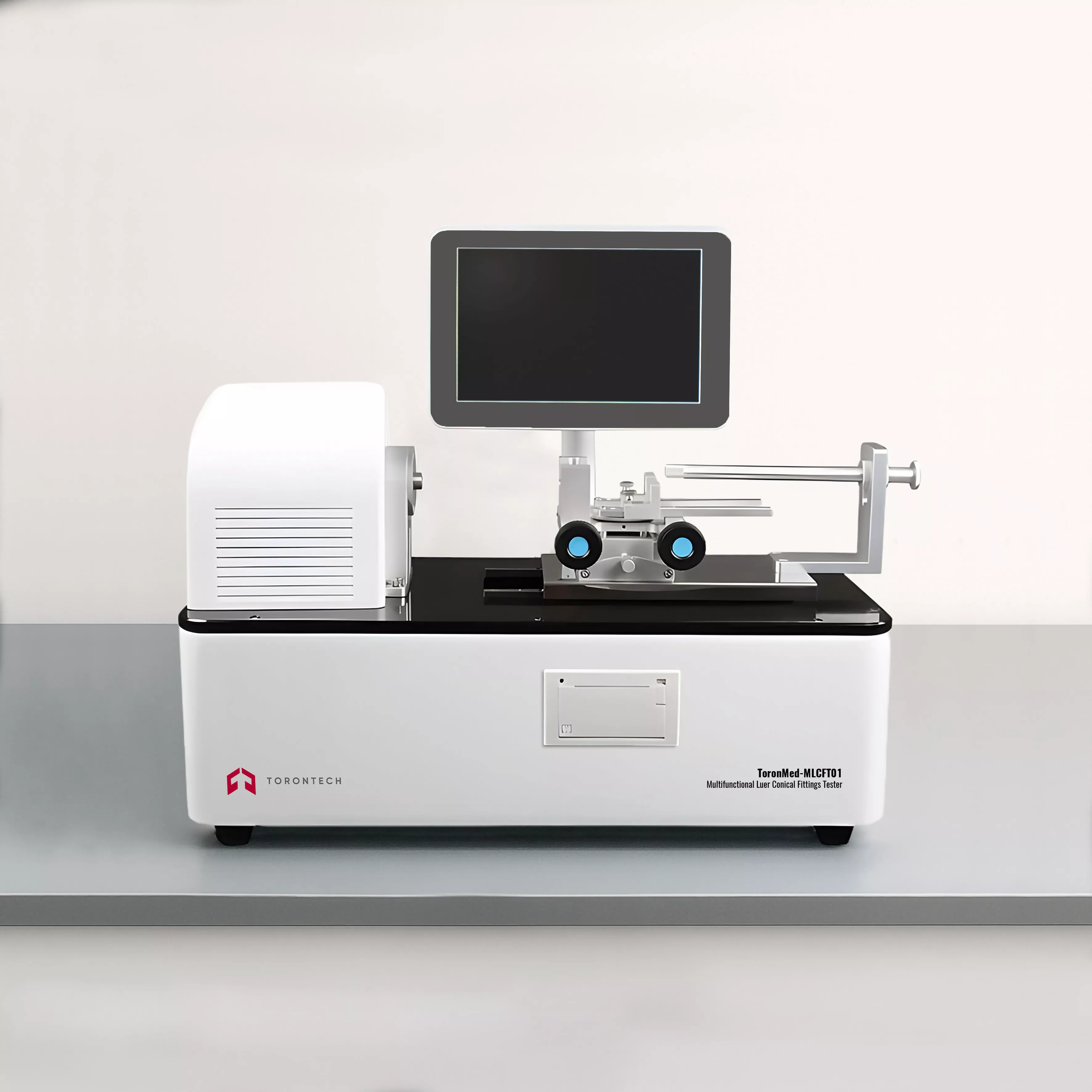

Multifunctional Luer Conical Fittings Tester – ToronMed™ MLCFT01 is designed to test both locking and non-locking Luer connectors used in infusion sets, infusion needles, syringes, injection needles, blood transfusion sets, anesthesia filters, and various intravascular and non-intravascular catheters.
This advanced system provides accurate, repeatable results to ensure compliance with international safety and performance standards.
Standards Compliance
The ToronMed™ MLCFT01 Multifunctional Luer Conical Fittings Tester is designed in accordance with major international standards, including:
- ISO 80369-7:2016 – Luer connectors for liquids and gases
ISO 80369-20:2015 – General test methods for small-bore connectors
Standard Configuration
- Main instrument unit
- 7-inch touchscreen interface
- Micro printer
- Gas and liquid reservoirs
- Standard connectors (1 set)
Why Choose Multifunctional Luer Conical Fittings Tester – ToronMed™ MLCFT01?
The Multifunctional Luer Conical Fittings Tester – ToronMed™ MLCFT01 offers precision, versatility, and compliance for medical device manufacturers, R&D facilities, and quality control laboratories. By covering multiple test items—including leakage, torque, separation force, and ease of assembly—this instrument provides a comprehensive evaluation platform for Luer fittings.
With intelligent control, GMP-compliant data management, and robust safety features, the Multifunctional Luer Conical Fittings Tester is an essential solution for ensuring the safety, reliability, and regulatory compliance of Luer-based medical devices.
- Safety-First Design
Magnetic shield protects the rotating roller, while a slip ring between the torque sensor and roller ensures precise torque testing. - High-Accuracy Measurement
Equipped with an American-imported load cell with accuracy up to 0.5% FS. - 7-Inch Color Touchscreen
User-friendly interface with intelligent data processing and real-time data display. - Automatic Calibration & Memory
Simplified calibration process with power-off memory for operational continuity. - Versatility Across Samples
Compatible with a wide range of Luer connector specifications. - Comprehensive Data Handling
Stores up to 100,000 test records, with GMP-compliant software including user management, authority management, and audit tracking. - Advanced Processing Power
Built with the latest Arm chip system for smarter, faster performance. - Multiple Testing Capabilities
Supports liquid and air leakage testing, separation force, unscrewing torque, ease of assembly, resistance to overriding, and stress cracking of syringes and hypodermic needles. Displays real-time parameters including axial force, torque, holding time, internal water pressure, separation force, and leakage rate.
Specification | Value |
|---|---|
| Axial Force | 0–100 N (±0.5% accuracy) |
| Internal Water Pressure | 0–600 kPa (±0.5% accuracy) |
| Negative Pressure | –90 kPa to 0 kPa (±0.5% accuracy) |
| Torque | 0.01–0.50 N·m (±0.5% accuracy) |
| Separation Force | 20–40 N (0–100 N range, ±0.5% accuracy) |
| Voltage | AC 220V, 50Hz (110V is also available) |
| Dimensions | 580 × 280 × 510 mm |
| Net Weight | 28 kg |
