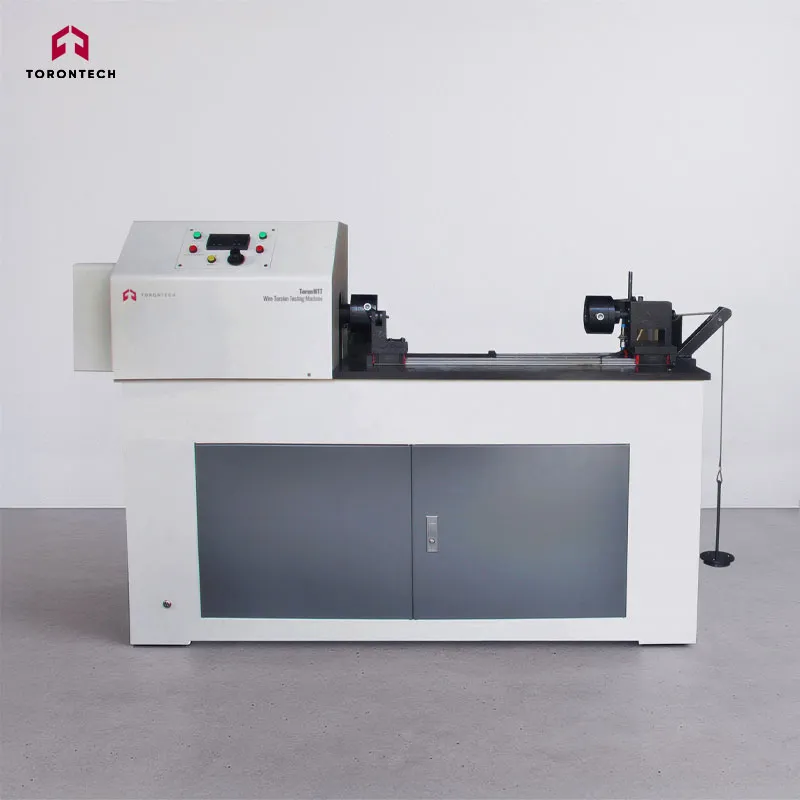

Metal Wire Torsion Testing Machine ToronWTT™-3
Parent Product
Metal Wire Torsion Testing Machine ToronWTT™-3 is a digital metal wire torsion testing machine designed for precision and reliability. It is designed for metal wire torsion testing.
Built with a horizontal structure, it features a loading system, drive mechanism, force application, and tracking components. This machine is ideal for testing the torsional properties of steel, copper, aluminum, and alloy wires with diameters ranging from Φ1 to Φ3mm.
It offers adjustable rotation speeds of 15, 20, 30, and 60 r/min. The system evaluates a wire’s resistance to plastic deformation under one-way and two-way torsion while detecting surface and internal defects.
- Metallurgical Industry - Evaluation of torsional strength, ductility, and deformation resistance of steel, copper, aluminum, and alloy wires for structural and manufacturing applications.
- Quality Control & Inspection - Detection of surface and internal defects in wires, ensuring compliance with industrial standards for material performance.
- Cable & Electrical Industry - Assessment of conductive wire durability, mechanical performance, and failure resistance in electrical and communication cables.
- Research & Development - Material characterization and testing in laboratories for new alloy development, performance studies, and structural analysis.
- Automotive & Aerospace - Verification of metal wire components used in safety systems, engine parts, and lightweight alloy structures requiring high torsional reliability.
- Educational & Training Institutions - Practical demonstrations and hands-on learning for students in materials science, mechanical engineering, and applied metallurgy.
- Main Unit Structure
- Designed with a horizontal framework to enhance rigidity and stability.
- The core rod is crafted from high-quality alloy structural steel, featuring a smooth surface and high durability for extended service life.
- Drive System
- Powered by a motor drive, delivering high rotational torque.
- Ensures even load distribution for smooth, impact-free operation.
- Transmission System
- Utilizes a precision reducer drive for consistent power transmission.
- Provides high stability and accuracy for precise torsion testing.
| Testing machine level | 1 |
| Torsion angle indication relative error | ± 1 ° |
| Maximum distance between the two chuck | 500mm |
| Rotation speed | 15, 20, 30, 60 RPM |
| Hardness of the jaws | HRC50 ~ 60 |
| Test machine working noise | <70db |
| Wire diameter | Φ1-Φ3mm |
| Voltage | 380V, 50Hz |
| Appearance size (length × width × height) | 1490×410×1010 (mm) |
| Machine weight | 450kg |
| Environment and working conditions | A) Temperature of 10 ℃ ~ 35 ℃; B) Placed on a firm basis; C) In a vibration-free environment; D) Non-corrosive medium around; |
