Medical Device Positive & Negative Pressure Tester

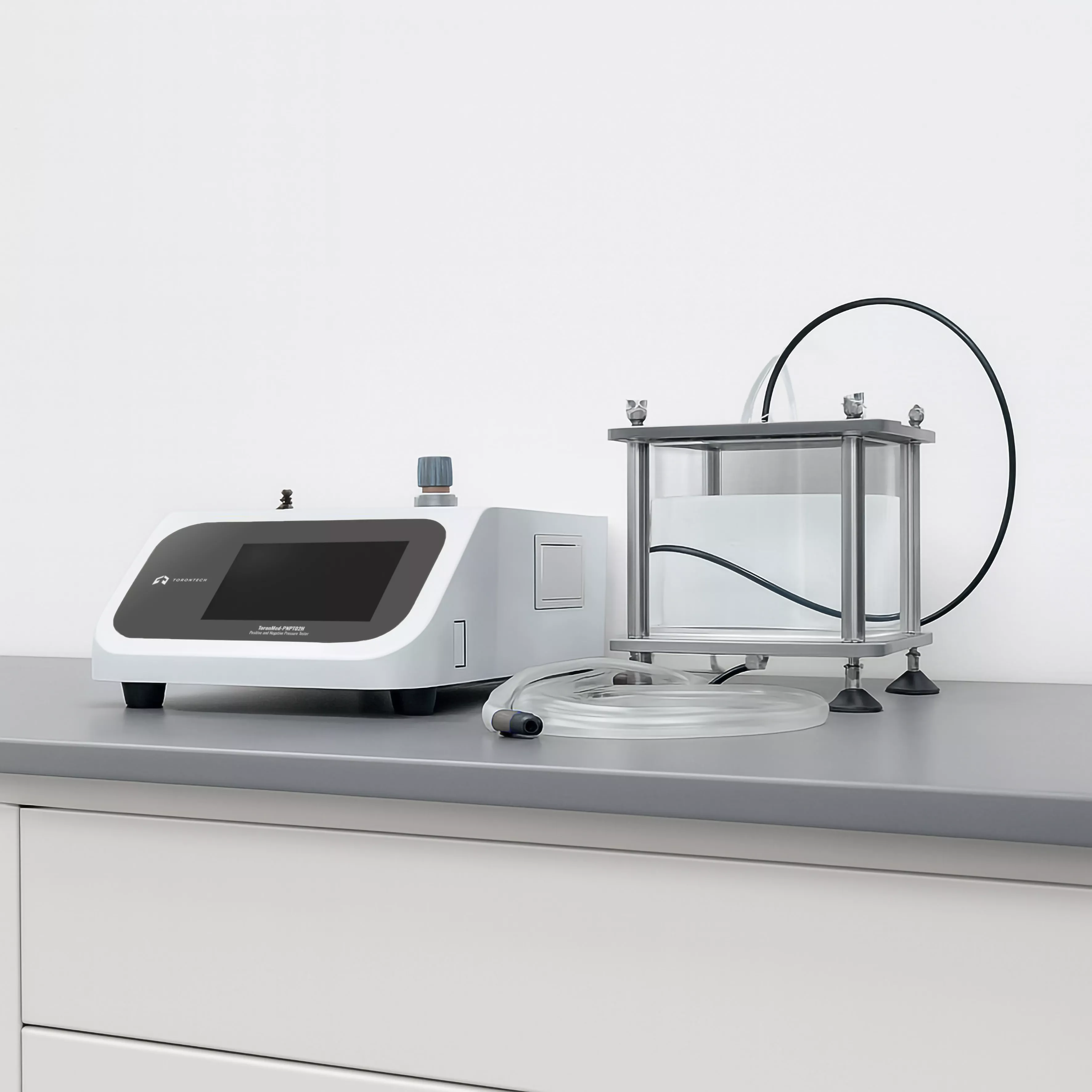

Positive & Negative Pressure Tester – ToronMed™ PNPT02H is engineered to evaluate the sealing integrity and leakage resistance of medical devices by applying both positive and negative pressure conditions. This versatile system is suitable for testing infusion sets, syringes, sterile catheters, and other medical pipeline products, ensuring compliance with safety and performance standards in the healthcare industry.
Standard Configuration
- Main instrument unit
- 7-inch touchscreen interface
- Standard connector
- Positive & negative pressure chamber
- Integrated micro printer
Why Choose Positive & Negative Pressure Tester – ToronMed™ PNPT06H?
The Positive & Negative Pressure Tester – ToronMed™ PNPT02H provides unmatched accuracy, versatility, and safety for evaluating sealing performance in medical devices. By combining positive and negative pressure testing in one unit, it streamlines laboratory workflows and reduces equipment needs.
With advanced data security, GMP compliance, and automated result reporting, the Positive & Negative Pressure Tester is a trusted solution for medical device manufacturers, R&D teams, and quality control laboratories worldwide.
- Dual Pressure Testing
Supports both positive and negative pressure testing, with four built-in test modes for maximum flexibility. - High-Accuracy Test System
Advanced pressure control system significantly improves test precision. - Versatile Test Connectors
Includes standard test connectors, with optional customization available. - Robust Safety Design
Overvoltage protection, power-off memory, and automatic shutdown for over-range pressure ensure safe, reliable operation. - 7-Inch HD LCD Touchscreen
Displays real-time test curves and data for easy monitoring. - Large Data Storage
Capable of storing up to 100,000 test records, with historical data viewing and printing support. - Automated Results & Printing
Provides automatic pass/fail determination and integrated data printing. - Data Security & GMP Compliance
Four-level password protection and GMP-compliant software with user management, authority management, and audit tracking.
Test Principle
The Positive & Negative Pressure Tester applies controlled positive and/or negative pressure to a medical device sample. By simulating real-world conditions, the system detects leakage points and evaluates sealing integrity, providing a reliable assessment of device safety and compliance.
Specification | Value |
|---|---|
| Pressure Range | Positive: 0–600 kPa Negative: 0 to –90 kPa |
| Accuracy of Vacuum | 0.1% FS |
| Test Time | 0–9999 min |
| Test Modes | Positive pressure, Negative pressure, Positive → Negative, Negative → Positive |
| Gas Supply Pressure | 0.7–0.9 MPa (customer-supplied) |
| Gas Supply Port | Φ6 mm PU Tubing |
| Instrument Dimensions | 310 × 385 × 150 mm |
| Voltage | AC 220V 50Hz / AC 110V 60Hz |
| Net Weight | 17 kg |
