Charpy Notch Broaching Machines for Saudi Arabia's Metallurgical Labs
A scattered notch profile ruins a Charpy test before the pendulum ever swings. When V-notch or U-notch geometry varies specimen to specimen, impact energy readings drift, and a Saudi metallurgical lab risks failing its next GAC surveillance audit.

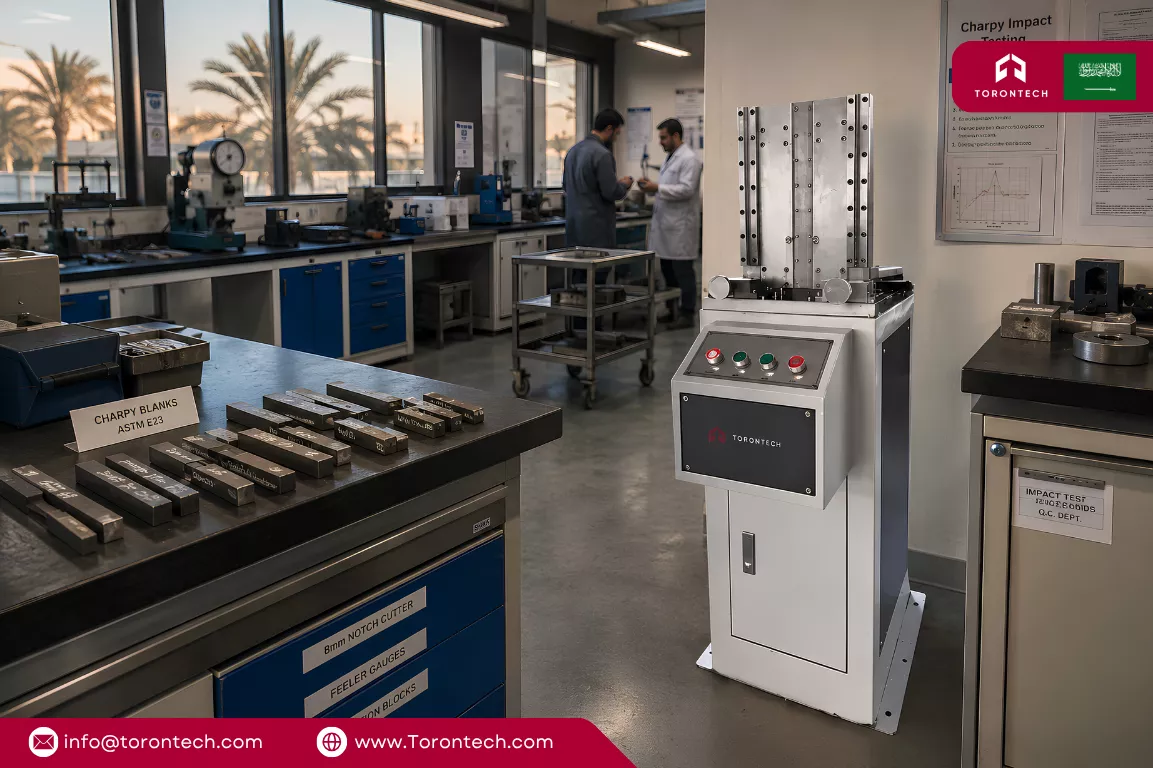

A Charpy Notch Broaching Machine in Saudi Arabia gives steel mills, fabrication yards, and testing laboratories the repeatable notch quality that accurate impact data depends on. Torontech supplies the TT-Series notch broaching machines built for that precision, whether the lab runs a single manual broach or a high-throughput production line.
Why a Charpy Notch Broaching Machine in Saudi Arabia Matters Now
Saudi Arabia's crude steel output reached roughly 12 million tonnes in 2023, with mills including Hadeed, Al Ittefaq, and Rajhi Steel scaling capacity to meet Vision 2030 construction demand. Every tonne destined for structural or pressure-bearing service needs documented impact toughness. The National Industrial Development and Logistics Program is pushing mills toward higher scrap ratios and localized production, and both trends increase the volume of steel batches requiring impact verification before shipment.
Megaprojects such as NEOM, the Red Sea Project, and Qiddiya are consuming structural steel at record volumes, while Saudi Aramco's pipeline and refinery expansions demand toughness-verified plate for sour and low-temperature service. Fabrication yards preparing Charpy specimens for these programs need consistent notch geometry to keep pace.
The Kingdom's In-Kingdom Total Value Add (IKTVA) program pushes Aramco suppliers to build local testing capacity rather than send specimens abroad. Laboratories investing in their own notch preparation equipment shorten turnaround and strengthen their standing as approved in-Kingdom vendors.
Standards Saudi Metallurgical Labs Test Against
Saudi testing laboratories operate under a dual framework: international test methods and local accreditation oversight. The Saudi Accreditation Center (SAAC) and the GCC Accreditation Center (GAC) accredit labs to ISO/IEC 17025, the standard Aramco and major EPC contractors require before accepting test reports. GAC accreditation carries ILAC and IAF mutual recognition, so the Charpy toughness data Saudi labs issue is accepted by international clients without retesting.
Torontech's broaching machines produce notches to ASTM E23-02a and ISO 148-2008, the two methods most Saudi steel mills and independent labs specify for Charpy testing. DIN 50115 and GB/T 229 configurations are also available for facilities serving European or Chinese-standard clients. Verified standards on the TT-Series broaching line include:
- ASTM E23-02a, Standard Test Methods for Notched Bar Impact Testing of Metallic Materials
- ISO 148-2008, Metallic Materials, Charpy Pendulum Impact Test
- DIN 50115-1991, Specimen Dimensions and Preparation
- GB/T 229-2007, Charpy Pendulum Impact Test Method
Independent test houses accredited to ISO/IEC 17025 also serve this pipeline, running third-party Charpy verification for EPC contractors that do not operate in-house metallurgical labs. Consistent notch quality across every submitted specimen keeps their proficiency testing scores within GAC tolerance. SASO generally adopts these same international methods rather than issuing a distinct national Charpy standard, so equipment certified to ASTM E23 and ISO 148 meets what Saudi buyers expect to see on a calibration certificate.
Choosing the Right Configuration
Selecting a Charpy Notch Broaching Machine in Saudi Arabia comes down to matching notch precision and throughput to your lab's workload. Key capabilities across the TT-Series line include:
- V-notch and U-notch broaching in about 10 seconds per specimen
- W18Cr4V broach steel rated for approximately 20,000 specimens within HRC40
- Broach stroke of 340 to 350 mm across manual, motorized, and hydraulic models
- Adjustable broaching speed on the hydraulic TT-CHB-H2 for lubrication-sensitive specimens
| Model | Drive Type | Stations | Best Fit |
|---|---|---|---|
| TT-CHB-M | Manual | 1 | Low-volume labs, no electricity required |
| TT-CHB-E2 | Motorized ball screw | 2 | Mid-volume labs needing V and U notches together |
| TT-CHB-E3 | Motorized ball screw | 3 | Higher-throughput labs and independent test houses |
| TT-CHB-H2 | Hydraulic | 2 | Facilities needing adjustable speed and lubrication control |
Every configuration uses W18Cr4V tool steel broaches rated for roughly 20,000 specimens within HRC40 hardness, and each notch cuts in about 10 seconds regardless of drive type. Labs running mixed production, some batches needing V-notches for ASTM E23 and others needing U-notches for GB/T 229, benefit most from the dual-station E2, which cuts both notch types without a tool change. Labs qualifying pipeline steel for Aramco specifications typically choose the E3 or H2 for the added throughput.
Sourcing and Regional Support
Saudi Arabia imports the majority of its precision lab equipment, and long shipping and service lead times can stall a lab's accreditation timeline. Torontech ME FZE operates from Dubai, positioning parts and technical support within reach of the GCC.
That regional presence matters for labs supporting NEOM, the Red Sea Project, and other giga-projects on tight commissioning schedules. Replacement broaches, calibration support, and spare parts move faster from a Gulf-based office than from an overseas factory. Equipment shipped through Jeddah Islamic Port or King Abdulaziz Port in Dammam typically clears faster when paired with a regional supplier who can pre-stage documentation and after-sales support, shortening the gap between purchase order and a specimen ready for pendulum testing.
Equip Your Saudi Metallurgical Lab
Saudi Arabia's steel producers, fabrication yards, and independent labs are scaling up to meet Vision 2030 demand, and every one of them needs Charpy specimens with consistent, standards-compliant notch geometry.
Torontech's Dubai-based ME FZE office supports GCC customers with configuration guidance, spare broaches, and calibration documentation for ASTM E23 and ISO 148-2008 compliance, backed by regional stock that keeps a Saudi lab's testing schedule on track.
Contact Torontech ME FZE at +971 488 19252 or me@torontech.com, or reach out to the Torontech team to configure a Charpy Notch Broaching Machine in Saudi Arabia matched to your specimen volume and hardness range.
