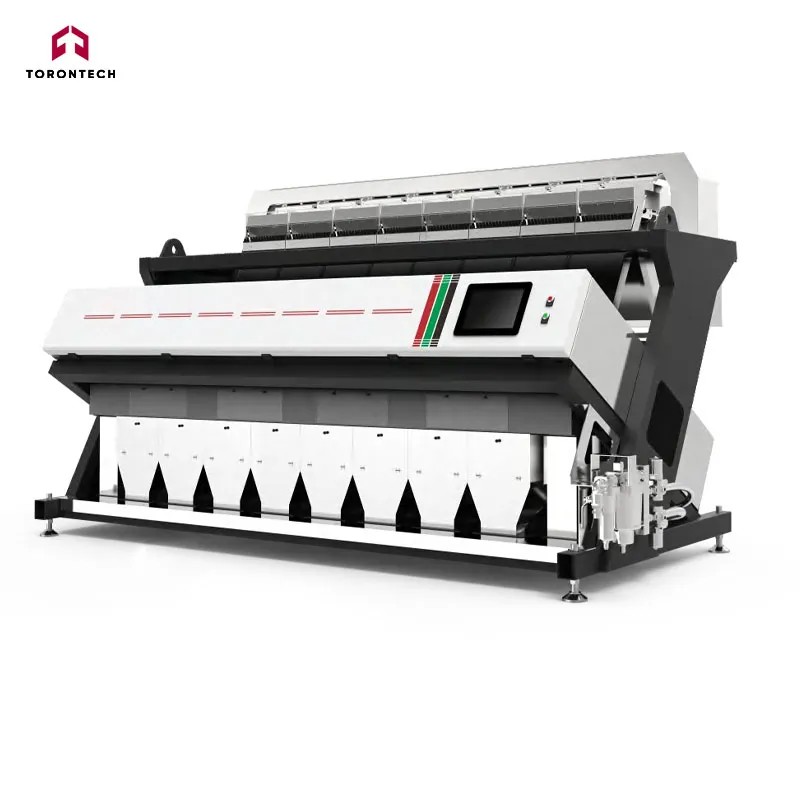

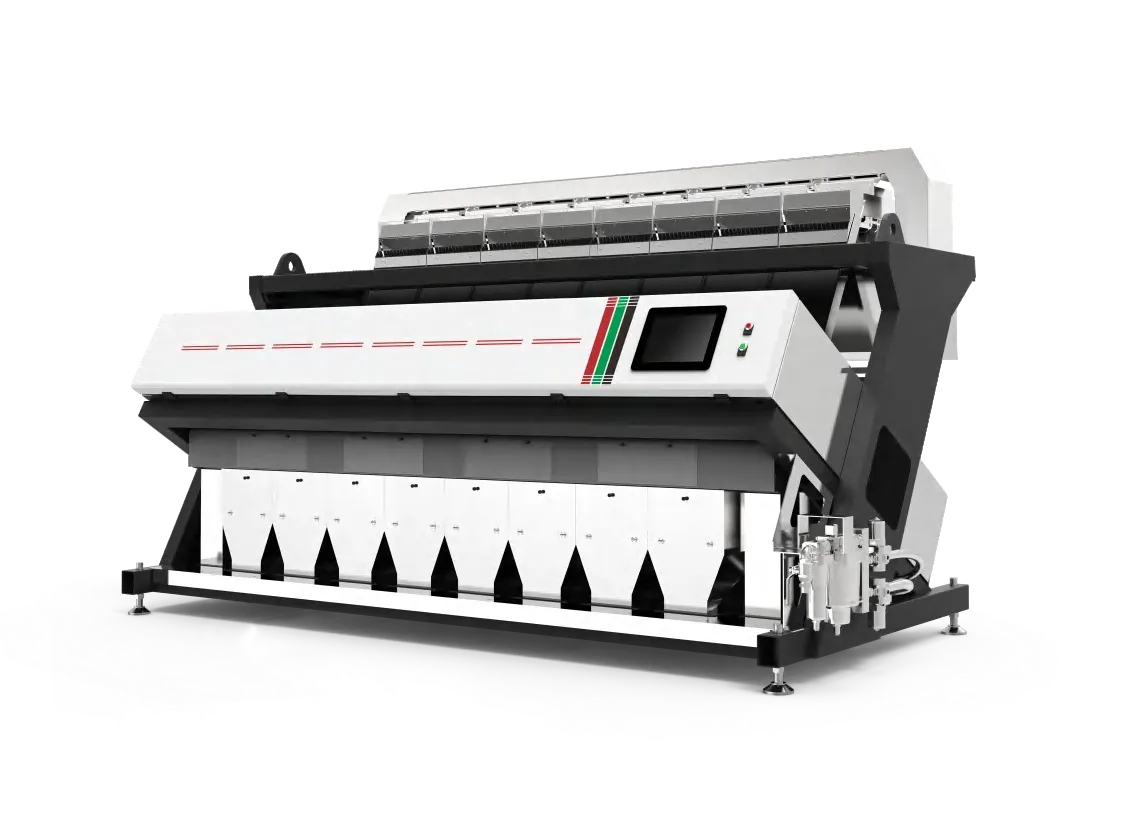

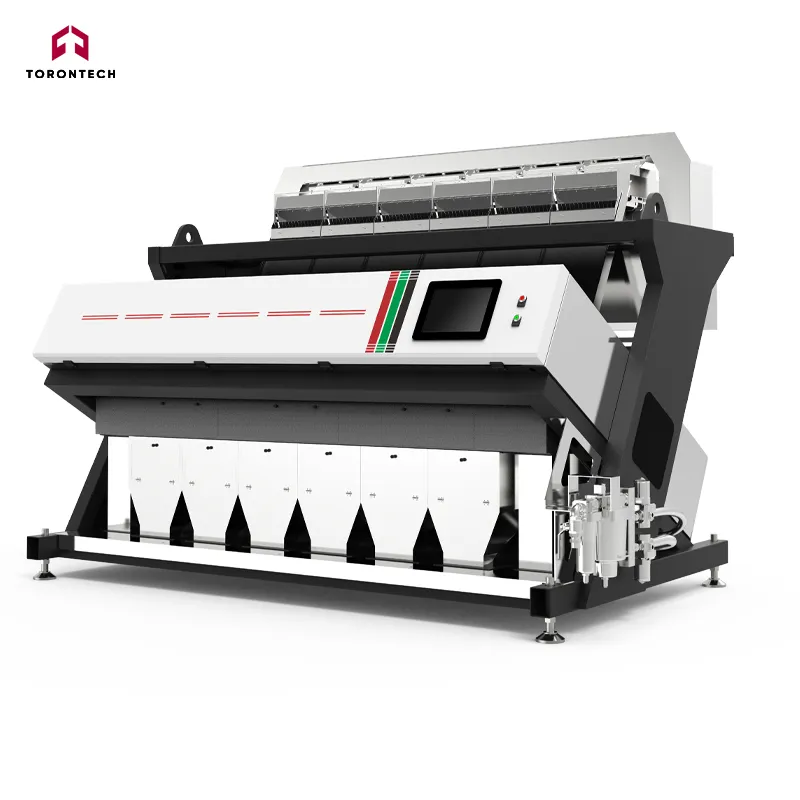

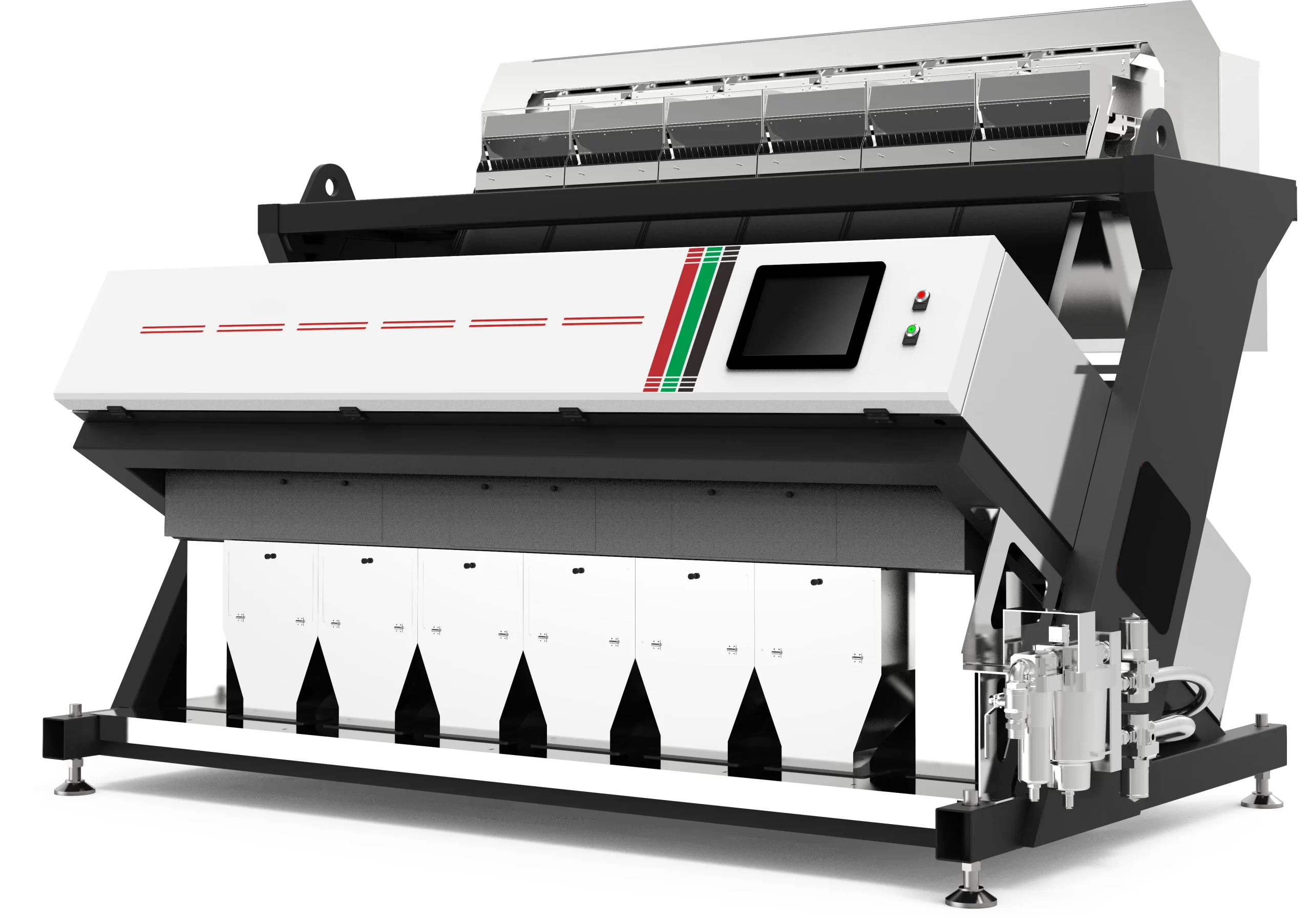

Light Color Sorter ToronGV™ Pro Series
Light Color Sorter ToronGV™ Pro Series delivers high-precision sorting with advanced sensors and 360° recognition technology, efficiently separating light-colored plastic flakes with up to 99.8% accuracy. Designed for high-throughput operations, it adapts to various sorting needs, ensuring optimal performance in food-grade PET and other materials.
Main Applications
- Building on the exceptional color sorting capabilities of the ToronGV™ Series, the Pro version delivers enhanced performance in sorting extremely light-colored plastic flakes.
- Primarily used for purifying food-grade PET flakes, the ToronGV™ Pro can detect and separate light green, light blue, and light yellow plastic flakes.
- It’s also effective for purifying single-color flakes and those with slight color variations in ABS, PP, and PE materials.
- Ideal for processing blue-white flakes, the ToronGV™ Pro accurately identifies and separates light green and light yellow particles.
- Offers flexible settings to meet your specific requirements.
Color Sorting Version 4.0
The S-Class professional vision system features high-definition imaging and a 360° surround recognition lens, allowing it to accurately detect subtle color differences and handle a wide range of color sorting requirements.
High and Stable Throughput
With high-throughput feeding, multiple chute sorting, and an anti-blocking material design, the system supports long-term, unmanned operation, fully meeting your production needs.
Flexible Support
Supports normal sorting, reverse sorting, single sorting, re-sorting, and five-time sorting. It offers strong versatility and can be adjusted to suit your specific process needs.
High Accuracy
High-speed sensors, chips, and "missile guidance" systems ensure sorting accuracy rates of up to 99.8%.
| Model | ToronGV™ 5 Pro | ToronGV™ 6 Pro | ToronGV™ 7 Pro | ToronGV™ 8 Pro | ToronGV™ 10 Pro | ToronGV™ 12 Pro |
|---|---|---|---|---|---|---|
| Accuracy (%) | >99.8% | >99.8% | >99.8% | >99.8% | >99.8% | >99.8% |
| Throughput (T/H) | 1.8–3.5 | 2–4 | 2.8–5.6 | 3–6 | 4–8 | 5–10 |
| Air Consumption (m³/min) | <2.5 | <3 | <3.5 | <4 | <5 | <6.5 |
| Power (kW) | 3.7 | 4.4 | 5.2 | 5.9 | 7.3 | 8.7 |
| Voltage/Frequency | AC220V/50HZ (110V is also available) | |||||
| Air Pressure (MPa) | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Weight (kg) | 1300 | 1450 | 1600 | 1700 | 2050 | 2250 |
| Dimension (mm) (L x W x H) | 2348 x 1829 x 1887 | 2663 x 1829 x 1887 | 2978 x 1829 x 1887 | 3293 x 1829 x 1887 | 3933 x 1829 x 1887 | 4563 x 1829 x 1887 |
Note: Parameters listed are for reference only and may vary depending on the application and feed conditions.
