Infusion Set Flow Rate Tester
Precision Testing System for Evaluating the Flow Rate of Infusion and Donor Sets
ToronMed™ IFRT03 Infusion Set Flow Rate Tester is engineered for precise measurement of the flow rate of sodium chloride solution and other medical fluids through infusion sets, under simulated gravity-fed conditions. Designed for healthcare product manufacturers and laboratories, this tester ensures accurate and repeatable testing of infusion and donor sets to meet regulatory and performance standards.
Using a hydrostatic pressure column, temperature-controlled water tank, and puncture-type testing interface, the system replicates realistic infusion environments and supports easy measurement setup.
Test Principle
This tester simulates sodium chloride solution delivery through gravity-fed infusion sets under a 1-meter water column. Test conditions vary based on dropper calibration:
- For 20 drops/mL: ≥1000 mL must be delivered within 10 minutes
- For 60 drops/mL: ≥1000 mL must be delivered within 40 minutes
This method supports regulatory compliance for flow rate requirements of clinical infusion systems.
Applications
Application Type | Description |
|---|---|
| Infusion Sets | Flow performance testing under hydrostatic pressure |
| Donor Sets | Validation of flow consistency and delivery rate |
Standards Compliance
The ToronMed™ IFRT03 supports testing methods based on the following international standards:
- ISO 8536-4 – Infusion equipment for medical use – Infusion sets
- EN 1618 – Flow characteristics for non-intravascular catheters
- Designed in reference to GB 8368-2018 testing procedures
Standard Configuration

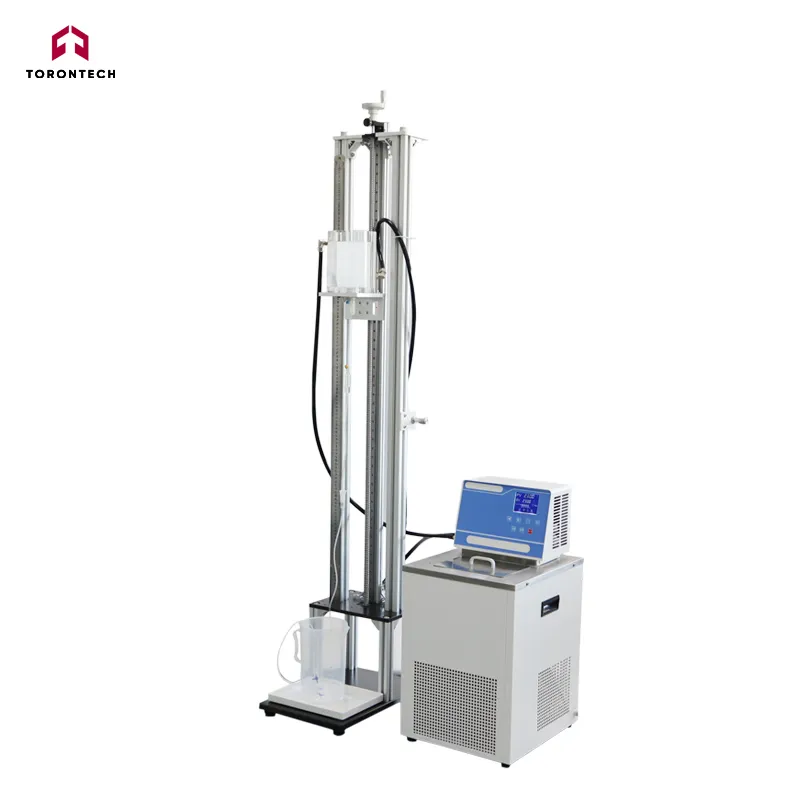

- Infusion set tester with hydrostatic pressure column
- Constant-temperature water tank
- Height adjustment mechanism
- PU tubing and puncture plug outlet
- Balance station for manual volume collection
- Maintains a liquid head of 1000 ± 10 mm using a hydrostatic pressure test setup
- Puncture plug interface at the bottom of the water column simulates real-world infusion scenes
- Adjustable flow rate settings to meet test specifications across multiple set types
- Built-in constant-temperature water tank maintains test fluid at 23 °C (settable)
- Vertical lift system allows adjustable pressure head height for custom testing conditions
- Integrated timer for accurate, time-based measurements
- Includes balance station for easy placement of measuring cylinders or lab balances
Specification | Value |
|---|---|
| Model | ToronMed™ IFRT03 |
| Flow Rate | Adjustable |
| Pressure Head | 1000 ± 10 mm |
| Temperature Control | 23 °C (adjustable via constant temperature tank) |
| Timer | Included |
| Dimensions (Test Device) | 280 mm (L) × 420 mm (W) × 1660 mm (H) |
| Dimensions (Water Tank) | 420 mm (L) × 380 mm (W) × 755 mm (H) |
| Included Components | PU tubing, adjustable lift, balance station |
