Birthing Bed (Electric)
Gynecological Examination Table and Obstetric Gynaecology Beds

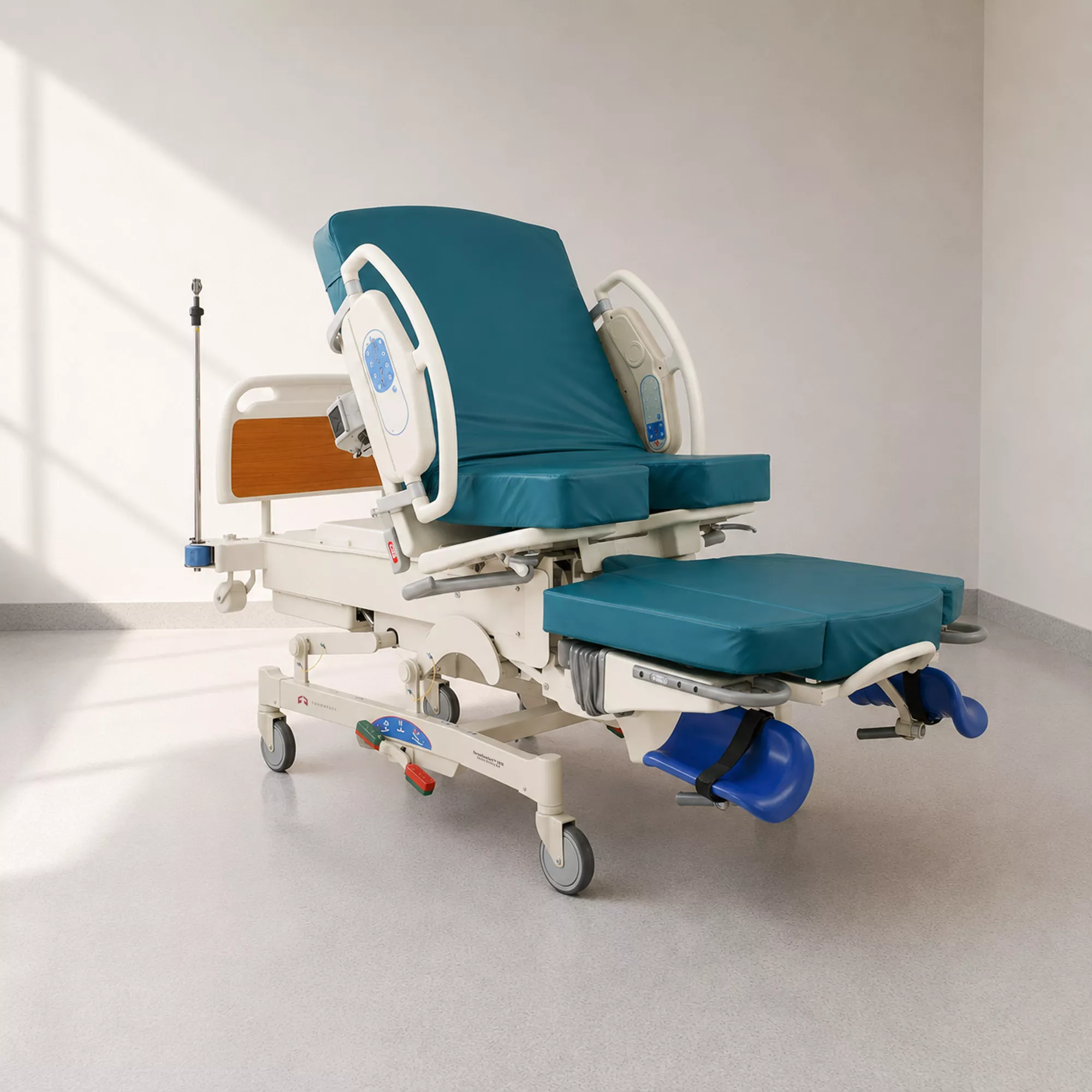

The ToronComfort™ 1010 electric birthing bed brings labor, delivery, postpartum recovery, gynecological examination, and minor operation onto a single powered platform. Built around the labor-delivery-recovery (LDR) concept, the bed keeps the mother in one place from admission through recovery, reducing transfers at the most sensitive stages of birth. Linear electric actuators drive backrest, seat, height, and leg movement, so staff position the patient precisely from a control panel.
The BB 2000 supports more than fifteen birth positions, from semi-seated and squatting to lithotomy and throne, letting the mother find a comfortable, effective posture during labor. A detachable auxiliary table, V-cushion, and power-assisted handrails adapt the bed to each stage, while mechanical CPR release flattens the surface quickly for emergency care. The bed adjusts from a 485 mm entry height for easy patient access up to 860 mm for clinician comfort during delivery and perineal repair.
Stainless and polyurethane surfaces with a waterproof, breathable mattress withstand fluids and repeated disinfection, lowering cross-infection risk between patients. Four central-brake casters and anti-collision bumpers keep the BB 2000 electric birthing bed stable in the room and protected during transport. Maternity hospitals and birthing centers use it as a single-room solution for the full obstetric workflow.
Applications
The ToronComfort™ 1010 covers the full obstetric and gynecological workflow, from early labor through postpartum recovery and minor procedures.
- Labor and Delivery (LDR) Rooms: keeps the mother on one bed through labor, birth, and recovery, removing transfers during active labor
- Natural and Active Childbirth: supports more than fifteen birth positions so the mother can use gravity and movement to progress labor
- Postpartum Recovery and Breastfeeding: a motorized backrest and flat, breathable surface let the mother rest and feed comfortably after birth
- Gynecological Examination and Minor Surgery: lithotomy positioning and a detachable auxiliary table support pelvic exams, suturing, and outpatient procedures
- Obstetric Emergencies and Caesarean Preparation: mechanical CPR release and rapid flat positioning convert the bed for emergency care without moving the patient
- Maternity Hospitals and Birthing Centers: serves as a single-room platform that handles admission, birth, and recovery for higher patient throughput
- Epidural and Assisted Delivery: stable, adjustable positioning supports anesthesia placement and instrument-assisted births
Standards
The ToronComfort™ 1010 is designed and manufactured to internationally recognized medical-device and electrical-safety standards for powered medical beds.
- IEC 60601-2-52 - Medical Electrical Equipment, Part 2-52: Particular Requirements for the Basic Safety and Essential Performance of Medical Beds
- IEC 60601-1 - Medical Electrical Equipment, Part 1: General Requirements for Basic Safety and Essential Performance
- IEC 60601-1-2 - Medical Electrical Equipment, Part 1-2: Electromagnetic Compatibility, Requirements and Tests
- ISO 13485 - Medical Devices: Quality Management Systems, Requirements for Regulatory Purposes
- ISO 14971 - Medical Devices: Application of Risk Management to Medical Devices
- ISO 10993-1 - Biological Evaluation of Medical Devices, Part 1: Evaluation and Testing Within a Risk Management Process
Key Features
The ToronComfort™ 1010 pairs full electric control with obstetric accessories designed for every stage of birth.
- Full Electric Positioning: four linear motors drive backrest, seat, height, and leg movement from a siderail control panel for effortless, precise adjustment
- Fifteen-Plus Birth Positions: a wide range of postures, from semi-seated to squatting and throne, lets the mother labor and deliver in the most effective position
- LDR Single-Room Workflow: one bed handles labor, delivery, recovery, and examination, removing patient transfers between rooms
- Mechanical CPR Release: drops the backrest flat in seconds for emergency resuscitation or rapid conversion to an operating position
- Height Range 485 to 860 mm: a low entry height for safe patient access and a high working level for clinician comfort during delivery
- Detachable Auxiliary Table: bears up to 181 kg and removes to open perineal access, then reattaches for examination and procedures
- V-Cushion and Dirt Basin: shape the perineal area for clear access and collect fluids during delivery for a cleaner field
- Power-Assisted and Midwifery Handrails: give the mother secure handholds to manage contractions and hold delivery postures comfortably
- Dual Siderail Control Panels: clearly marked pictogram controls on both sides let staff operate the bed from either approach
- Backup Battery: keeps the bed positionable during a power interruption
- Night Light and Function Lock: a soft light for low-disturbance checks and a lock that prevents accidental adjustment
- Central-Brake Casters and Anti-Collision Bumpers: lock all four wheels for stability and protect the bed and walls during transport
- Whole-Bed Emergency Stop: an accessible stop button on the bed head halts all motion instantly
- IPX4 Splash Protection: water-resistant construction stands up to the fluids of the delivery environment
Technical Specifications
Parameter | Specification |
External Dimensions (L × W × H) | 2320 × 990 × 485-860 mm |
Siderail Height Above Bed Surface | 370 mm (without mattress) |
Backrest Angle | 0-60° |
Seat Plate Fold-Up | 0-15° |
Trendelenburg / Reverse-Trendelenburg Tilt | 0-8° |
Leg Frame Lifting Stroke | 205 mm ±15 mm |
Height Adjustment Stroke | 375 mm |
Safe Working Load | 227 kg |
Auxiliary Table Safe Working Load | 181 kg |
Power Supply | 100-240 VAC, 50/60 Hz |
Maximum Power Input | 230 VA |
Ingress Protection | IPX4 |
Safety Classification | Class I |
Electric Shock Protection | Type B applied part |
Mattress | Waterproof, breathable polyurethane |

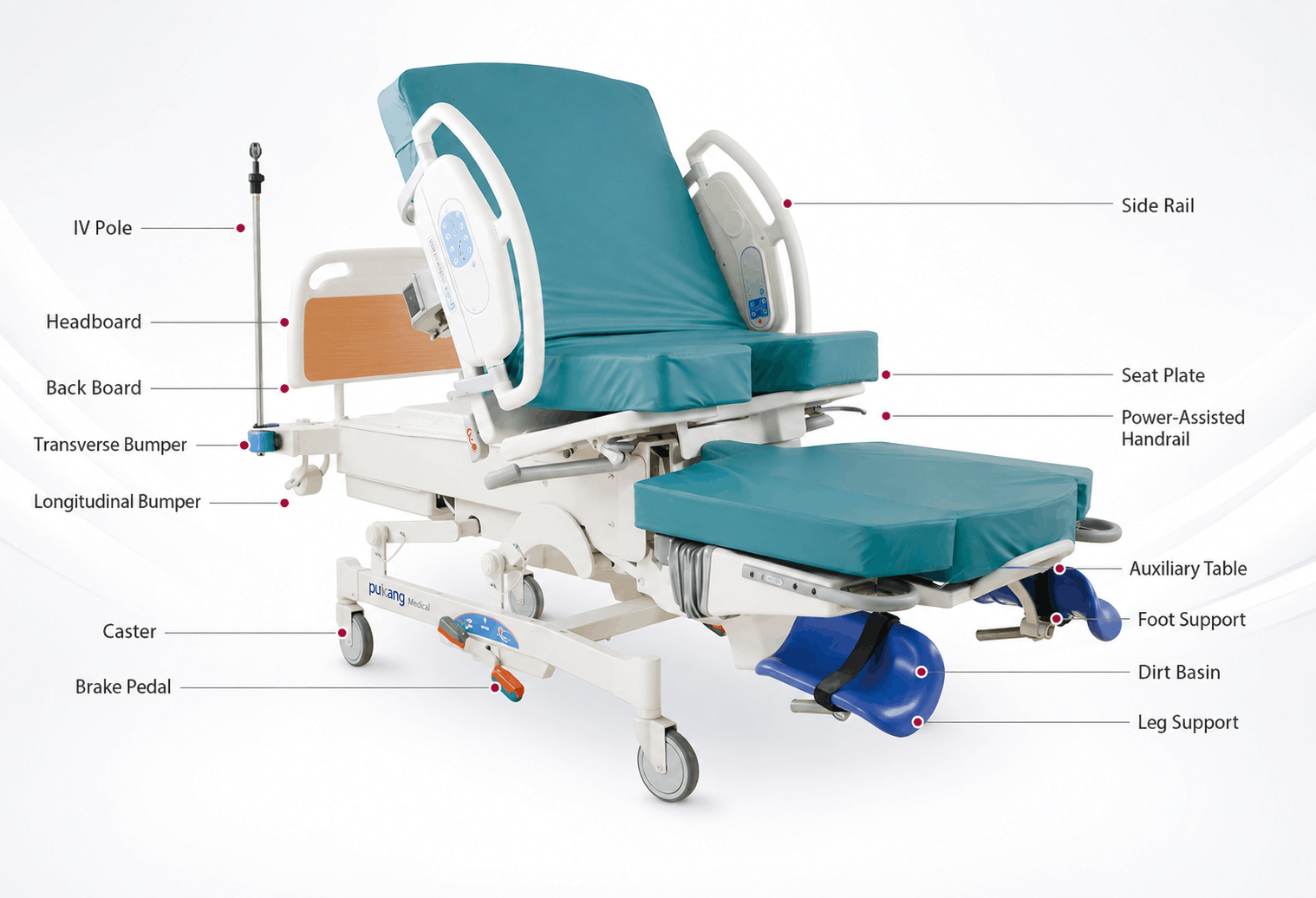

Standard Configuration
Item | Quantity |
Control box | 1 pc |
Linear motor | 4 pcs |
Siderail control panel | 2 sets |
Backup battery | 1 pc |
Night light | 1 pc |
Emergency stop switch | 1 pc |
Headboard | 1 pc |
Siderail | 1 set |
Mattress platform (PE) | 1 set |
Central brake castor | 4 pcs |
Protective bumper | 4 pcs |
Holes for I.V. pole | 2 pcs |
Power-assisted handrail | 2 pcs |
Leg support | 2 pcs |
Dirt basin | 1 pc |
Mattress | 1 set |
