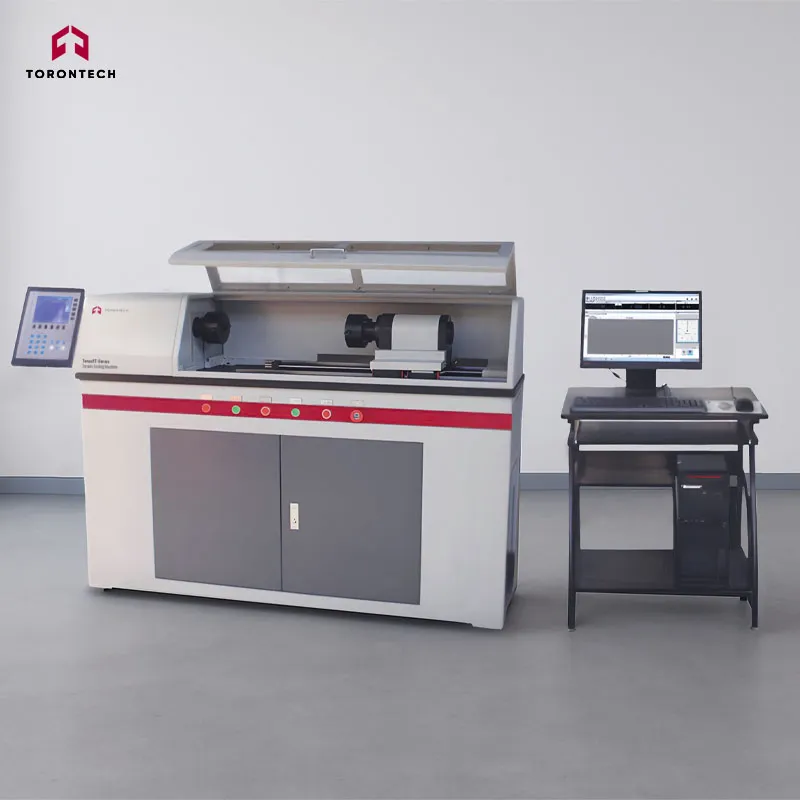

Computer - Controlled Torsion Testing Machine ToronTT™-500
Parent Product
Computer - Controlled Torsion Testing Machine ToronTT™-500 is a high-precision torsion testing system with a servo motor drive, advanced control software, and built-in safety features. It ensures stable, efficient, and accurate torque measurement for various materials, delivering comprehensive test reports instantly.
Standards
ASTM A938-2004《Metal Wire Torsion Test Standard Test Method》
Inspection standard: JJG269-2006 "Torsion Testing Machine"
Test method: GB/T10128-2007 "Metal Room Temperature Torsion Test Method"
Usage
This machine is used for metal, non-metallic, composite materials and components torsion performance test.
- Servo motor drive ensures consistent reverse speed.
- Cycloidal reducer drive provides high efficiency and stability.
- The electrical control system offers exceptional stability, reliable operation, fast response, and low noise. Parameters adjust based on different models to optimize performance.
- Built-in safety features include overload protection and emergency stop functions.
- Test software, designed for the English Windows platform, offers robust data and graphics processing capabilities, generating complete test reports and curves instantly.
- Features include automatic torque tracking, torsion angle measurement, load rate indication, and peak hold.
- Test data is automatically processed, displayed, and printed, including test date, number, material properties, rotation direction, strength, and other key details.
- High-precision linear guides ensure accurate coaxiality and parallel alignment.
| Max. torque (N.m) | 500 |
| Measuring range of torque | 2%-100%FS |
| Accuracy class | 1 class |
| Relative error of indicating value of torque | ±1% |
| Resolution of torque | 1/300000 of max. torque |
| Measuring range of torsion angle | 0º-9999º |
| Relative error of indicating value of torsion angle | ±1% |
| Resolution of torsion meter torsion angle | 0.01º |
| Torsion speed | 3.6-1080°/min |
| Relative error of torsion speed | Within ±1.0% of setting value |
| Max. distance between two collets (mm) | 500 |
| Sample test parallel end diameter | Φ6～Φ15mm |
| Sample clamping end diameter | Φ20 |
| Voltage (V) | 220V 50Hz (110V is also available) |
