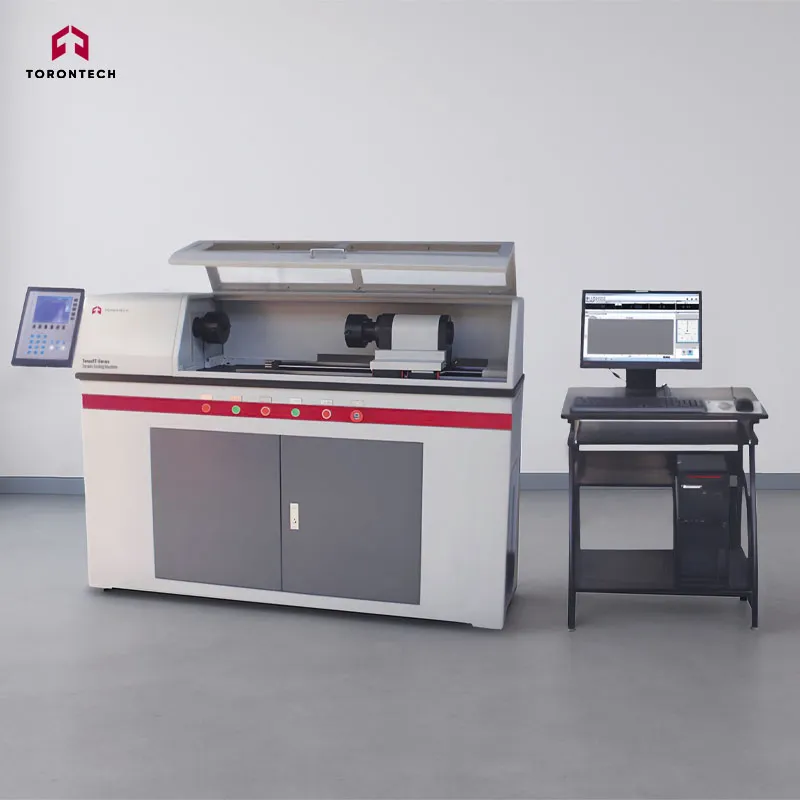

Computer - Controlled Torsion Testing Machine ToronTT™-200
Parent Product
Computer - Controlled Torsion Testing Machine ToronTT™-200 delivers precise torque testing with a servo motor drive, high-stability control system, and advanced data processing. It features automatic torsion angle measurement, overload protection, and real-time test reporting, ensuring accuracy and reliability in material testing.
Standards
STM A938-2004《Metal Wire Torsion Test Standard Test Method》
Inspection standard: JJG269-2006 "Torsion Testing Machine"
Test method: GB/T10128-2007 "Metal Room Temperature Torsion Test Method"
Usage
This machine is used for metal, non-metallic, composite materials and components torsion performance test.
- Servo motor drive ensures consistent reverse speed.
- Cycloidal reducer drive enhances efficiency and stability.
- The electrical control system offers high stability, smooth operation, quick response, low noise, and adjustable parameters for optimal performance.
- Includes overload protection, emergency stop, and other safety features.
- User-friendly test software on an English Windows platform with advanced data and graphics processing, enabling instant test reports and curve generation.
- Features torque value tracking, automatic torsion angle measurement, loading rate display, peak holding, and more.
- Automatically processes and displays test data, including test date, sample number, material properties, strength, and other key details.
- High-precision linear guide ensures accurate coaxiality and parallel alignment.
| Max. torque (N.m) | 200 |
| Measuring range of torque | 2%-100%FS |
| Accuracy class | 1 class |
| Relative error of indicating value of torque | ±1% |
| Resolution of torque | 1/300000 of max. torque |
| Measuring range of torsion angle | 0º-9999º |
| Relative error of indicating value of torsion angle | ±1% |
| Resolution of torsion meter torsion angle | 0.01º |
| Torsion speed | 3.6-1080°/min |
| Relative error of torsion speed | Within ±1.0% of setting value |
| Max. distance between two collets (mm) | 500 |
| Sample test parallel end diameter | Φ5～Φ12mm |
| Sample clamping end diameter | Φ20 |
| Voltage (V) | 220V 50Hz (110V is also available) |
