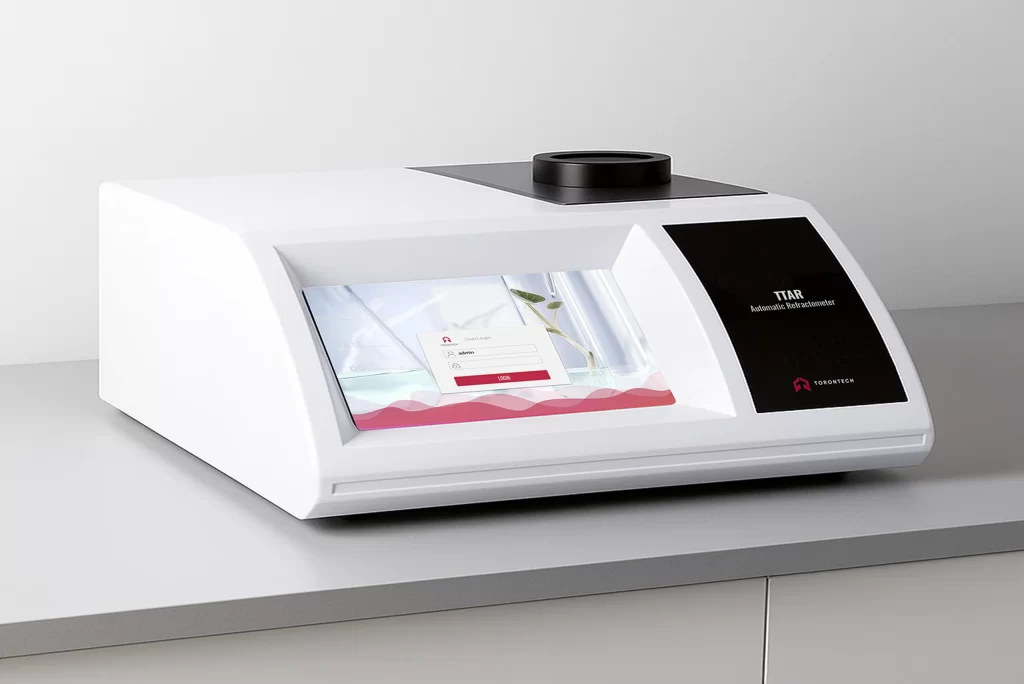

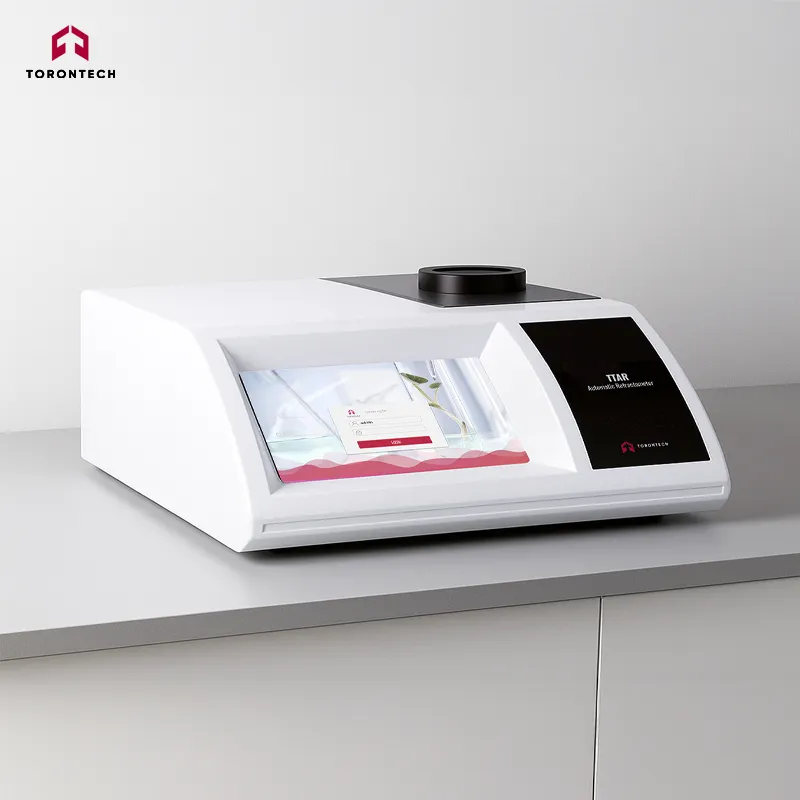

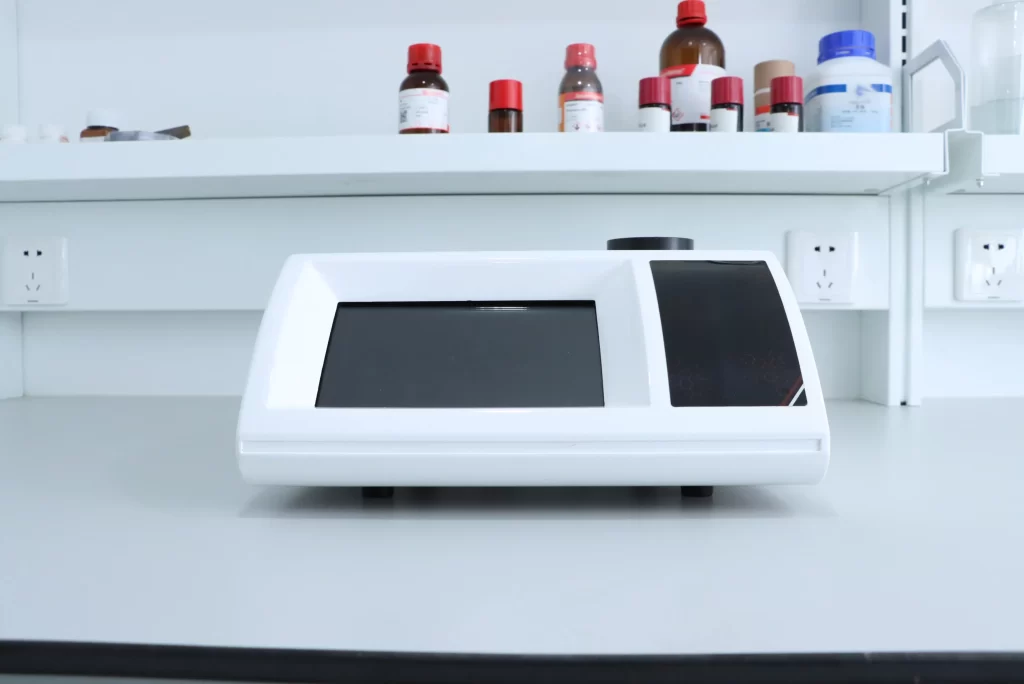

Automatic Refractometer TTAR-Series
TTAR-Series Automatic Refractometer features a high-performance linear CCD sensor. With advanced signal acquisition, analysis, and processing capabilities, the Digipol-R integrates a semiconductor Partesuper temperature control system. It accurately and efficiently measures the refractive index (Nd) and Brix (sugar concentration) of transparent, translucent, dark, and viscous liquids.
Fields of use
The automatic refractometer is widely used across various industries, including petroleum, oil, pharmaceuticals, food production, daily chemicals, and sugar processing. It is also a standard instrument in educational institutions and scientific research facilities.
Food Industry:
Used for quality control of raw materials, in-process products, and finished goods. It helps determine concentrations of dry matter, solids, and sugars, and ensures purity in products such as sugar, desserts, beverages, dairy, chocolate, coffee, oils, and fats.
Pharmaceutical Industry:
Used to analyze solid content in blood and urine, and to verify product purity.
Cosmetics Industry:
Measures the refractive index of essential oils and fragrances, and analyzes fatty acid content in soaps and scented formulations.
Chemical and Petrochemical Industries:
Measures the refractive index of raw materials and reagents, verifies substance purity, and evaluates the refractive index and concentration of petroleum-based products and lubricating oils.
Automatic Refractometer TTAR-Series Features
- Built-in Parpaste temperature control system enhances accuracy and stability.
- With dual temperature control and a durable sapphire prism.
- Uses an LED cold light source, replacing traditional sodium and halogen lamps.
- Compliant with 21 CFR Part 11 for audit trails, pharmacopeia standards, and electronic signatures.
- Supports network printing and data search with statistical reporting features.
- Multi-level access control with customizable user permissions.

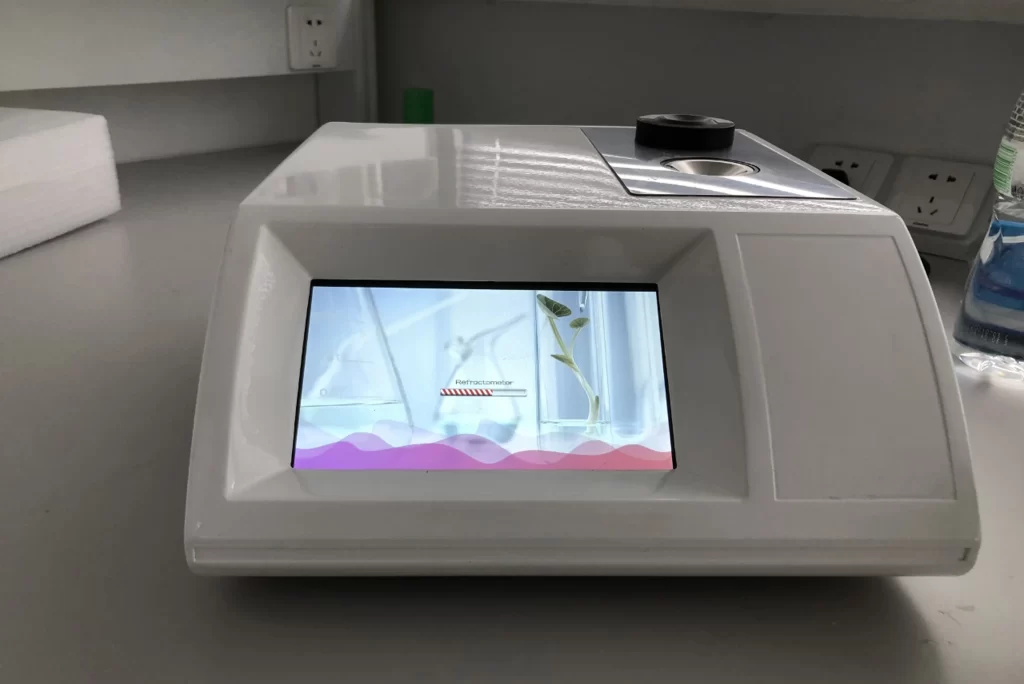

- Touchscreen color display with an intuitive, user-friendly interface.
- Fully certified with TART and CE standards.
| Specification | TTAR-200 | TTAR-300 | TTAR-500 | TTAR-600 |
|---|---|---|---|---|
| Range | 1.30000-1.70000 (nD) | |||
| Resolution | 0.0001 (nD) | 0.0001 (nD) | 0.00001 (nD) | 0.00001 (nD) |
| Precision | ±0.0002 | ±0.0002 | ±0.00003 | ±0.00002 |
| Brix Range | 0-100% (Brix) | |||
| Brix Accuracy | ±0.1% (Brix) | ±0.1% (Brix) | ±0.05% (Brix) | ±0.01% (Brix) |
| Test Mode | Refractive index / sugar content or customized | Refractive index / sugar content or customized | Refractive index / sugar content / honey moisture / salinity or customized | Refractive index / sugar content / honey moisture / salinity or customized |
| Temperature Control Method | None | Built-in Peltier | Built-in Peltier | Built-in Peltier |
| Temperature Control Range | Room temperature | 5℃-65℃ | 5℃-65℃ | 5℃-90℃ |
| Temperature Control Stability | Room temperature | ±0.03℃ | ±0.02℃ | ±0.01℃ |
| Light Source | LED | |||
| Wavelength | 589nm | |||
| Prism | Sapphire | |||

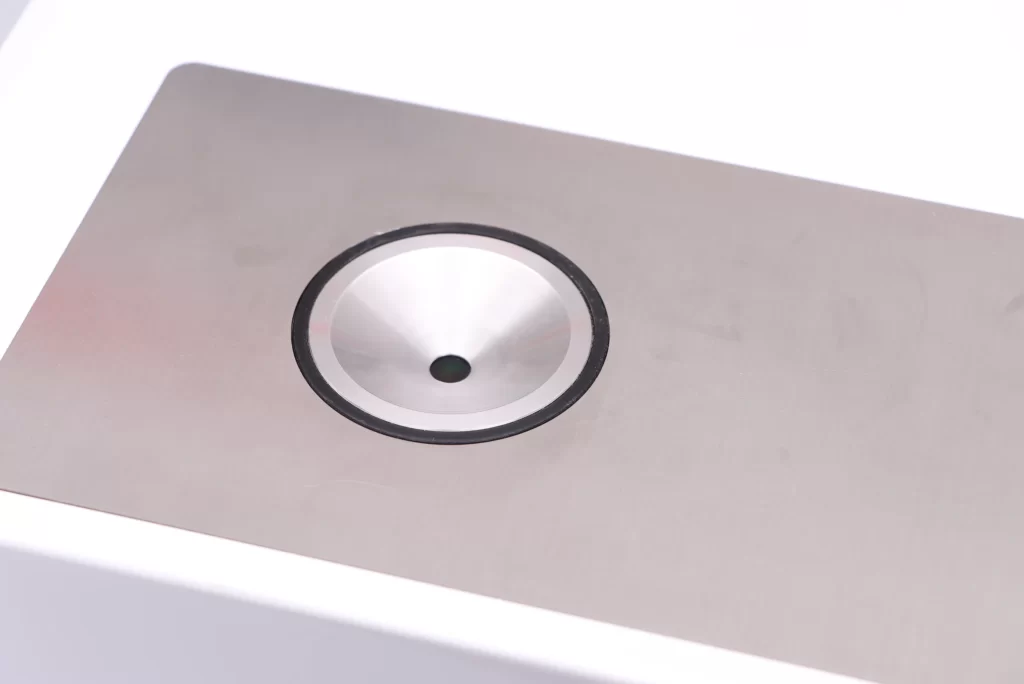

| Sample Cell | Stainless steel | Stainless steel | Hastelloy | Hastelloy |
| Detection Method | High-resolution linear CCD | |||
| Display Method | 7-inch FTF color touch screen | |||
| Data Storage | 32GB | 32GB | 32GB | 64GB |
| Output Method | USB, RS232, RJ45, SD card, U disk | |||
| User Management | Yes/Four-level authority management | |||
| 21CFR PART 11 | YES | |||
| Audit Trail | YES | |||
| Electronic Signature | YES | |||
| Custom Method Library | YES | |||
| Export fofile to verify high-level protection MD5 | YES | |||
| WiFi Printing | YES | |||
| Export in multiple file formats | PDF & Excel | |||
| Packing Size | 440 × 400 × 340mm | |||
| Voltage | 220V / 50Hz (110V is also available) | |||
| Weight | 7.15kg | |||
