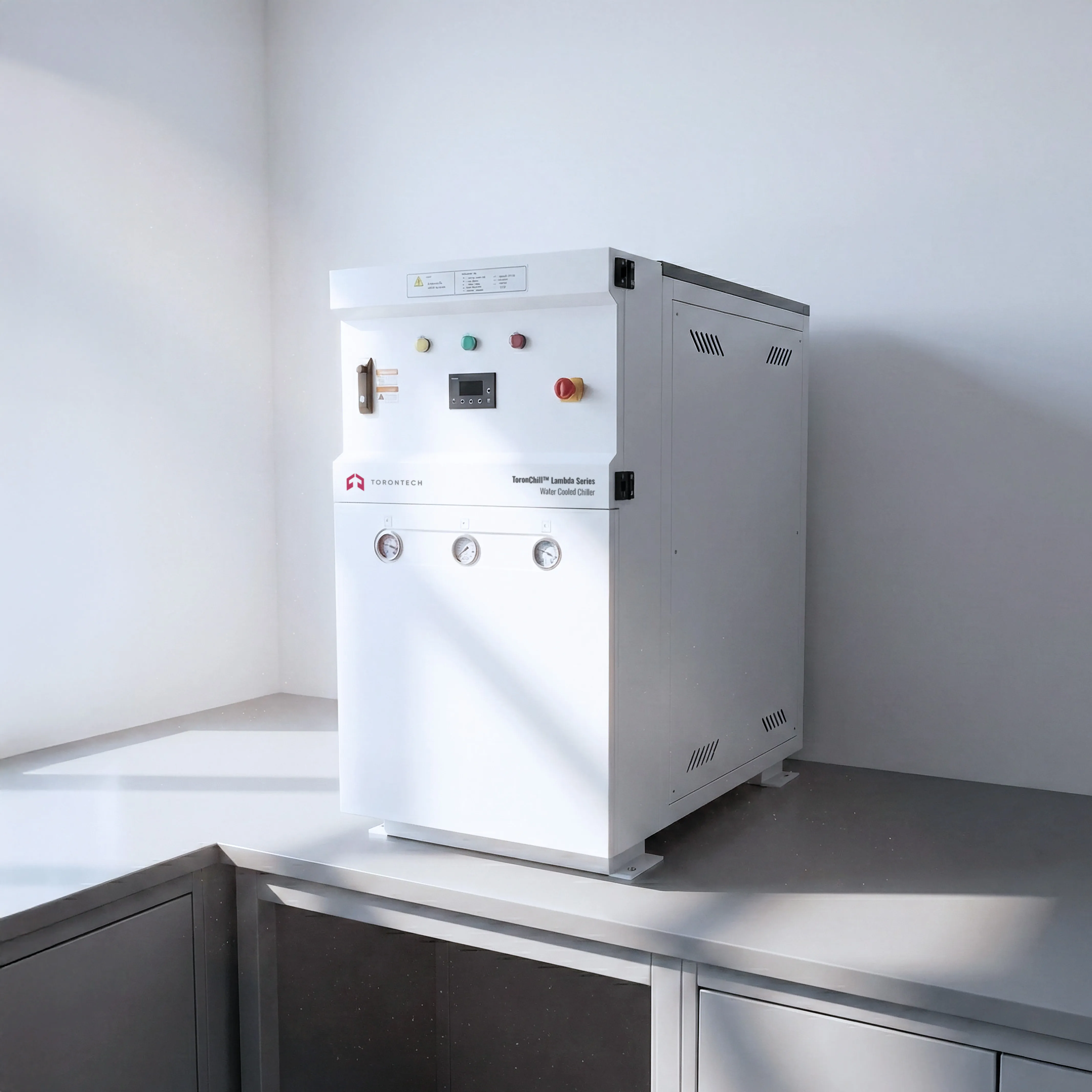

Water Cooled Chiller – ToronChill™ Lambda Series
ToronChill™ Lambda Series is a Water Cooled Chiller built for stable temperature control in demanding industrial chiller applications. It uses external cooling water as the cooling medium to reduce heat discharge and support facilities with cooling-water networks or cooling towers.
Designed for continuous operation, the system combines a stainless-steel reservoir, multi-stage stainless centrifugal pump, and service-friendly panels for easier maintenance. Optional filtration and intelligent temperature control help support consistent process cooling and equipment protection.
Water Cooled Chiller – ToronChill™ Lambda Series Applications
- Vacuum coating machines for stable process cooling during long runs.
- X-ray instruments that need consistent coolant temperature for repeatable performance.
- High-power lasers requiring reliable heat removal and steady flow.
- Vacuum furnaces where cooling stability supports safe, controlled operation.
- Pharmaceutical machinery needing stable utility cooling with protective alarms.
Water Cooled Chiller – ToronChill™ Lambda Series Key Features
- Stainless-steel reservoir (top-opening design) for easier cleaning and improved corrosion resistance in wet utility environments.
- Multi-stage stainless centrifugal pump with stainless or PPR piping options to support stable circulation performance.
- Detachable service panels that simplify inspection and maintenance.
- Microcomputer touch-button control with dual digital display for straightforward operation and quick monitoring.
- Comprehensive protection and alarms including compressor overheat/overcurrent and high/low pressure protection, plus phase sequence/loss protection.
- Optional PID temperature controller supporting tight stability down to ±0.1°C (model dependent).
- Optional PP cotton + resin ion filtration to help maintain water quality and reduce scaling risk in circulation piping.
Water Cooled Chiller – ToronChill™ Lambda Series Technical Specifications
High Stability Chiller (ToronChill™ L**s)
- Temperature Stability: ±0.1°C
- Temperature Range: 5–35°C
| Model | Cooling Capacity (kW @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ L02s | 5.6 | 60 | 3.6 | 60 | 430×635×955 |
| ToronChill™ L03s | 8.0 | 60 | 4.5 | 90 | 490×715×985 |
| ToronChill™ L05s | 15 | 110 | 3.6 | 140 | 540×800×1055 |
| ToronChill™ L06s | 18 | 110 | 3.6 | 200 | 620×980×1403 |
| ToronChill™ L08s | 22 | 110 | 3.6 | 200 | 620×980×1403 |
| ToronChill™ L10s | 30 | 230 | 3.3 | 260 | 700×1100×1453 |
| ToronChill™ L12s | 35 | 230 | 3.3 | 360 | 800×1210×1553 |
| ToronChill™ L16s | 45 | 230 | 4.4 | 360 | 800×1210×1553 |
Economic Chiller (ToronChill™ L**r)
- Temperature Stability: ±2°C
- Temperature Range: 5–35°C
| Model | Cooling Capacity (kW @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ L02r | 5.6 | 60 | 3.6 | 60 | 430×635×954 |
| ToronChill™ L03r | 8.0 | 60 | 4.5 | 90 | 490×715×984 |
| ToronChill™ L05r | 15 | 110 | 3.6 | 140 | 540×800×1054 |
| ToronChill™ L06r | 18 | 110 | 3.6 | 200 | 620×980×1403 |
| ToronChill™ L08r | 22 | 110 | 3.6 | 200 | 620×980×1403 |
| ToronChill™ L10r | 30 | 230 | 3.3 | 260 | 700×1100×1453 |
| ToronChill™ L12r | 35 | 230 | 3.3 | 360 | 800×1210×1553 |
| ToronChill™ L16r | 45 | 230 | 4.4 | 360 | 800×1210×1553 |
| ToronChill™ L20r | 60 | 480 | 4.1 | 500 | 880×1500×1615 |
| ToronChill™ L24r | 70 | 480 | 4.1 | 500 | 880×1500×1615 |
| ToronChill™ L32r | 90 | 480 | 4.1 | 500 | 880×1500×1615 |
| ToronChill™ L40r | 110 | 480 | 5.5 | 800 | 980×1800×1795 |
| ToronChill™ L48r | 140 | 480 | 5.5 | 800 | 980×1800×1795 |
High Stable On/Off Chiller (ToronChill™ L**rb)
- Temperature Stability: ±1°C
- Temperature Range: 5–35°C
| Model | Cooling Capacity (kW @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ L06rb | 18 | 110 | 3.6 | 200 | 620×980×1403 |
| ToronChill™ L10rb | 30 | 230 | 3.3 | 260 | 700×1100×1453 |
| ToronChill™ L12rb | 35 | 230 | 3.3 | 360 | 800×1210×1553 |
| ToronChill™ L16rb | 45 | 230 | 4.4 | 360 | 800×1210×1553 |
