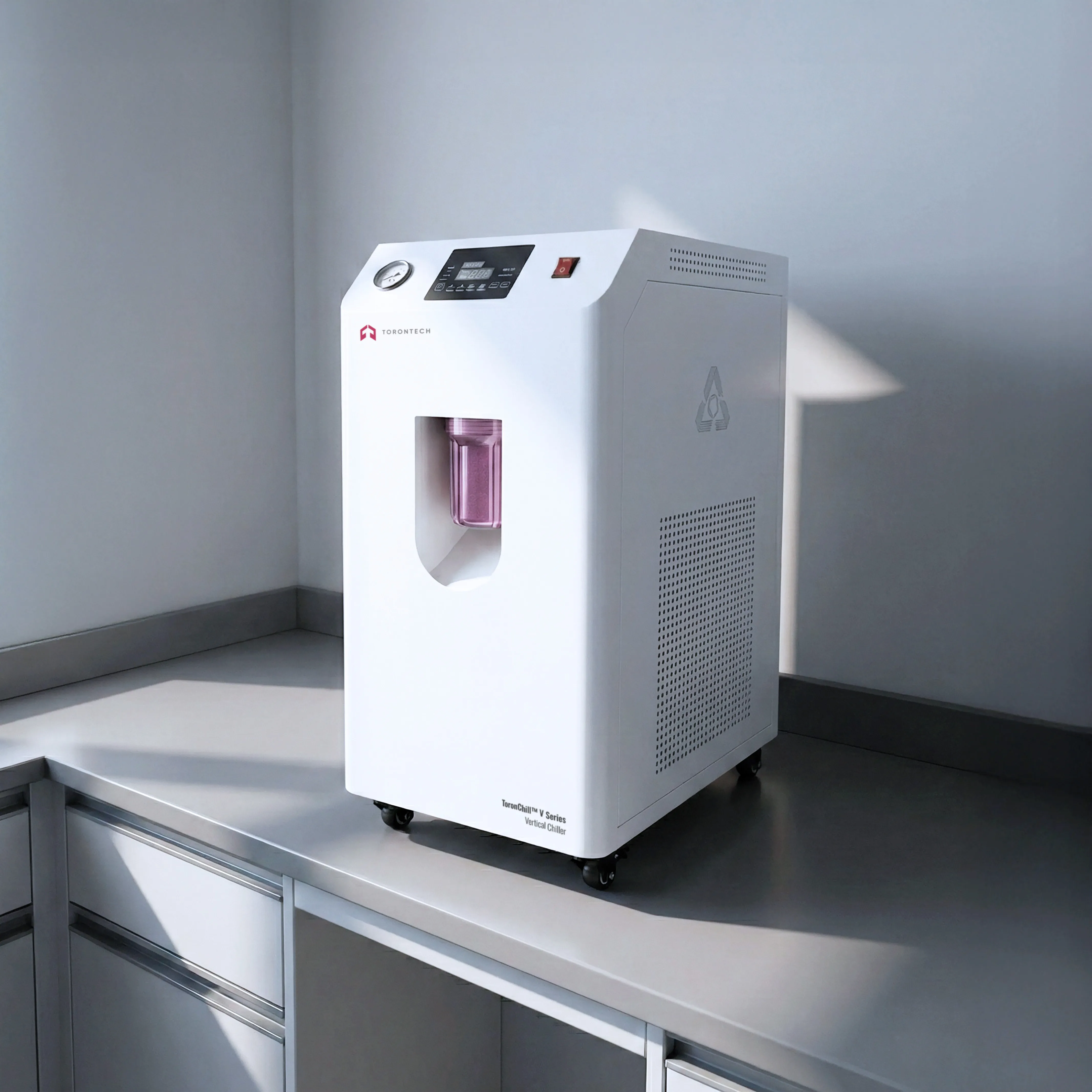

Vertical Chiller – ToronChill™ V Series (Industrial Chiller)
ToronChill™ V Series is an air-cooled vertical Industrial Chiller designed for stable water temperature control in laboratory analysis environments. Built for mature, reliable operation and low-noise performance, this chiller supports continuous cooling for sensitive instruments that require repeatable thermal conditions.
It includes a complete protection and alarm system plus optional water-quality monitoring and control options. Parallel communication can be configured to start/stop the chiller using an external switch signal for easier integration with lab workflows.
Vertical Chiller – ToronChill™ V Series (Industrial Chiller) Applications
- Atomic Absorption Spectrophotometer cooling
- Helps stabilize instrument performance by keeping cooling water consistent during long analytical runs.
- Plasma emission spectroscopy systems
- Supports thermal control for plasma-based lab equipment where heat load can fluctuate during operation.
- Scanning Electron Microscope support cooling
- Provides dependable recirculating cooling for lab environments that prioritize stability and uptime.
- High-frequency melting prototype equipment
- Maintains cooling performance for lab-scale thermal processing and prototype setups.
- Glove box and direct-reading spectrometer cooling
- Helps keep auxiliary cooling loops steady for analytical and controlled-atmosphere systems.
- Kjeldahl nitrogen analyzer cooling
- Supports stable operation for wet-chemistry instrumentation requiring controlled cooling water.
Vertical Chiller – ToronChill™ V Series (Industrial Chiller) Key Features
- Stainless steel reservoir with large opening
- Stainless construction supports durability and corrosion resistance, while the wide opening improves access for filling and inspection.
- Built-in front filter with visual inspection
- Front-mounted filter design lets operators check condition quickly and simplify routine maintenance.
- Level/flow monitoring with alarm signal output
- Standard water level sensor with optional flow switch sensor, plus high/low temperature alarm signal output for safer operation.
- All-stainless water path components and pump options
- Stainless pipe fittings and water pump help support long-term water quality stability; optional resin filter and circulating pure water configuration are available.
- Rear exhaust heat dissipation with low-noise design
- Rear exhaust layout improves heat rejection while supporting energy-saving operation, shock absorption, and reduced noise in lab spaces.
- Integration-ready communication option
- Optional parallel communication supports start/stop control through a switch signal, useful for automated lab setups.
Vertical Chiller – ToronChill™ V Series (Industrial Chiller) Technical Specifications
Air-cooled chiller, reservoir with large cap (ToronChill™ Vs series)
- Temperature Stability: ±0.1 °C
- Temperature Range: 5-35°C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ V1s | 1300 | 15 | 1.3 | 8 | 360×450×653 |
| ToronChill™ V2s | 1600 | 20 | 1.7 | 20 | 430×530×780 |
| ToronChill™ V3s | 2600 | 33 | 2.5 | 30 | 490×580×845 |
| ToronChill™ V4s | 3600 | 40 | 3.4 | 46 | 520×680×995 |
| ToronChill™ V5s | 5500 | 40 | 3.4 | 70 | 580×680×1098 |
Air-cooled chiller, low temperature (ToronChill™ Vs-20 series)
- Temperature Stability: ±0.1 °C
- Temperature Range: -20-35°C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ V1s-20 | 1000 | 15 | 1.3 | 8 | 360×450×653 |
| ToronChill™ V2s-20 | 1300 | 20 | 1.7 | 20 | 430×530×780 |
| ToronChill™ V3s-20 | 2200 | 30 | 2.8 | 30 | 490×580×845 |
| ToronChill™ V4s-20 | 3300 | 40 | 2.8 | 46 | 520×680×995 |
| ToronChill™ V5s-20 | 4600 | 40 | 3.6 | 70 | 580×680×1098 |
Air-cooled chiller, energy saving (ToronChill™ Vr series)
- Temperature Stability: ±1 °C
- Temperature Range: -20-35°C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ V1r | 1300 | 15 | 1.3 | 8 | 360×450×653 |
| ToronChill™ V2r | 1600 | 20 | 1.7 | 20 | 430×530×780 |
| ToronChill™ V3r | 2600 | 33 | 2.8 | 30 | 490×580×845 |
| ToronChill™ V4r | 3600 | 40 | 2.8 | 46 | 520×680×995 |
| ToronChill™ V5r | 5500 | 50 | 3.6 | 70 | 580×680×1098 |
