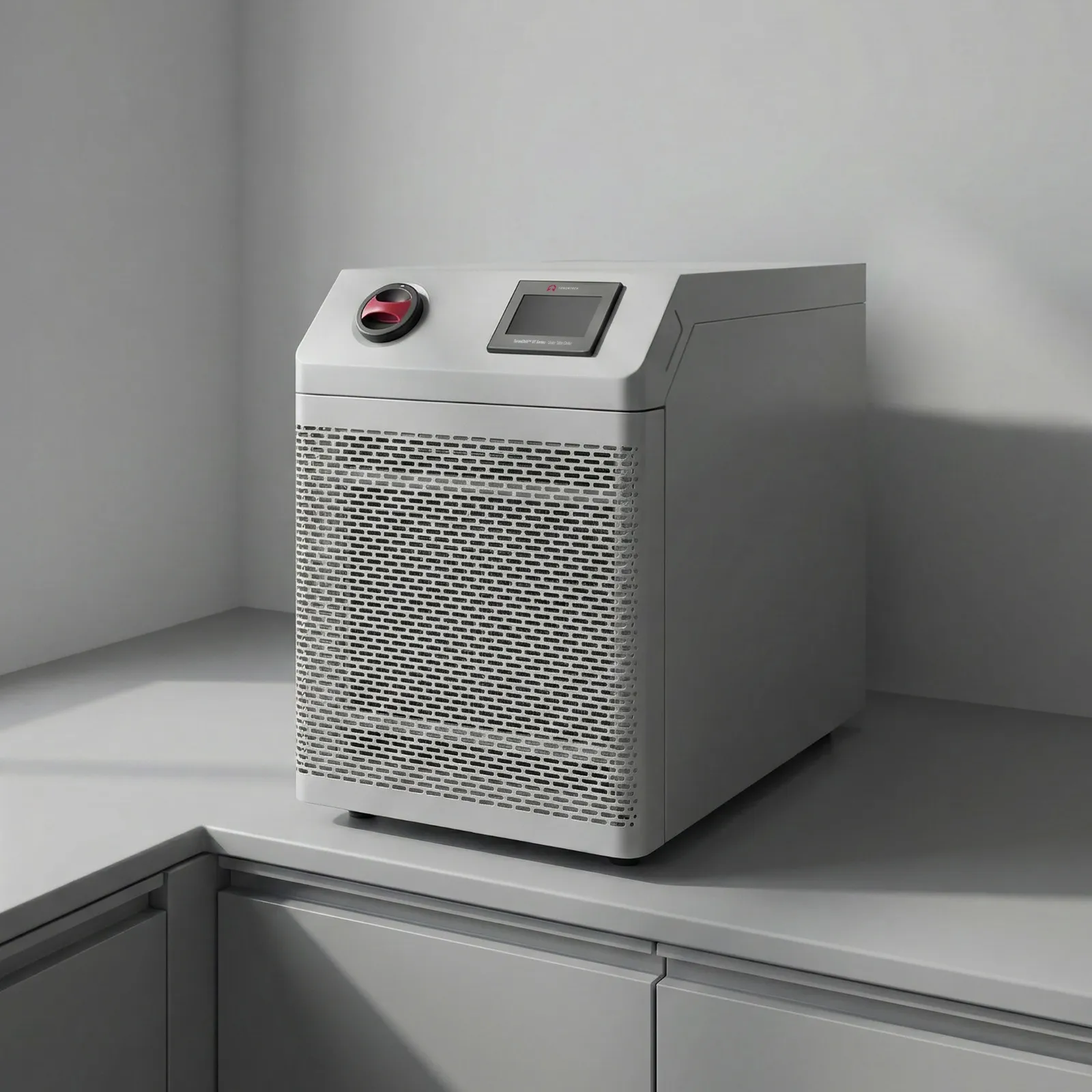

Under Table Chiller – ToronChill™ UT Series (Industrial Chiller)
ToronChill™ UT Series is a compact Industrial Chiller designed to sit under a lab bench and deliver steady, closed-loop water cooling for analytical instruments. Its horizontal, low-height design helps save floor space while supporting stable setpoints for sensitive equipment.
This Industrial Chiller uses intelligent PID temperature control, low-noise airflow, and built-in monitoring to help protect high-value lab systems. Standard filtration and alarm functions support reliable day-to-day cooling in modern laboratory environments.
Under Table Chiller – ToronChill™ UT Series (Industrial Chiller) Applications
- Atomic Absorption Spectrophotometers (AAS): Provides stable cooling to support consistent operation during extended test runs.
- ICP-OES / ICP-MS: Maintains coolant flow and temperature for plasma spectrometry systems with high thermal loads.
- Scanning Electron Microscopes (SEM): Supports cooling for components that require stable thermal conditions for repeatable imaging.
- Glove Boxes / Plasma Etchers: Helps control heat from auxiliary subsystems and circulating loops.
- Direct-Reading Spectrometers & Kjeldahl Systems: Supplies dependable cooling water to help keep workflows stable and predictable.
Under Table Chiller – ToronChill™ UT Series (Industrial Chiller) Key Features
- Intelligent PID temperature control: Helps maintain high temperature stability for lab-grade cooling performance.
- Under-table horizontal design: Built to fit under benches to maximize usable lab space.
- Automatic start-up setting: Auto start-up can be configured via software for easier daily operation.
- Water level and flow protection: Includes a standard water-level alarm system and an optimized water-flow alarm system.
- Low-noise, high-performance circulating pump: Supports steady circulation with reduced noise in lab environments.
- Stainless steel water tank: Easy to clean and designed for long service life in demanding lab use (material grade available on request).
Under Table Chiller – ToronChill™ UT Series (Industrial Chiller) Technical Specifications
High Stability Chiller (ToronChill™ UT*s series)
- Temperature Stability: ±0.1 °C
- Temperature Range: 5 to 35 °C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ UT1s | 1600 | 20 | 1.7 | 3 | 320×580×520 |
| ToronChill™ UT2s | 2600 | 40 | 3.6 | 4 | 380×700×615 |
| ToronChill™ UT3s | 3600 | 40 | 3.6 | 6 | 450×700×680 |
High Stability Low-Temperature Chiller (ToronChill™ UT*s-20 series)
- Temperature Stability: ±0.1 °C
- Temperature Range: -20 to 35 °C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ UT1s-20 | 1200 | 15 | 1.6 | 3 | 320×580×520 |
| ToronChill™ UT2s-20 | 2200 | 18 | 2.6 | 4 | 380×700×615 |
| ToronChill™ UT3s-20 | 3200 | 18 | 2.6 | 6 | 450×700×680 |
High Stability High & Low Temperature Chiller (ToronChill™ UTs-29 Series)
- Temperature Stability: ±0.1 °C
- Temperature Range: -20 to 95 °C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ UT1s-29 | 1200 | 18 | 1.5 | 3 | 320×580×520 |
| ToronChill™ UT2s-29 | 2200 | 25 | 3.5 | 4 | 380×700×615 |
| ToronChill™ UT3s-29 | 3200 | 25 | 3.5 | 6 | 450×700×680 |
